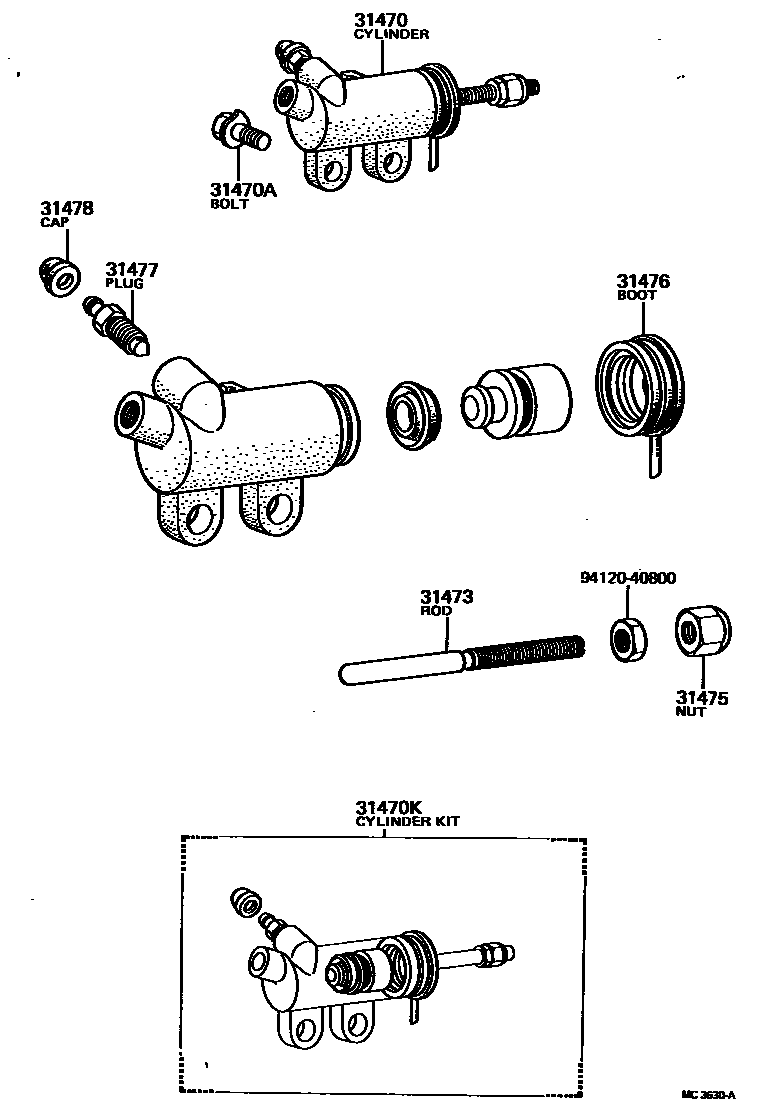

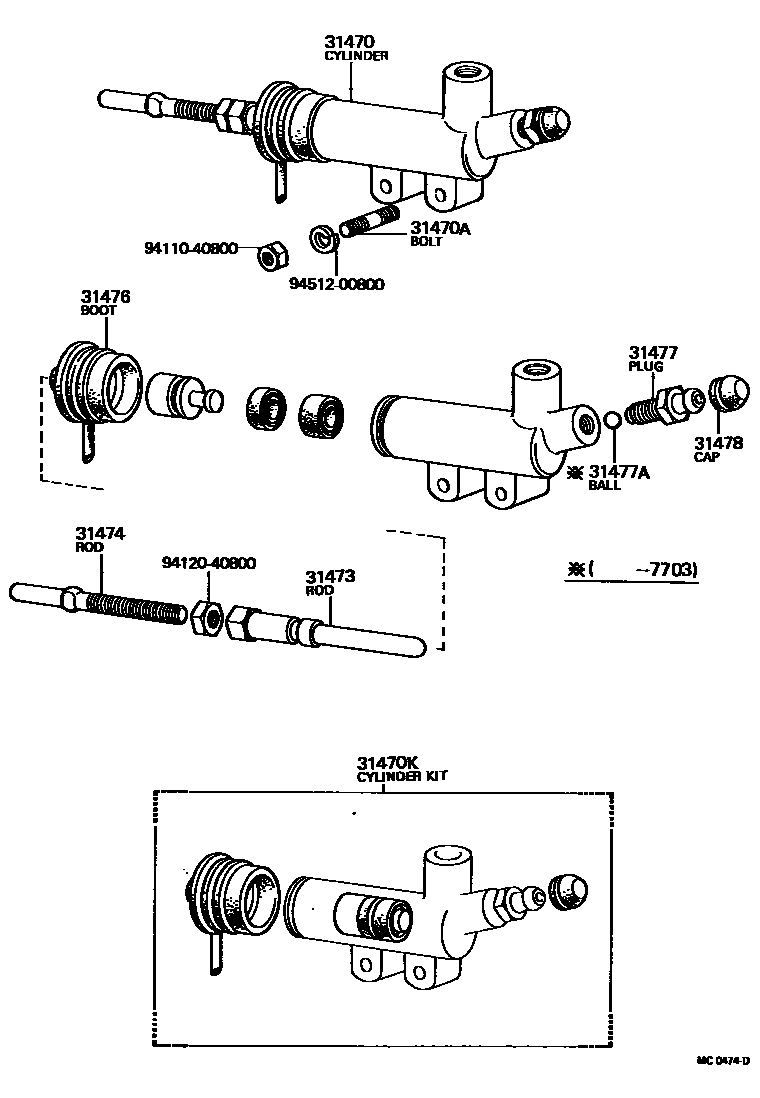

Toyota HILUX 离合器分离缸 — Figure 3105
Toyota HILUX EPC diagram 3105, 离合器分离缸, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31470 | Clutch release cylinder assembly | 31470-20090 · 31470-20091 · 31470-26010 |
| 31470A | Bolt (for securing clutch release cylinder) | 90116-08018 · 91611-40825 · 91611-40828 |
| 31470K | Clutch release cylinder assembly | 04313-30042 · 04313-30052 · 04313-30054 |
| 31473 | No. 1 clutch release cylinder push rod | 31473-30021 · 31473-35010 |
| 31474 | No. 2 clutch release cylinder push rod | 31771-20010 |
| 31475 | Clutch release cylinder push rod nut | 31475-30011 · 31475-30020 |
| 31476 | Clutch release cylinder dust boot | 31476-20030 · 31476-20040 · 31476-30010 · 31476-30021 |
| 31477 | Bleed plug (for separation cylinder) | 31477-30010 · 47547-12010 |
| 31477A | Steel ball (for separator cylinder bleed plug) | 90360-05006 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
