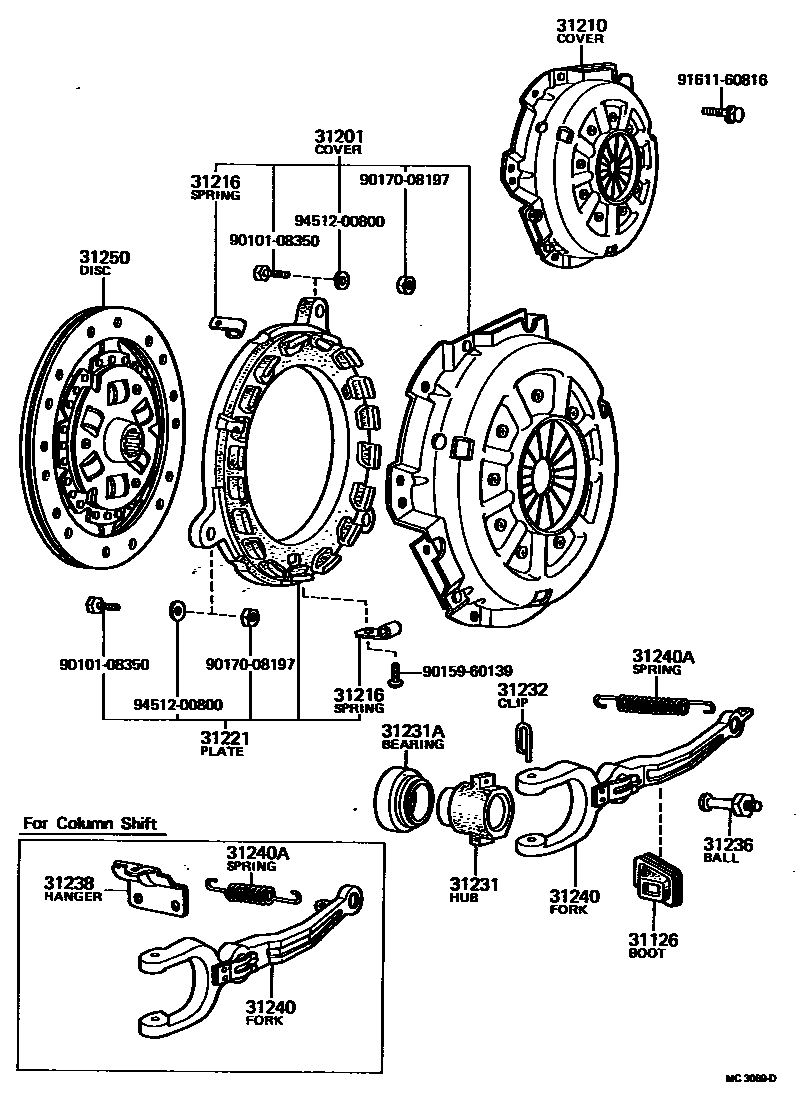

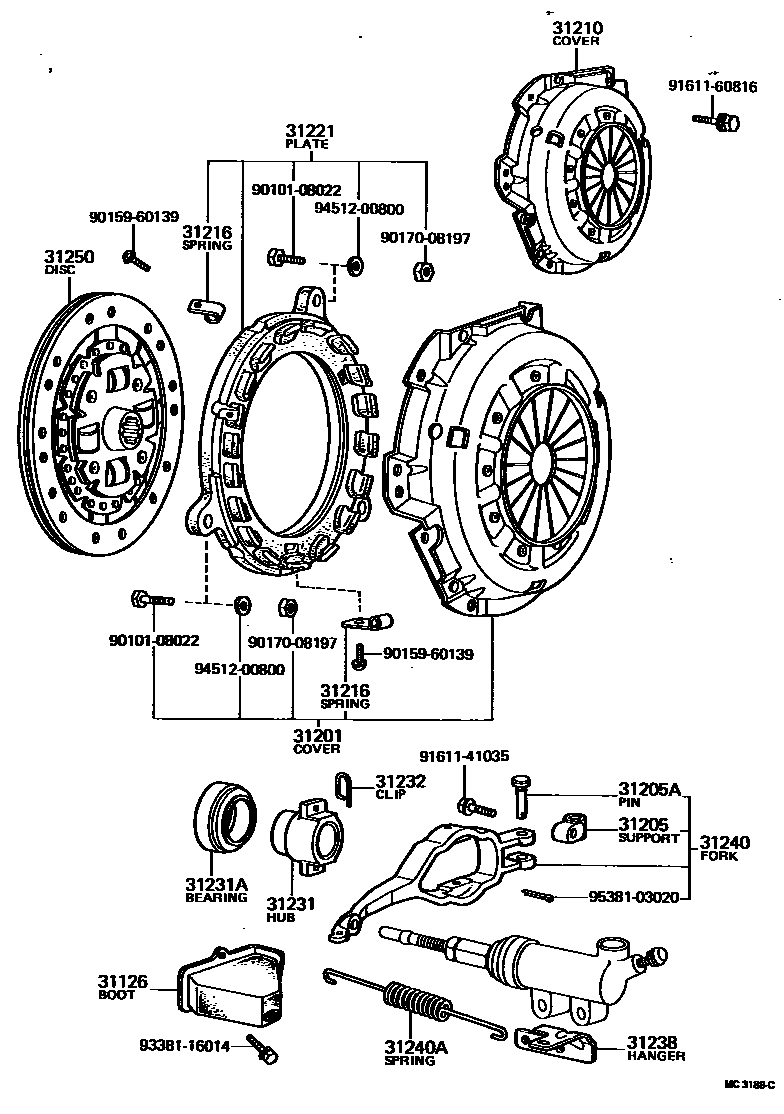

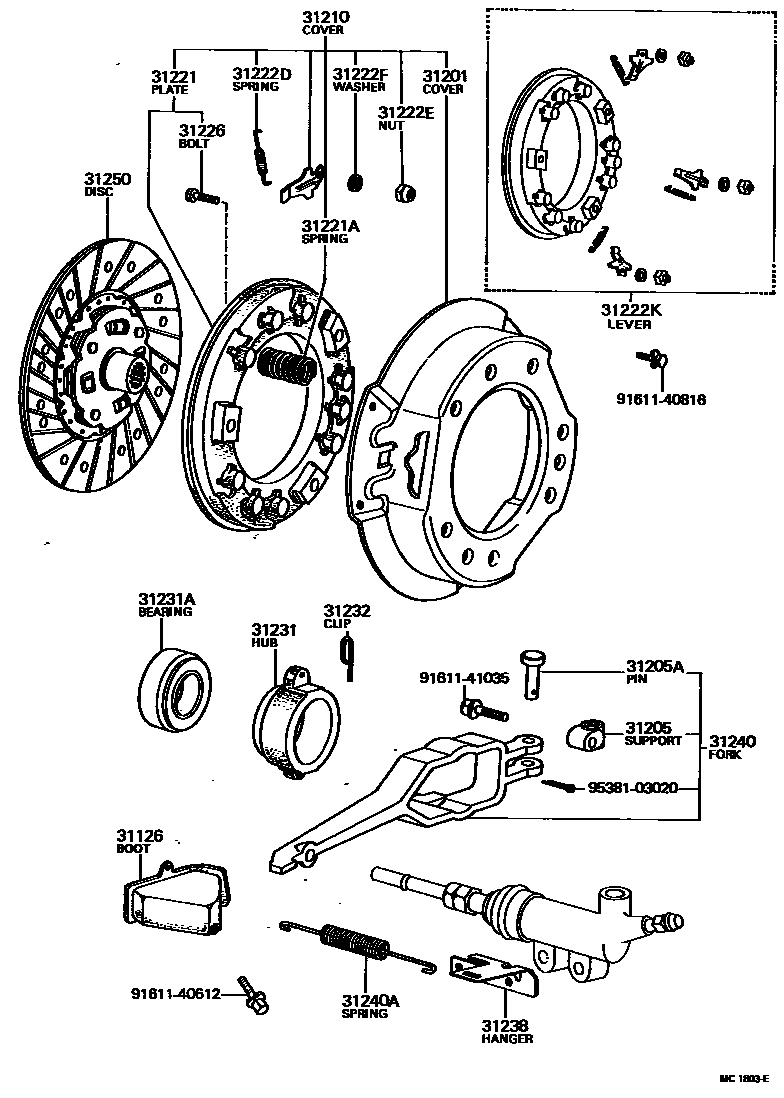

Toyota HILUX 离合器和分离叉 — Figure 3101
Toyota HILUX EPC diagram 3101, 离合器和分离叉, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-20050 · 31126-22030 · 31126-26010 |
| 31201 | Clutch cover sub-assembly | 31201-29045 · 31201-29075 · 31201-36020 · 31201-39045 |
| 31205 | Separating fork bracket sub-assembly | 31205-30010 |
| 31205A | Serrated pin (for breakout fork bracket) | 90245-10072 |
| 31210 | Clutch cover assembly | 31210-20120 · 31210-20130 · 31210-26010 · 31210-35040 |
| 31216 | clutch return spring | 31216-30010 |
| 31221 | clutch pressure plate | 31202-26010 · 31221-29025 · 31221-39045 |
| 31221A | Compression spring (for clutch) | 90501-40612 |
| 31222D | Tension spring (for clutch pressure lever) | 90506-10022 |
| 31222E | Nut (for adjusting clutch pressure lever) | 90179-10111 |
| 31222F | Washer (for clutch pressure lever) | 90201-10429 |
| 31222K | Clutch pressure lever assembly | 04315-36021 |
| 31226 | Clutch pressure plate bolt | 90114-10088 |
| 31231 | Clutch release bearing hub | 31231-20030 · 31231-35010 · 31231-35020 |
| 31231A | Ball bearing (for clutch release hub) | 90363-40003 · 90363-40045 · 90363-40061 · 90363-40078 |
| 31232 | Release bearing hub clip or spring | 31232-20010 · 31232-30010 |
| 31236 | Breakaway fork steel ball | 31236-20020 |
| 31238 | Release fork return spring hanger | 31238-26010 · 31238-35021 |
| 31240 | Clutch release fork assembly | 31204-20020 · 31204-35021 · 31240-35010 |
| 31240A | Tension spring (for clutch release fork return) | 90506-12431 · 90506-16004 · 90506-16282 · 90506-16402 · 90506-18468 |
| 31250 | Clutch disc assembly | 31250-22050 · 31250-26040 · 31250-28011 |
