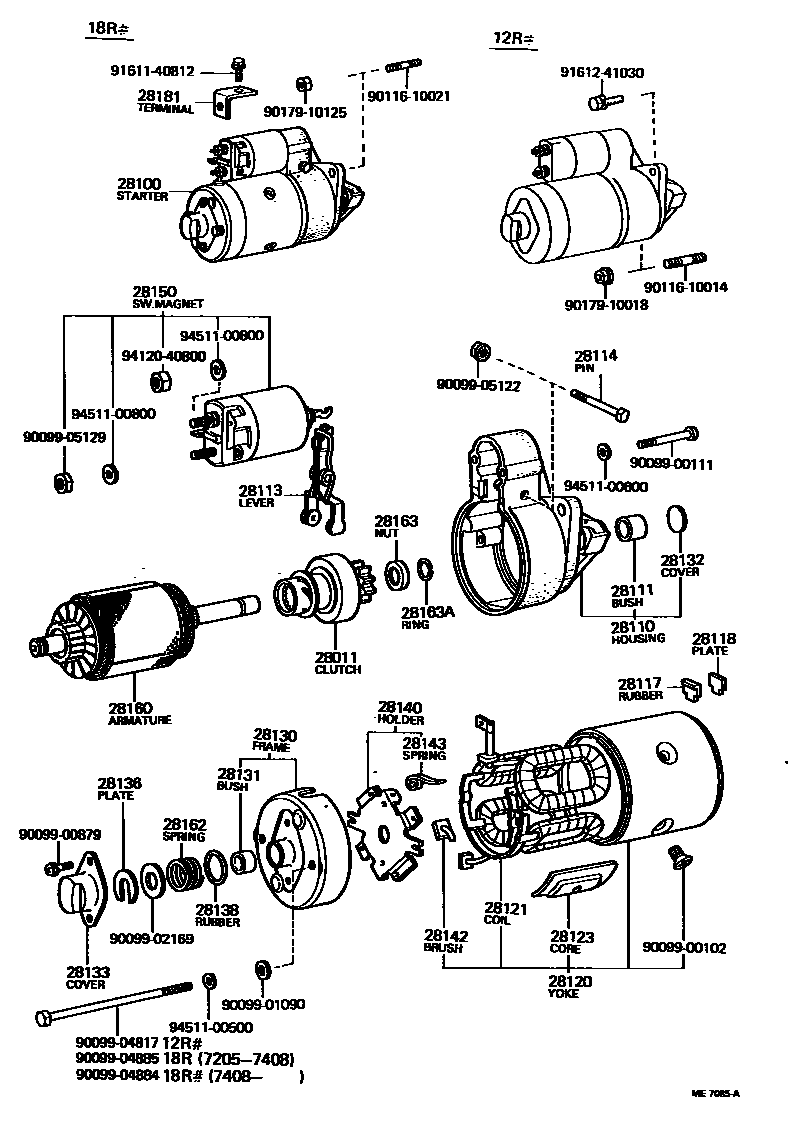

Toyota HILUX 起动机 — Figure 1904
Toyota HILUX EPC diagram 1904, 起动机, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-41011 · 28011-41012 |
| 28100 | Starter assembly | 28100-23010 · 28100-23011 · 28100-36040 · 28100-36060 · 28100-40014 · 28100-40041 |
| 28110 | Starter drive end housing assembly | 28110-40019 · 28110-40030 · 28110-40045 |
| 28111 | Bushing (for starter housing) | 28111-51011 |
| 28113 | starter pinion drive rod | 28113-41011 |
| 28114 | starter drive lever | 28114-41011 |
| 28117 | Rubber sheet (for starter yoke) | 28117-41012 · 28117-41013 |
| 28118 | Plate (for starter yoke) | 28118-41012 · 28118-41013 |
| 28120 | Starter yoke assembly | 28120-36040 · 28120-40011 · 28120-89101 |
| 28121 | starter excitation coil | 28121-36040 · 28121-40014 · 28121-41011 |
| 28123 | Starter pole core | 28123-40012 · 28123-41011 |
| 28130 | Starter commutator end frame assembly | 28130-21011 |
| 28131 | Commutator end frame bushing | 28131-20010 · 90099-10039 · 90099-10040 |
| 28132 | Starter bearing cap (for drive end housing) | 28166-41011 |
| 28133 | Bearing caps (for end frame caps) | 28132-41011 |
| 28136 | starter lock plate | 28136-41011 |
| 28138 | Rubber sheet (for starter bearing cap) | 28138-41011 |
| 28140 | Starter brush holder assembly | 28140-41012 · 28140-41013 |
| 28142 | starter brush | 28142-21010 |
| 28143 | starter brush spring | 28143-40010 · 28143-40040 |
| 28150 | Starter electromagnetic switch assembly | 28150-12030 · 28150-22011 · 28150-23010 · 28150-23011 · 28150-36050 |
| 28160 | Starter armature assembly | 28160-40014 · 28160-41011 |
| 28162 | starter brake spring | 28162-41011 |
| 28163 | Starter pinion snap nut or snap ring | 28163-40011 · 28163-41011 |
| 28163A | Snap ring (for starter pinion stop nut) | 90099-07047 |
| 28181 | starter terminal | 28181-20010 |
