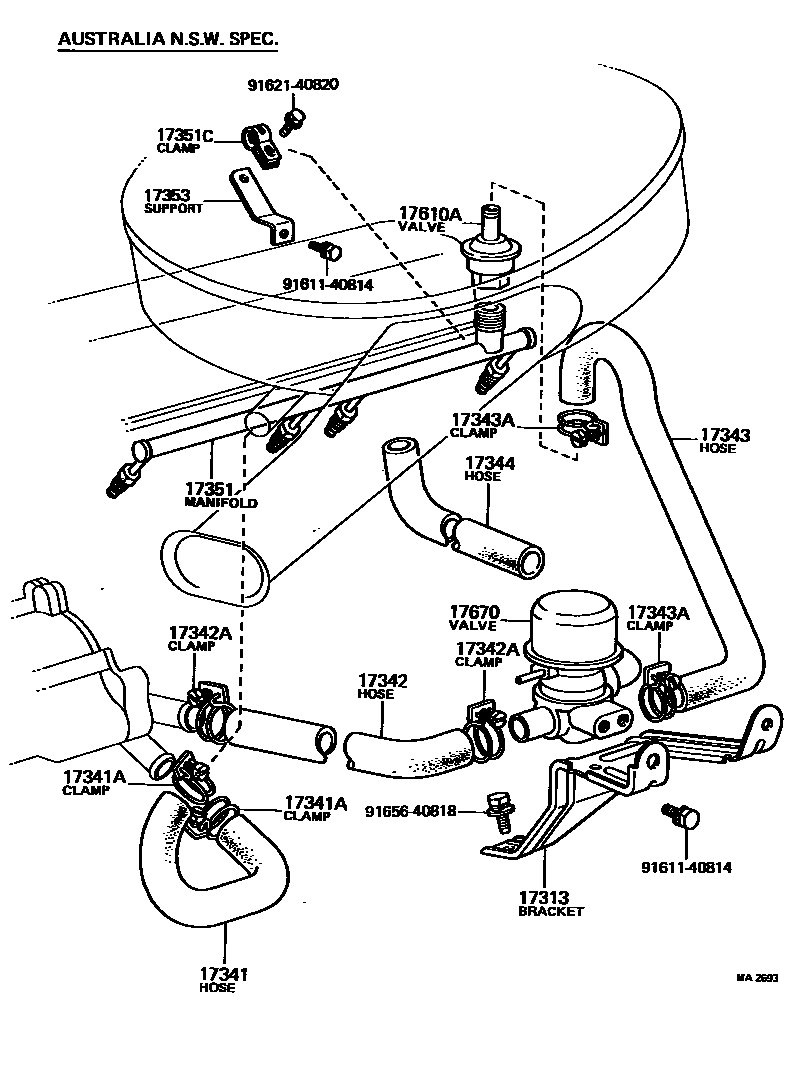

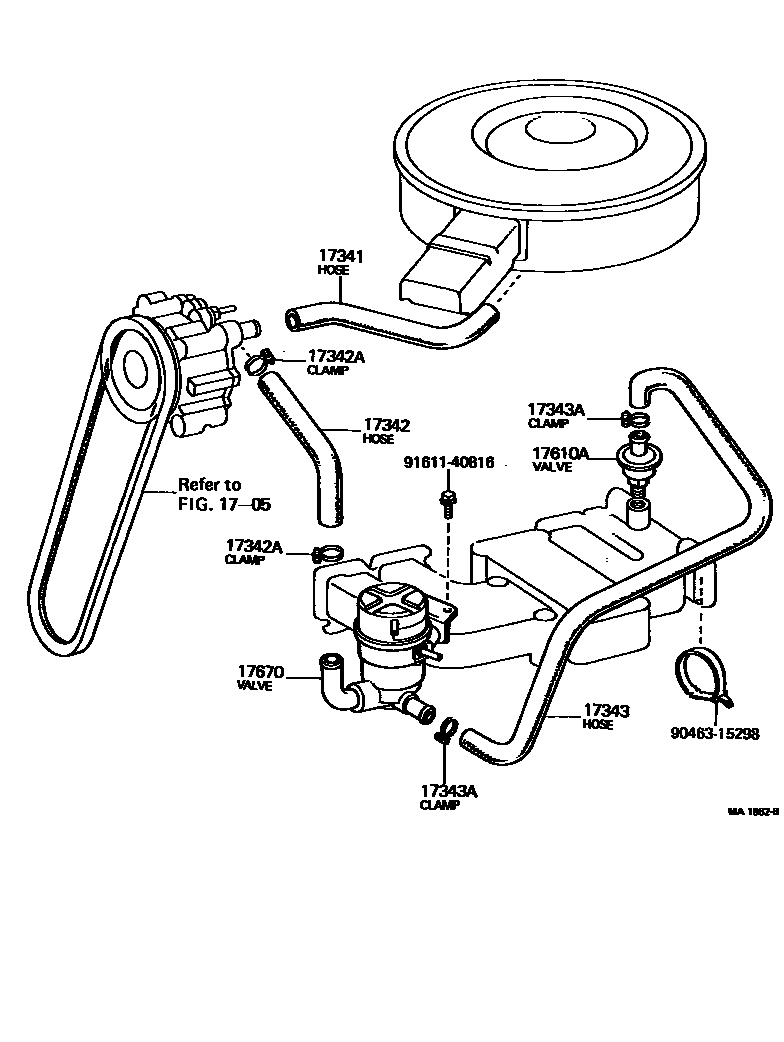

Toyota HILUX 歧管喷气系统 — Figure 1706
Toyota HILUX EPC diagram 1706, 歧管喷气系统, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17313 | Air bypass valve bracket | 17313-31020 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-31050 · 17341-34030 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 96111-10330 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-34020 · 90910-05126 |
| 17342A | No. 2 clip or clip (for No. 2 air injection system hose) | 96111-10330 · 96112-10300 |
| 17343 | No. 3 hose (for air injection system) | 17343-31021 · 17343-34021 |
| 17343A | No. 3 clip or clip (for No. 3 air injection system hose) | 96112-10270 |
| 17344 | No. 4 hose (for air injection system) | 90910-05125 |
| 17351 | jet manifold | 17351-31020 |
| 17351C | Clamp (for jet manifold) | 90461-16013 |
| 17353 | Jet manifold bracket | 17353-31010 |
| 17610A | Check valve (for air injection systems) | 90917-10039 · 90917-10045 |
| 17670 | Air bypass valve assembly | 17670-31020 · 17670-34030 |
