Toyota HILUX Exhaust Pipe — Figure 1702

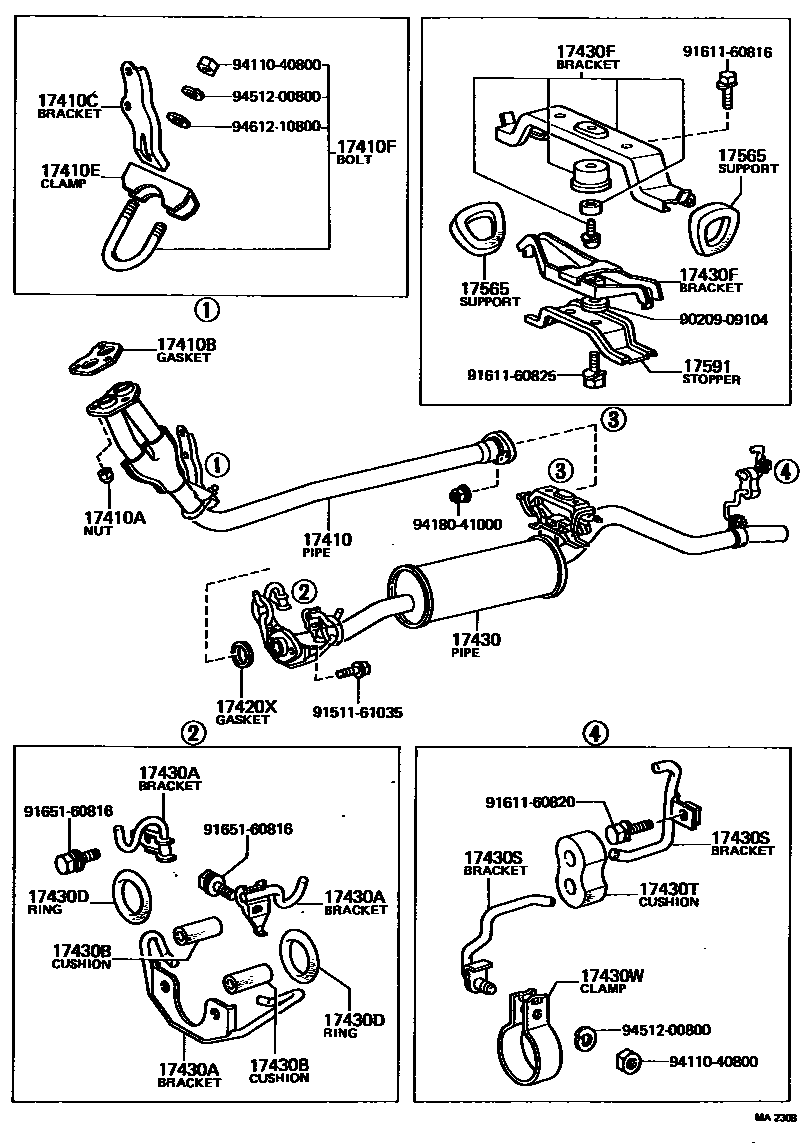

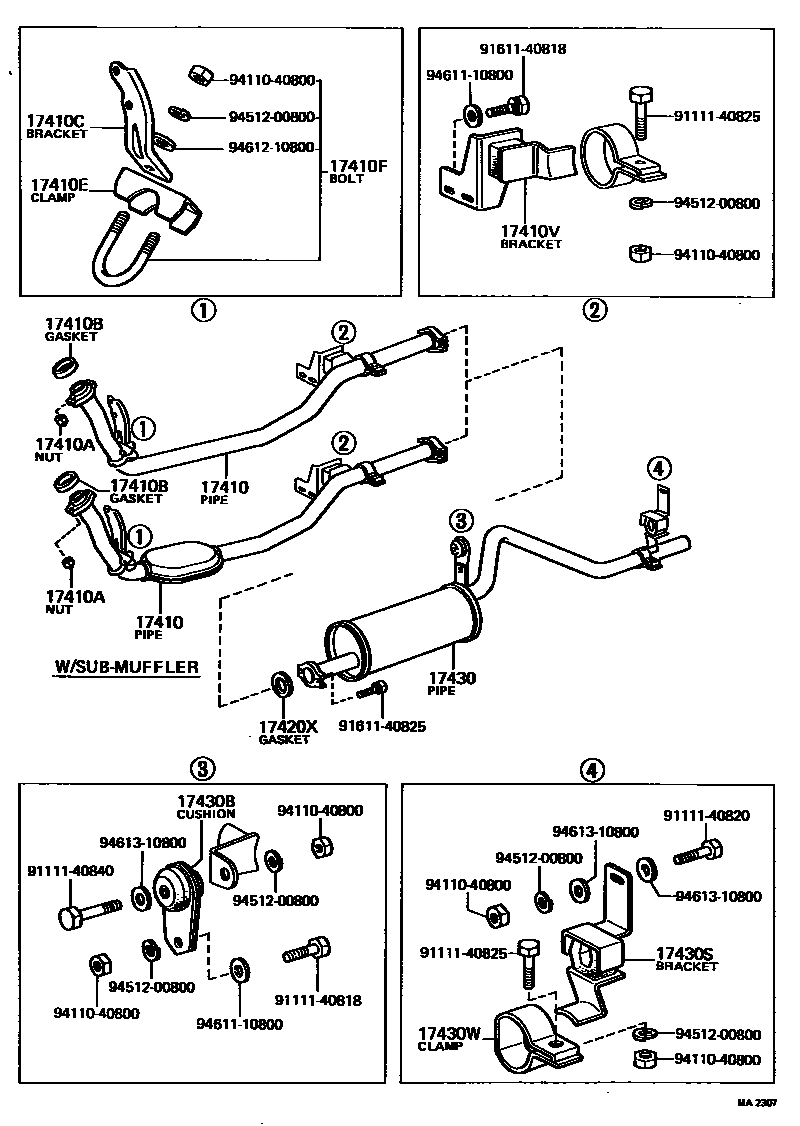

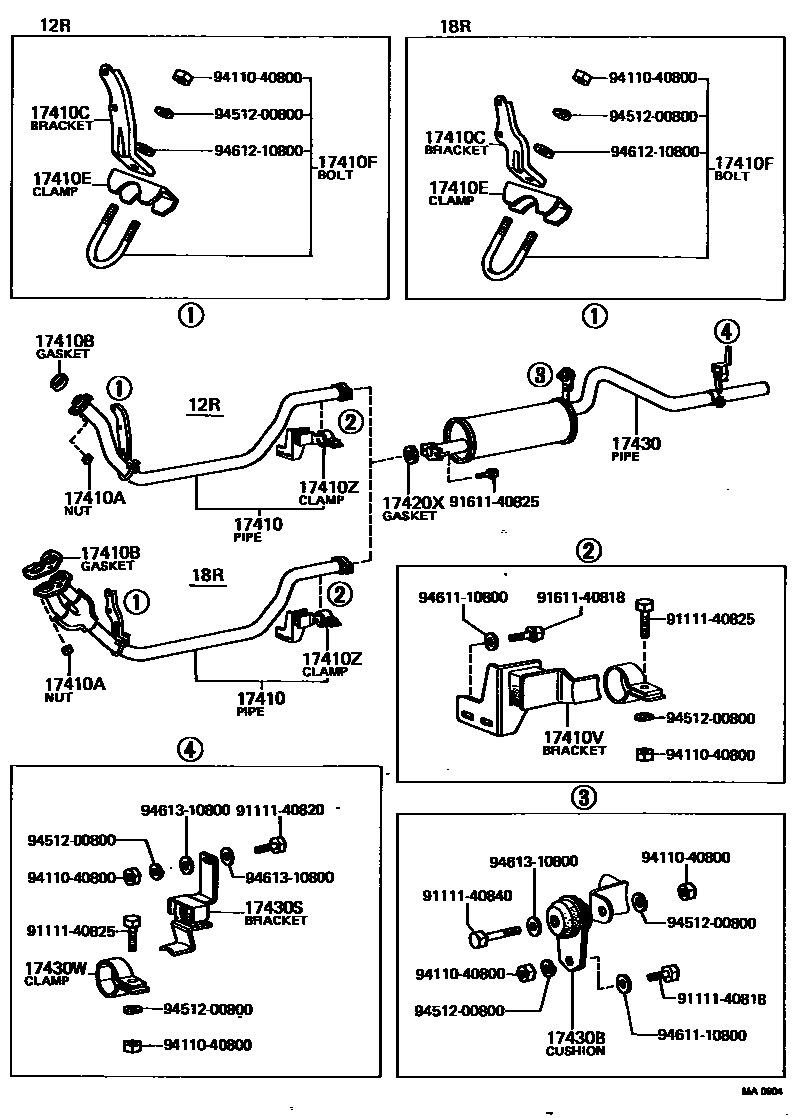

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-31130 · 17410-31131 · 17410-31150 · 17410-31151 · 17410-31210 · 17410-34080 · 17410-34130 · 17410-34131 |
| 17410A | Exhaust pipe fixing studs and nuts | 90170-10049 · 90170-10199 |
| 17410B | Exhaust pipe gasket | 17451-41010 · 90917-06004 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-31050 · 17571-31070 · 17571-34050 · 17571-34080 · 17571-34081 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04007 · 90917-04021 |
| 17410F | Front exhaust pipe bolt or ring (for front) | 90118-08135 · 90999-99002 |
| 17410V | Front exhaust pipe bracket (for rear) | 17561-31060 · 17561-34040 |
| 17410Z | No. 2 front exhaust pipe clamp (for rear) | 90461-23204 |
| 17420X | Center exhaust pipe liner | 90917-06004 |
| 17430 | Exhaust tailpipe assembly | 17430-31040 · 17430-34220 · 17430-34221 · 17430-34350 |
| 17430A | Exhaust tailpipe bracket (for front) | 17503-38050 · 17572-38030 · 17573-38030 |
| 17430B | Exhaust tailpipe bumper (for front) | 90540-09003 · 90917-08004 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90301-33001 |
| 17430F | Exhaust tailpipe bracket (for center) | 17508-38030 · 17578-38030 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17563-31030 · 17566-38010 · 17577-38011 · 17577-38012 · 17577-38021 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17563-38051 · 17563-38052 |
| 17430W | No. 2 exhaust tailpipe clip (for rear) | 90461-23188 · 90461-23556 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-41010 |
| 17591 | Exhaust pipe hanger block | 17592-38010 |
