Toyota HILUX Manifold — Figure 1701

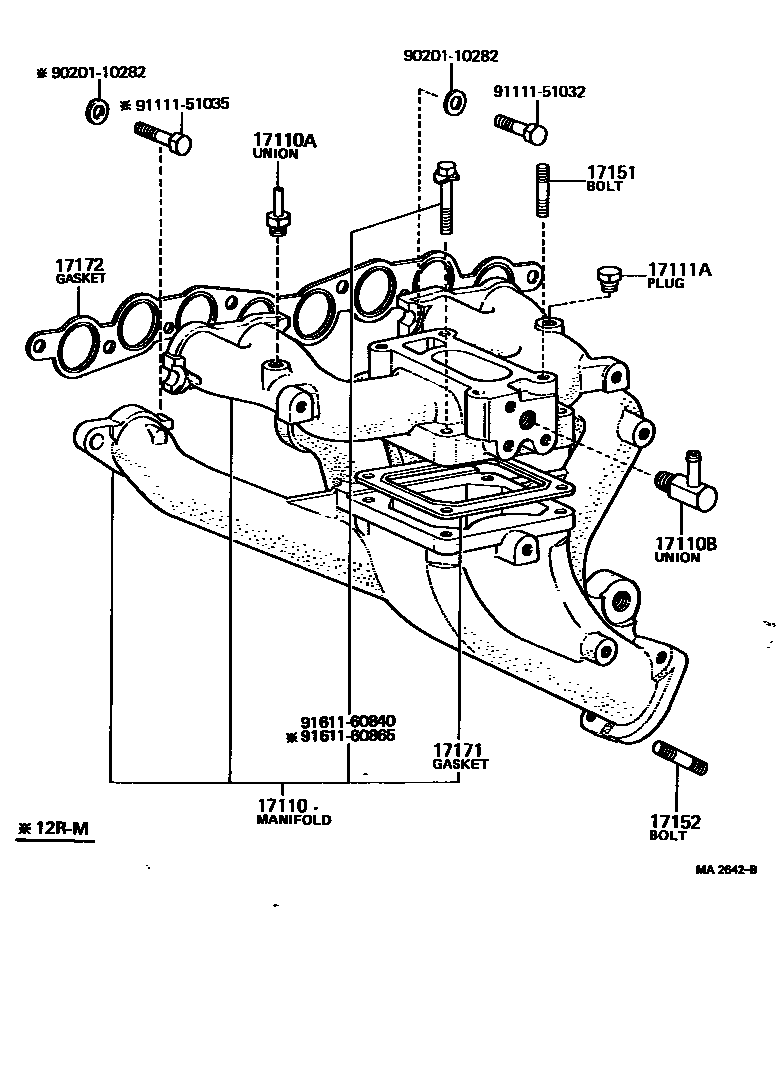

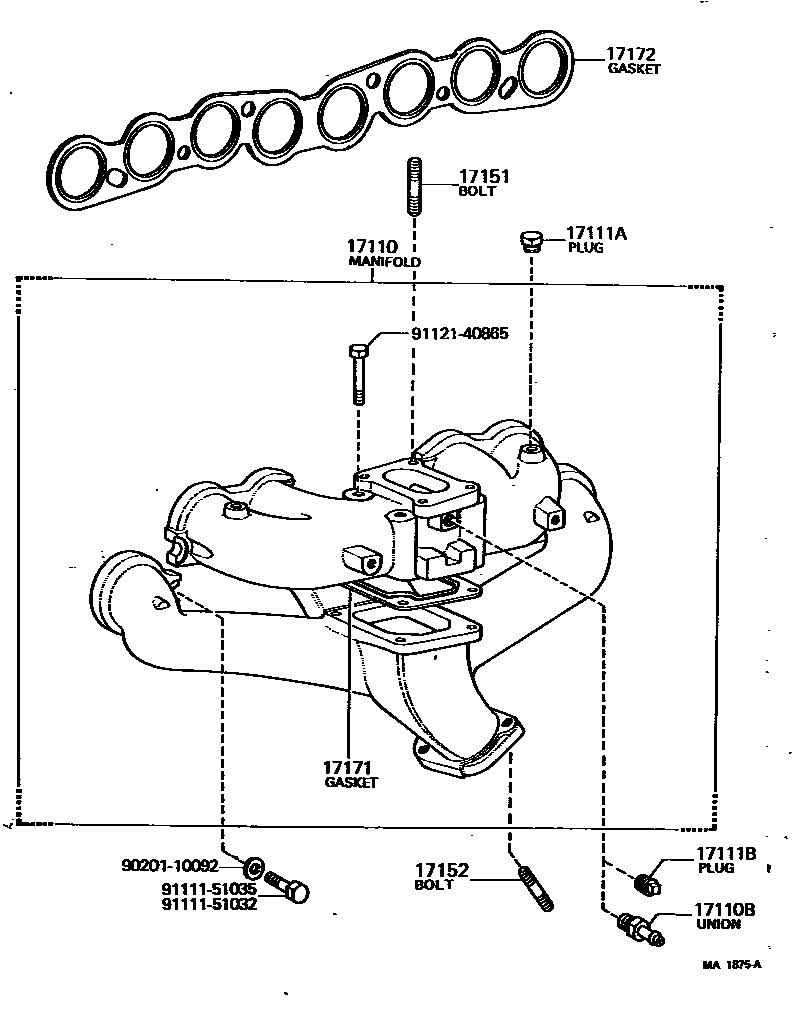

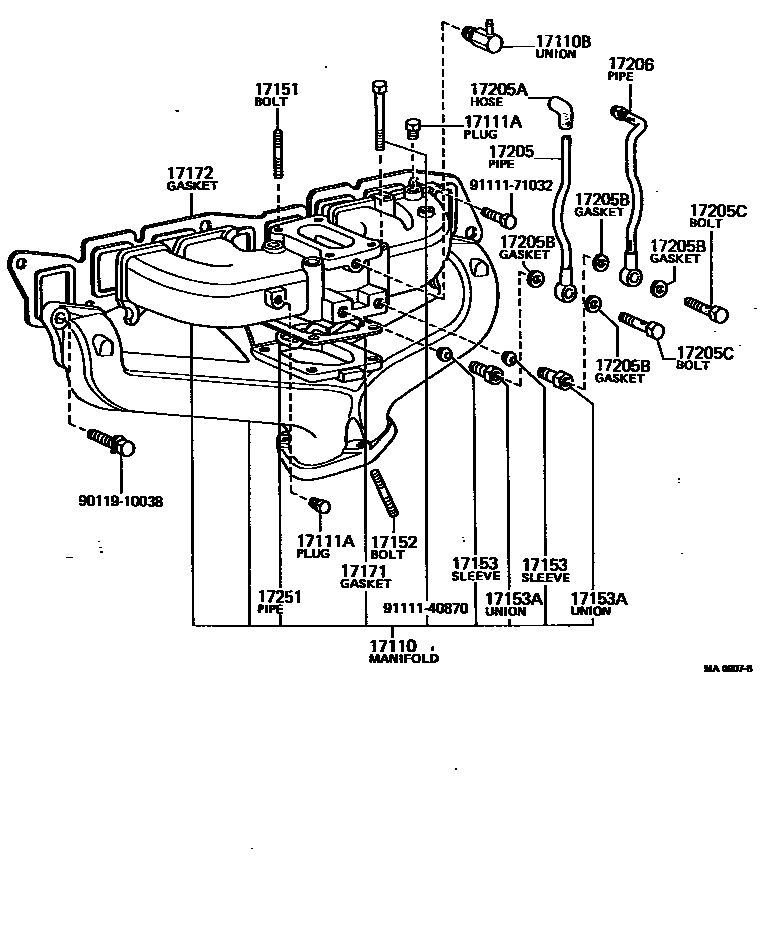

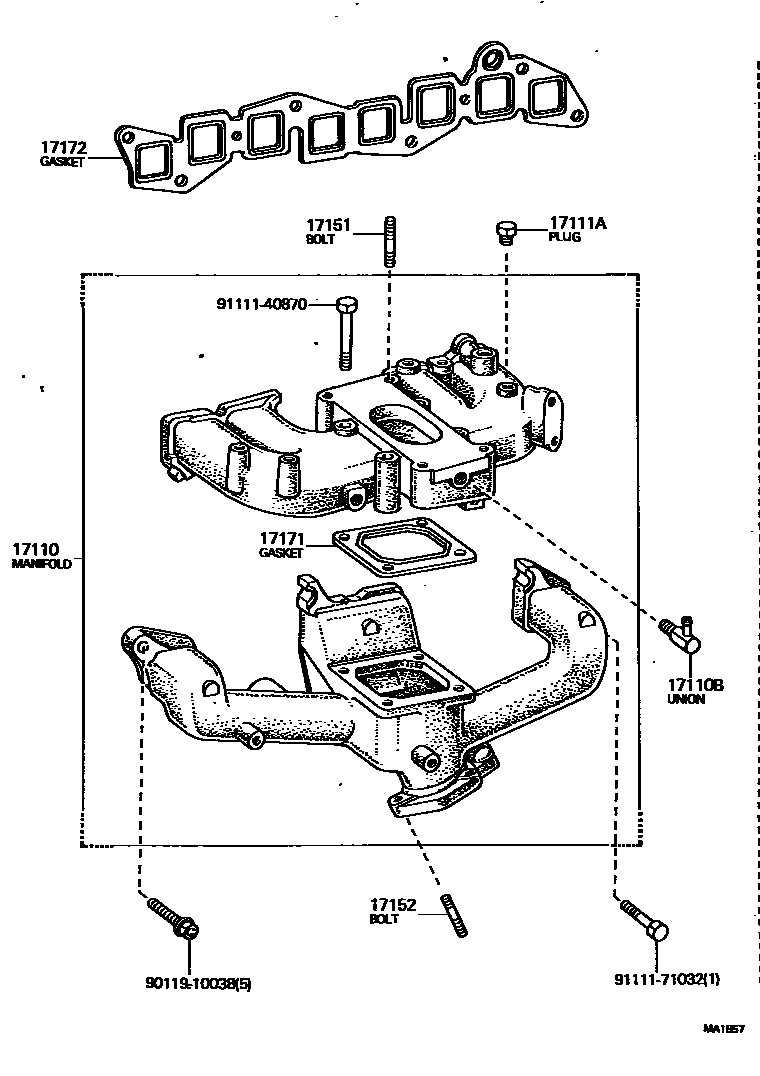

Toyota HILUX EPC diagram 1701, Manifold, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17110 | Manifold assembly | 17110-31042 · 17110-31043 · 17110-31050 · 17110-31051 · 17110-31080 · 17110-34050 · 17110-34051 · 17110-34090 |
| 17110A | Vacuum hose connector | 90404-51093 |
| 17110B | Fitting (for vent hose to manifold) | 90404-10146 · 90404-52129 · 90407-09002 · 90407-10040 |
| 17111A | No. 1 screw plug | 90072-34107 · 90345-51005 · 90345-51025 |
| 17111B | No. 2 screw plug | 90345-52002 |
| 17151 | Studs (for manifold to carburetor) | 90116-08010 · 90116-08052 · 90116-08320 · 92132-40828 · 92132-40835 |
| 17152 | Studs (for manifold to exhaust) | 90116-10007 · 90116-10017 · 90116-10042 · 92122-41022 |
| 17153 | Ball sleeve (for automatic choke preheater tube) | 90410-06003 |
| 17153A | Connector (for automatic choke preheater tube) | 90404-14022 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-31020 · 17171-34020 · 17171-40010 · 17171-44010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-31020 · 17172-31021 · 17172-33010 · 17172-34020 |
| 17205 | Automatic choke preheater oil inlet pipe | 17205-34010 |
| 17205A | Hoses (for automatic choke preheater tubes) | 90910-05017 |
| 17205B | Gasket (for automatic choke preheater tube) | 90430-08033 |
| 17205C | Joint bolt (for automatic choke preheater tube) | 90401-08012 |
| 17206 | Automatic choke preheater oil outlet pipe | 17206-34020 |
| 17251 | Automatic choke preheater tube | 17251-33020 · 17251-33021 |
