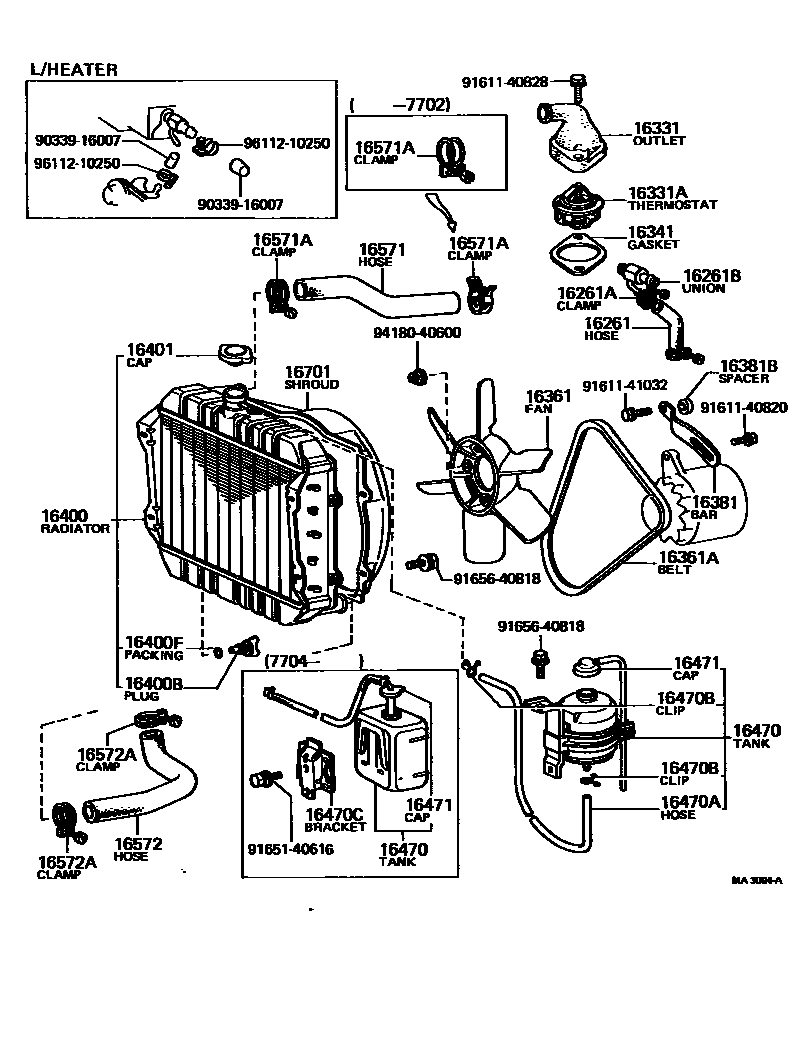

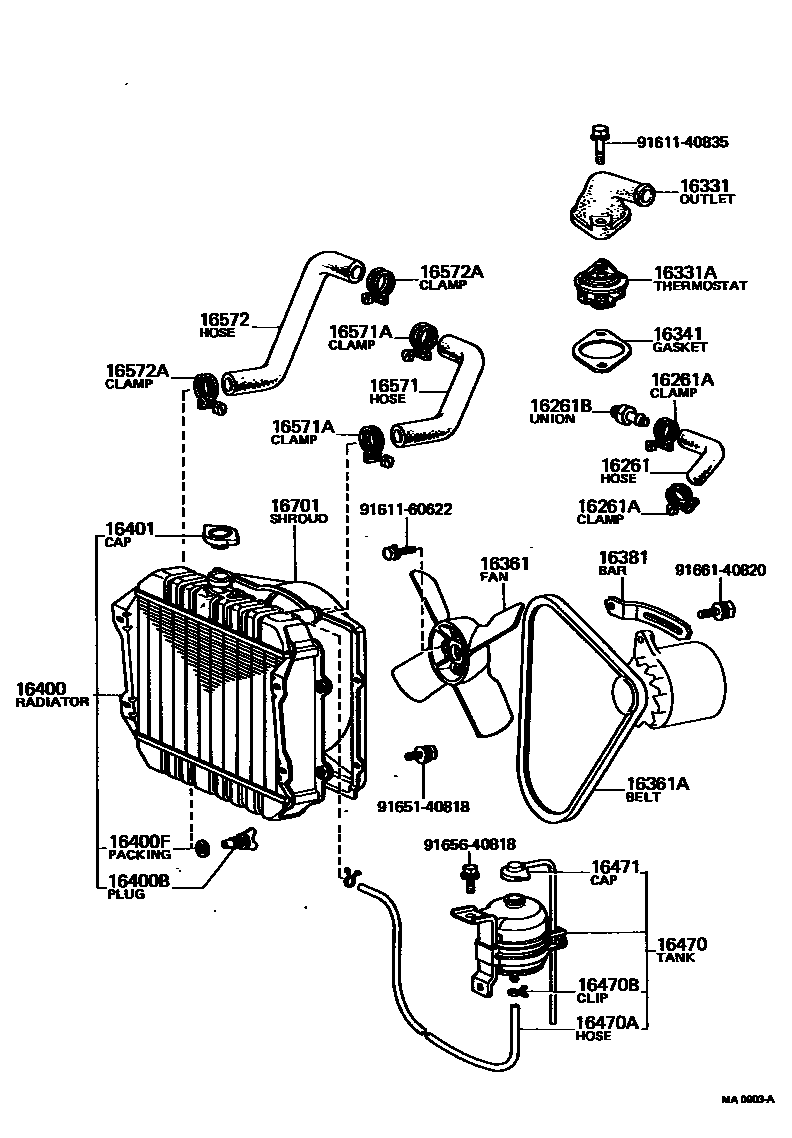

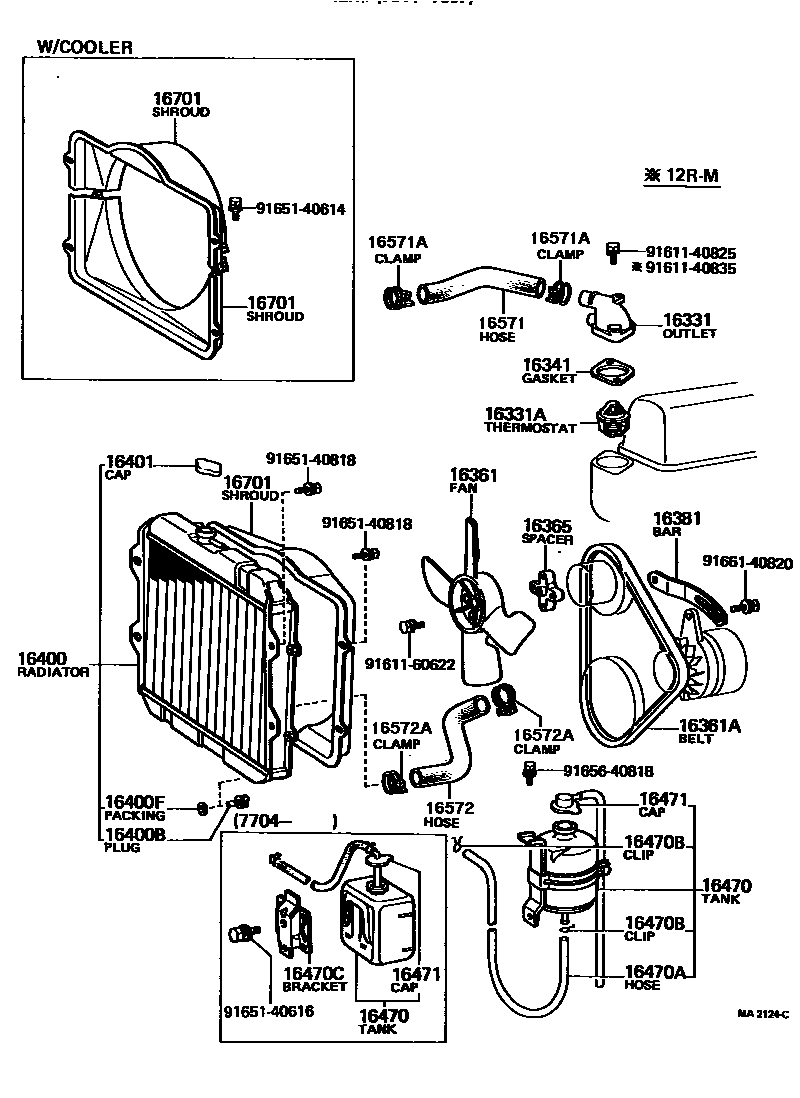

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603
Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-31010 · 90910-05081 · 90910-05106 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90460-23022 · 96112-10160 · 96112-10240 |
| 16261B | Connector (for water bypass hose) | 90404-17005 · 90404-52072 |
| 16331 | Water outlet | 16331-31010 · 16331-31020 · 16331-31031 · 16331-31051 · 16331-36011 · 16331-36012 |
| 16331A | thermostat | 90916-03020 · 90916-03021 · 90916-03024 · 90916-03033 · 90916-03034 · 90916-03036 · 90916-03037 · 90916-03038 · 90916-03040 |
| 16341 | GASKET, WATER OUTLET | 16341-49010 |
| 16361 | Fan | 16361-31020 · 16361-31021 · 16361-31050 · 16361-33020 · 16361-34030 · 16361-38010 · 16361-41022 |
| 16361A | V-belts (for fans and generators) | 90916-02048 · 90916-02052 · 90916-02060 · 99332-00890 · 99521-10839 · 99521-10843 · 99521-10873 · 99521-10887 · 99521-10897 |
| 16365 | fan spacer | 16365-24010 |
| 16381 | Fan belt adjustment lever | 16381-30020 · 16381-31011 · 16381-31012 · 16381-33010 · 16381-34030 |
| 16381B | Fan belt adjustment lever spacer | 90560-10005 |
| 16400 | Radiator assembly | 16400-31110 · 16400-31111 · 16400-31112 · 16400-34080 · 16400-34081 · 16400-34082 · 16400-34090 · 16400-34091 · 16400-34092 |
| 16400B | Radiator drain switch screw plug | 90910-09052 · 90910-09054 |
| 16400F | Seal (for radiator drain switch) | 90099-06030 · 96710-01007 |
| 16401 | Radiator cover sub-assembly | 16401-36010 |
| 16470 | Radiator reservoir assembly | 16470-31010 · 16470-34110 · 16470-34120 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12013 · 90445-12781 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470C | Bracket (for radiator reservoir) | 16402-31010 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-34110 · 16471-34120 · 16471-41060 |
| 16571 | Radiator water inlet hose | 16571-33011 · 16571-33012 · 16571-34050 · 16572-31020 · 16572-31021 · 16572-31060 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90460-43005 · 90460-47036 · 90467-37001 · 96111-10430 · 96111-10450 |
| 16572 | Radiator outlet hose | 16571-31021 · 16571-31022 · 16571-31023 · 16572-33011 · 16572-33012 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90460-47036 · 90460-49062 · 96111-10450 · 96111-10460 · 96111-10480 |
| 16701 | Fan cover sub-assembly | 16711-31050 · 16711-31051 · 16711-31100 · 16711-34050 · 16711-34051 · 16711-34052 · 16712-31020 |
