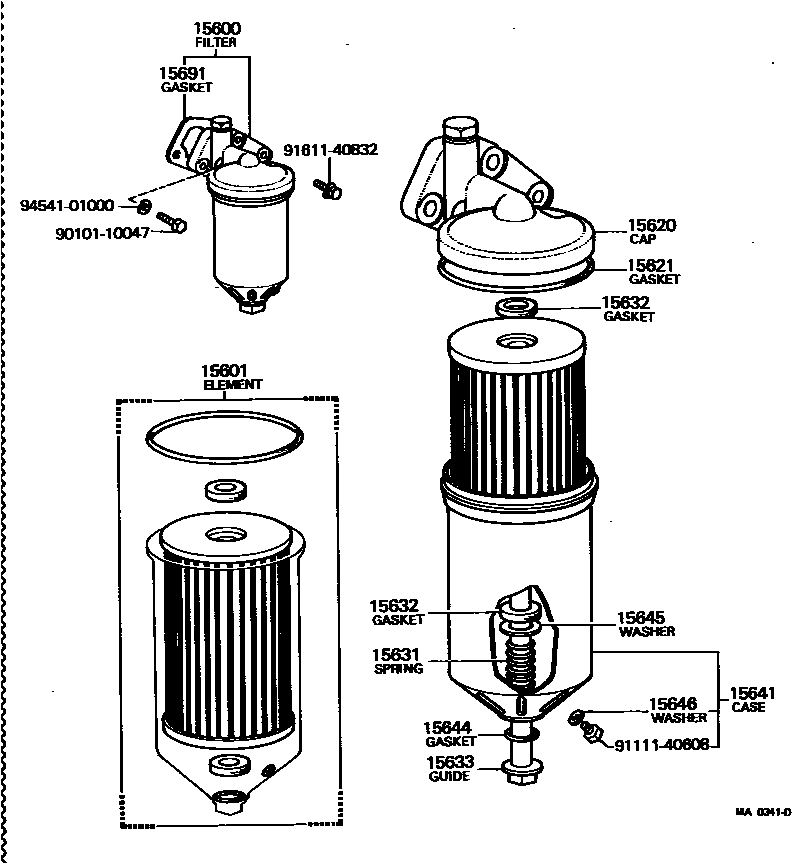

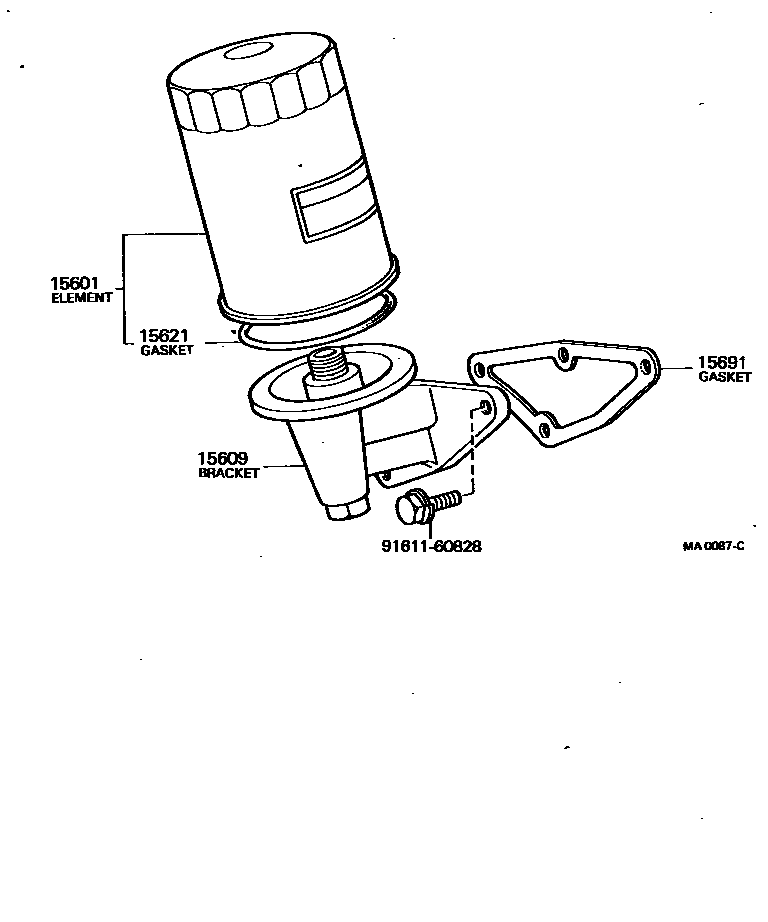

Toyota HILUX Oil Filter — Figure 1502
Toyota HILUX EPC diagram 1502, Oil Filter, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600 | Oil filter assembly | 15600-39015 |
| 15601 | Oil filter sub-assembly | 04152-31011 · 15601-33010 |
| 15609 | Oil filter bracket sub-assembly | 15609-33011 |
| 15620 | Oil filter cover assembly | 15620-31012 |
| 15621 | Oil filter body gasket | 15621-22010 · 15621-31011 |
| 15631 | Oil filter element holder spring | 15631-21010 |
| 15632 | Oil filter element gasket | 15632-40020 |
| 15633 | Oil filter element guide | 15633-21011 |
| 15641 | oil filter housing | 15641-31012 |
| 15644 | Oil filter element guide gasket | 15644-60010 |
| 15645 | Oil filter element guide gasket | 90099-01093 |
| 15646 | Oil filter drain switch gasket or gasket | 90099-01010 |
| 15691 | oil filter gasket | 15691-31010 · 15691-33010 |
