Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 3 images and 13 PNC and OE references.

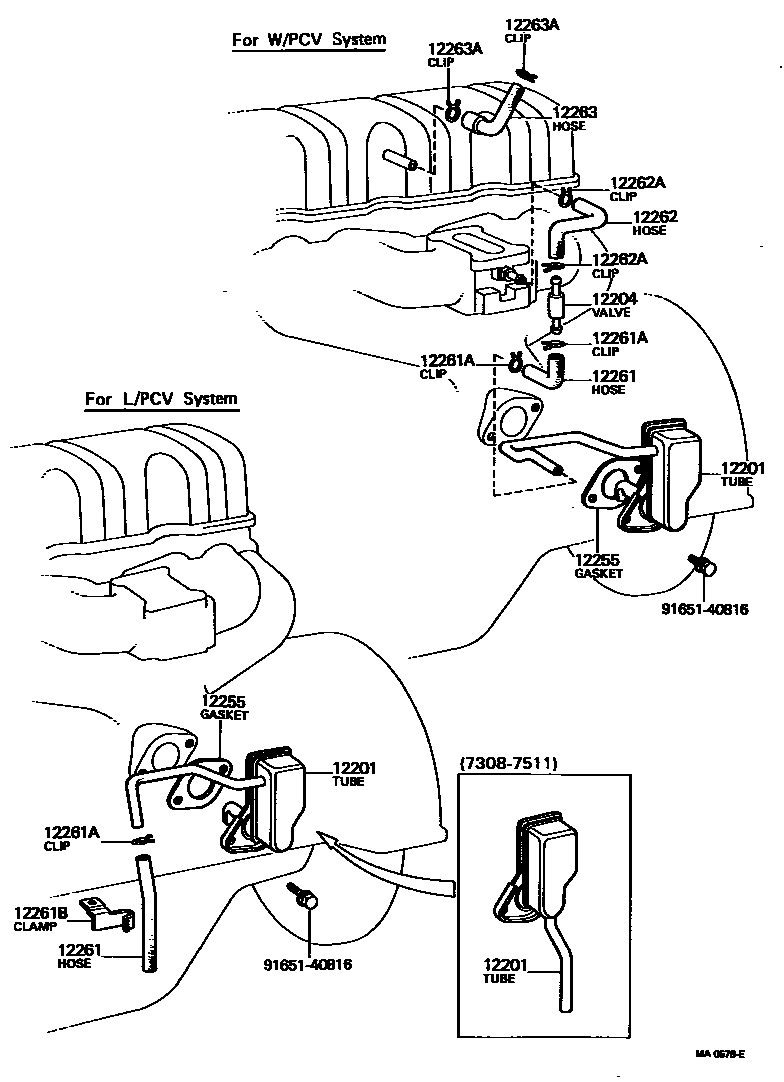

Toyota HILUX Ventilation Hose EPC diagram — MA0678E
Ventilation Hose — MA0678E (197205 – 197511)

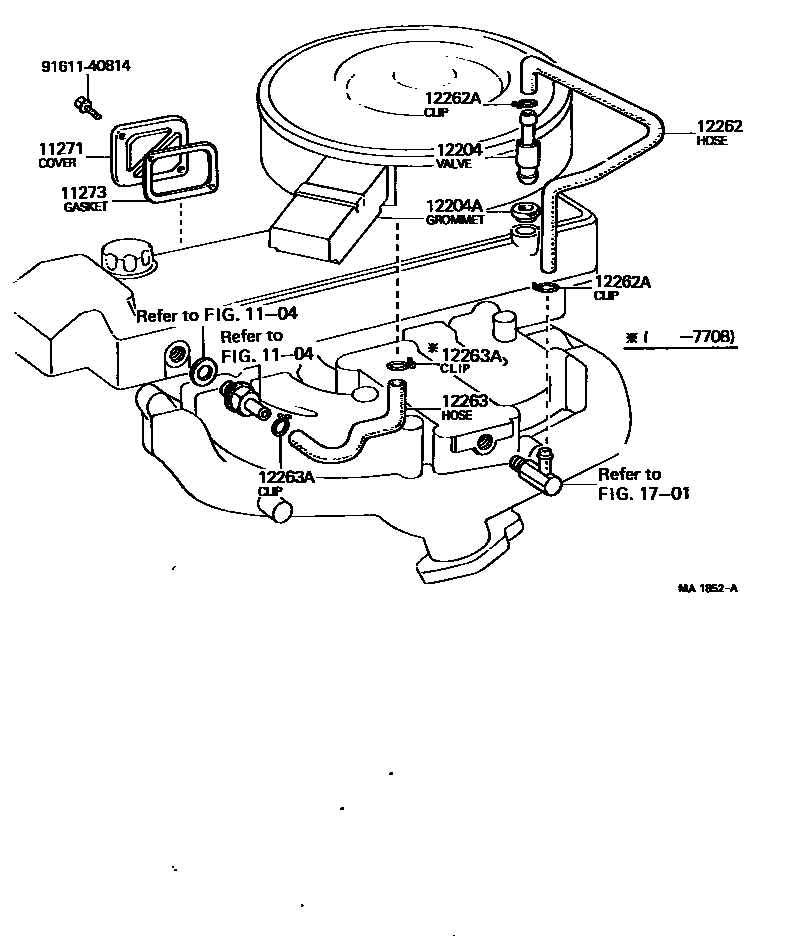

Toyota HILUX Ventilation Hose EPC diagram — MA1852A
Ventilation Hose — MA1852A (197404 – 197807)

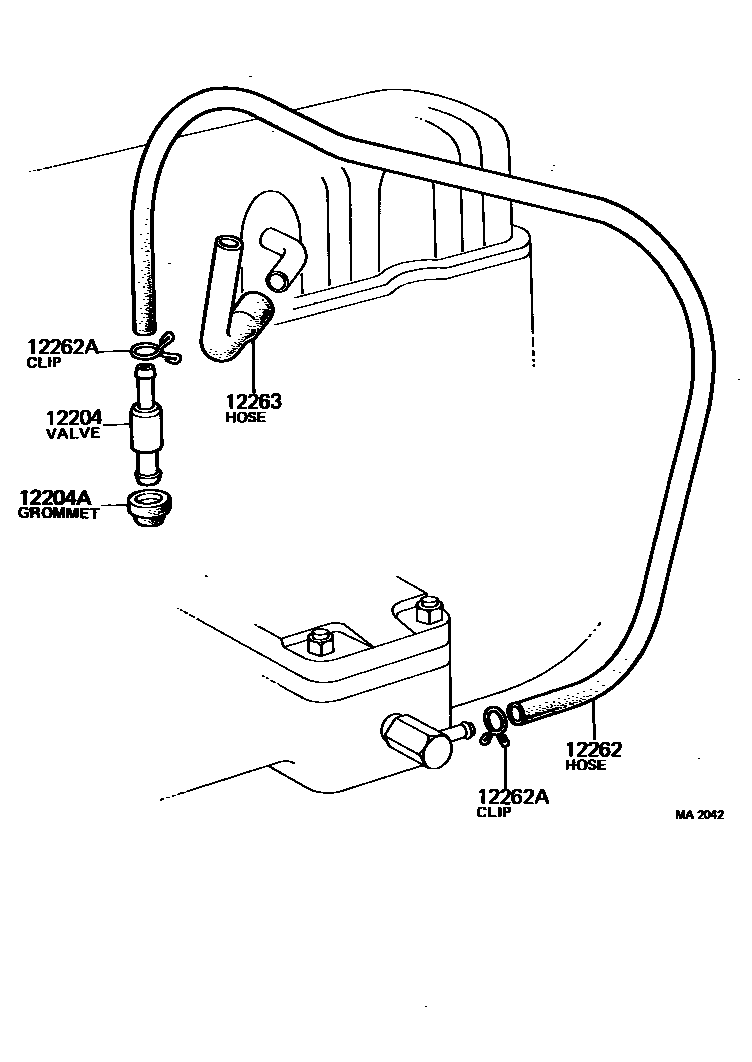

Toyota HILUX Ventilation Hose EPC diagram — MA2042
Ventilation Hose — MA2042 (197511 – 197807)

PNC and OE references

PNCPart nameOE numbers
11271Cylinder block side cover11271-33010
11273Cylinder block side cover gasket11273-33010
12201Ventilation pipe sub-assembly12201-31030 · 12201-31040 · 12201-31050
12204Ventilation valve sub-assembly12204-31020 · 12204-34010
12204AGasket (for ventilation system)90480-18180
12255Ventilation padding12255-25010
12261Ventilation Hose90445-20051 · 90910-05023
12261AClip or clip (for vent hose)90467-20020
12261BClip or clip (for vent hose)90461-10701
12262Ventilation hose No. 212261-33020 · 12261-34070 · 12262-31020 · 90445-14013
12262AClamp (for vent hose No. 2)90467-13103 · 90467-16010
12263No. 3 ventilation hose12262-34020 · 12263-31011 · 12263-31021
12263AClip (for ventilation hose)90467-16010 · 90467-20020
