Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

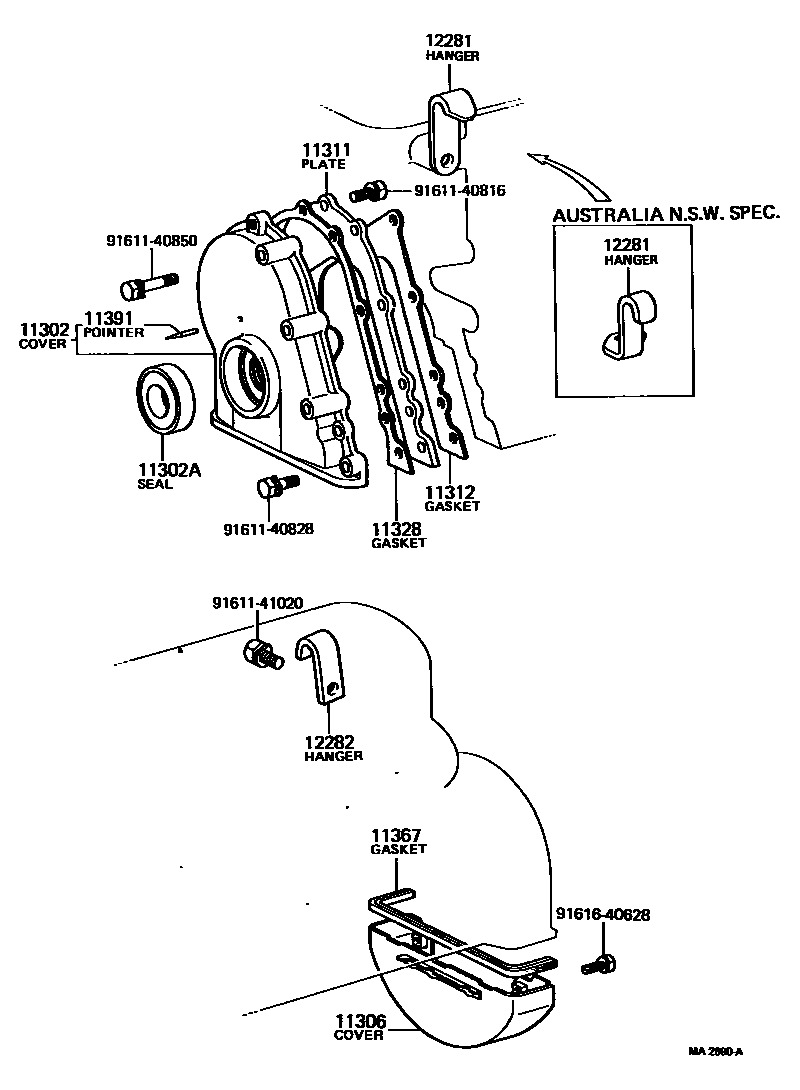

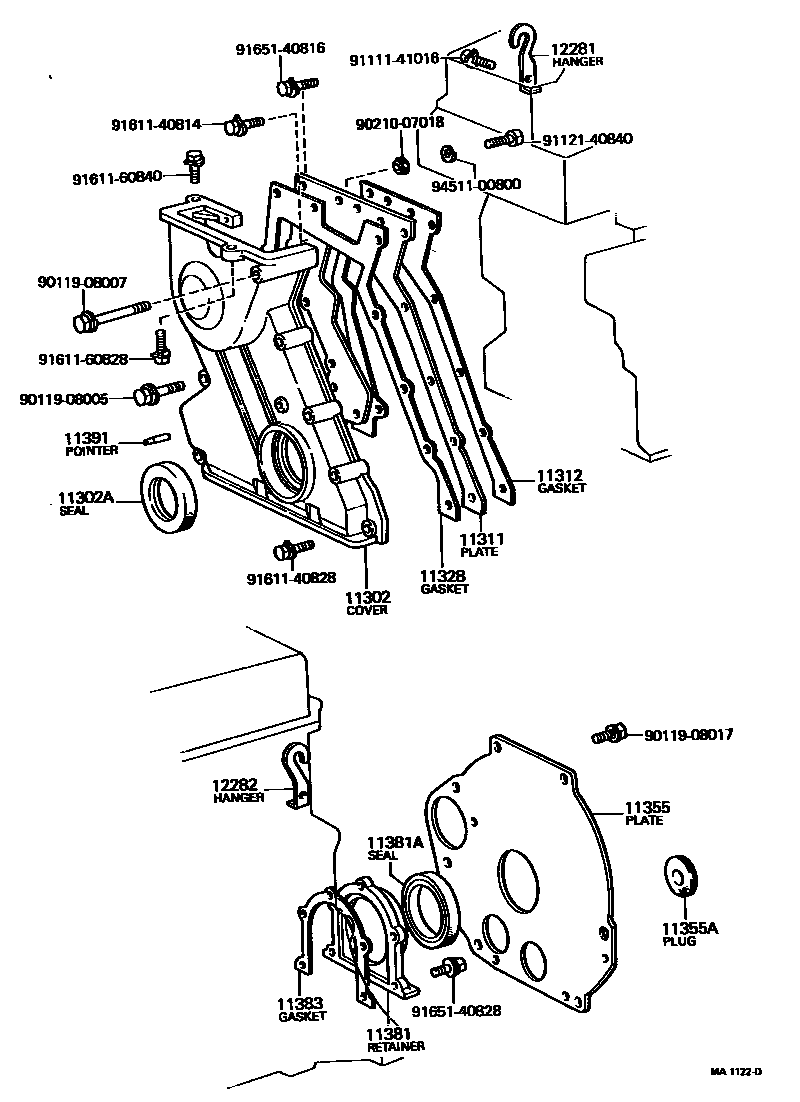

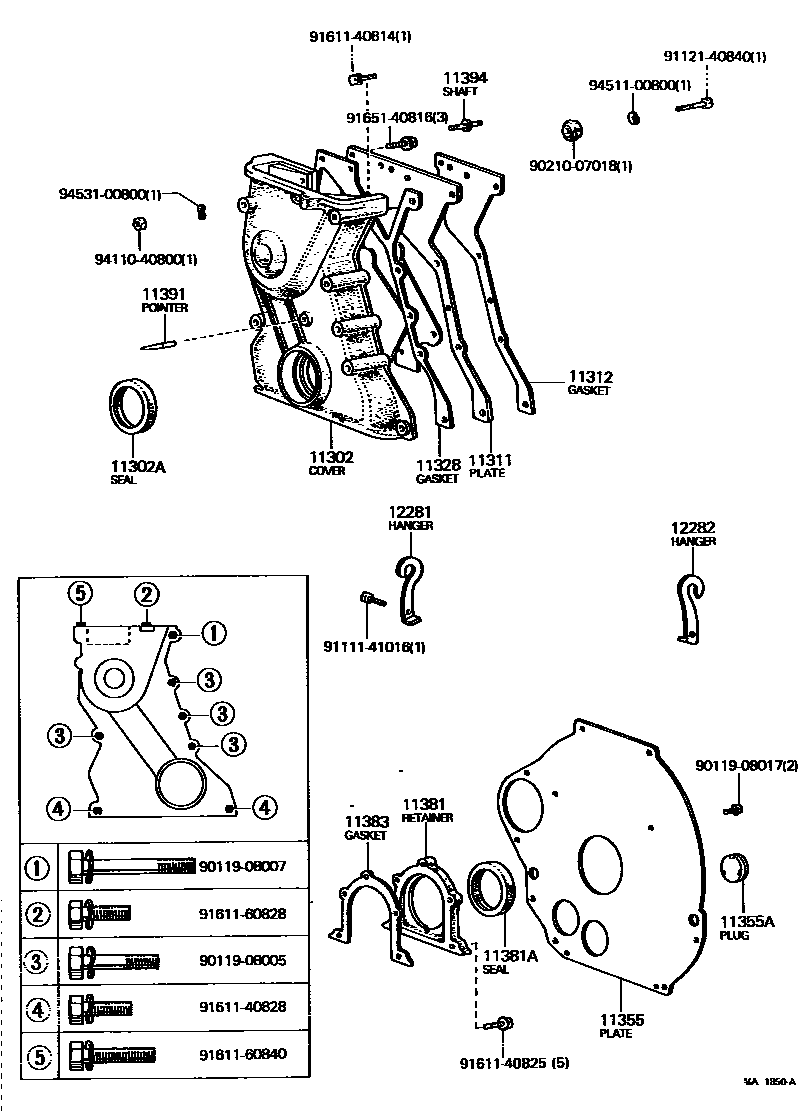

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11321-30903 · 11321-31901 · 11321-31903 · 11321-33010 · 11321-34010 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-38002 · 90311-38013 · 90311-38024 · 90311-45069 |
| 11306 | Flywheel housing bottom cover sub-assembly | 11306-31021 · 11306-31030 |
| 11311 | front board | 11311-31010 · 11311-33011 |
| 11312 | front panel gasket | 11312-31010 · 11312-33011 · 11312-33012 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-31010 · 11328-33013 · 11328-33014 |
| 11355 | rear end plate | 11355-33012 · 11355-36010 |
| 11355A | Hole plug (for rear end plate) | 90950-01128 |
| 11367 | Flywheel housing lower gasket | 11367-31020 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-33010 · 11381-38010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-80001 · 90311-80068 |
| 11383 | Engine rear oil seal seat gasket | 11383-33010 |
| 11391 | Timing pointer | 11391-31020 · 11391-31021 · 11391-32010 · 11391-40010 |
| 11394 | timing chain tensioner shaft | 11394-34010 · 11394-88210 |
| 12281 | Engine No. 1 hanger | 12281-31020 · 12281-31022 · 12281-42010 · 12282-36010 |
| 12282 | ENGINE HANGER, NO.2 | 12282-31020 · 12282-36010 |
