Toyota HILUX Cylinder Head — Figure 1104

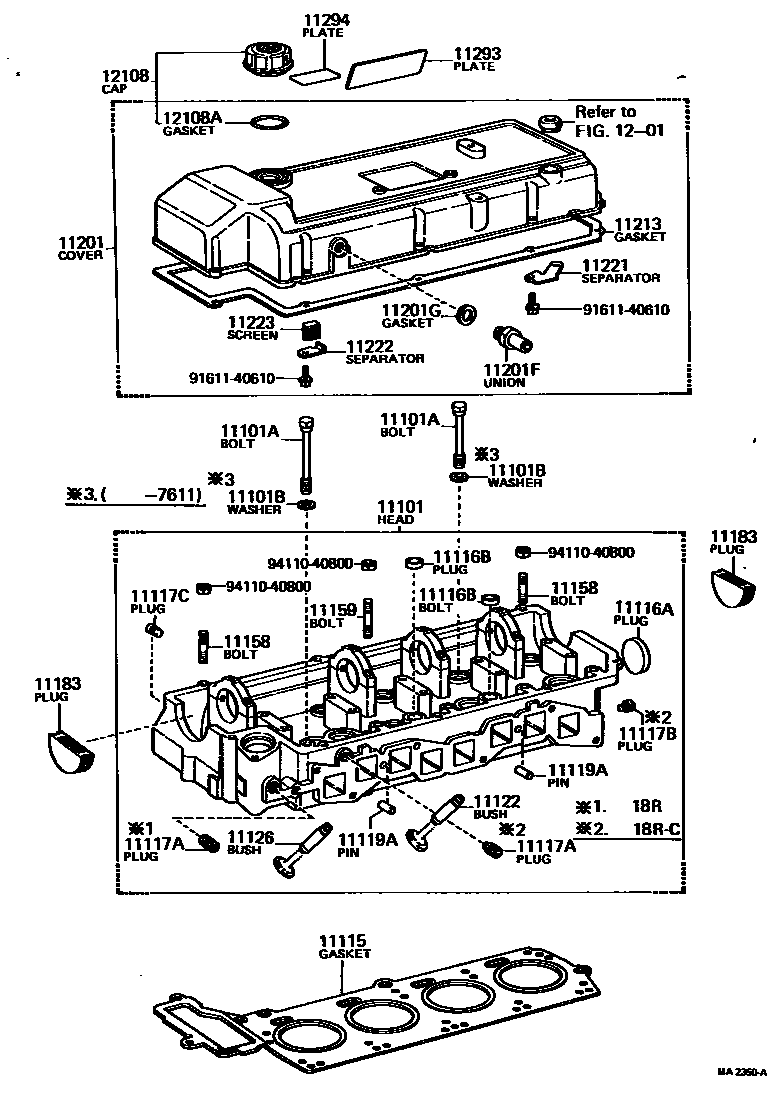

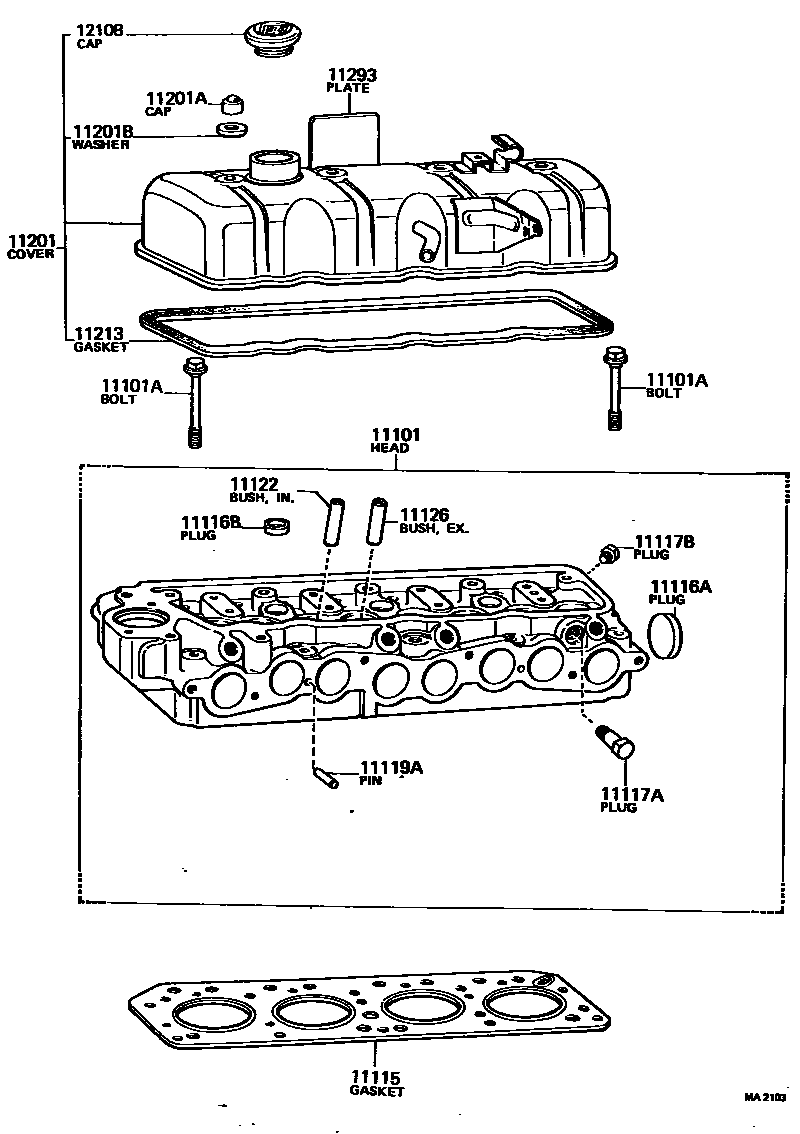

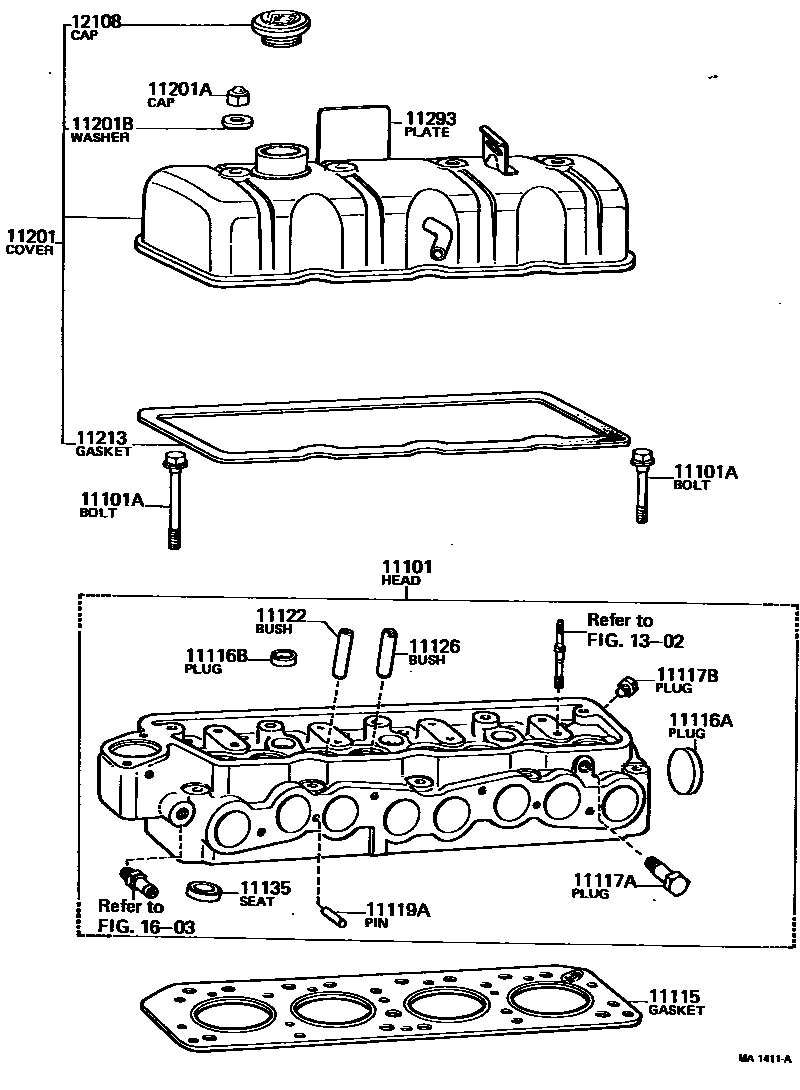

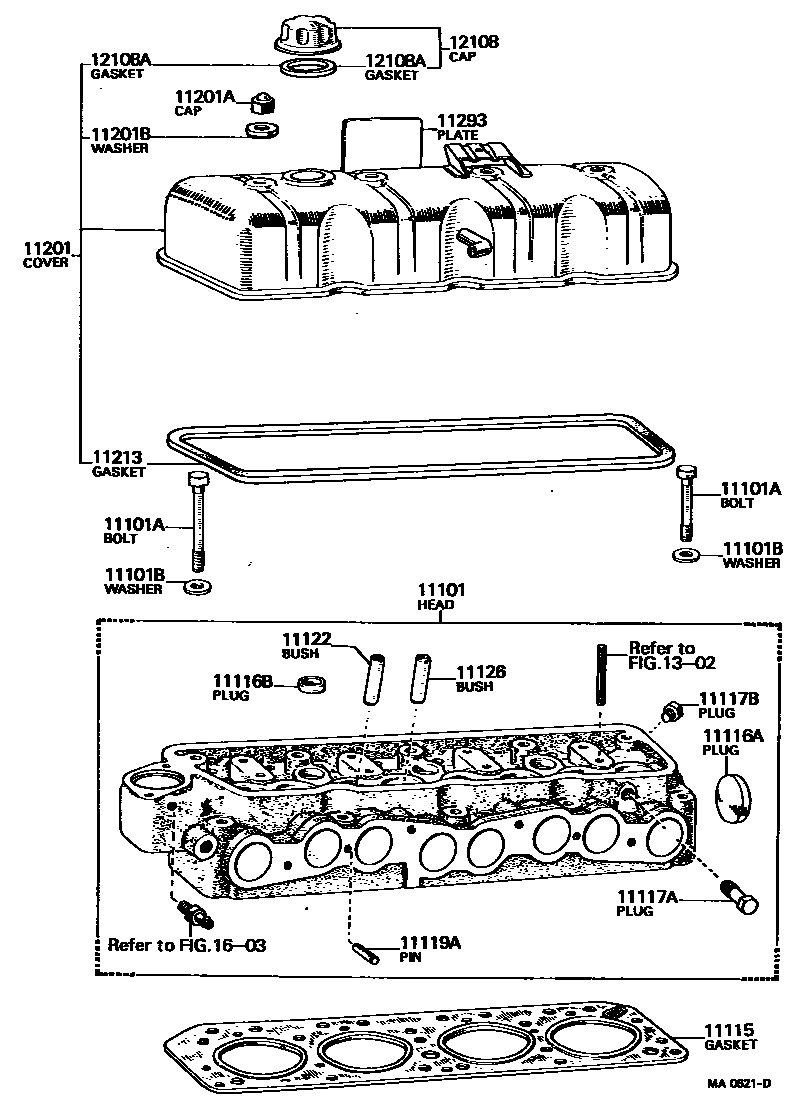

Toyota HILUX EPC diagram 1104, Cylinder Head, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-39028 · 11101-39106 · 11101-39107 · 11101-39175 · 11101-39176 · 11101-39235 · 11101-39236 · 11101-39305 · 11101-39315 · 11101-39325 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02030 · 90910-02031 · 90910-02034 · 90910-02043 · 90910-02051 · 90910-02052 · 90910-02060 · 90910-02061 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-12118 |
| 11115 | GASKET, CYLINDER HEAD | 11115-31020 · 11115-31022 · 11115-31023 · 11115-36020 |
| 11116A | No. 1 sealing plug | 90331-50015 · 96411-43500 · 96411-45000 |
| 11116B | No. 2 sealing plug | 90331-22022 · 96411-42000 · 96411-42200 |
| 11117A | No. 1 headed tapered thread plug | 90072-34107 · 90344-53011 · 90345-53028 |
| 11117B | No. 2 headed tapered thread plug | 90344-53011 · 90345-51025 |
| 11117C | No. 3 headed tapered thread plug | 90344-51001 |
| 11119A | No. 1 direct sales | 90250-08054 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-23010 · 11122-31020 · 11122-33011 · 11123-23010 · 11123-31020 · 11123-33011 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-23010 · 11122-31020 · 11123-23010 · 11123-31020 · 11126-33011 · 11127-33011 |
| 11135 | Exhaust valve seat | 11135-31022 · 11136-31020 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-08009 · 90116-08207 |
| 11159 | Studs (for mounting cylinder head to camshaft bearing cap) | 90116-08201 |
| 11183 | PLUG, SEMICIRCULAR | 11183-33010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-39025 · 11201-39026 · 11201-39046 · 11201-39047 · 11201-39085 · 11201-39086 · 11201-39087 · 11201-39095 · 11201-39096 · 11201-39135 · 11201-39175 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06014 · 90176-08004 |
| 11201B | Gasket (for cylinder head cover) | 90210-08007 · 90210-10022 |
| 11201F | Connector (for positive crankcase ventilation system) | 90404-16108 |
| 11201G | Gasket (for positive crankcase ventilation system) | 90430-16175 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-31010 · 11213-31011 · 11213-33010 · 11213-34020 |
| 11221 | No. 1 cylinder head cover separator | 11221-34010 |
| 11222 | No. 2 cylinder head cover separator | 11222-34010 |
| 11223 | Cylinder head cover partition | 11223-33010 |
| 11293 | Engine warning and engine name plate | 11293-31040 · 11293-31041 · 11293-31050 · 11293-34036 · 11293-34071 |
| 11294 | Engine No. 2 warning plate | 11294-34020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12108-31013 · 12108-49015 · 12181-31020 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90301-44049 · 90430-35095 |
