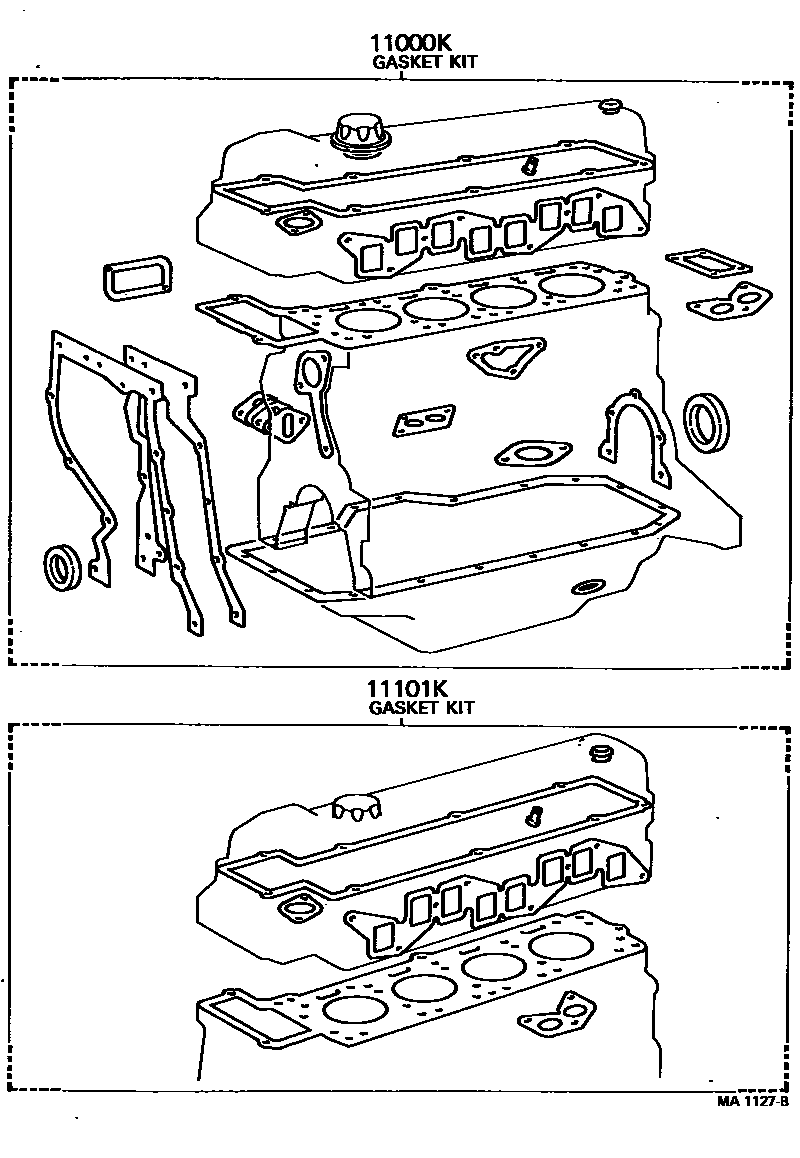

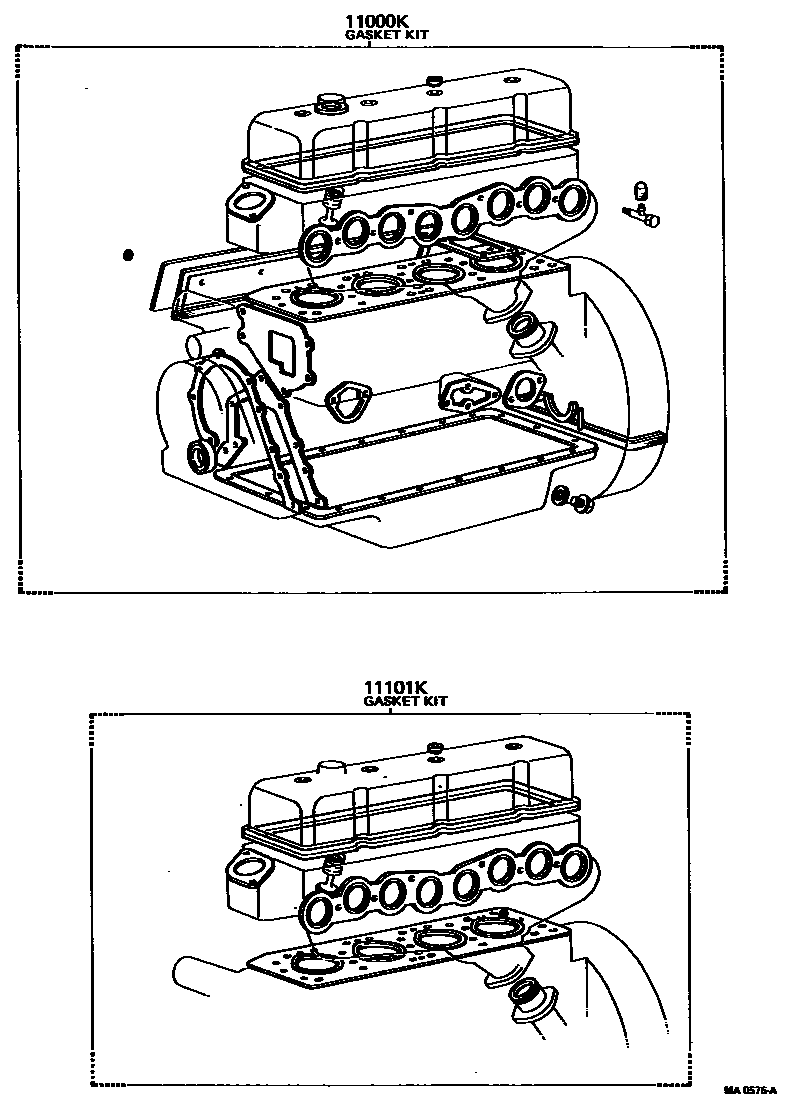

Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11000K | Engine overhaul gasket assembly | 04111-31020 · 04111-31030 · 04111-31031 · 04111-31032 · 04111-34062 · 04111-34080 · 04111-36010 · 04111-36011 · 04111-36012 |
| 11101K | Engine valve grinding pad assembly | 04112-31020 · 04112-31030 · 04112-31031 · 04112-31032 · 04112-34060 · 04112-36010 |
