Toyota HILUX Partial Engine Assembly — Figure 1101

Toyota HILUX EPC diagram 1101, Partial Engine Assembly, with 3 images and 1 PNC and OE references.

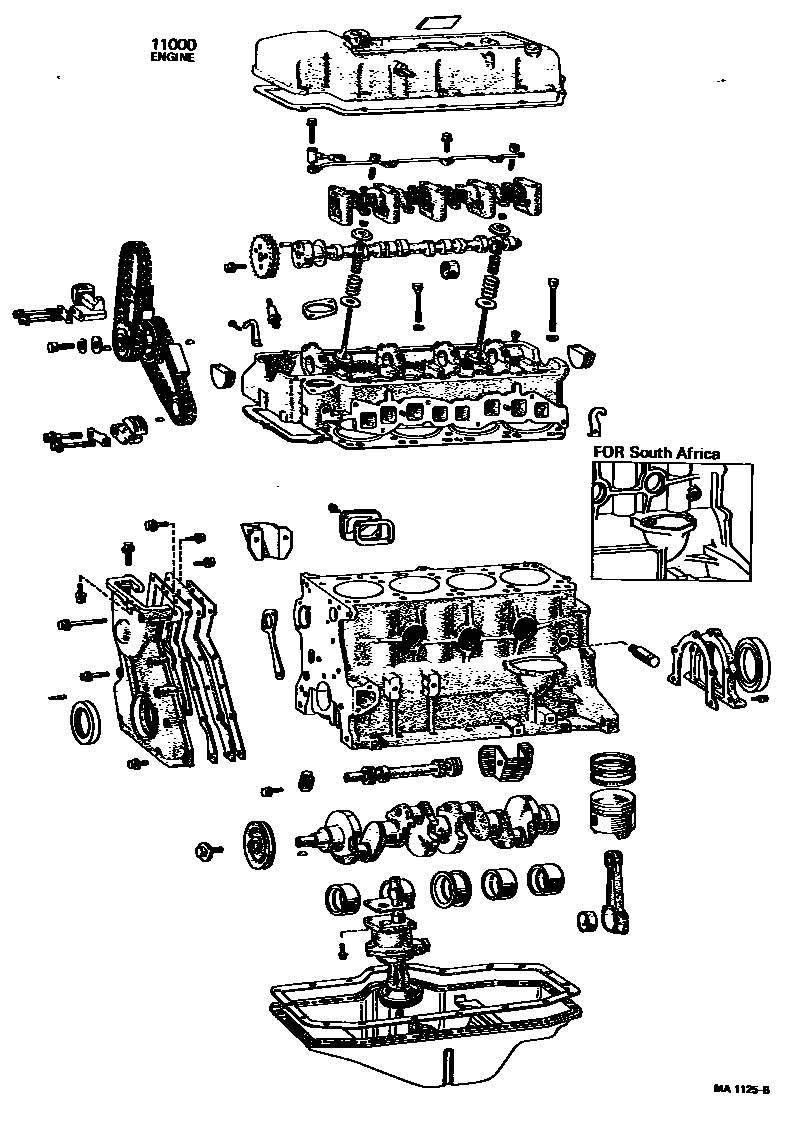

Toyota HILUX Partial Engine Assembly EPC diagram — MA1125B
Partial Engine Assembly — MA1125B (197404 – 197509)

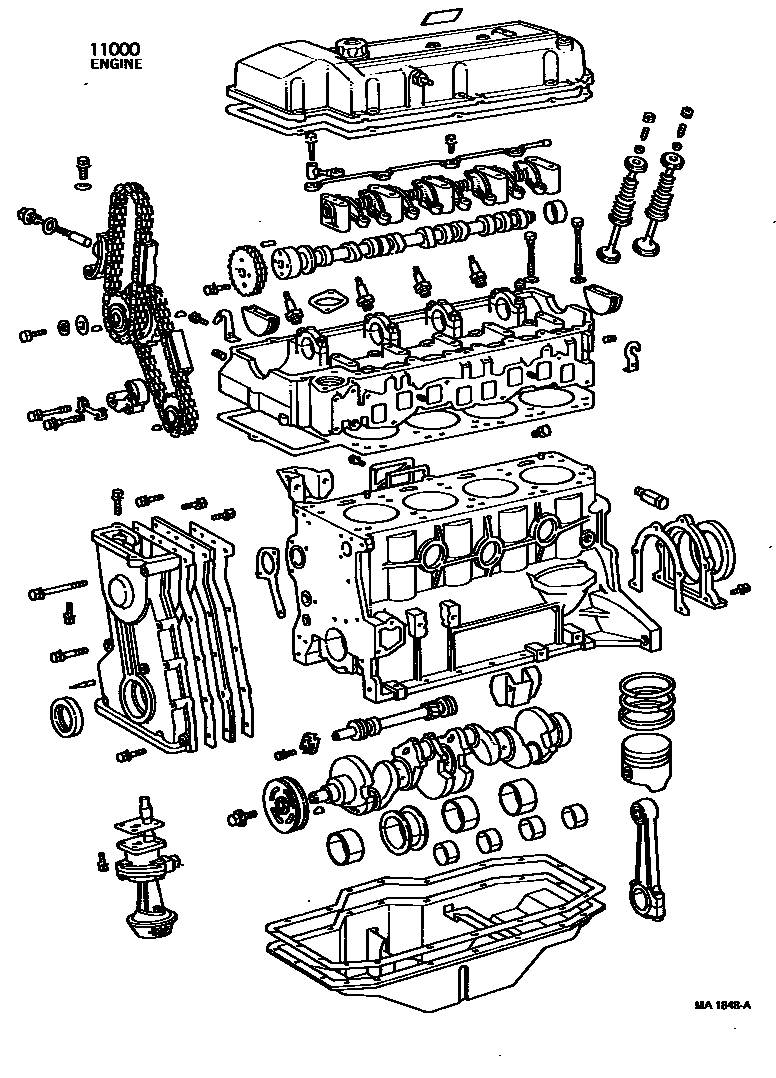

Toyota HILUX Partial Engine Assembly EPC diagram — MA1848A
Partial Engine Assembly — MA1848A (197509 – 197807)

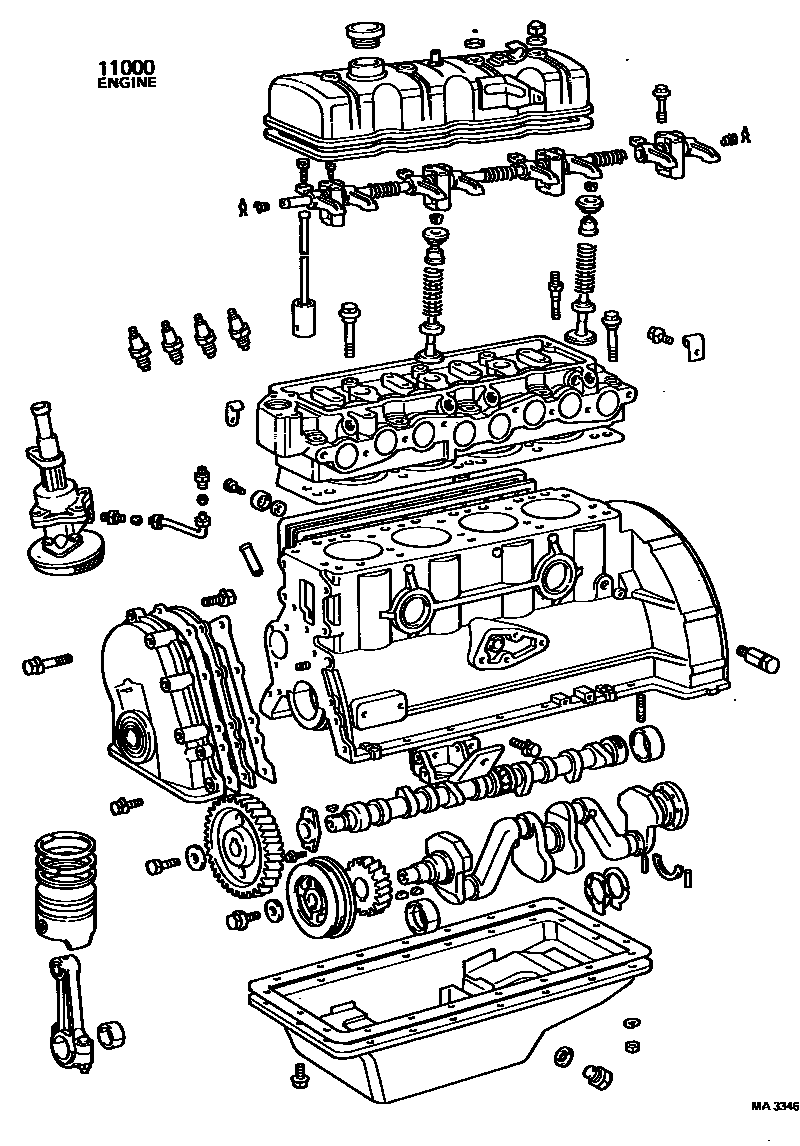

Toyota HILUX Partial Engine Assembly EPC diagram — MA3346
Partial Engine Assembly — MA3346 (197205 – 197807)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-31160 · 19000-31161 · 19000-31162 · 19000-31170 · 19000-31171 · 19000-31172 · 19000-31221 · 19000-31230 · 19000-31250 · 19000-34070 · 19000-34071 · 19000-34250 · 19000-34251 · 19000-34252 · 19000-34253 · 19000-34390
