Toyota HILUX Standard Tools — Figure 0901

Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 11 PNC and OE references.

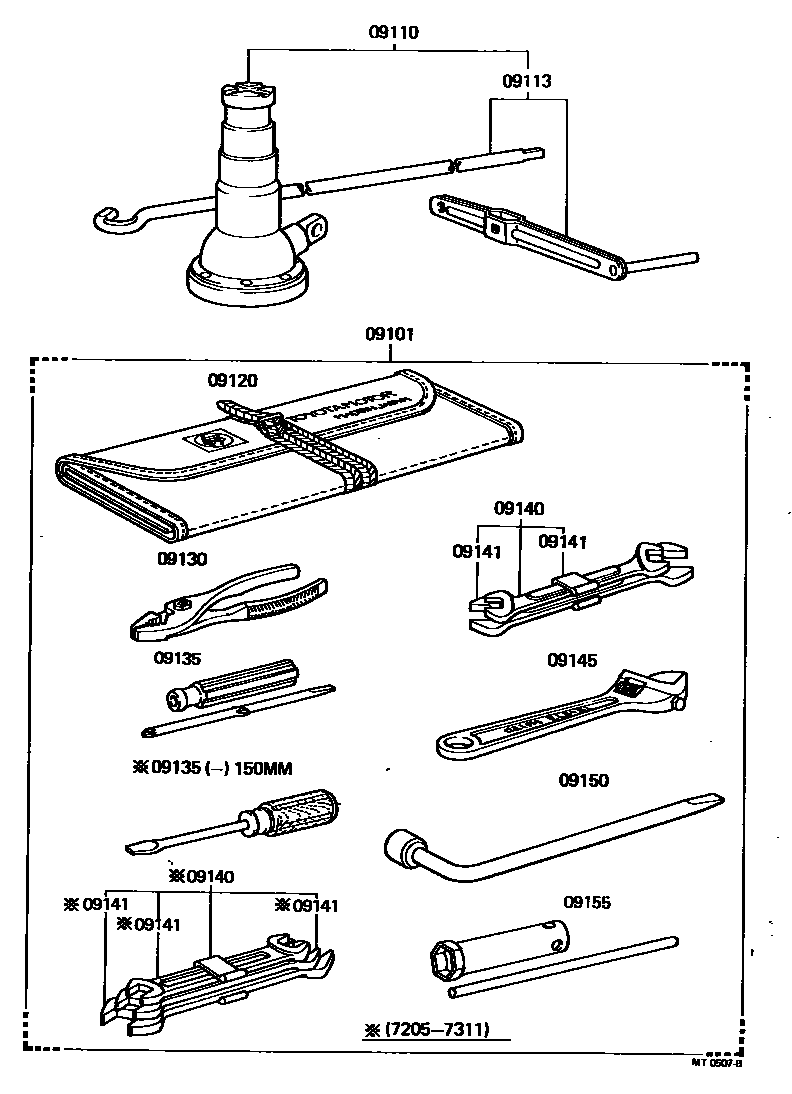

Toyota HILUX Standard Tools EPC diagram — MT0507B
Standard Tools — MT0507B (197205 – 197807)

PNC and OE references

PNCPart nameOE numbers
09101Standard kit without jack09101-26010 · 09101-26030
09110Jack Assembly09110-35040 · 09110-35070
09113Jack Handle09113-35030
09120Tool Bag09120-26010 · 09120-26020 · 09120-26021
09130Pliers09130-00011
09135Screwdriver09135-00010 · 09135-00060
09140Wrench assembly09140-00013 · 09140-22010
09141Wrench09141-00011 · 09141-00030 · 09141-00050
09145adjustable wrench09145-00020
09150Wheel Nut Wrench09150-30011
09155Spark Plug Wrench09155-36010
