Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

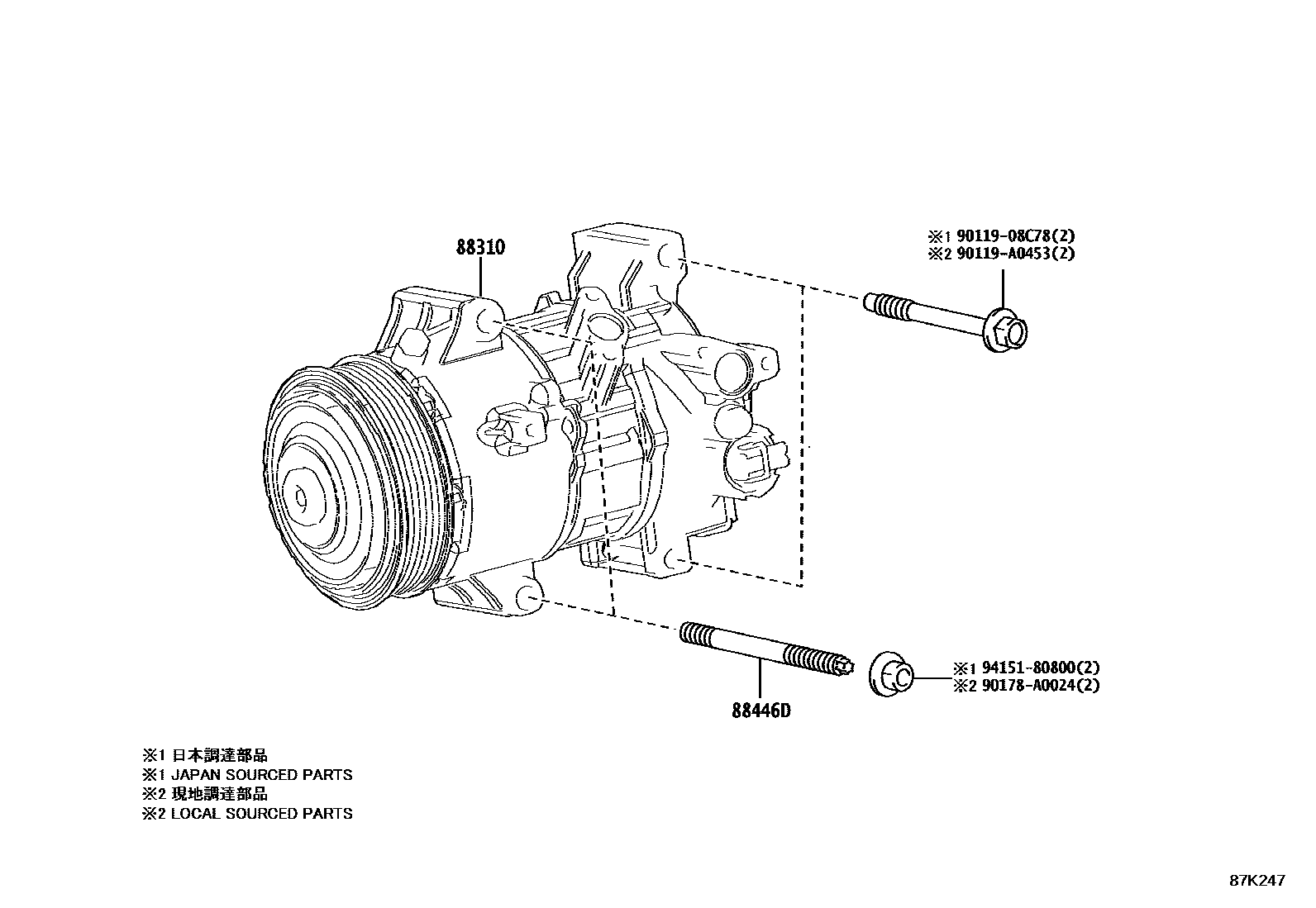

| 88310 | Compressor assembly with pulley | 88310-02B60 |

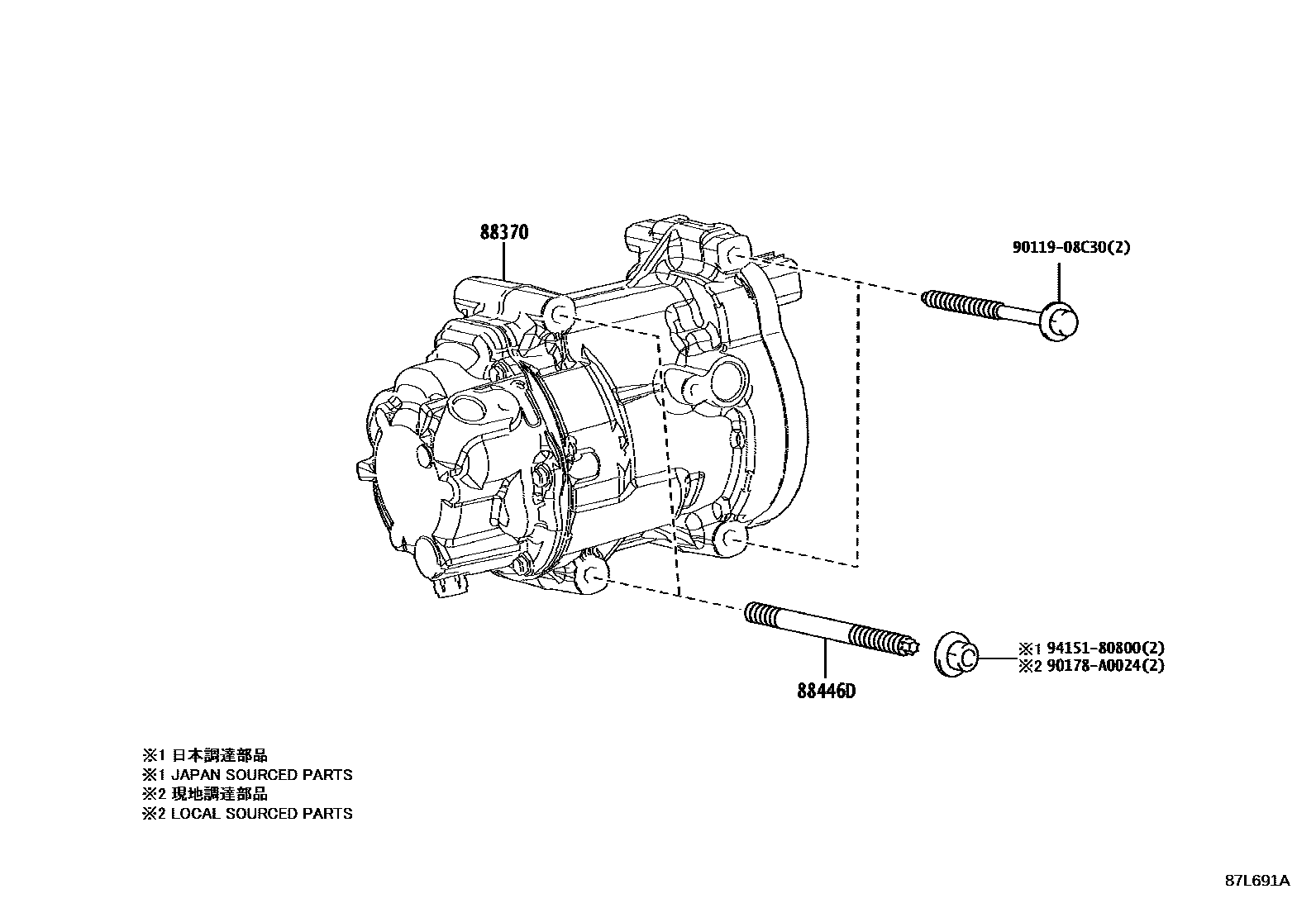

| 88370 | Compressor assembly with motor | 88370-12070 |
| 88446D | cooler bolt | 88446-08070 · 88899-44010 |
