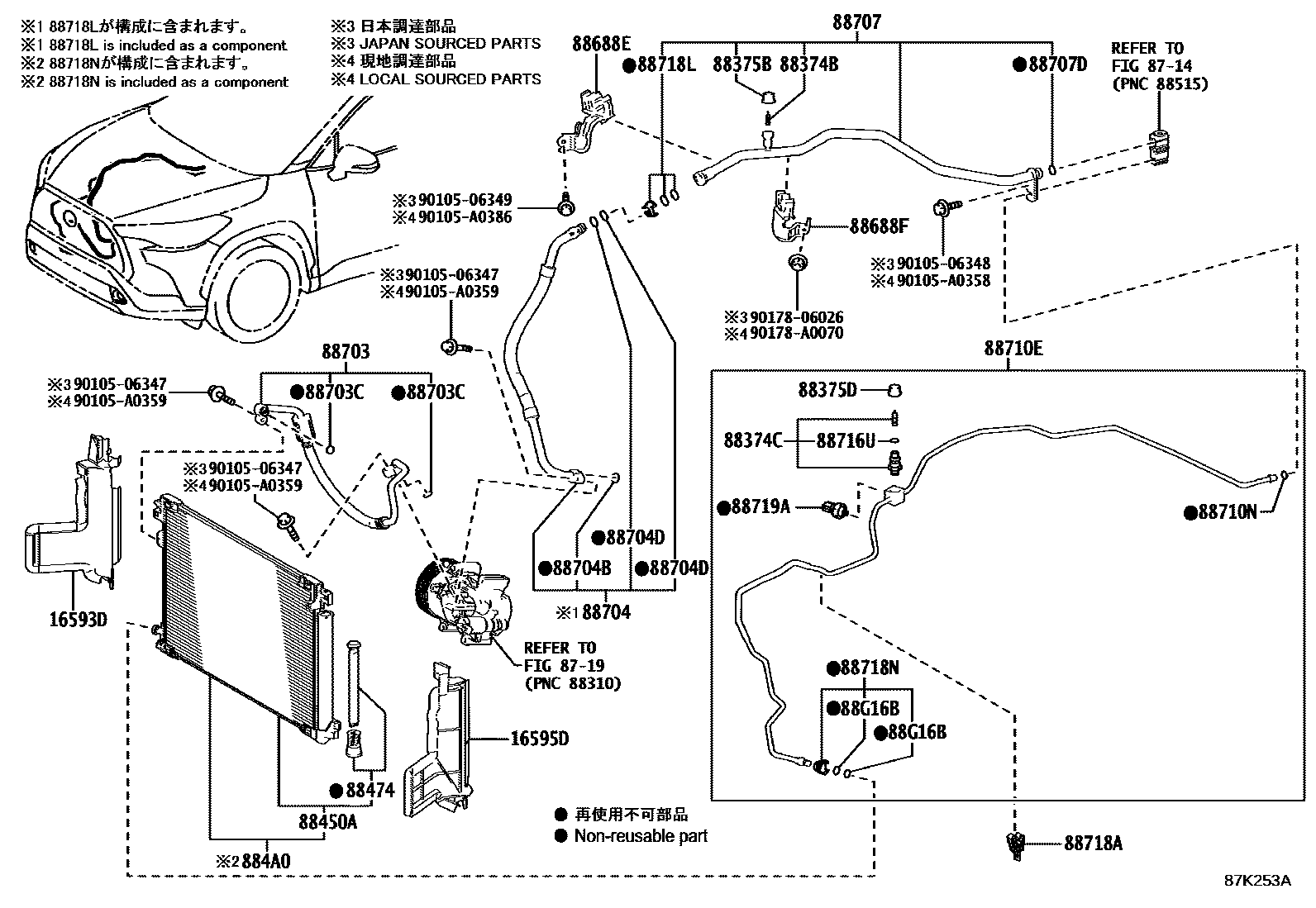

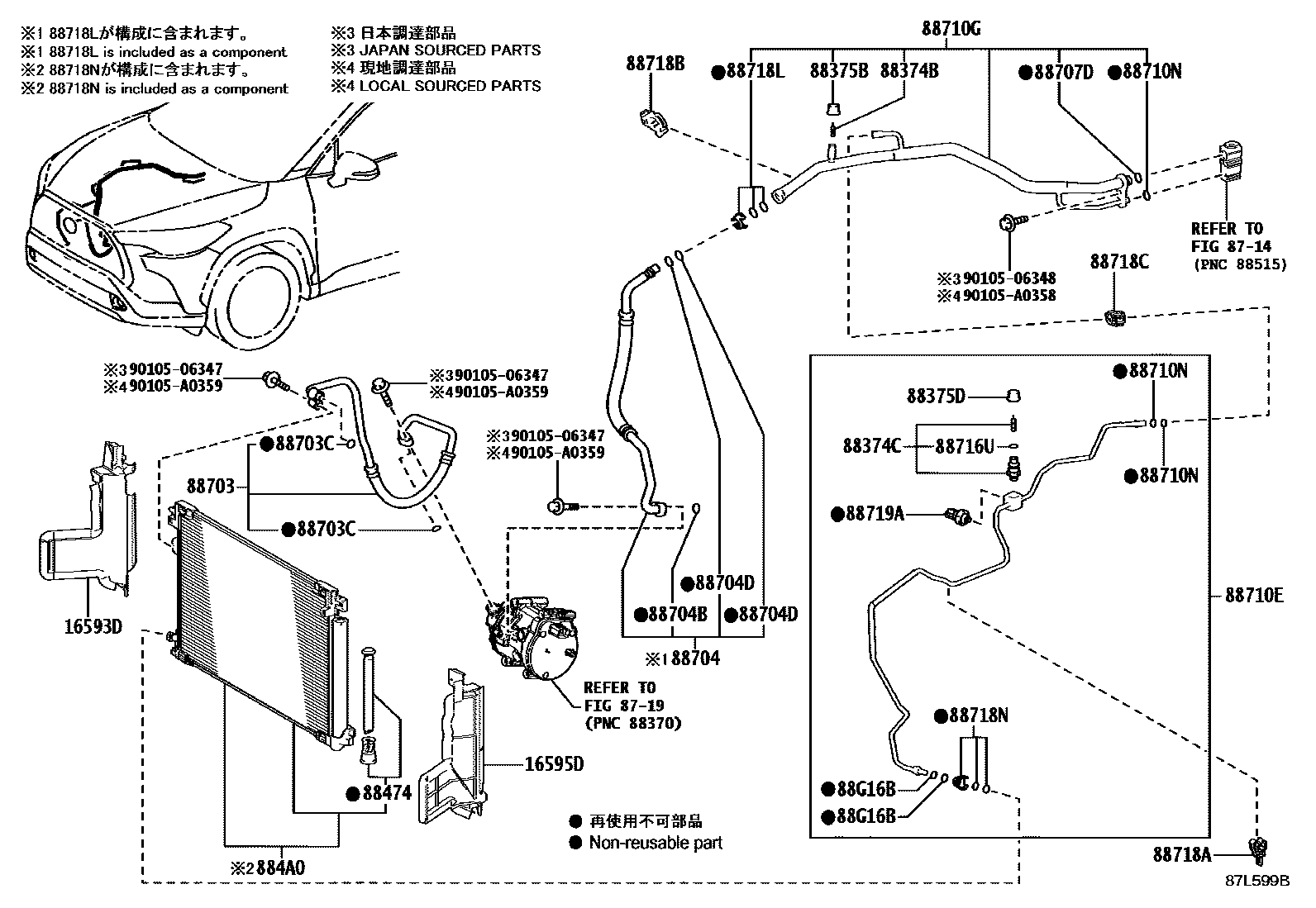

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16593D | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-F2140 · 16593-F2330 |
| 16595D | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-F2160 · 16595-F2350 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30020 |
| 88375B | No. 1 maintenance valve cover | 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30320 |
| 88450A | Sub-condenser assembly | 88460-02360 |
| 88474 | cooler dryer | 88474-06020 · 88474-08010 |
| 884A0 | ENSEMBLE CONDENSEUR DE CLIMATISEUR | 884A0-02070 · 884A0-02130 · 884A0-0A080 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02C40 · 88688-02F30 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02C50 |
| 88703 | Discharge hose sub-assembly | 88703-0A070 · 88703-0A140 |
| 88703C | JOINT, TORIQUE(POUR TUYAU DECHARGE) | 90069-08007 |
| 88704 | Oil suction hose sub-assembly | 88704-02C60 · 88704-02C70 · 88704-0A170 |
| 88704B | JOINT, TORIQUE(POUR FLEXIBLE ASPIRATION) | 90069-08009 |
| 88704D | JOINT, TORIQUE, NO.2 (POUR FLEXIBLE ASPIRATION) | 90099-14157 |
| 88707 | Suction pipe sub-assembly | 88707-02780 |
| 88707D | JOINT, TORIQUE(POUR TUYAU ASPIRATION) | 90069-08009 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-0A100 · 88710-0A101 · 88710-0A200 |
| 88710G | No. 2 air conditioning pipe and accessories assembly | 88710-0A190 |
| 88710N | JOINT, TORIQUE, NO.1(ENS. TUYAU & ACCESSOIRE,CLIMATIS) | 90069-08011 |
| 88716U | O-ring (for cooler refrigerant liquid pipe) | 90099-14112 · 90099-14122 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-47110 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-0A160 |
| 88718C | Clamp No. 3 (for cooler refrigerant pipe) | 88718-2D150 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | FIXATION, TUYAUTERIE | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88G16B | JOINT, TORIQUE, NO.2(TUYAU LIQUID REFRIG REFROID) | 90099-14158 |
