Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

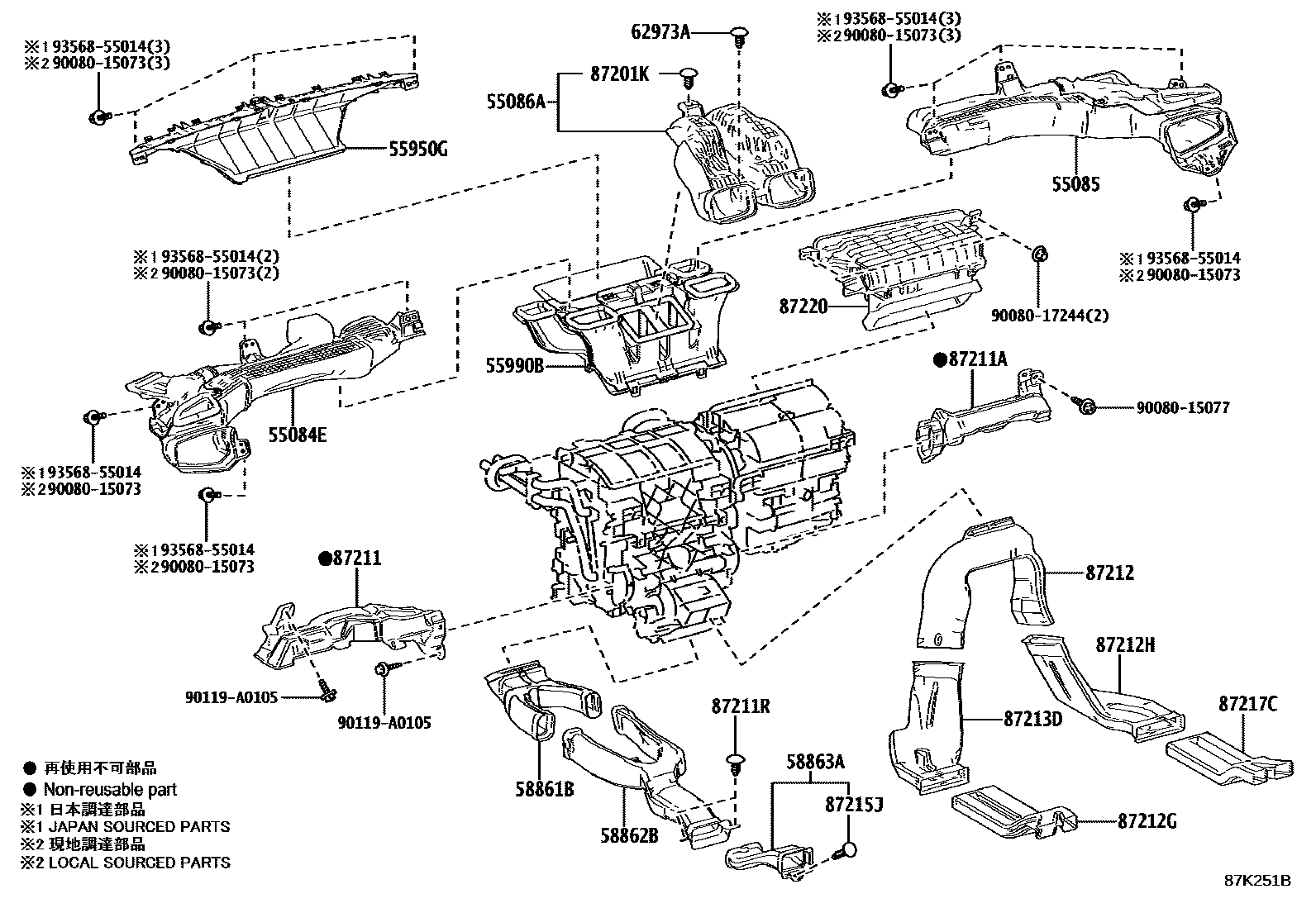

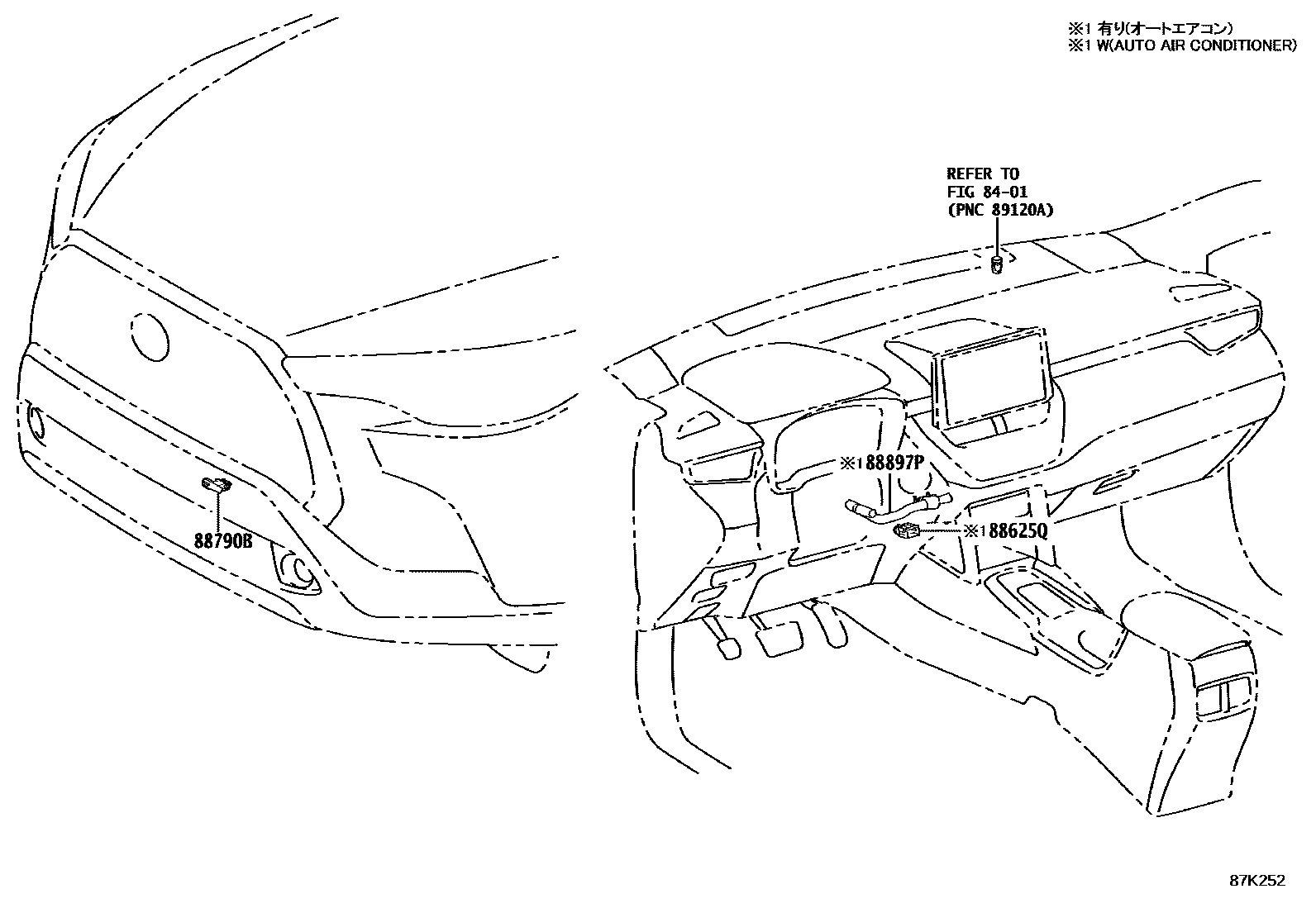

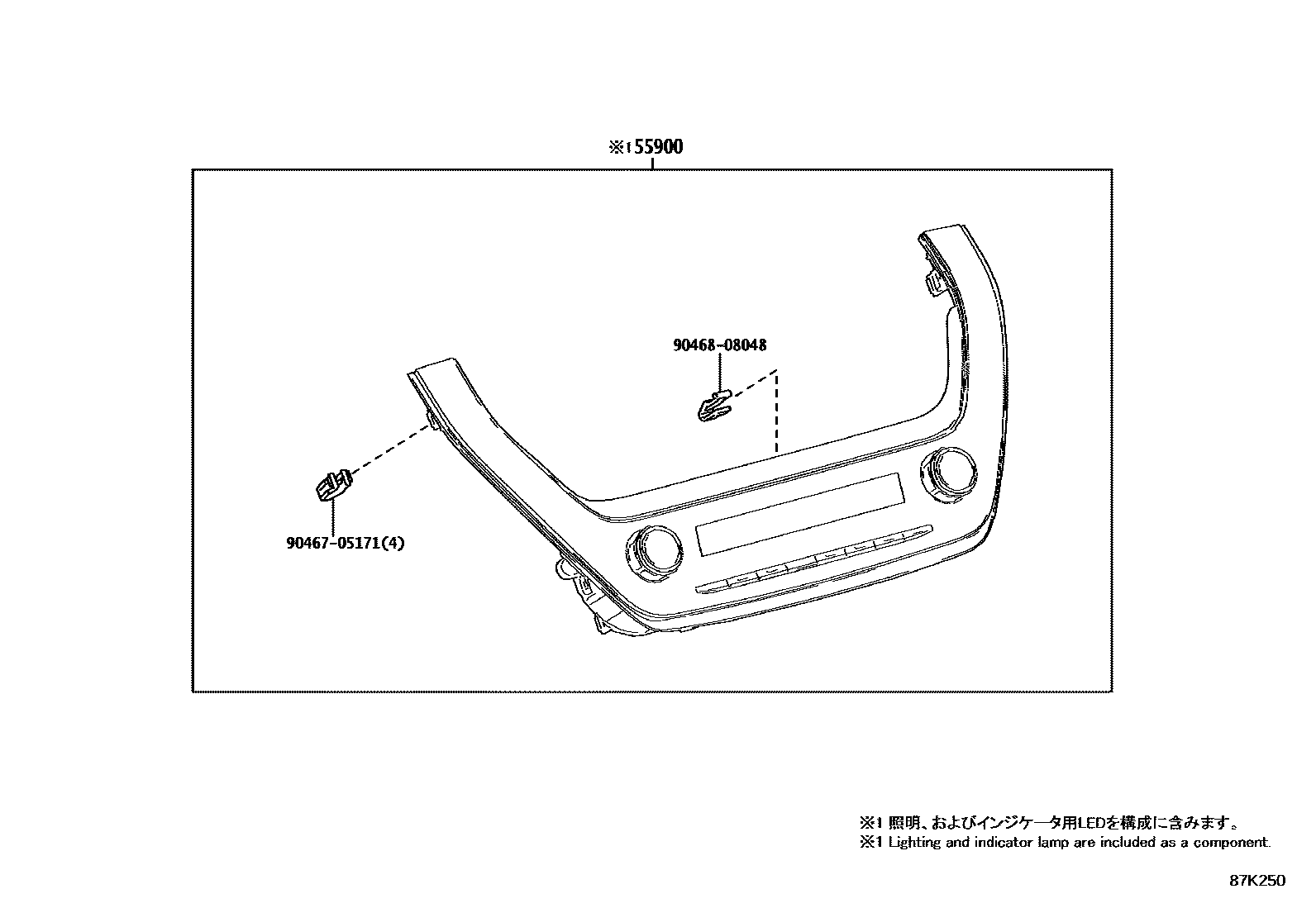

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-0A050 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-0A050 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-02570 |
| 55900 | Air conditioning control assembly | 55900-0A160 |
| 55950G | Defroster nozzle assembly | 55950-0A050 |
| 55990B | Lower defroster nozzle assembly | 55990-0A050 |
| 58861B | Air duct No. 1 for armrest box | 58861-0A050 |
| 58862B | Air duct No. 2 for armrest box | 58862-0A050 |
| 58863A | Armrest box No. 3 air duct | 58864-0A010 |
| 87211 | No. 1 air duct | 87211-02570 |
| 87211A | Duct No. 2 | 87211-02580 |
| 87212 | No. 1 rear air duct | 87215-02120 |
| 87212G | No. 3 rear air duct | 87217-0A010 |
| 87212H | No. 4 rear air duct | 87212-02150 |
| 87213D | No. 2 rear air duct | 87213-02140 · 87213-0A010 |
| 87217C | No. 5 rear air duct | 87216-0A010 |
| 87220 | Air duct assembly | 87220-0A050 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06040 |
| 88790B | Thermistor assembly | 88790-06020 |
| 88897P | aspirator | 88505-02210 |
