Toyota COROLLA 后视镜 — Figure 8701

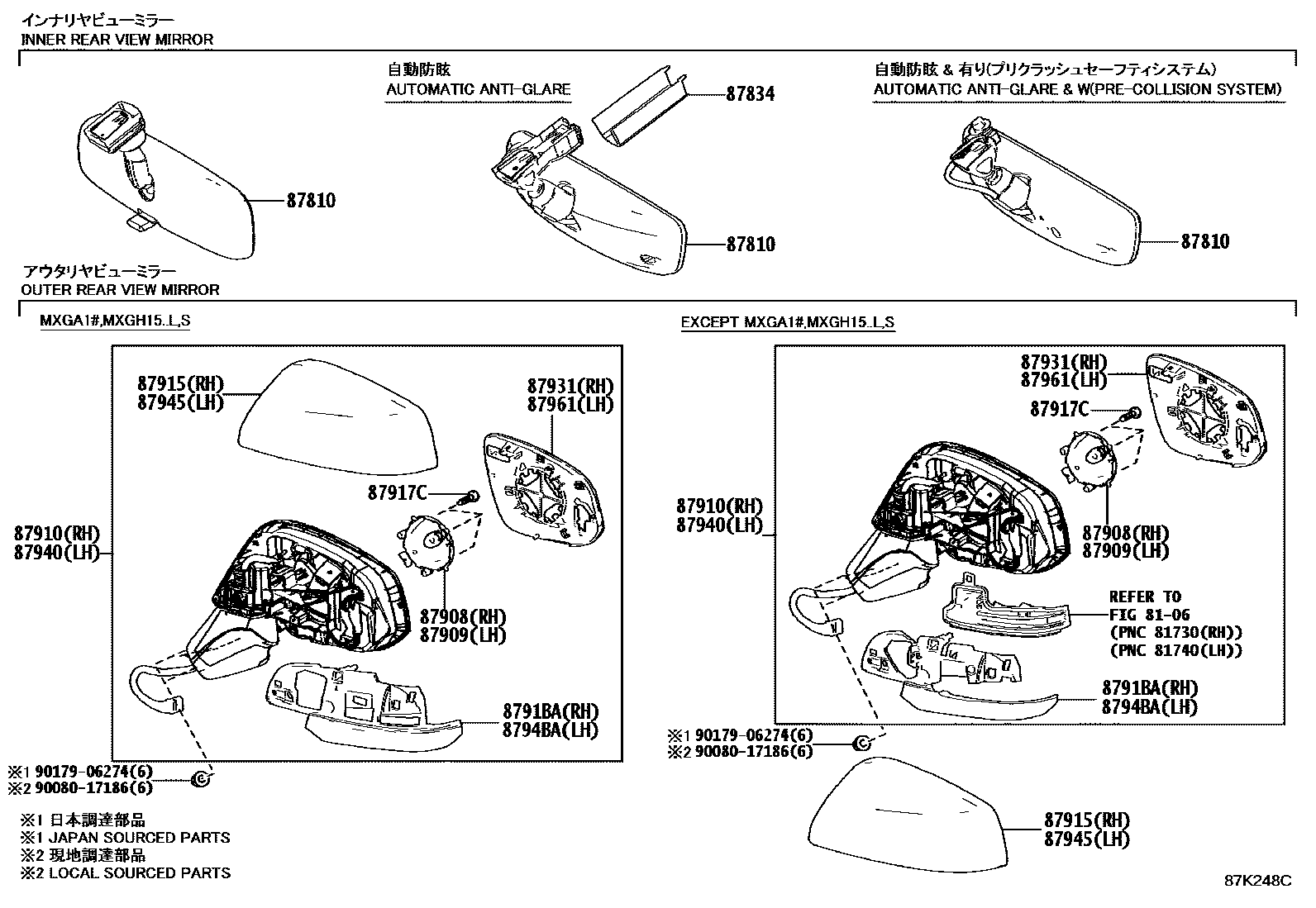

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02310 · 87810-0A030 · 87810-0A040 · 87810-YY040 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-24010 |
| 87908 | Right exterior rearview mirror actuator assembly | 87925-0E340 |
| 87909 | Left exterior rearview mirror actuator assembly | 87985-0E340 |
| 87910 | Right exterior rearview mirror assembly | 87910-0A130 · 87910-0A904 · 87910-0A905 |
| 87915 | Right exterior rearview mirror cover | 87915-0A030 |
| 87917C | Exterior rearview mirror screws | 87917-0E290 |
| 8791BA | CACHE, RETROVISEUR EXT, MD NO.3 | 8791B-0A130 |
| 87931 | Right exterior rearview mirror | 87931-0A150 · 87931-0E360 |
| 87940 | Left exterior rearview mirror assembly | 87940-0A120 · 87940-0A904 · 87940-0A905 |
| 87945 | Left exterior rearview mirror cap | 87945-0A030 |
| 8794BA | CACHE, RETROVISEUR EXT, MG NO.3 | 8794B-0A120 |
| 87961 | Left exterior rearview mirror | 87961-0A120 · 87961-0A140 |
