Toyota COROLLA 车载电话和呼救装置 — Figure 8615

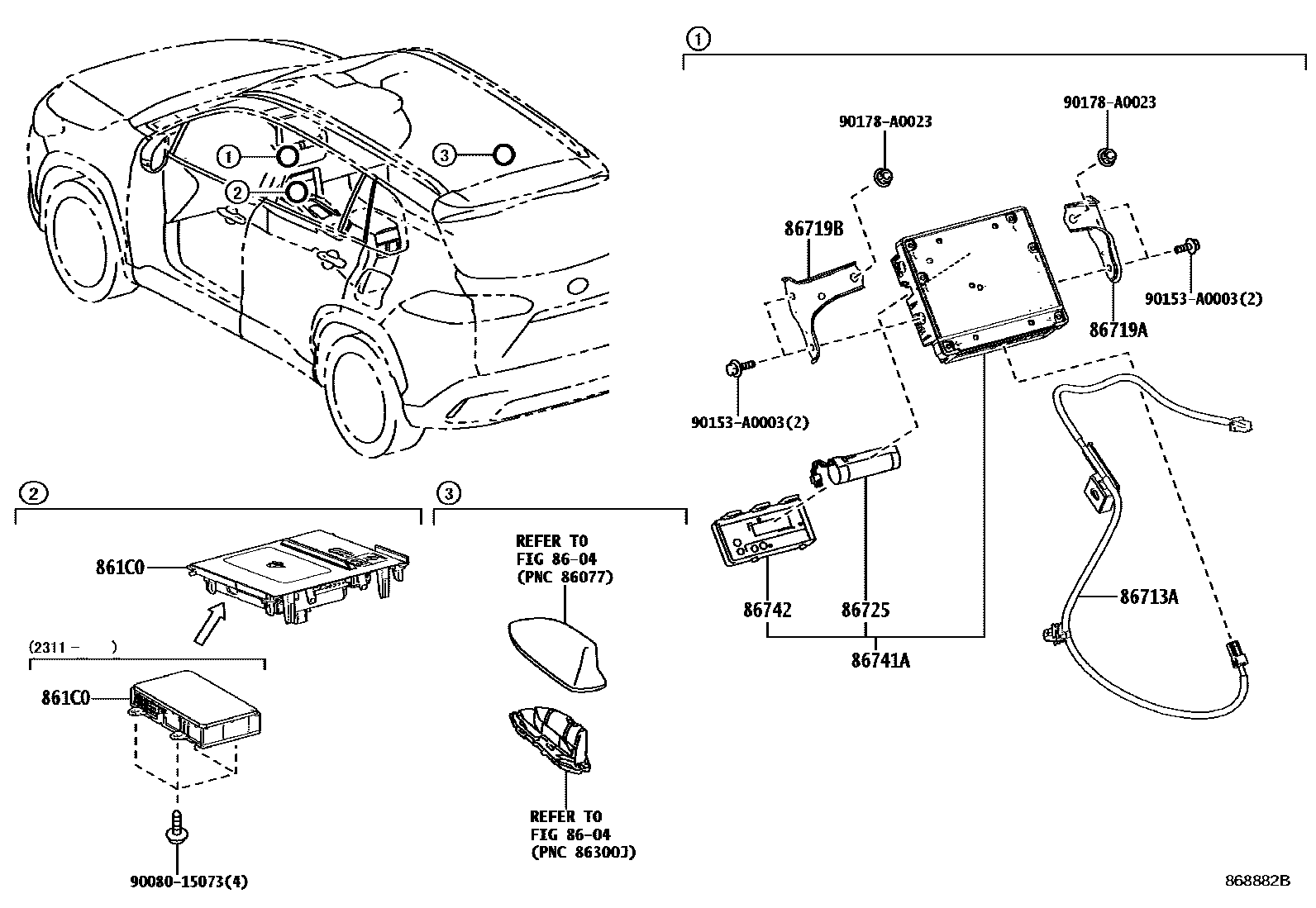

Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 861C0 | ENSEMBLE CHASSIS, CHARGEUR SANS FIL PORTABLE | 861C0-0A010 · 861C0-0A011 · 861C0-0E040 |
| 86713A | Telephone ECU harness (to transceiver) | 86713-02070 · 86713-0A060 |
| 86719A | Phone holder No. 1 | 86719-02140 |
| 86719B | Phone holder No. 2 | 86719-02150 |
| 86725 | mobile phone battery | 86725-06020 |
| 86741A | Telecommunications transceiver | 86741-06092 · 86741-0E110 · 86741-0E111 |
| 86742 | transceiver cover | 86742-06020 · 86742-78010 |
