Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 2 images and 4 PNC and OE references.

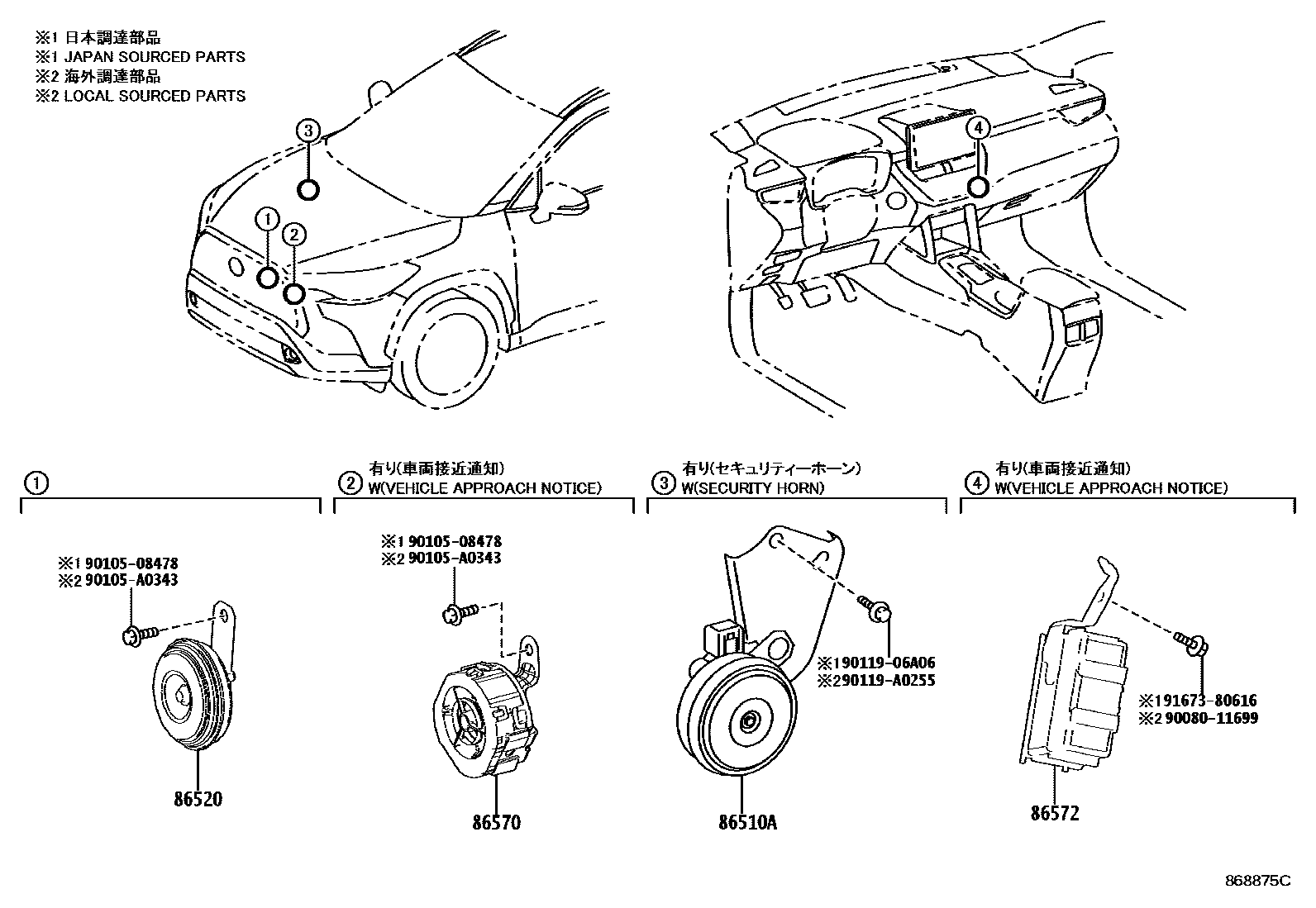

Toyota COROLLA 喇叭 EPC diagram — 868875C
喇叭 — 868875C (202305 – 999999)

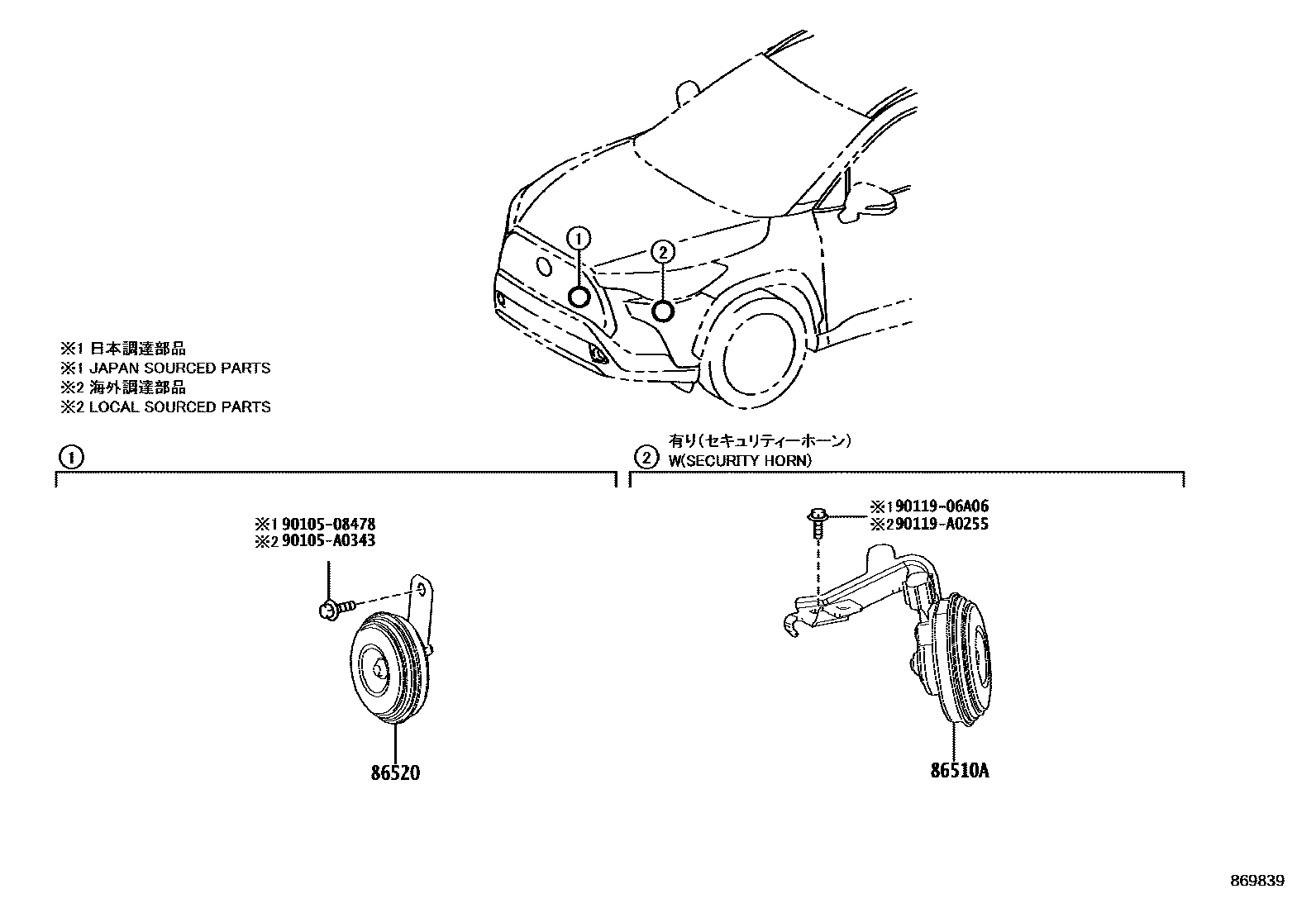

Toyota COROLLA 喇叭 EPC diagram — 869839
喇叭 — 869839 (202109 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510AAlarm horn assembly86560-02120 · 86560-0A020
86520Subwoofer assembly86520-0R010
86570Vehicle intrusion speaker assembly86570-12030
86572vehicle hacking speaker controller86572-16070 · 86572-16080
