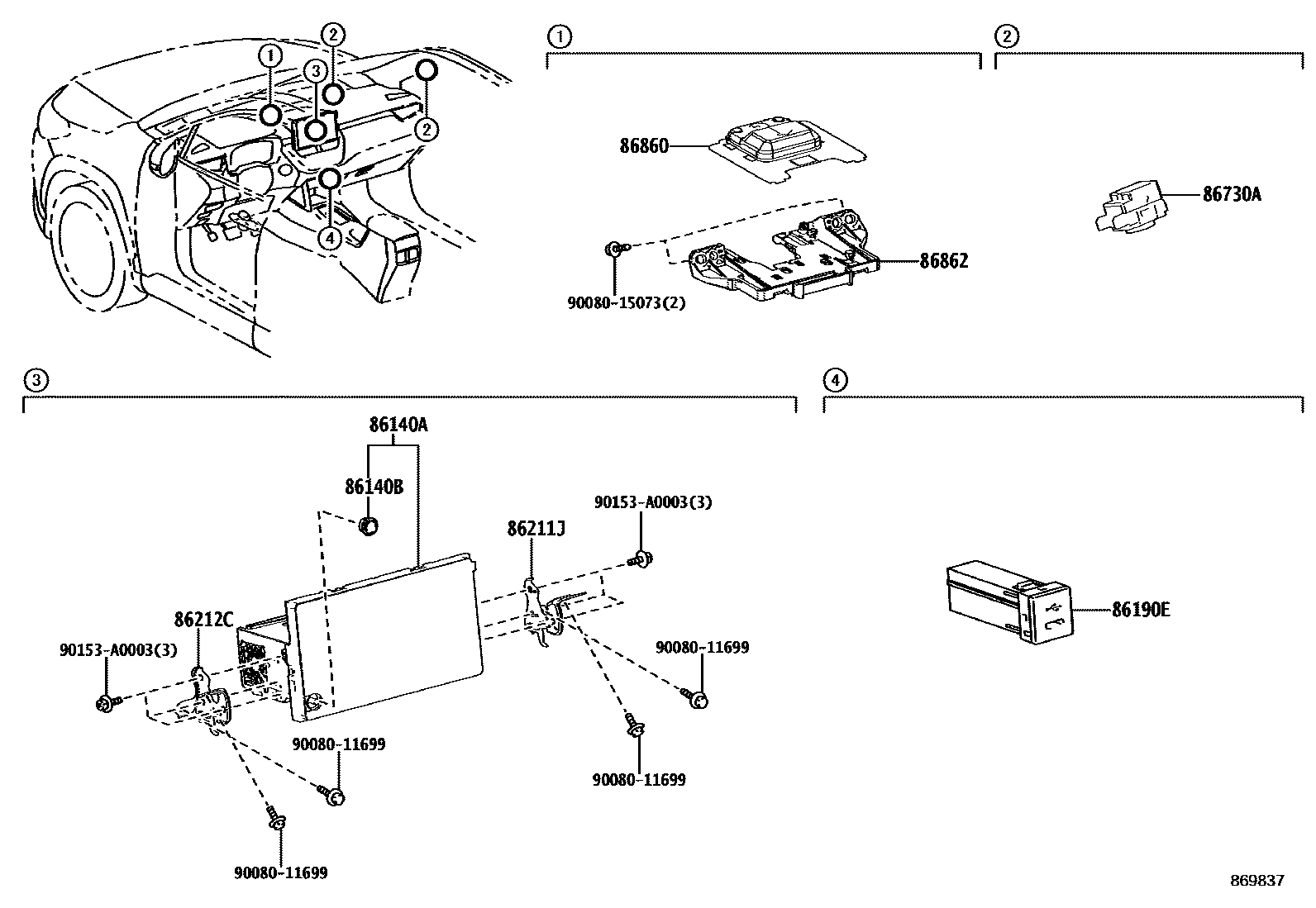

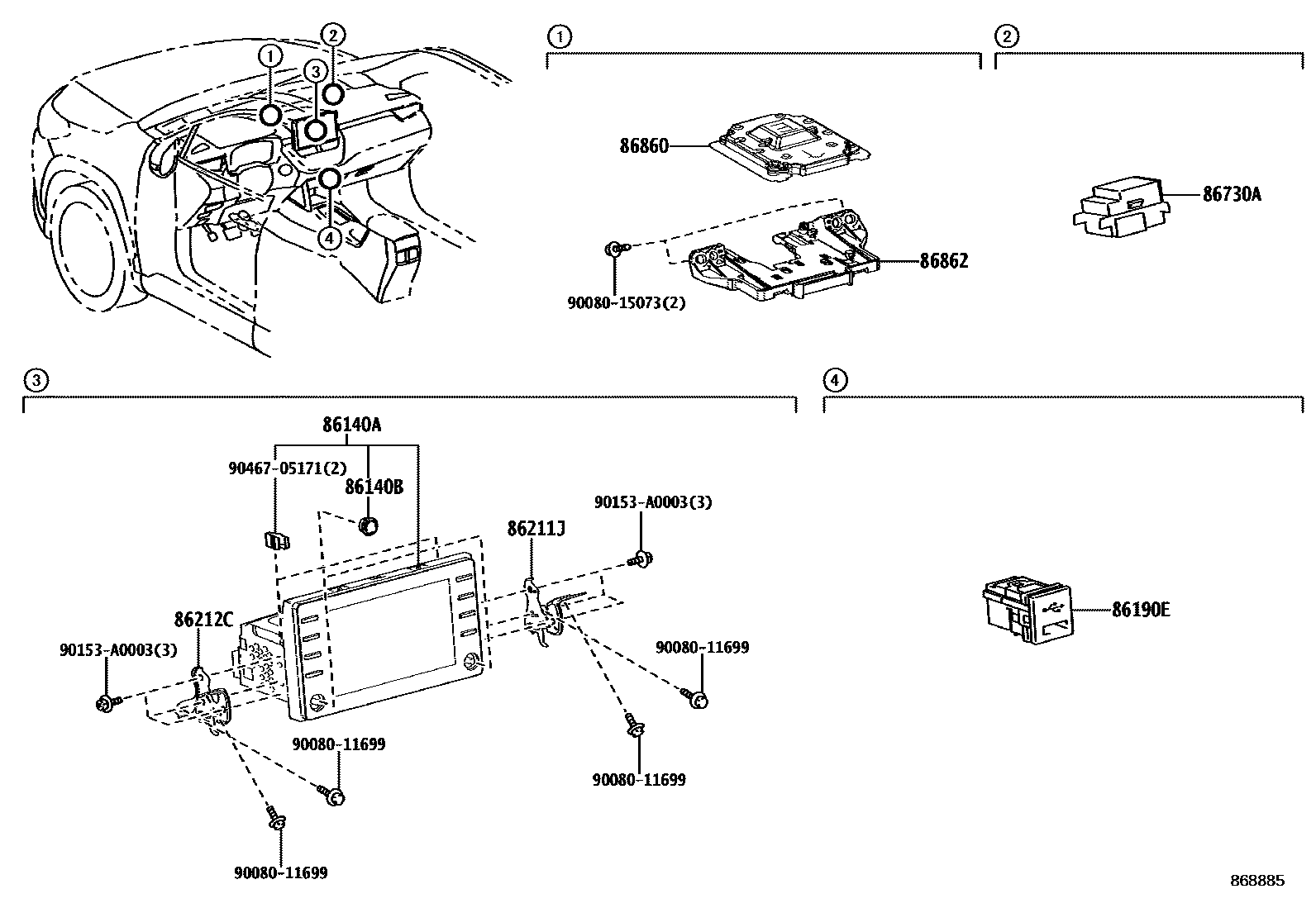

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-0A060 · 86140-0A110 · 86140-0A120 · 86140-0A130 · 86140-0A150 · 86140-0A160 · 86140-0A170 · 86140-0A280 · 86140-0A281 · 86140-0A290 · 86140-0A291 · 86140-0A310 · 86140-0A311 · 86140-0A320 · 86140-0A321 |
| 86140B | Radio and display receiver switch button | 90010-22138 · 90010-22139 · 90011-23045 · 90011-25350 |
| 86190E | Stereo socket adapter assembly | 86190-02130 · 86190-52070 |
| 86211J | No. 1 radio bracket | 86211-02540 |
| 86212C | No. 2 radio bracket | 86212-02540 |
| 86730A | Telephone amplifier assembly | 86730-0C020 · 86730-45030 |
| 86860 | Navigation antenna assembly | 86860-0E070 · 86880-0A010 · 86880-0E010 |
| 86862 | Navigation antenna bracket | 86862-42010 |
