Toyota COROLLA 后清洗器 — Figure 8504

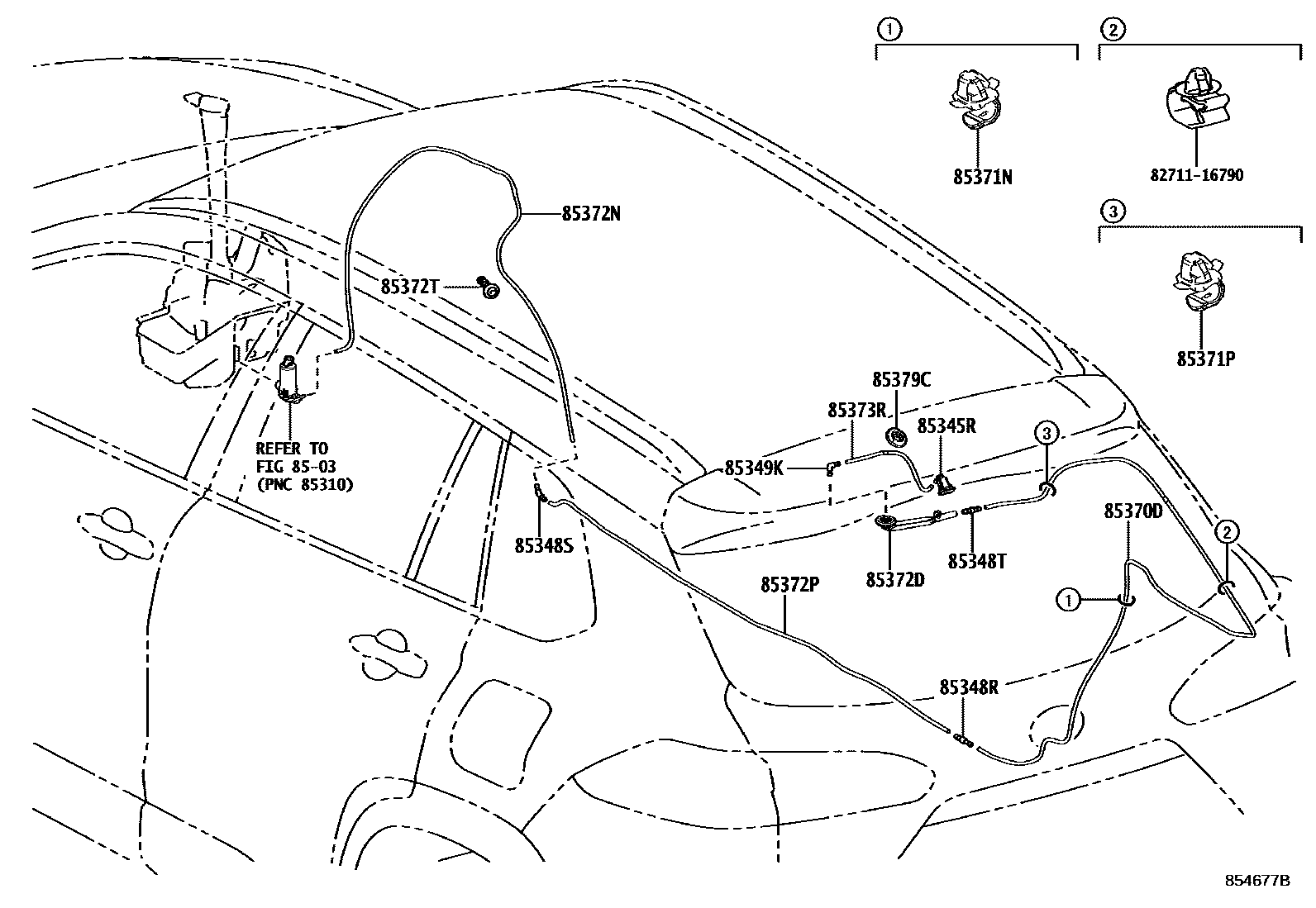

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85391-0A040 |
| 85348R | No. 1 rear washer hose connector | 85375-0E010 |
| 85348S | No. 1 rear cleaner elbow joint | 85375-02260 |
| 85348T | No. 2 rear washer hose connector | 85375-0E010 |
| 85349K | No. 2 rear cleaner elbow joint | 85375-02260 |
| 85370D | No. 1 rear washer hose assembly | 90068-33406 |
| 85371N | Rear washer hose clamp | 85371-12040 |
| 85371P | COLLIER, FLEX LAVE-VITRE ARR, NO.2 | 85371-12040 |
| 85372D | Rear washer hose seal | 85372-20040 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-33408 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 85370-0A250 |
| 85372T | Cleaner seal | 85379-12850 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33355 |
| 85379C | No. 1 rear washer hose seal | 85372-20020 |
