Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

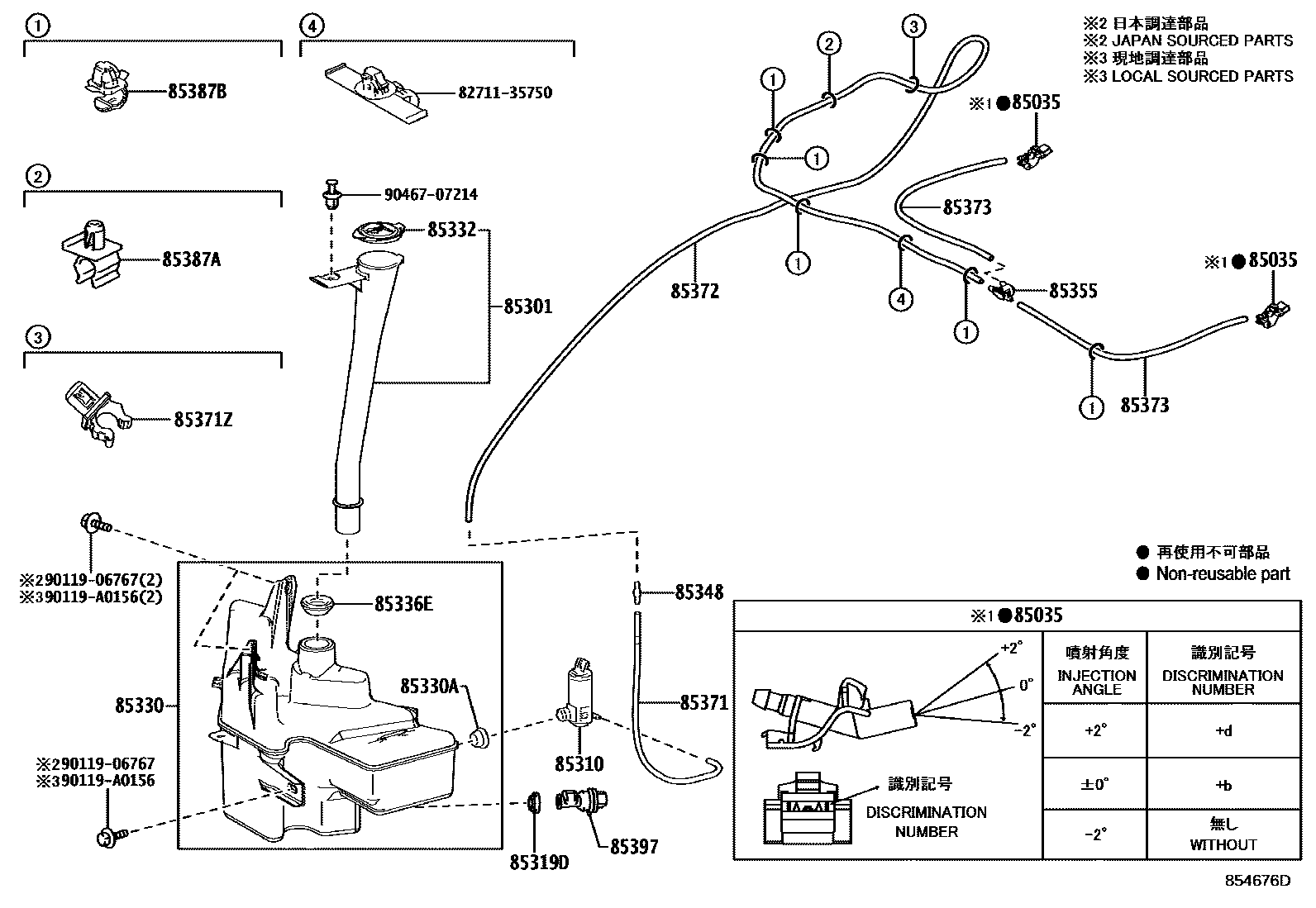

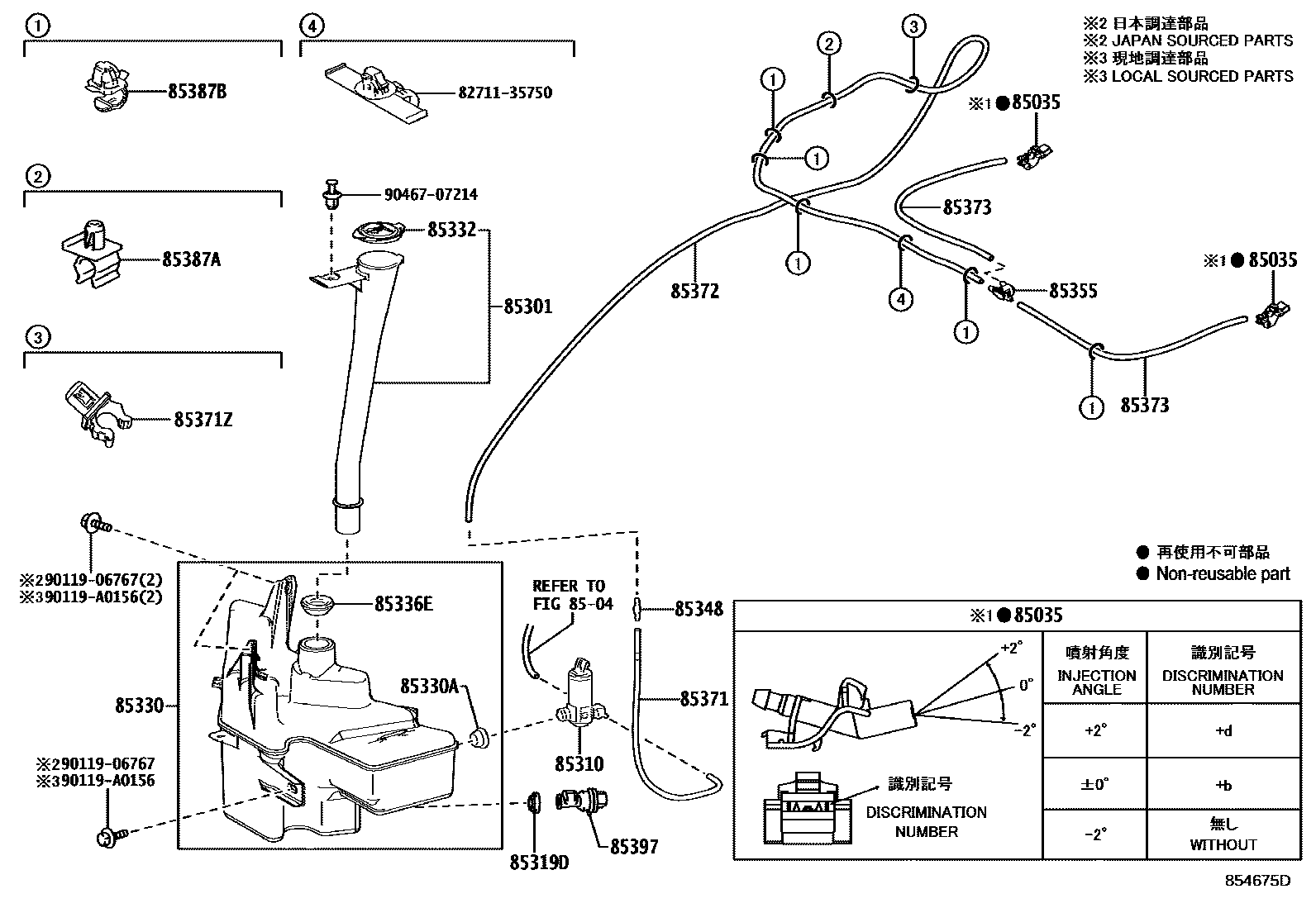

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85301 | Cleaner water inlet sub-assembly | 85301-0A060 |
| 85310 | Windshield washer motor and pump assembly | 85330-04011 · 85330-0A020 |
| 85319D | front washer seal | 85319-AA020 |
| 85330 | Windshield washer fluid tank assembly | 85315-0A070 · 85315-0A080 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-24130 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0E010 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85371Z | COLLIER, FLEX LAVE-VITRE | 85371-52110 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33405 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33172 |
| 85387A | Cleaner clip No. 2 | 85371-32020 |
| 85387B | No. 3 cleaner clip | 85371-12040 |
| 85397 | Liquid level warning switch assembly | 85397-AA040 |
