Toyota COROLLA 逆变器冷却系统 — Figure 8432

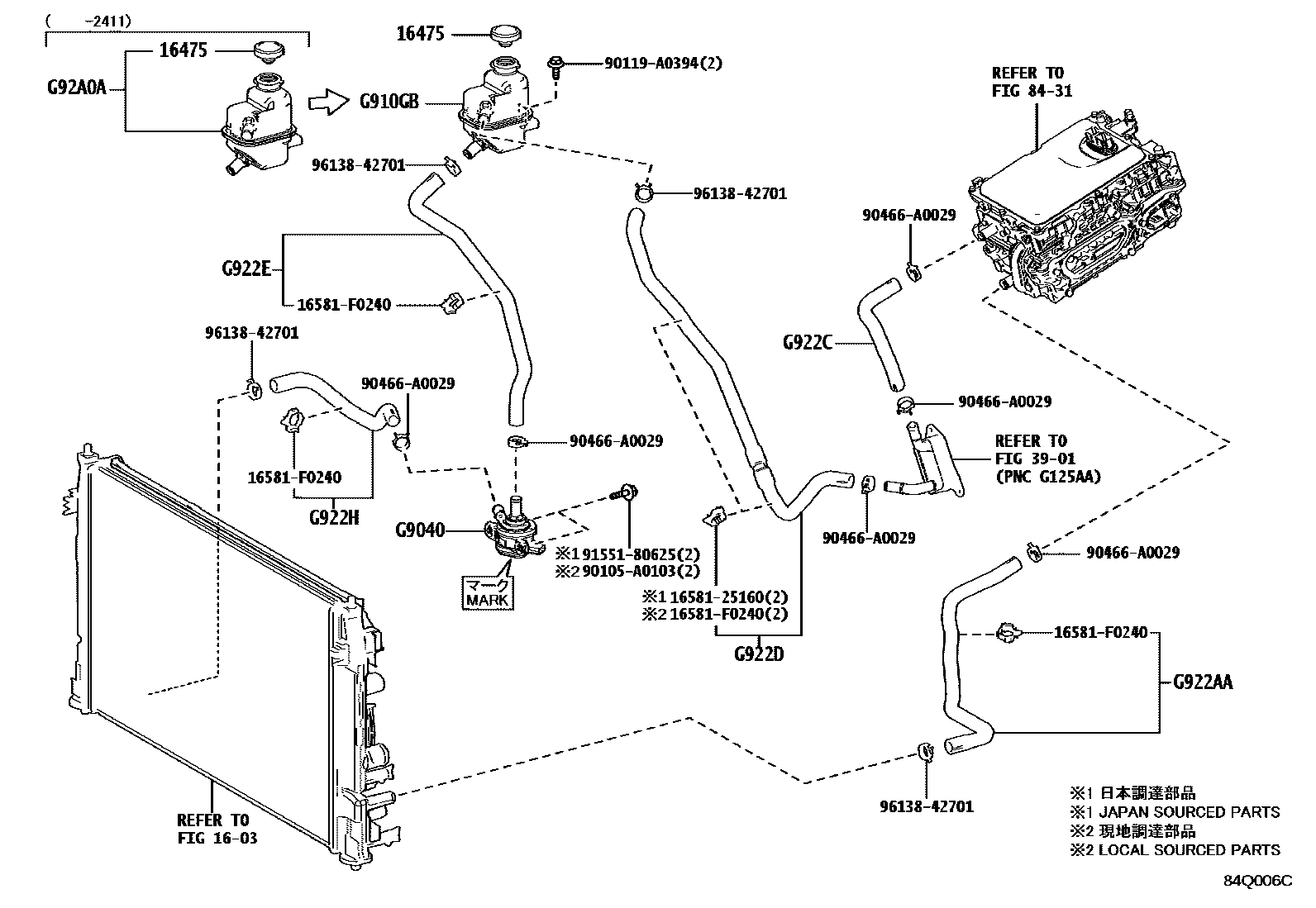

Toyota COROLLA EPC diagram 8432, 逆变器冷却系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | 16475-28140 |
| G9040 | Inverter water pump assembly (with motor) | G9040-0A040 · G9040-0A050 · G9040-47020 |
| G910GB | SOUS-ENS. RESERVOIR, EXPANSION INVERSEUR SANS BOUCHON | G910G-0A010 |
| G922AA | No. 1 inverter cooling water inlet hose | G922A-0A010 |
| G922C | No. 1 inverter cooling water outlet hose | G922C-0A010 |
| G922D | No. 2 inverter cooling water outlet hose | G922D-0A010 |
| G922E | HV water pump water inlet hose | G922E-0A010 |
| G922H | HV radiator water inlet hose | G922H-0A010 |
| G92A0A | Inverter liquid tank assembly | G91H0-0A010 |
