Toyota COROLLA HV逆变器 — Figure 8431

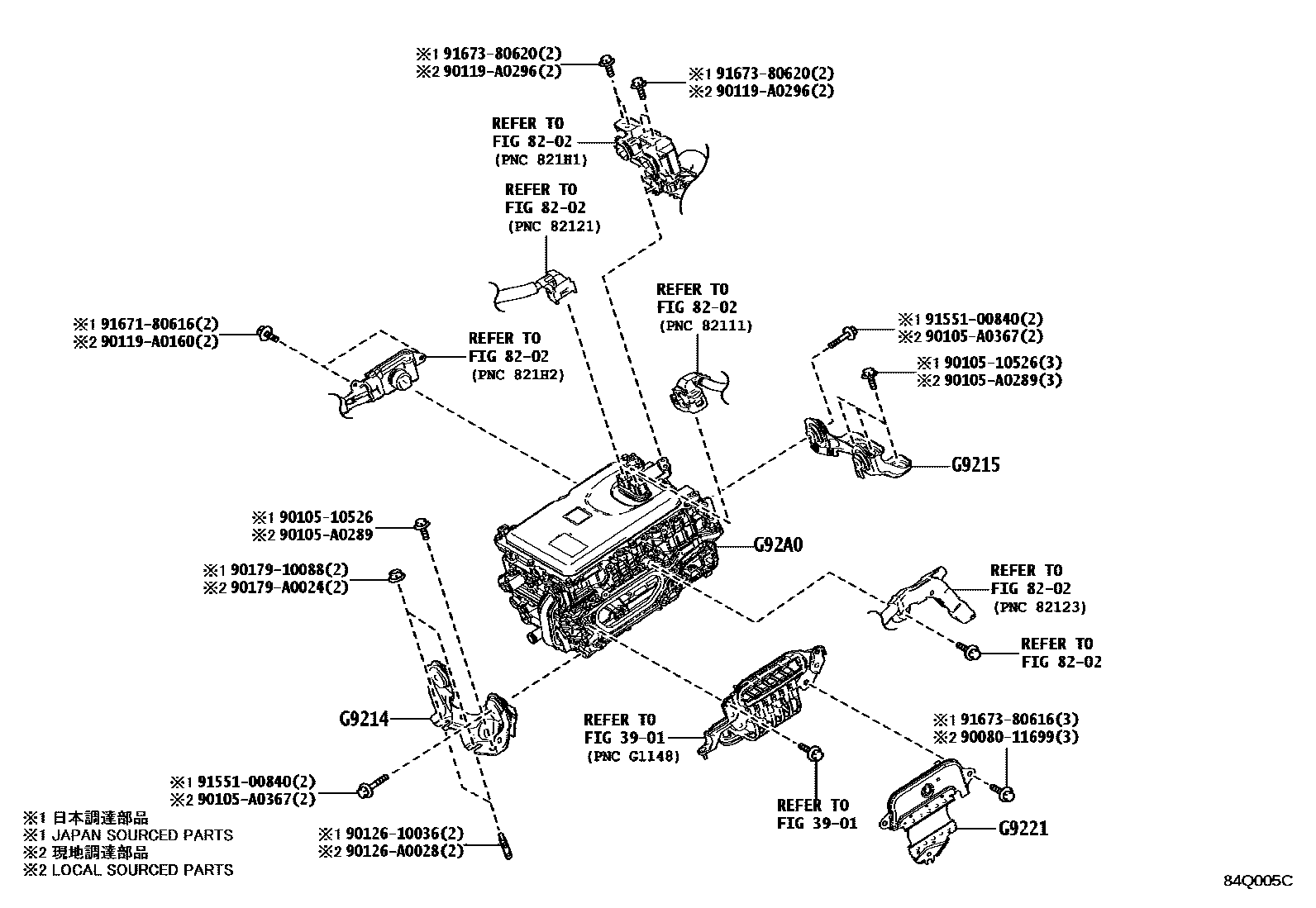

Toyota COROLLA EPC diagram 8431, HV逆变器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| G9214 | No. 1 inverter bracket | G9214-63010 |
| G9215 | No. 2 inverter bracket | G9215-47060 |
| G9221 | Inverter cover | G9022-28030 |
| G92A0 | Hybrid motor control inverter assembly | G92A0-0A020 · G92A0-16021 · G92A0-16022 |
