Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 8 PNC and OE references.

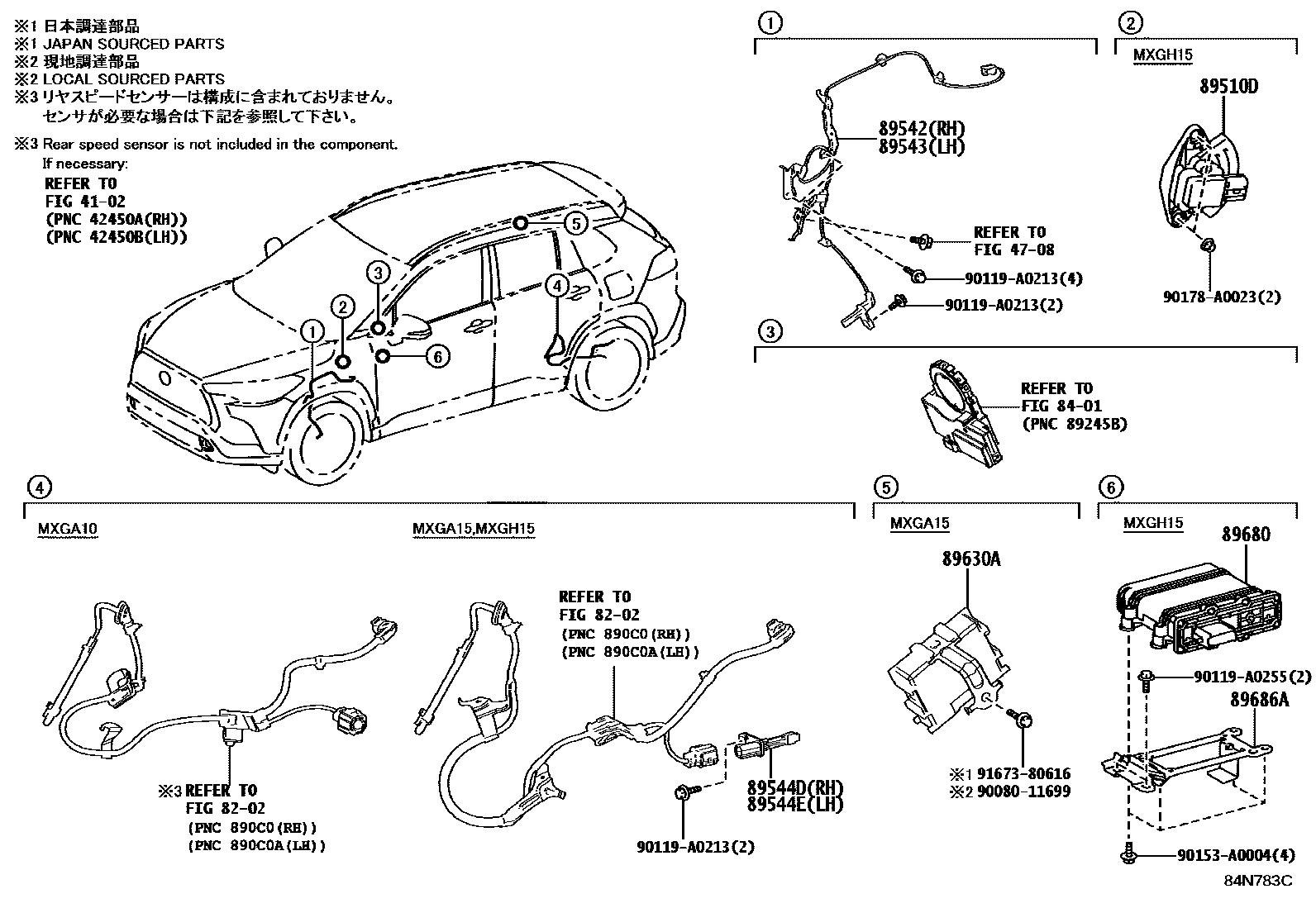

Toyota COROLLA ABS 和 VSC EPC diagram — 84N783C
ABS 和 VSC — 84N783C (202109 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-K0011
89542Right front wheel speed sensor89542-0A030
89543Left front wheel speed sensor89543-0A030
89544DCAPTEUR, CONTROLE DERAPAGE, ARR MD89544-0A020
89544ECAPTEUR, CONTROLE DERAPAGE, ARR MG89544-0A020
89630AFour-wheel drive ECU assembly89630-16020
89680Brake control power supply assembly89680-48030
89686ANo. 1 brake control power bracket89686-0A010
