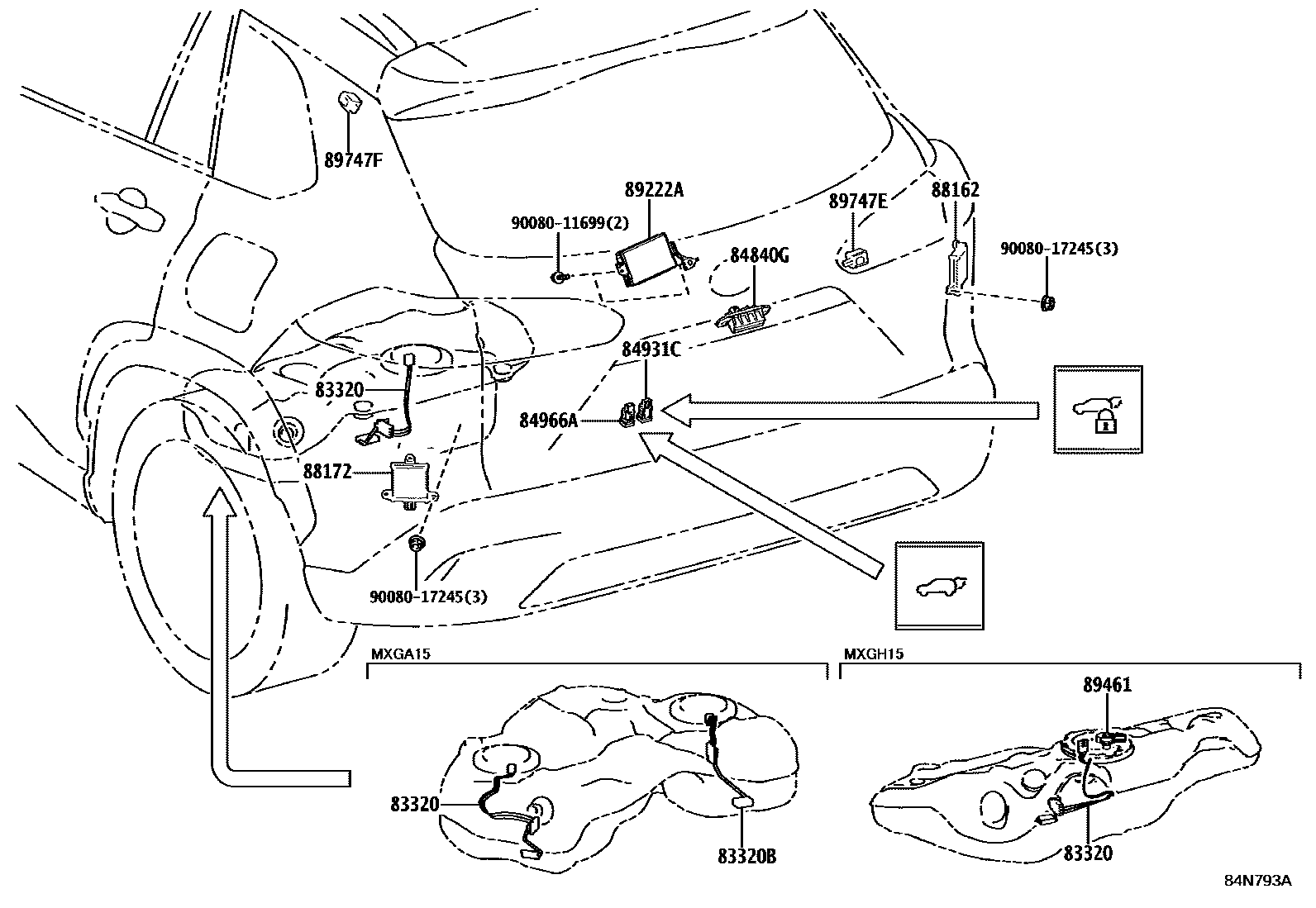

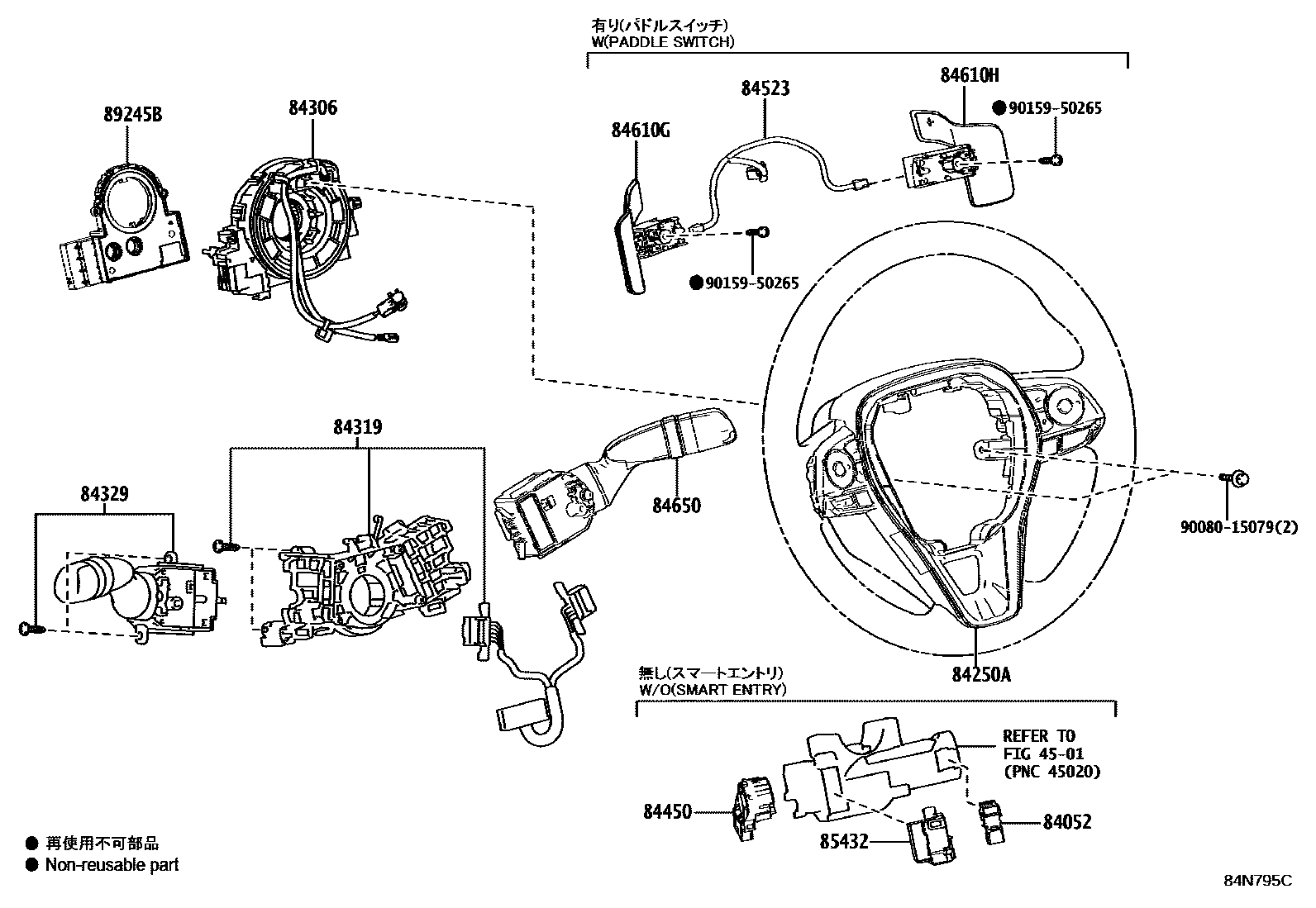

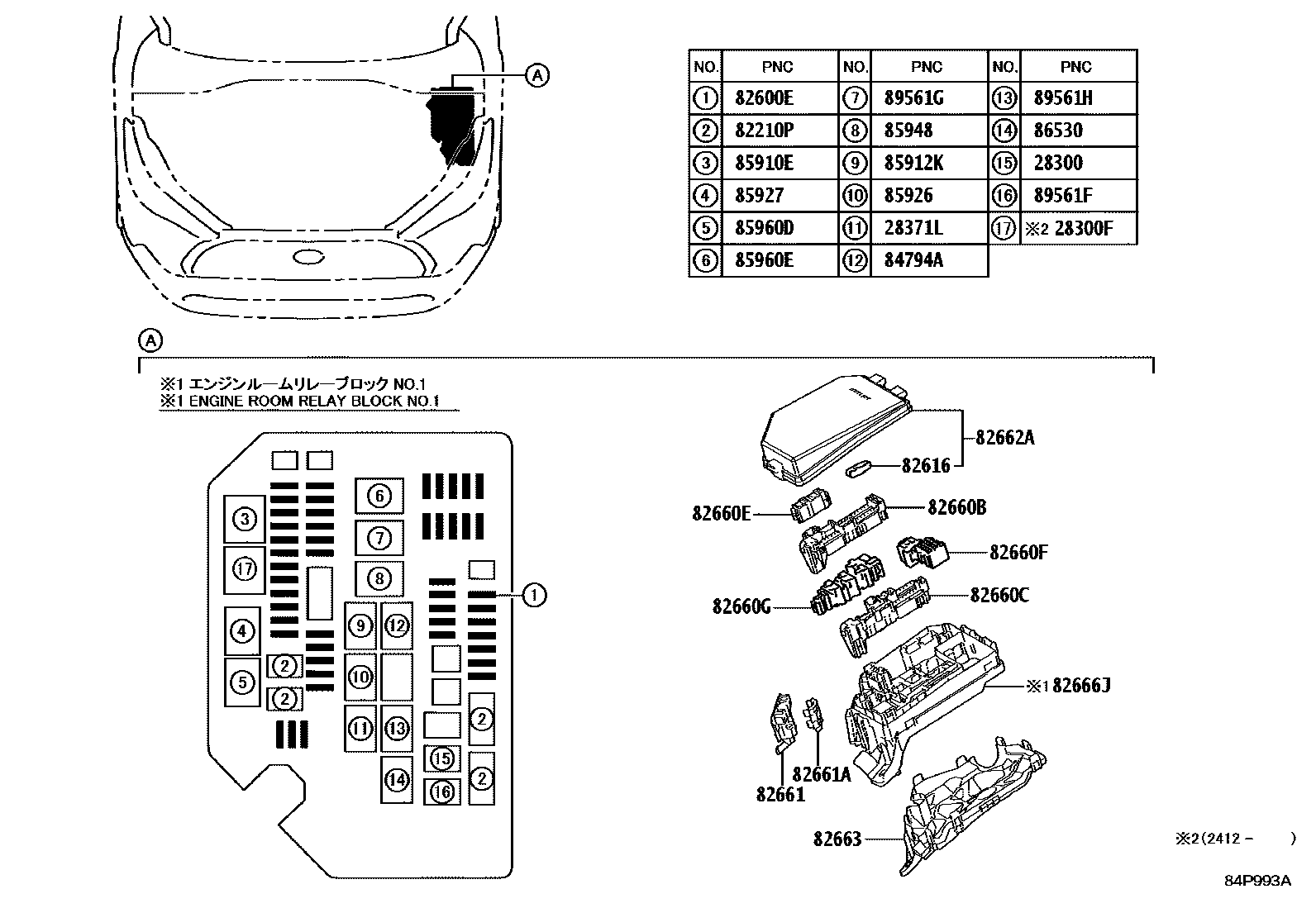

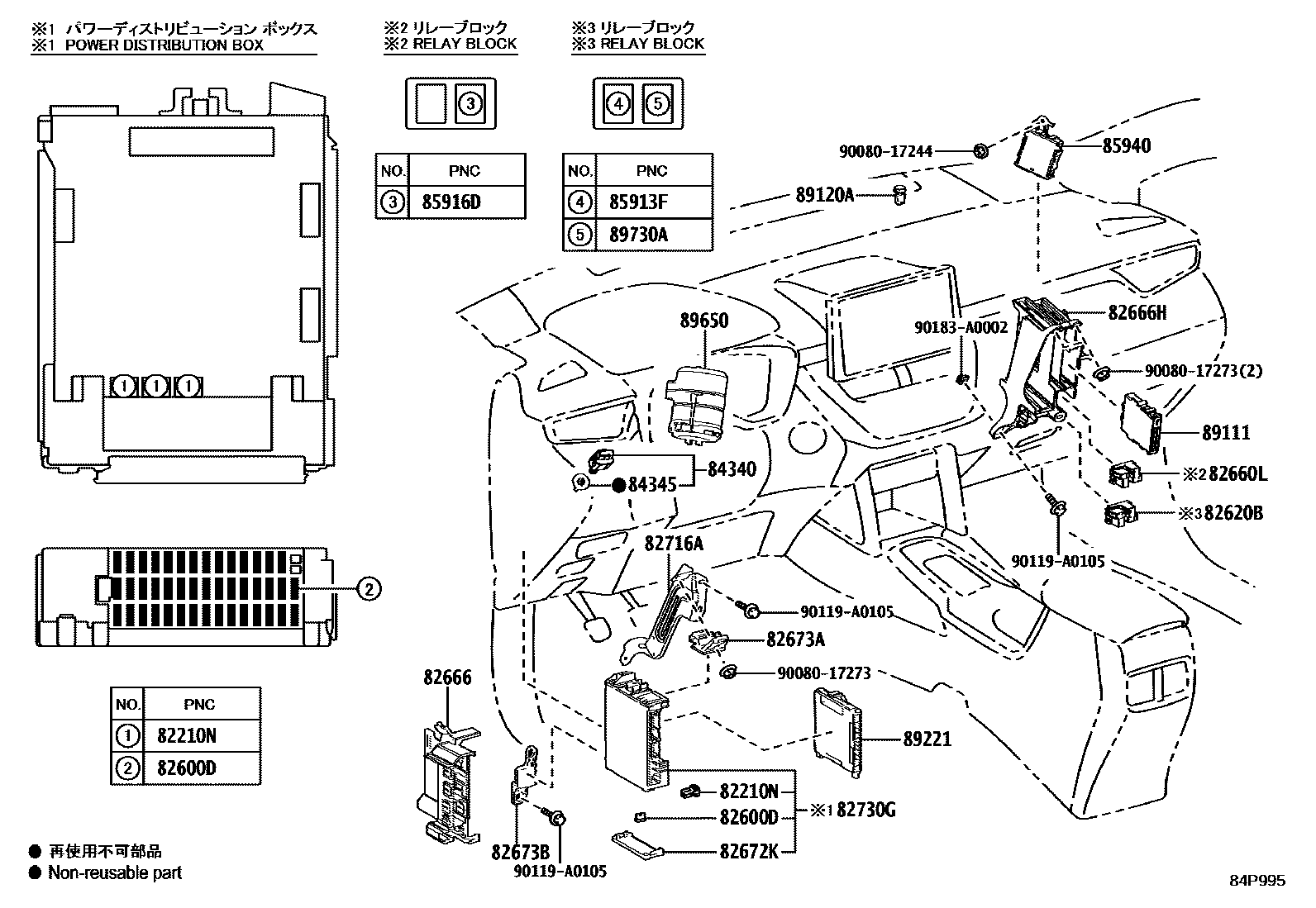

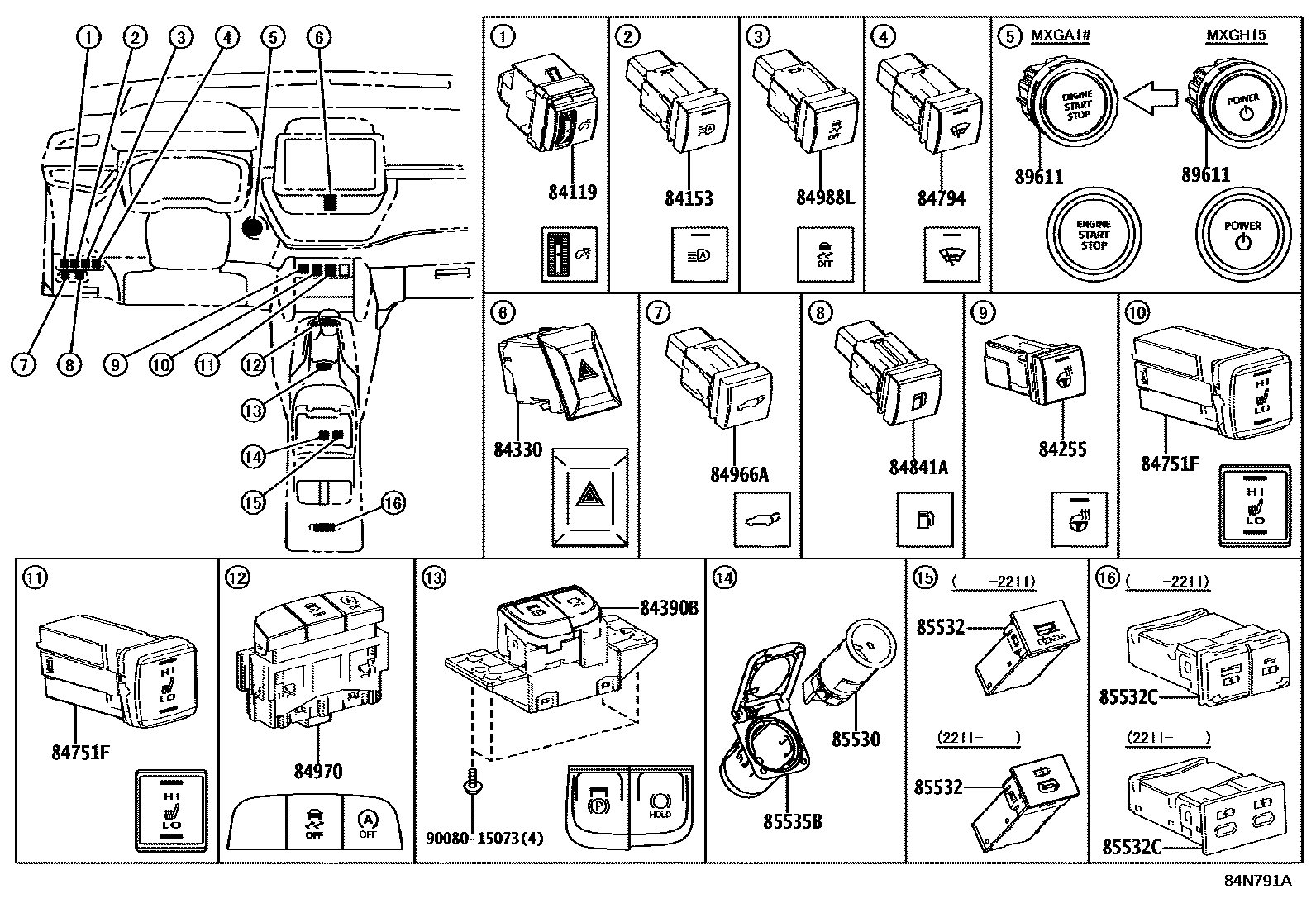

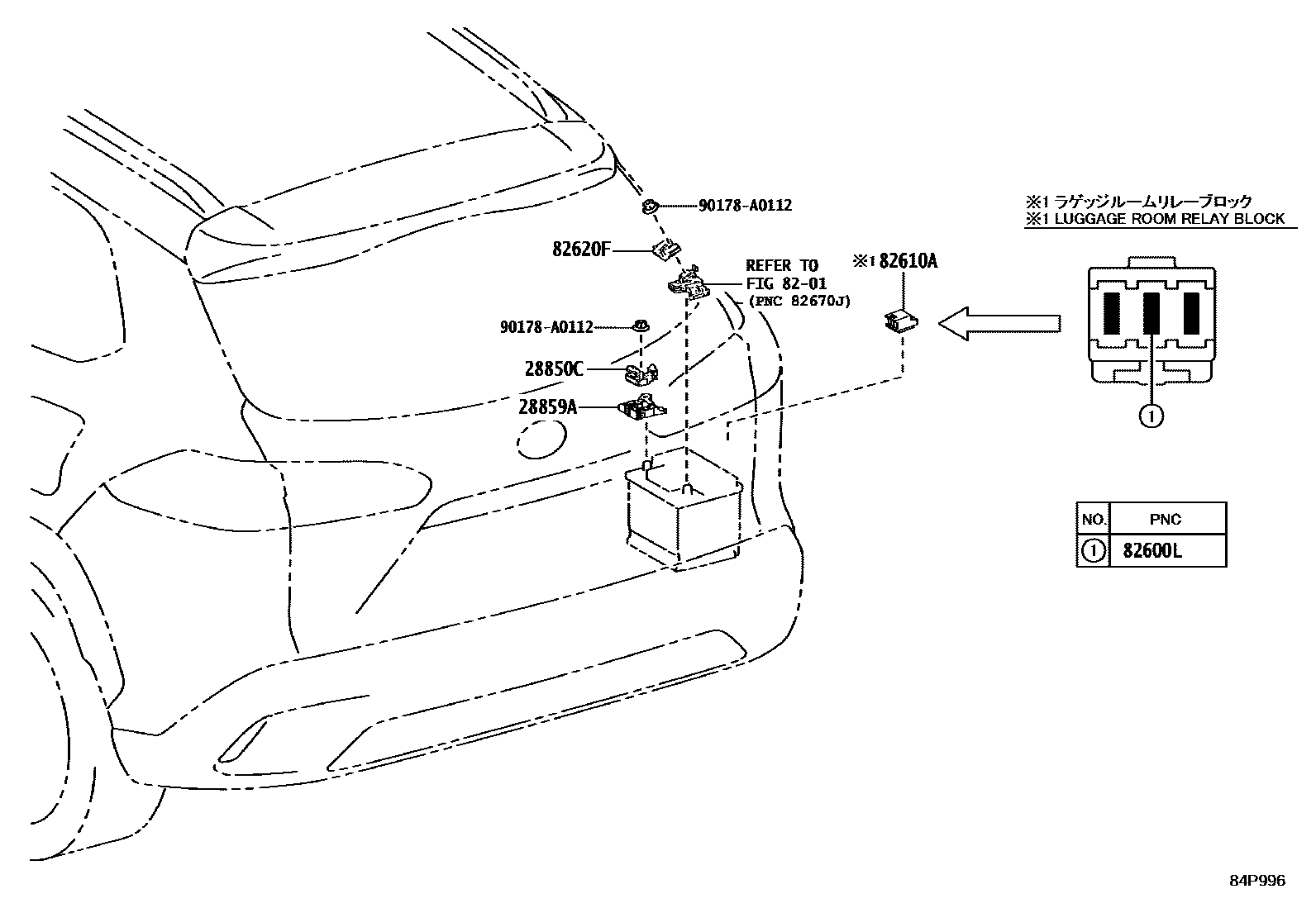

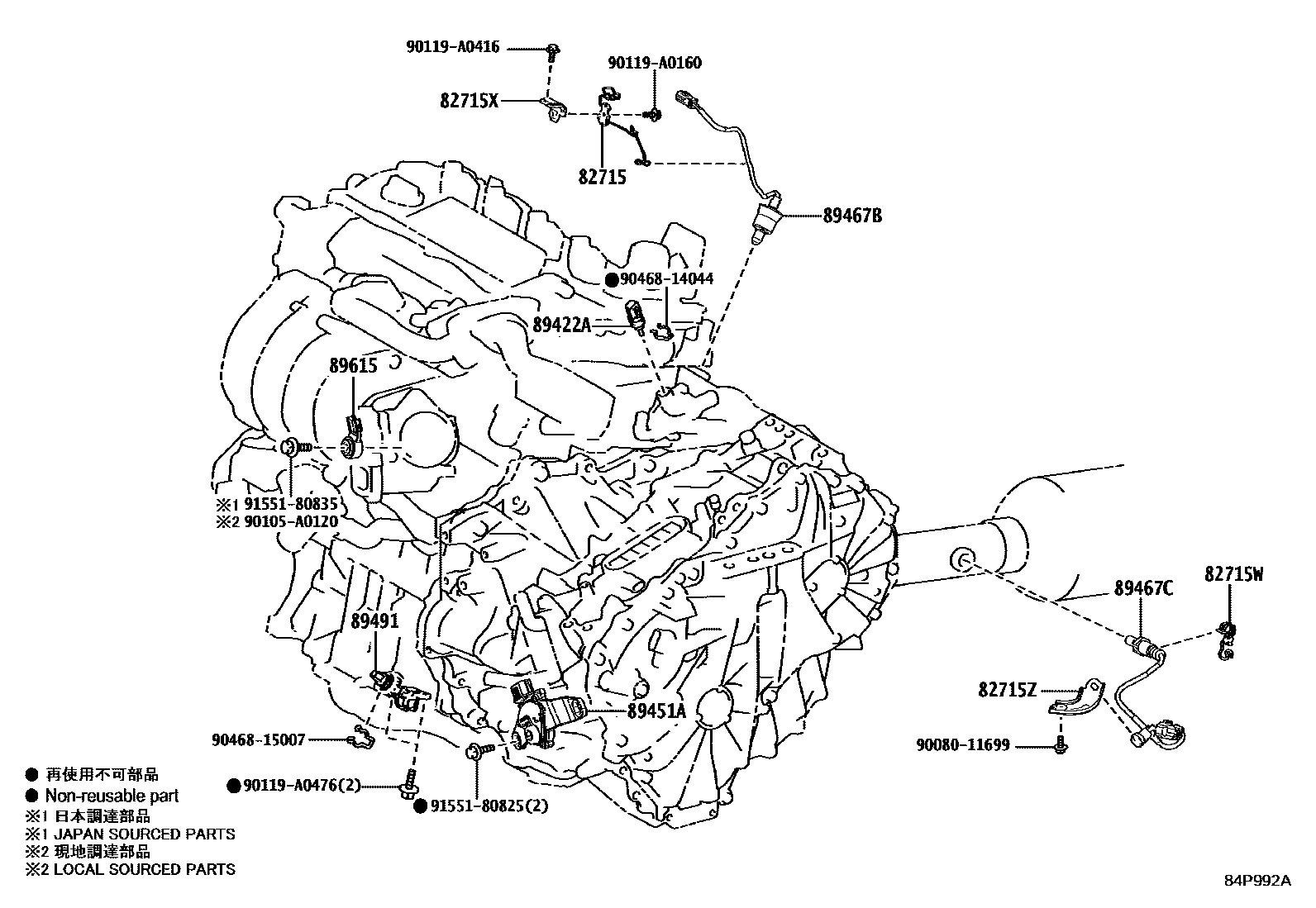

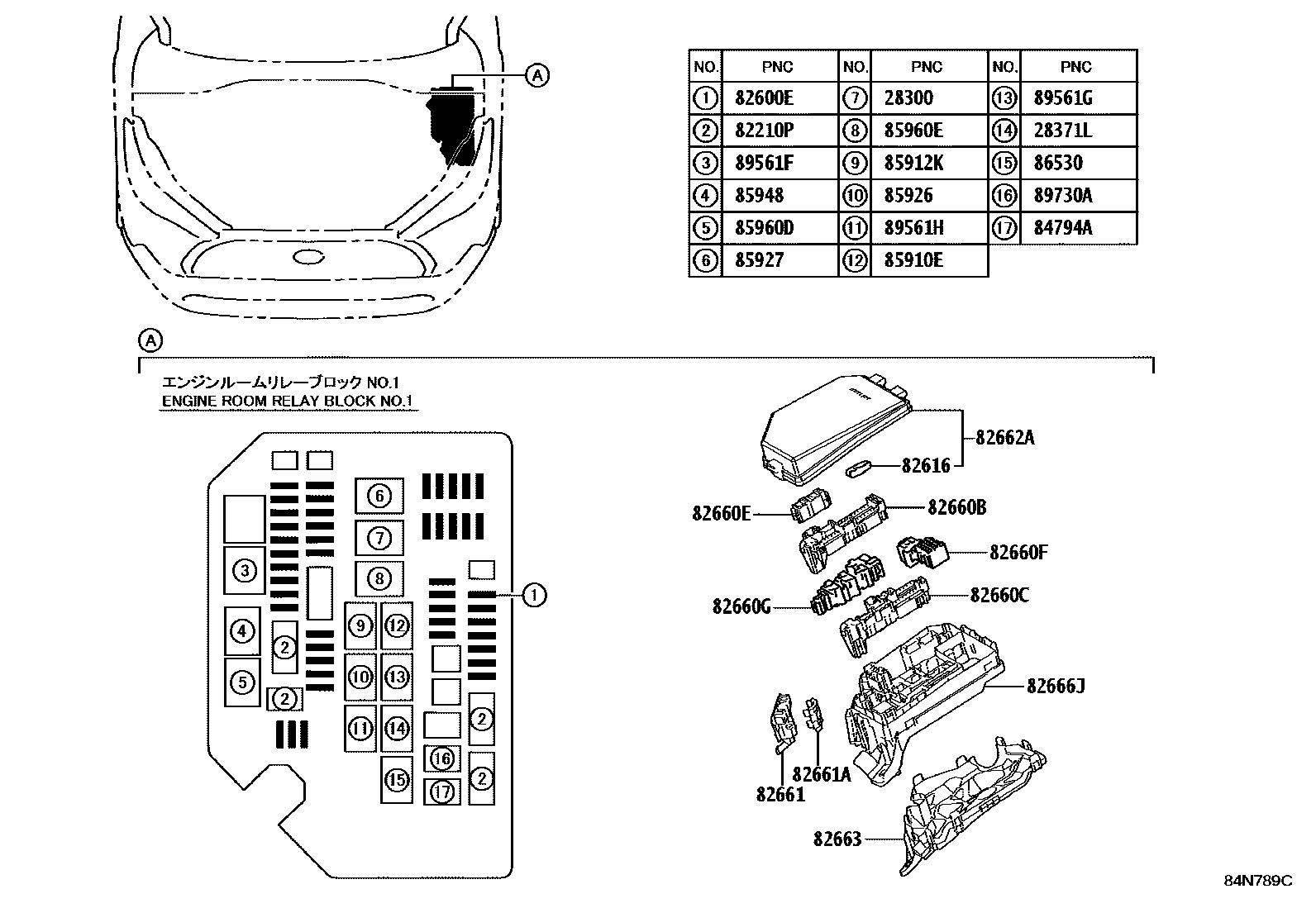

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 14 images and 125 PNC and OE references.
PNC and OE references

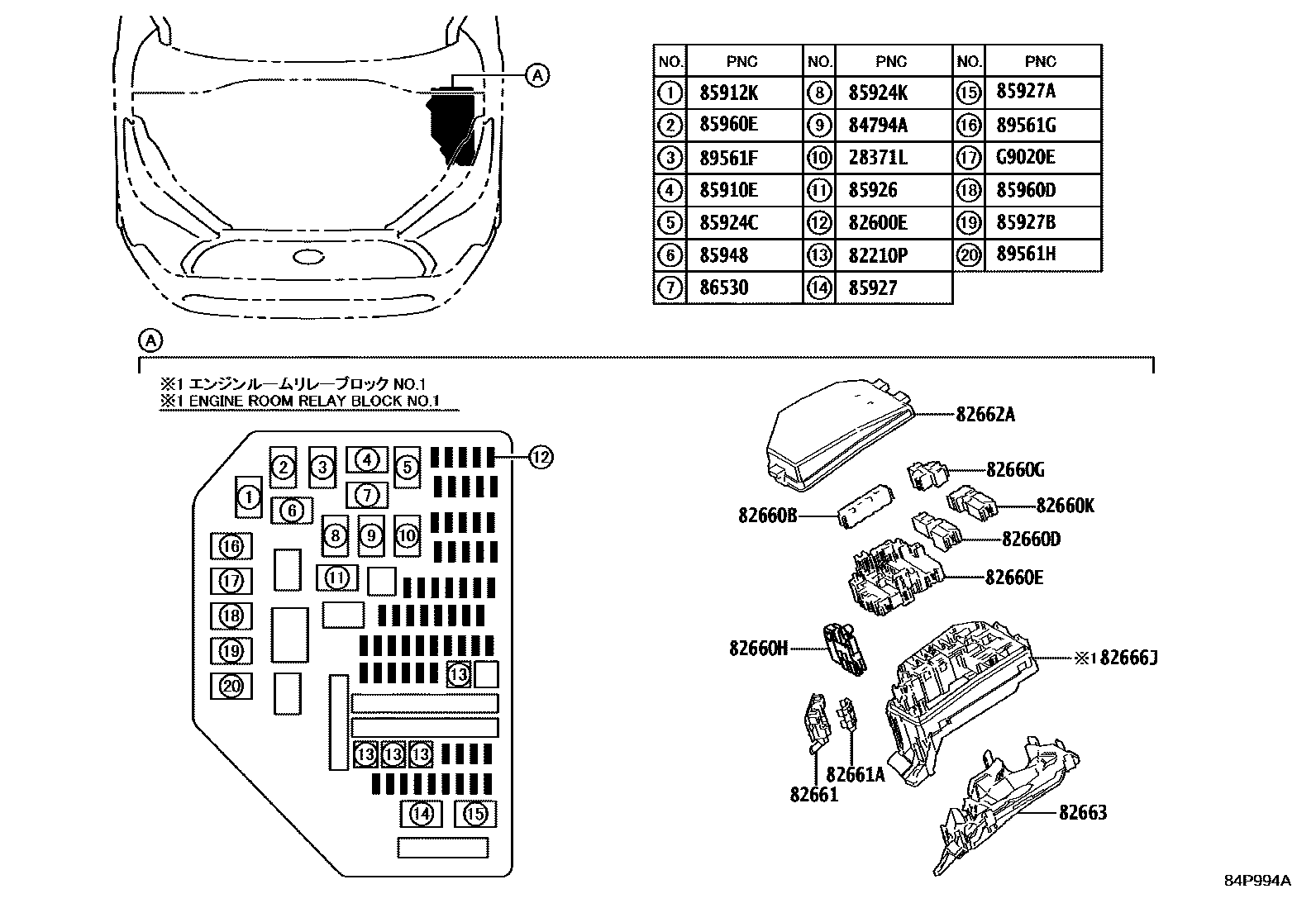

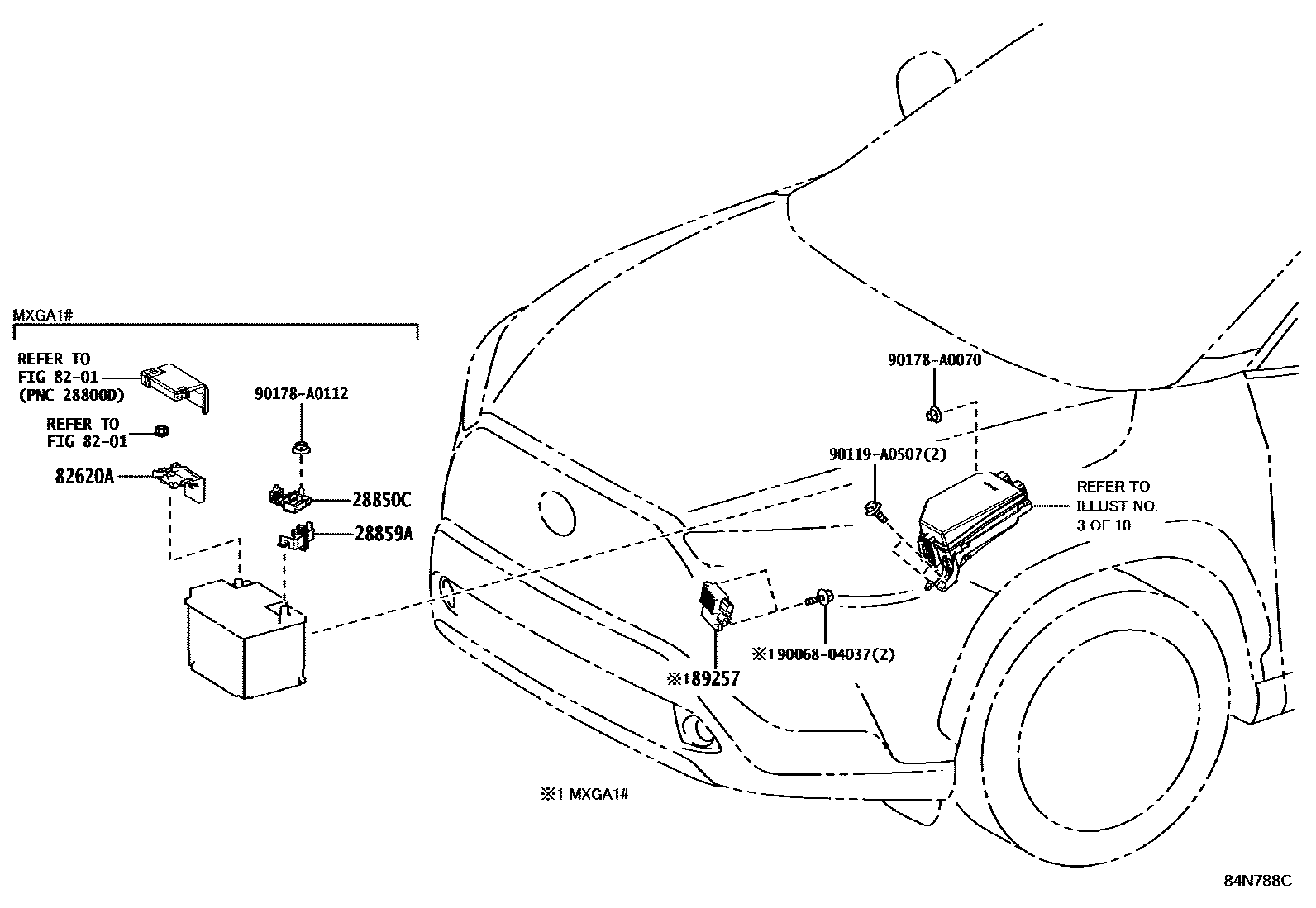

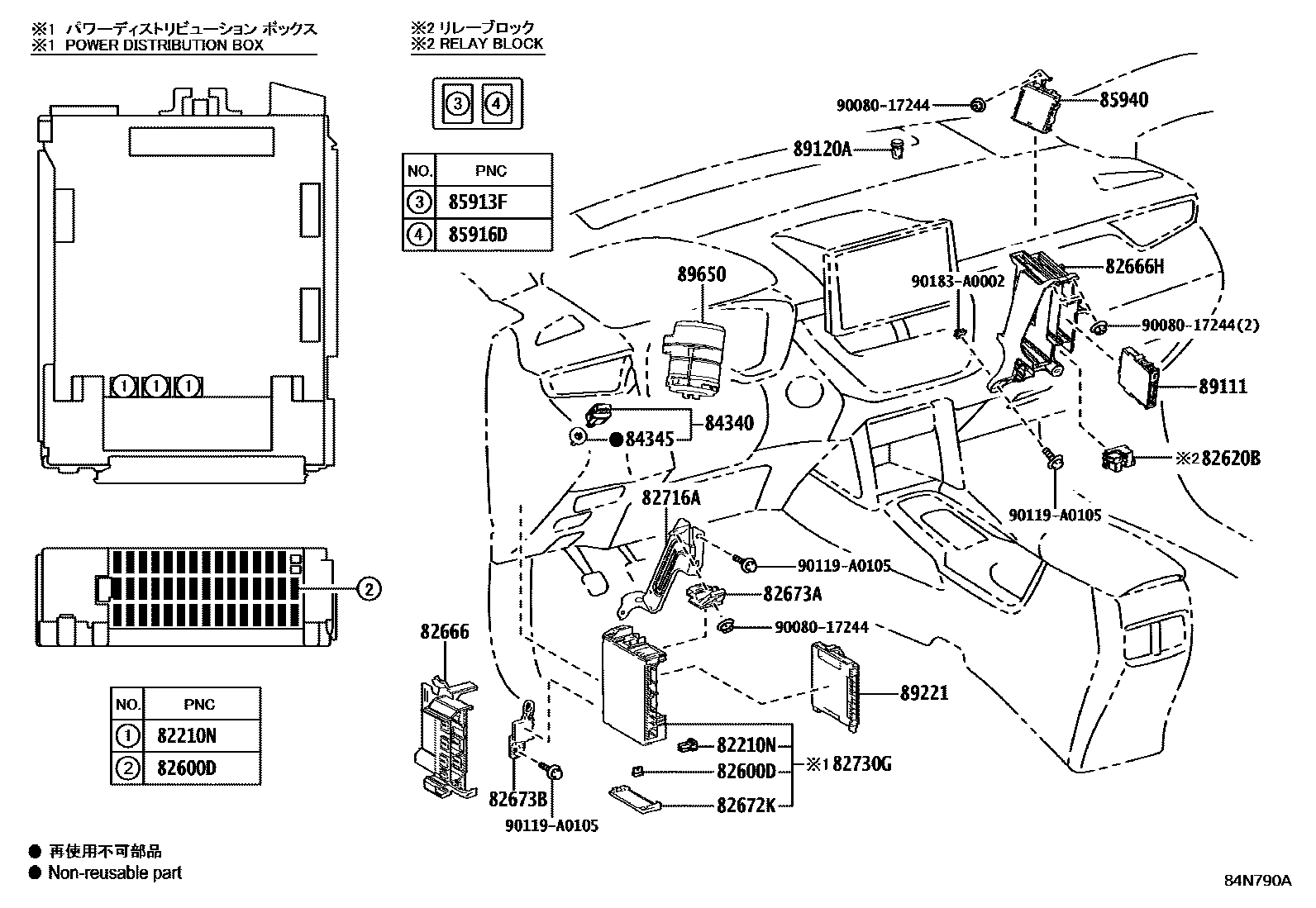

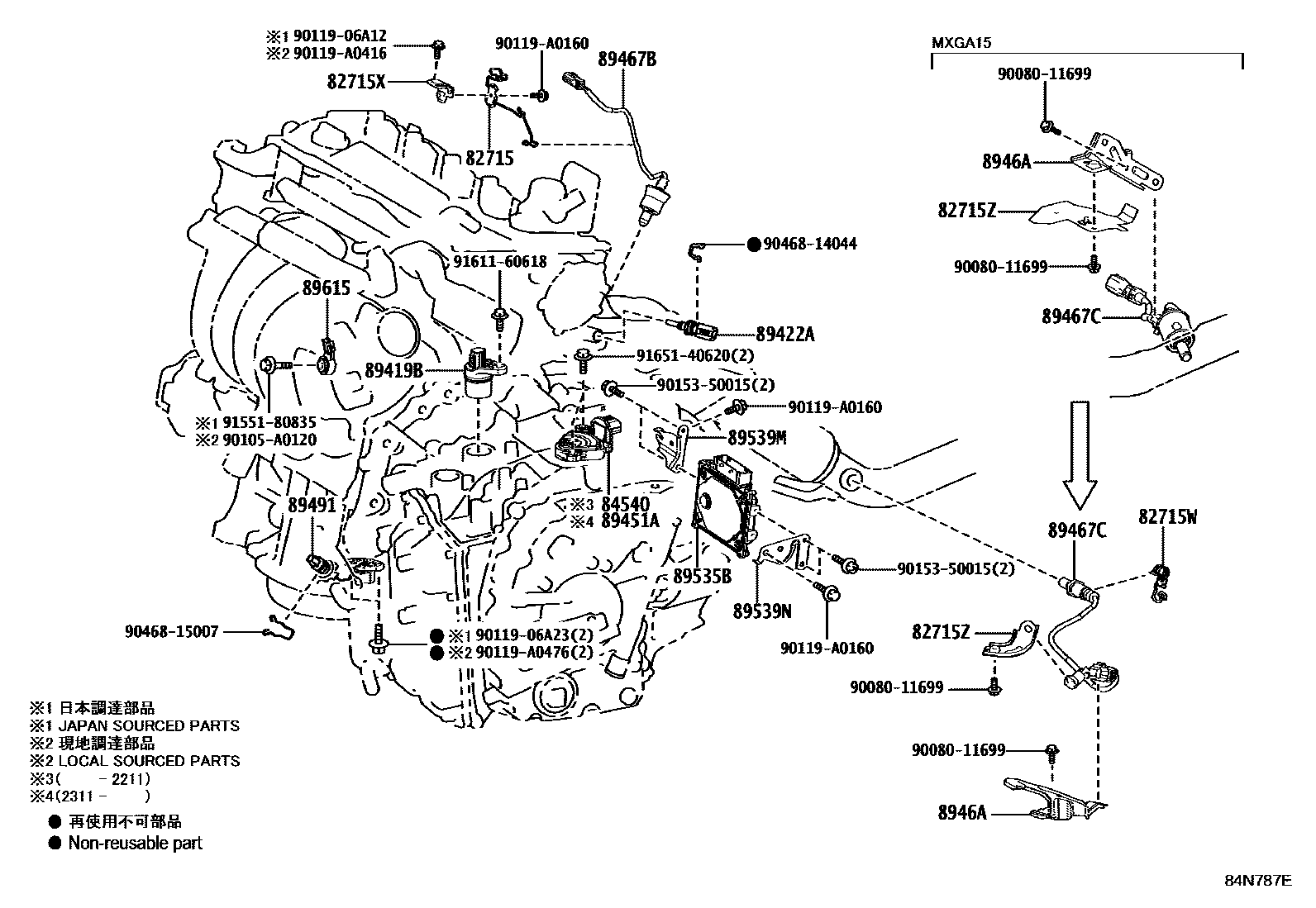

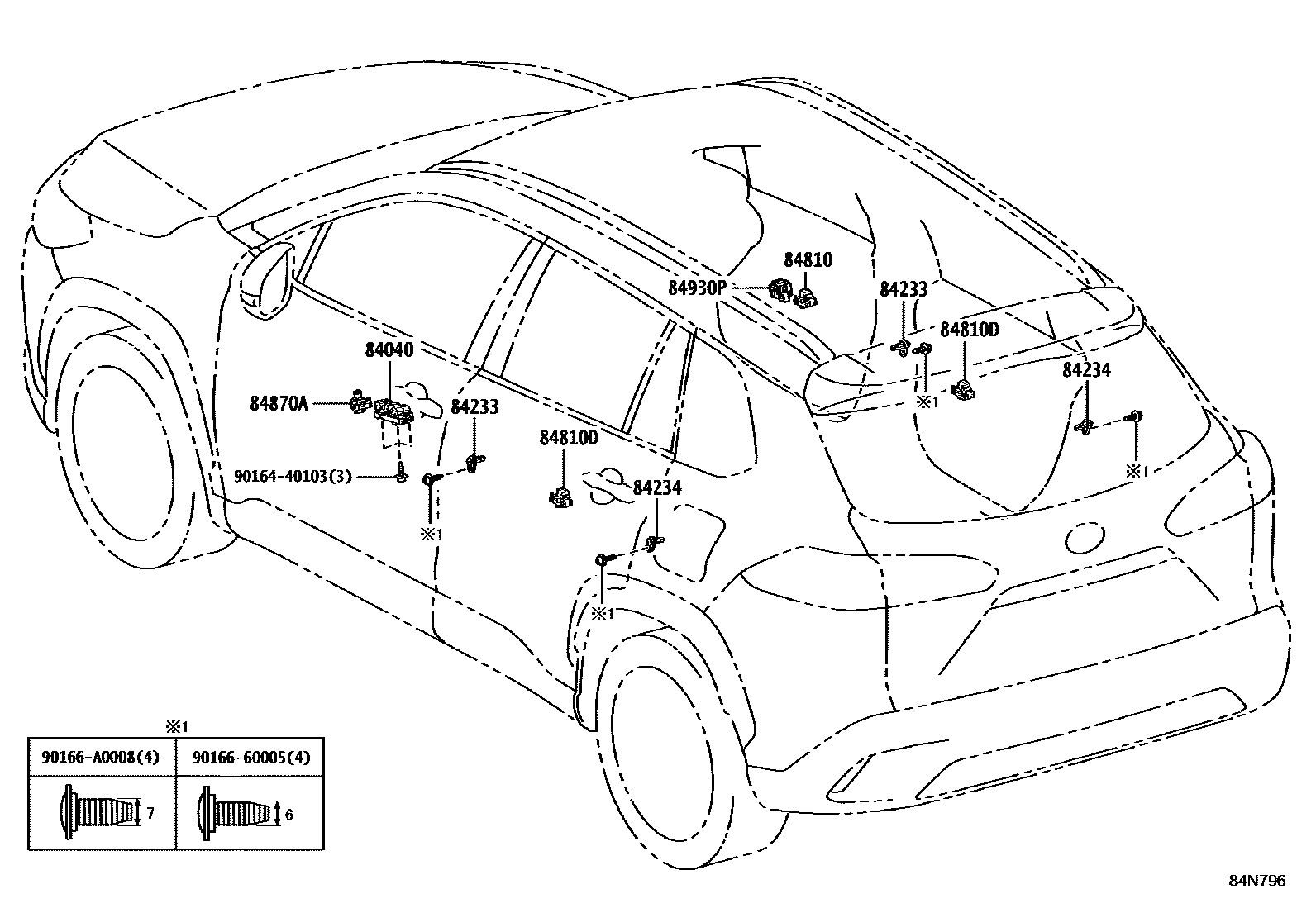

| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0A011 |
| 28300F | ENSEMBLE RELAI, DEMARREUR, NO.2 | 28300-0A011 · 28300-21020 |
| 28371L | RELAIS, IGP | 90080-87026 · 90987-02027 |
| 28850C | ENS. CAPTEUR, ETAT BATTERIE | 28850-F0090 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-F2050 · 28859-F2130 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600L | FUSIBLE DU COMPARTIMENT BAGAGE | 90982-09019 · 90982-09021 · 90982-09022 |
| 82610A | Fuse box assembly | 82610-16020 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12310 |
| 82620B | Fuse box assembly | 82620-44040 |
| 82620F | ENSEMBLE BLOC, ELEMENT FUSIBLE | 82620-16160 |
| 82660B | Relay assembly | 82660-0D050 · 82660-12360 · 82660-16530 |
| 82660C | Relay assembly | 82660-12390 |
| 82660D | Relay assembly | 82660-16490 |
| 82660E | Relay assembly | 82660-12470 · 82660-16470 |
| 82660F | Relay assembly | 82660-0A050 |
| 82660G | Relay assembly | 82660-0A060 · 82660-16510 |
| 82660H | Relay assembly | 82660-16480 |
| 82660K | ENS. BLOC RELAIS | 82660-16500 |
| 82660L | ENS. BLOC RELAIS | 82660-48020 |
| 82661 | No. 1 relay box cover | 82661-12340 |
| 82661A | No. 2 relay box cover | 82661-12350 |
| 82662A | No. 1 relay box upper cover | 82662-0A080 · 82662-0A090 · 82662-0A120 · 82662-0A250 · 82662-0A350 · 82662-0A360 · 82662-0A430 · 82662-0A440 |
| 82663 | Relay box lower cover | 82663-12160 · 82663-16020 |
| 82666 | Connector holder | 82666-0A030 |
| 82666H | Connector holder No. 2 | 82666-0A040 · 82666-0A080 |
| 82666J | No. 3 connector holder | 82666-12650 · 82666-16050 · 82741-0A020 |
| 82672K | CACHE, BOITIER DISTRIBUTION PUISSANCE | 82672-0A020 · 82672-0A030 · 82672-0A090 · 82672-0A100 |
| 82673A | Junction box bracket | 82673-0A030 |
| 82673B | Junction box bracket | 82673-0A040 |
| 82715 | Wire harness clamp bracket | 82715-12V90 |
| 82715W | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82729-20040 |
| 82715X | SUPPORT, COLLIER FAISCEAU CABLAGE, NO.2 | 82715-0Z390 · 82715-0Z430 |
| 82715Z | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 8946A-0A020 · 8946A-0A070 |
| 82716A | SUPPORT, COLLIER DE FAISCEAU DE CABLAGE | 82715-12X60 |
| 82730G | ENS. BOITIER, DISTRIBUTION PUISSANCE | 82730-0A010 · 82730-0A020 · 82730-0A130 · 82730-0A131 · 82730-0A140 · 82730-0A141 · 82730-0A210 · 82730-0A211 · 82730-0A212 |
| 83320 | Fuel gauge sensor assembly | 83320-0A020 · 83320-0A080 · 83320-0A130 · 83320-16320 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-0A090 · 83320-0A091 |
| 84040 | Multi-channel network main switch assembly | 84040-0A170 · 84040-0R040 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-02080 · 84119-0R020 |
| 84153 | Automatic high beam switch | 84153-02050 · 84153-0R010 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02B90 · 84250-02C00 · 84250-02G50 · 84250-02J90 · 84250-02K00 |
| 84255 | Steering heater switch | 84255-02030 · 84255-0R020 |
| 84306 | Spiral cable sub-assembly | 84308-0A010 · 84308-0A020 |
| 84319 | Steering wheel switch housing | 84319-02020 |
| 84329 | turn signal switch | 84329-02050 · 84329-0E020 · 84329-0E030 · 84329-0R010 · 84329-0R020 |
| 84330 | Hazard warning signal switch assembly | 84332-02390 |
| 84340 | brake light switch assembly | 84340-09291 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84390B | Electric parking brake switch assembly | 84390-02010 · 84390-0A070 |
| 84450 | Ignition or starter switch assembly | 84450-06050 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 |
| 84610G | ENS. COM, BOITE VITESSES, NO.1 | 84610-33011 |
| 84610H | ENS. COM, BOITE VITESSES, NO.2 | 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-02840 · 84652-02870 · 84652-0R100 · 84652-0R120 |

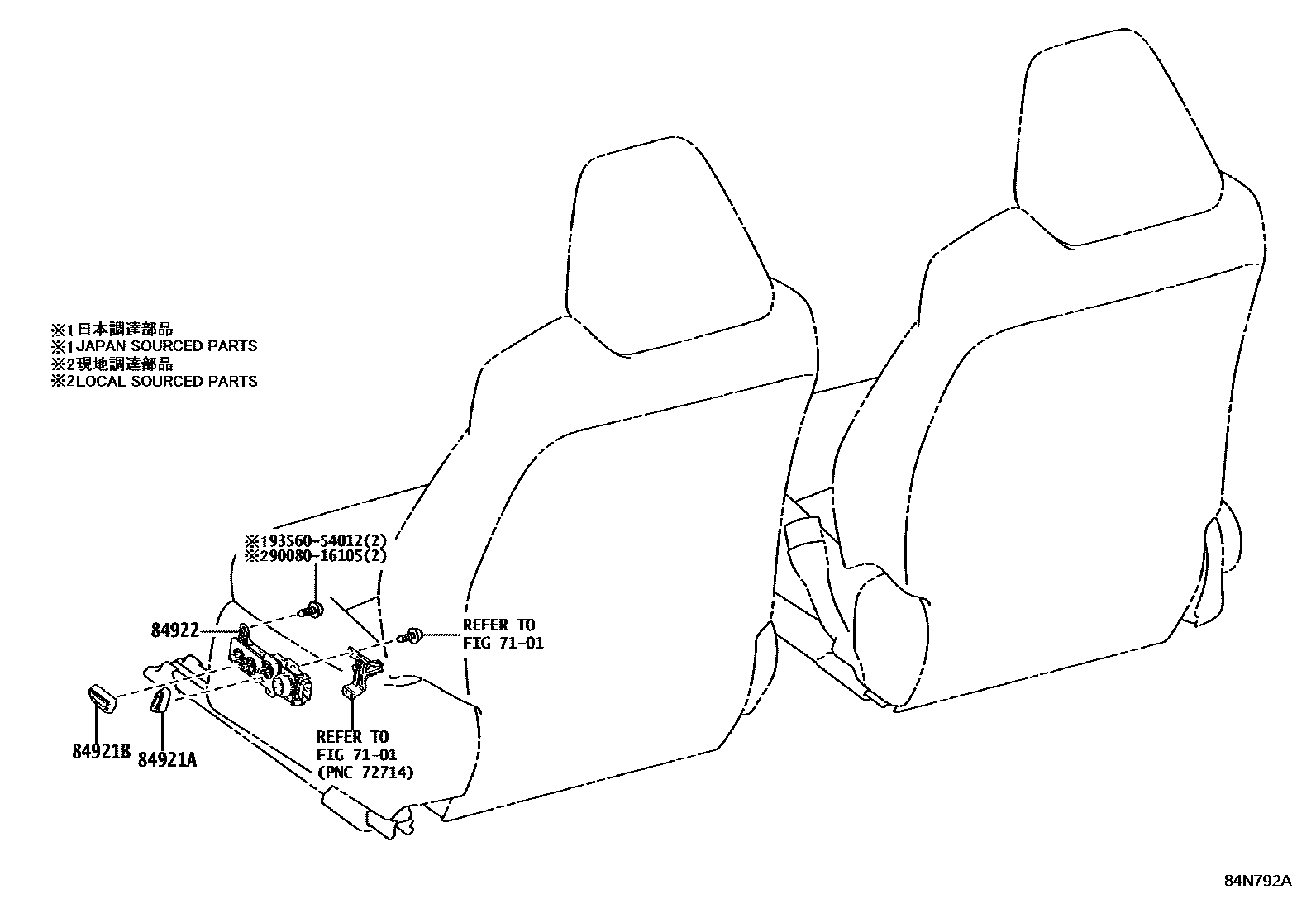

| 84751F | Seat heater switch | 84751-0A010 · 84751-0A020 · 84751-0R060 · 84751-0R070 |
| 84794 | Front wiper de-icer switch | 84794-0R030 · 84871-02020 |
| 84794A | Front wiper de-icer relay | 90080-87026 · 90987-02027 |
| 84810 | Electric window lift switch assembly | 84810-0R030 |
| 84810D | Rear electric window lift switch assembly | 84810-0R030 |
| 84840G | Back door opener switch assembly | 84840-47030 · 84840-47040 |
| 84841A | Fuel filler cap opener switch | 84841-0A030 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02290 · 84872-0A170 |
| 84930P | ENS. INT, COMMANDE PORTE | 84930-0R050 |
| 84931C | Back door control switch | 84930-0A020 · 84930-0A110 |
| 84966A | CNT, COMM HAYON ELEC, NO.1 | 84966-0A030 · 84966-0R010 |
| 84970 | Combination switch assembly | 84970-0A020 · 84970-0A100 · 84970-0A110 · 84970-0A130 |
| 84988L | VSC off switch | 84988-02100 |
| 85432 | Key interlock solenoid valve | 85432-06040 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85532 | PRISE, CHARGEUR USB | 85532-02050 · 85532-12020 |
| 85532C | PRISE, CHARGEUR USB, NO.2 | 85532-06080 · 85532-08040 |
| 85535B | No. 1 power outlet cover | 85535-02200 |
| 85910E | Injector relay | 90080-87026 · 90987-02027 |
| 85912K | RELAIS, VVT | 90080-87026 · 90987-02027 |
| 85913F | Steering heater relay | 90080-87026 · 90987-02027 |
| 85916D | fog light relay | 90080-87026 · 90987-02027 |
| 85924C | RELAI, IGCT | 90080-87026 · 90987-02027 |
| 85924K | RELAIS, IGCT, NO.2 | 90080-87026 · 90987-02027 |
| 85926 | Headlight dimmer relay | 90080-87026 · 90987-02027 |
| 85927 | cooling fan relay | 90080-87026 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87026 · 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 |
| 85948 | windshield wiper relay | 90080-87026 · 90987-02027 |
| 85960D | RELAIS, PHARE, MD | 90080-87026 · 90987-02027 |
| 85960E | RELAIS, PHARE, MG | 90080-87026 · 90987-02027 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 88162 | Blind spot monitor right sensor | 88162-0A030 · 88162-0A050 |
| 88172 | Blind spot monitor left sensor | 88162-0A030 · 88162-0A050 |
| 89111 | Network gateway ECU | 89111-12170 · 89111-12190 · 89111-60140 |
| 89120A | Automatic light control sensor | 89121-0E060 |
| 89221 | Multi-channel network body ECU | 89220-0A590 · 89220-0A600 · 89220-0A610 · 89220-0A620 · 89220-0A630 · 89220-0A640 · 89220-0A650 · 89220-0A660 · 89220-0A670 · 89220-0A680 · 89220-0A690 · 89220-0A700 · 89220-0A710 · 89220-0A720 · 89221-16030 |
| 89222A | Multi-channel network door ECU | 89222-0A010 · 89222-0A011 · 89222-0A012 · 89222-0A050 · 89222-0A070 |
| 89245B | steering sensor | 8924B-0A010 · 8924B-0A030 |
| 89257 | Cooling fan ECU | 89257-K0020 |
| 89419B | CAPTEUR COURSE RAPPORTS | 89419-12011 · 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89451A | shift lever position sensor | 89451-28020 · 89451-42010 |
| 89461 | steam pressure sensor | 89461-47010 |
| 89467B | air fuel ratio sensor | 89467-0A010 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-0A020 · 89467-0A030 · 89467-0A040 · 89467-0A080 |
| 8946A | SUPPORT, COLLIER CAPTEUR ECHAPE | 8946A-0A010 · 8946A-0A040 |
| 89491 | Engine oil level sensor | 89491-33051 · 89491-33052 |
| 89535B | ORDINATEUR, COMMANDE TRANSMISSION | 89535-16050 · 89535-16060 · 89535-16070 · 89535-16100 · 89535-16110 · 89535-16120 |
| 89539M | No. 1 transmission control ECU bracket | 89539-12070 |
| 89539N | No. 2 transmission control ECU bracket | 89539-12080 |
| 89561F | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.1 | 90080-87026 · 90987-02027 |
| 89561G | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.2 | 90080-87026 · 90987-02027 |
| 89561H | RELAIS, PRINCIPAL INJECTION CARB ELEC, NO.3 | 90080-87026 · 90987-02033 |
| 89611 | push button start switch | 89611-02130 · 89611-0A030 · 89611-0A040 · 89611-0E200 · 89611-0E210 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0A050 · 89650-0A060 · 89650-0A070 · 89650-0A080 · 89650-16300 · 89650-16360 · 89650-16480 · 89650-16490 · 89650-16500 |
| 89730A | Relay (for safety warnings) | 90080-87026 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89747F | Blind spot monitor buzzer | 89747-08010 |
| G9020E | Hybrid water pump relay | 90080-87026 · 90987-02027 |
