Toyota COROLLA 后牌照灯 — Figure 8113

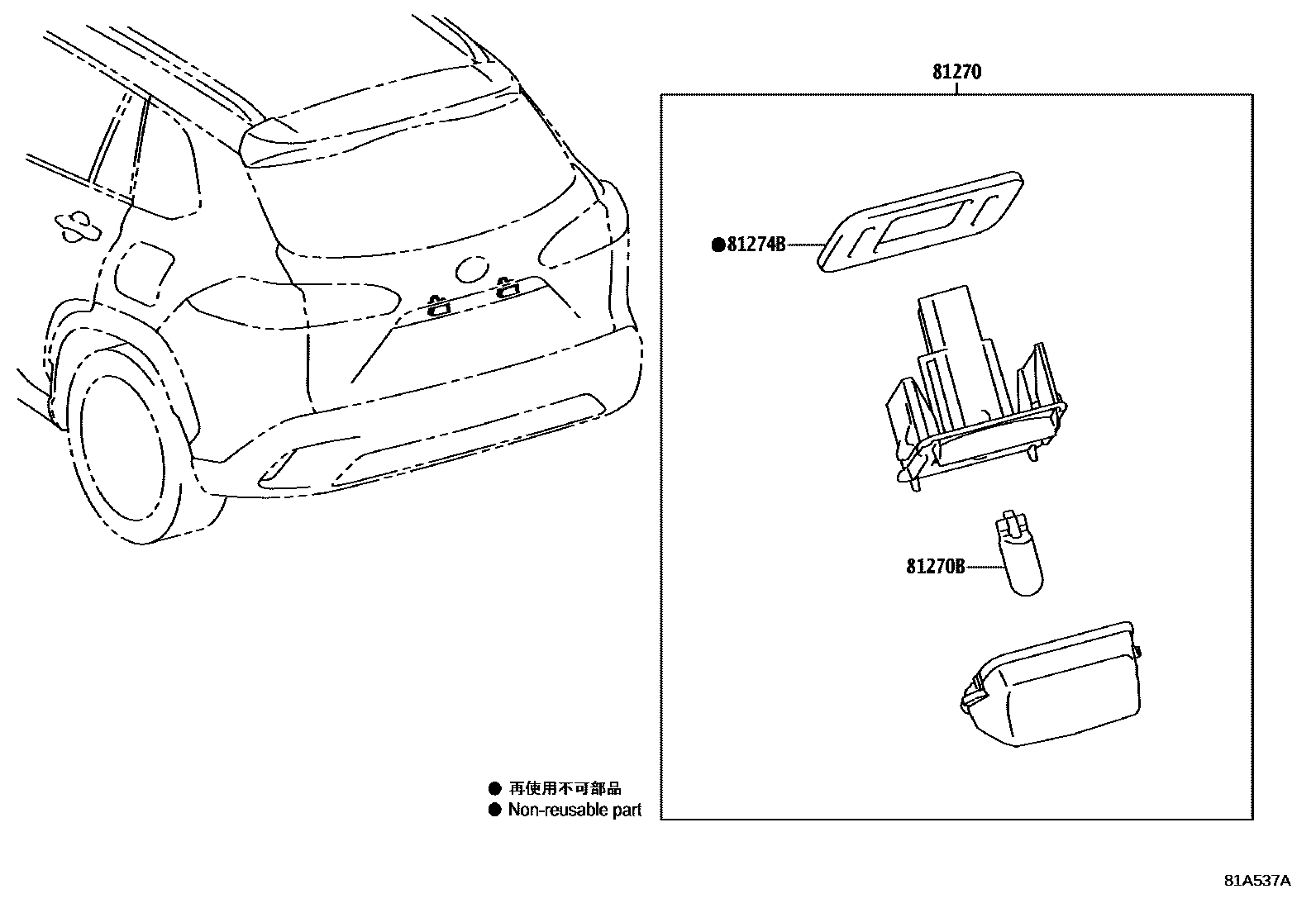

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-06031 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81274B | license plate light seal | 81272-06031 |
