Toyota COROLLA 后组合灯 — Figure 8111

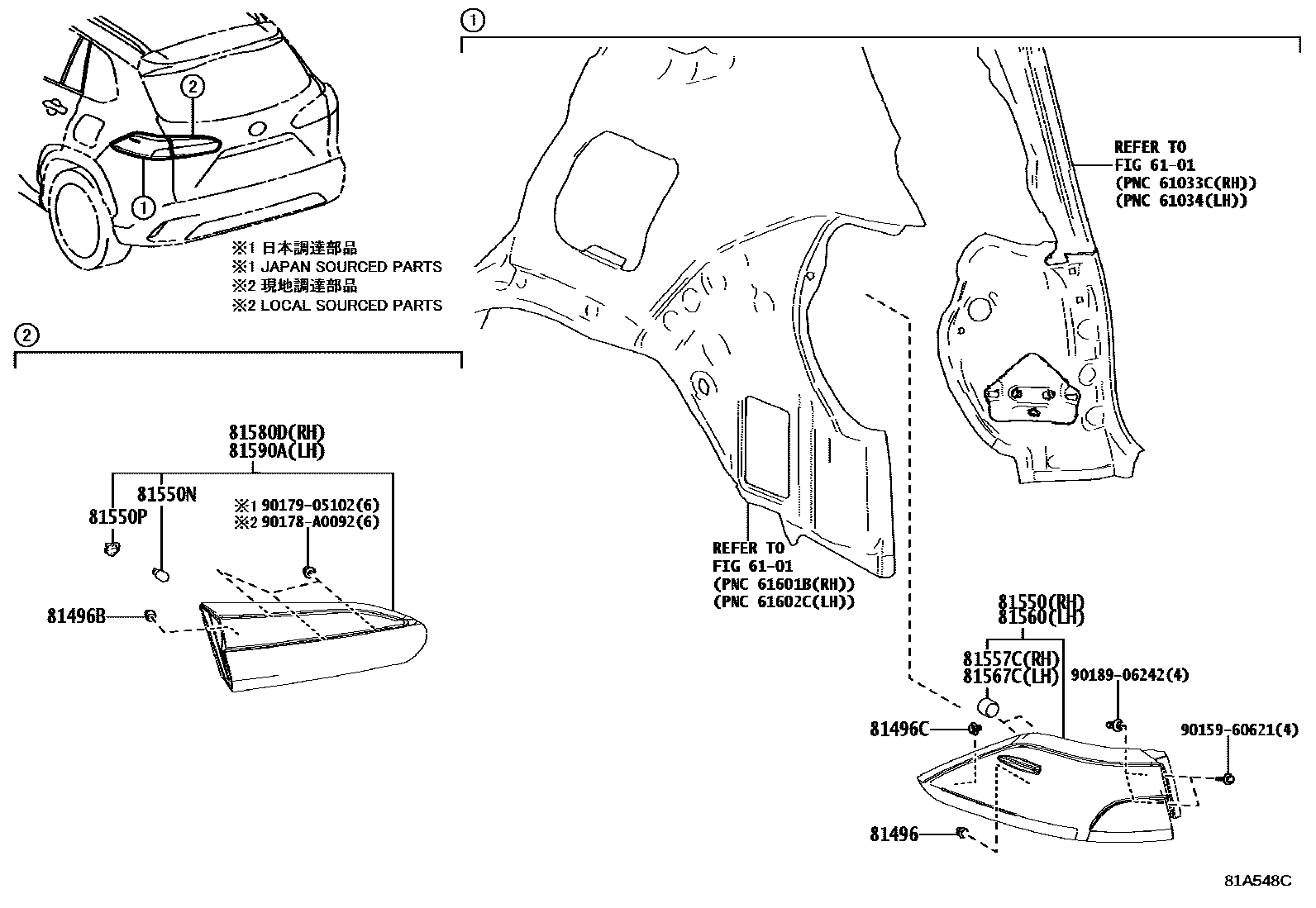

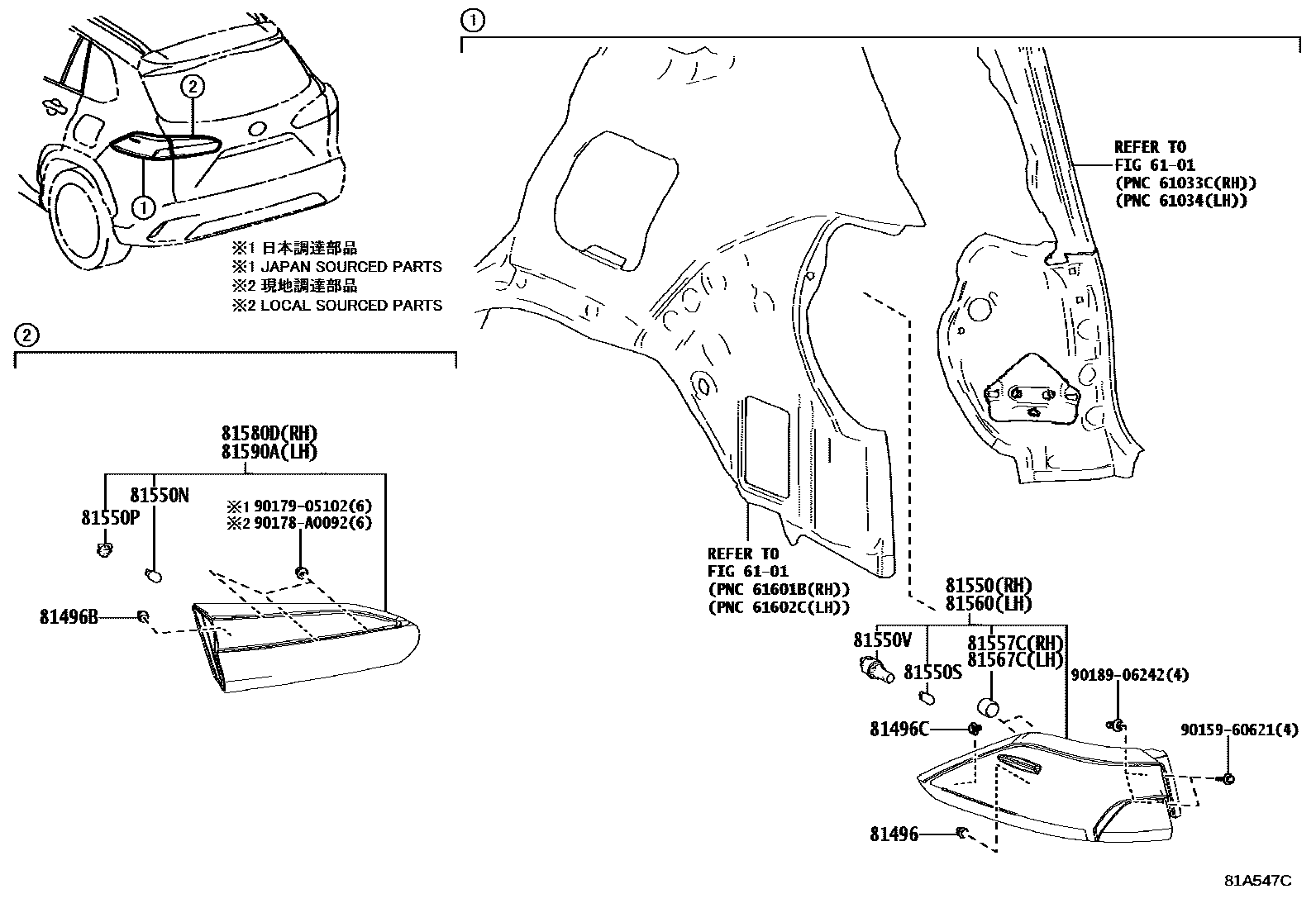

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-0E020 · 81496-52020 |
| 81496B | Rear light guide block | 81496-0E020 · 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81550 | Right rear combination light assembly | 81550-0A160 · 81550-0A170 · 81550-0A260 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-99005 |
| 81550S | Rear width light bulb | 90981-11069 |
| 81550V | Rear width light lamp holder | 90075-60089 |
| 81557C | Right rear combination lamp cover | 90075-15512 |
| 81560 | Left rear combination light assembly | 81560-0A160 · 81560-0A170 · 81560-0A260 |
| 81567C | Left rear combination lamp cover | 90075-15512 |
| 81580D | Right rear light assembly | 81580-0A140 · 81580-0A150 · 81580-0A260 |
| 81590A | Left rear light assembly | 81590-0A150 · 81590-0A160 · 81590-0A270 |
