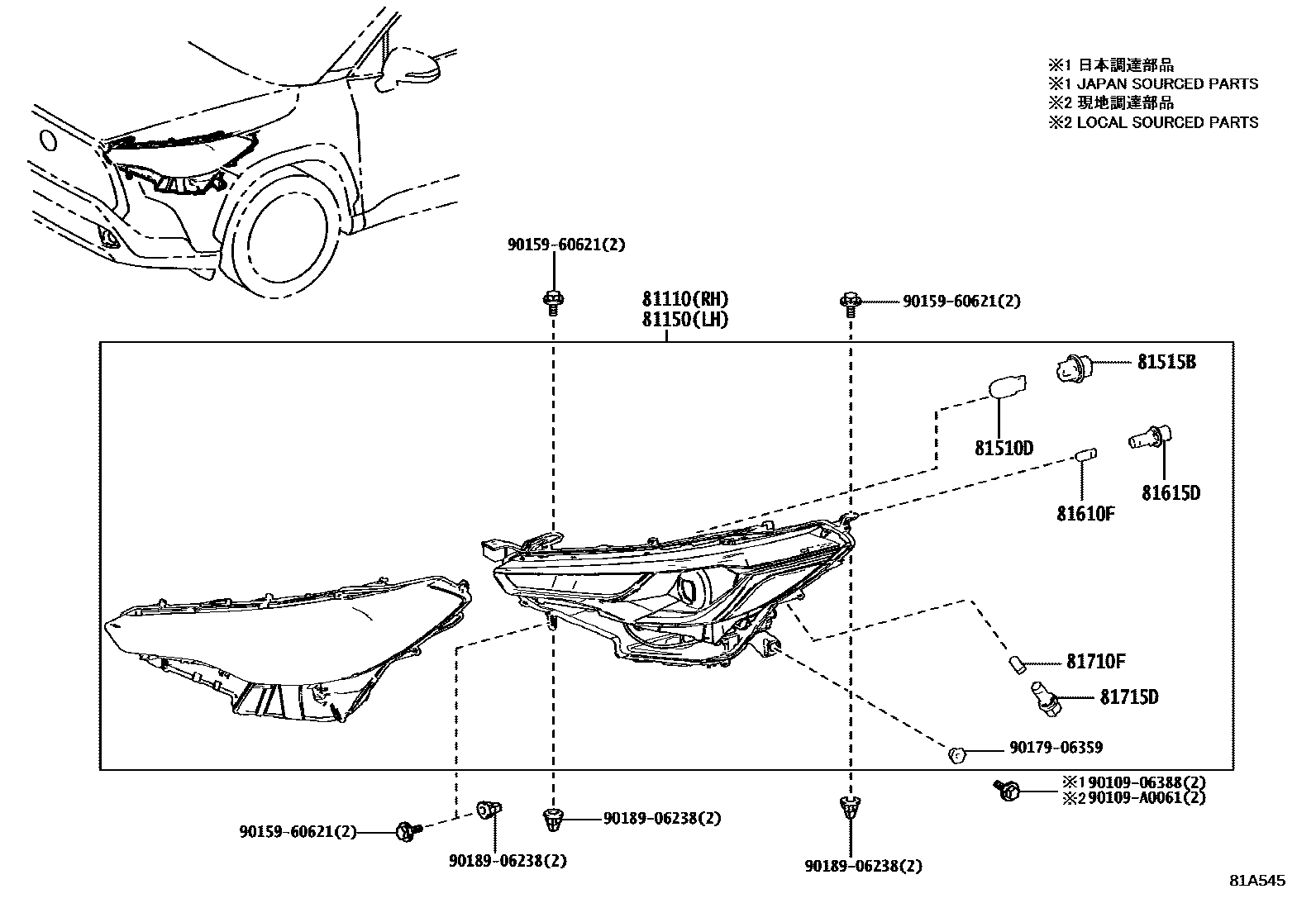

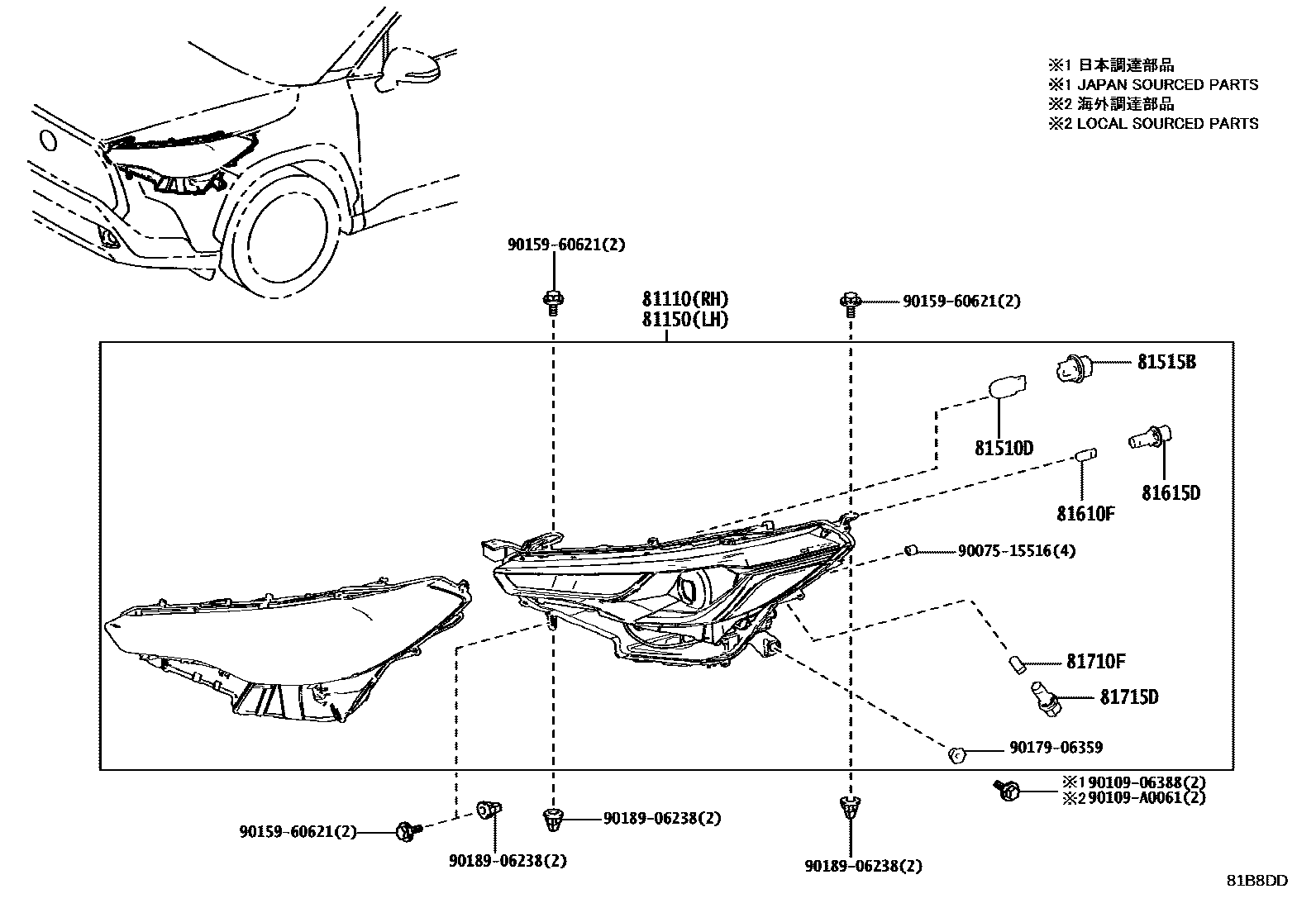

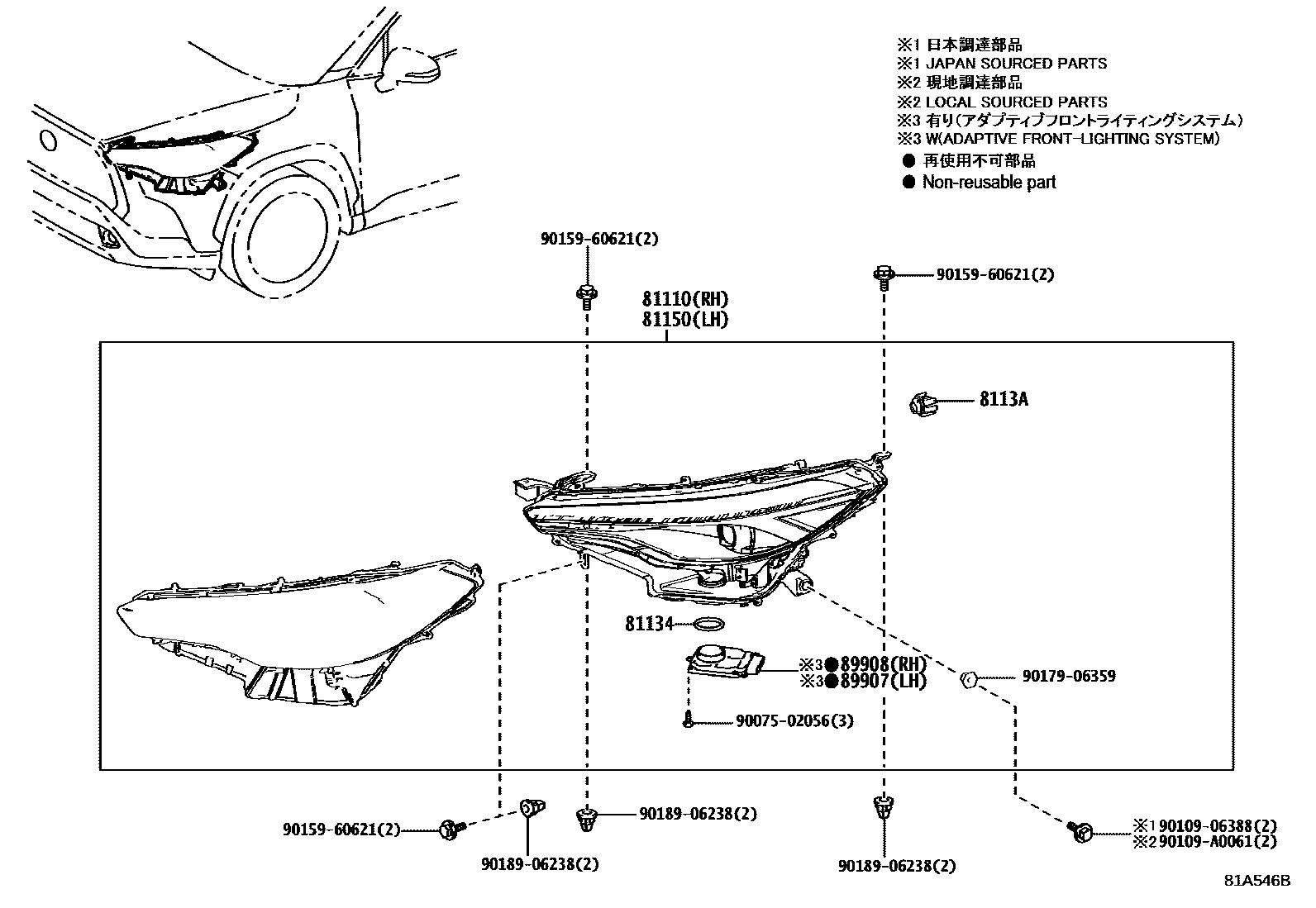

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-0A230 · 81110-0A240 · 81110-0A250 · 81110-0A340 · 81110-0A420 |
| 81134 | headlight gasket | 90075-23003 |
| 8113A | LED, CLIGNOTANT AV PHARE | 81536-12D30 |
| 81150 | Left headlight assembly | 81150-0A230 · 81150-0A240 · 81150-0A250 · 81150-0A340 · 81150-0A420 |
| 81510D | front turn signal light bulb | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 90075-60089 |
| 81710F | Front width light bulb | 90981-11069 |
| 81715D | PRISE, FEUX GABARIT AVANT | 90075-60089 |
| 89907 | SOUS-ENS. ORDINATEUR, PHARE, MG | 89907-16020 · 89907-16030 |
| 89908 | SOUS-ENS. ORDINATEUR, PHARE, MD | 89908-16020 · 89908-16030 |
