Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 14 images and 90 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 |
| 23221 | fuel pump | 23221-25030 |
| 23225A | fuel pump septum | 23225-31020 · 23225-F0010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-15024 |
| 23283B | SUPPORT REGULATEUR PRESSION ESSENCE | 23283-24010 · 23283-F0010 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77010 | Fuel tank vent pipe assembly | 77010-0A010 · 77010-0A011 |
| 77016H | Fuel return ventilation pipe sub-assembly | 77016-0A010 |

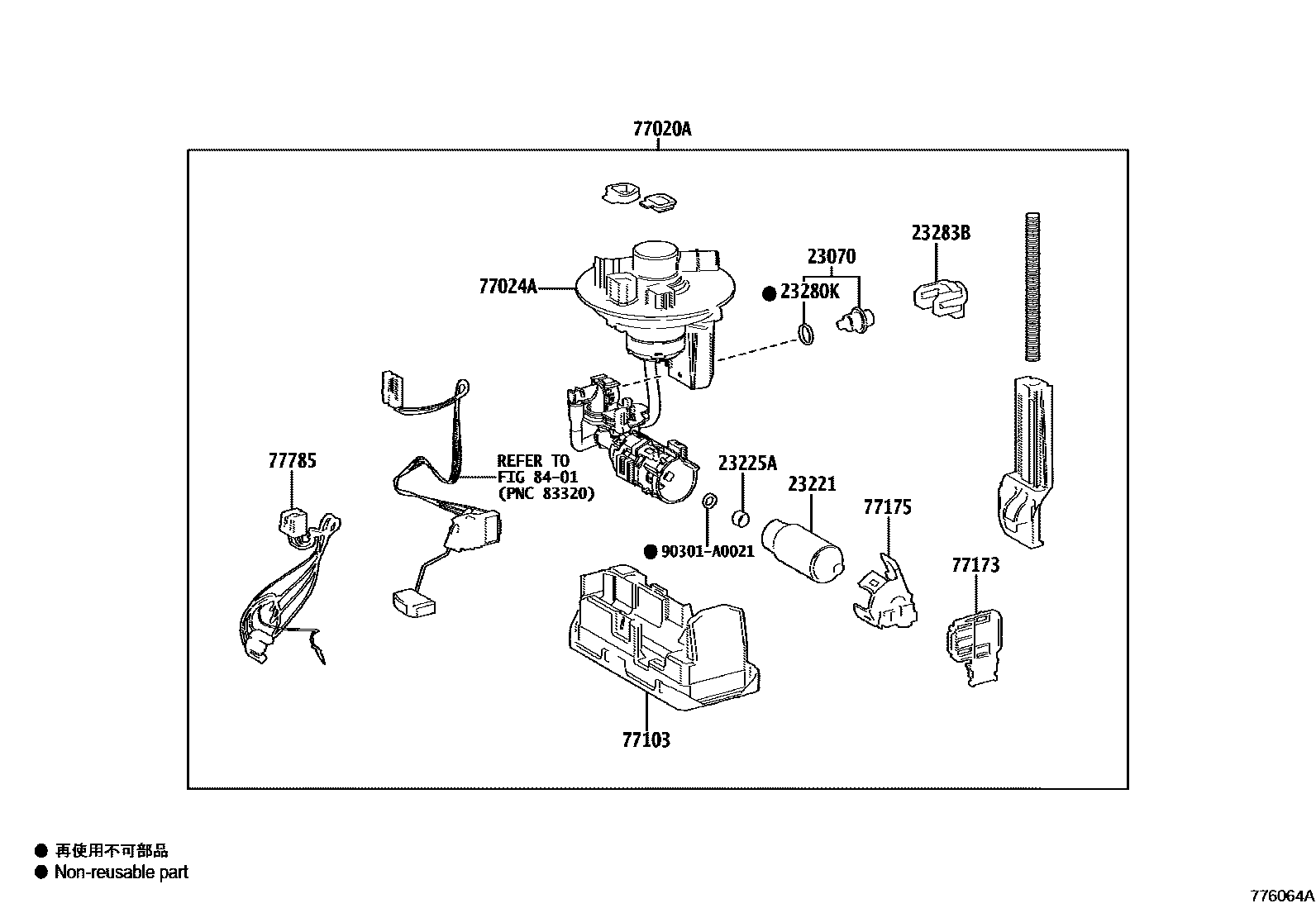

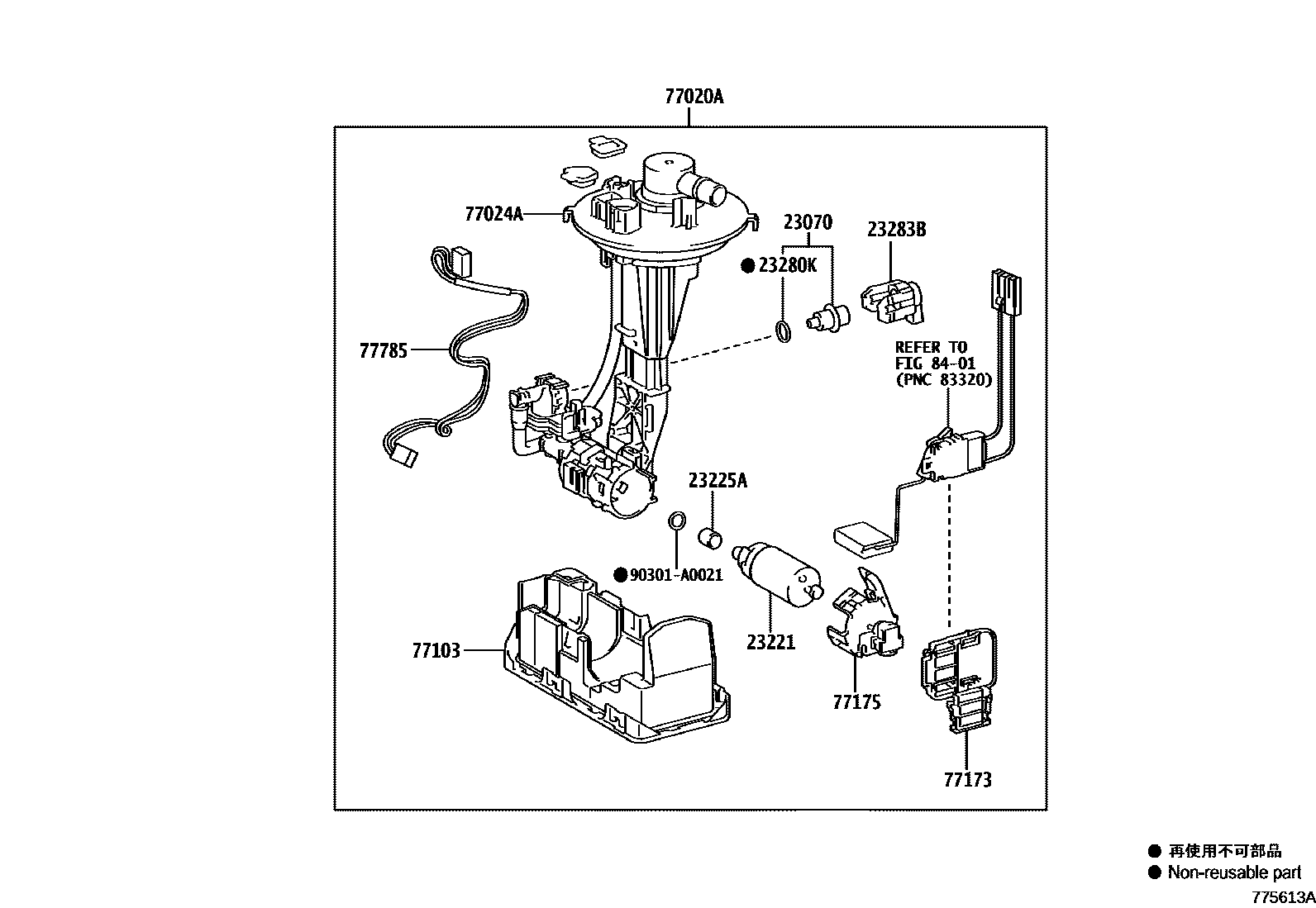

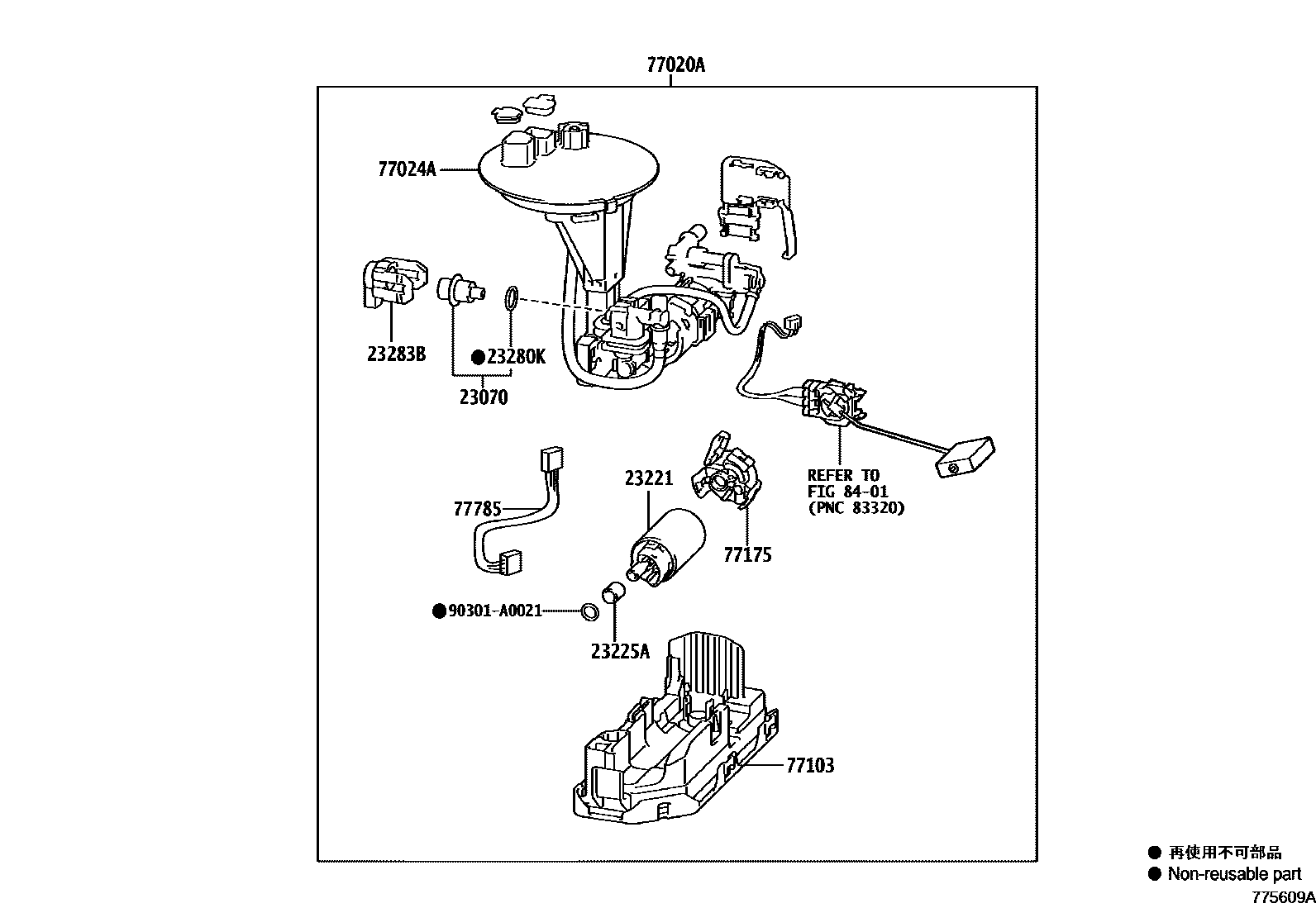

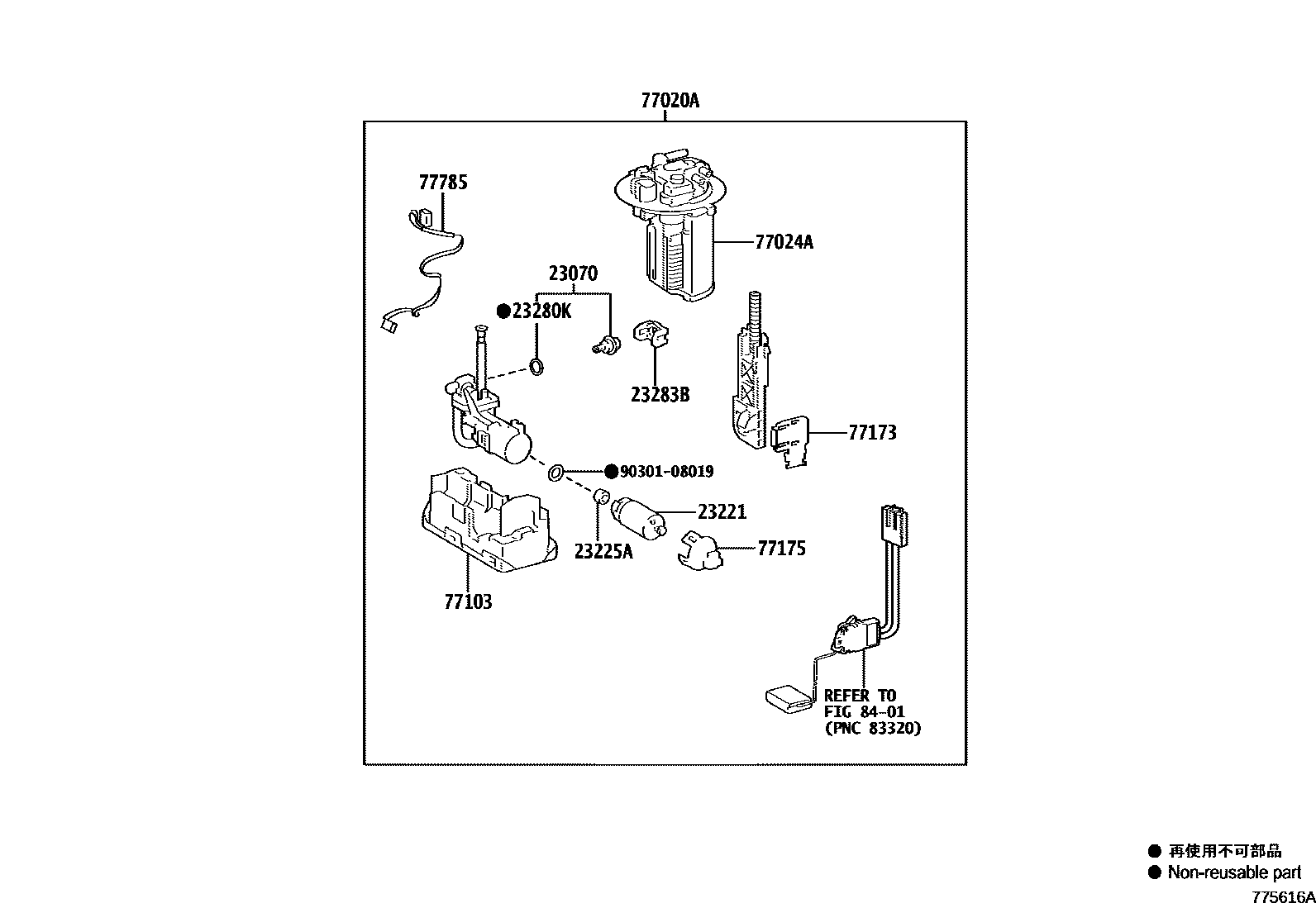

| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0A120 · 77020-0A130 · 77020-0A200 · 77020-16220 |
| 77024A | Fuel absorber sub-assembly | 77024-0A010 · 77024-0A020 · 77024-0A080 · 77024-16060 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-0A090 |

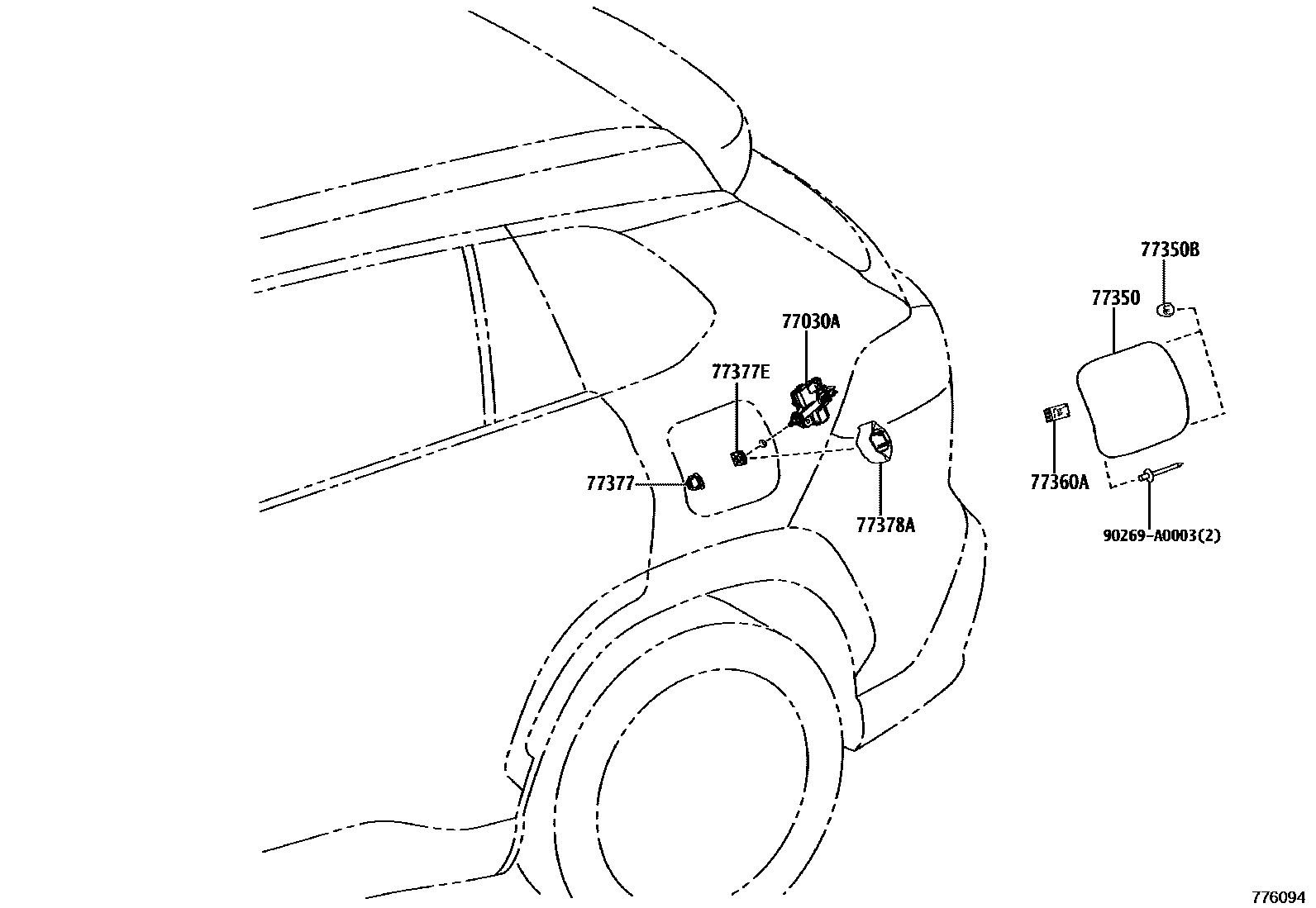

| 77030A | Fuel filler cap lock assembly with motor | 77030-0R010 |

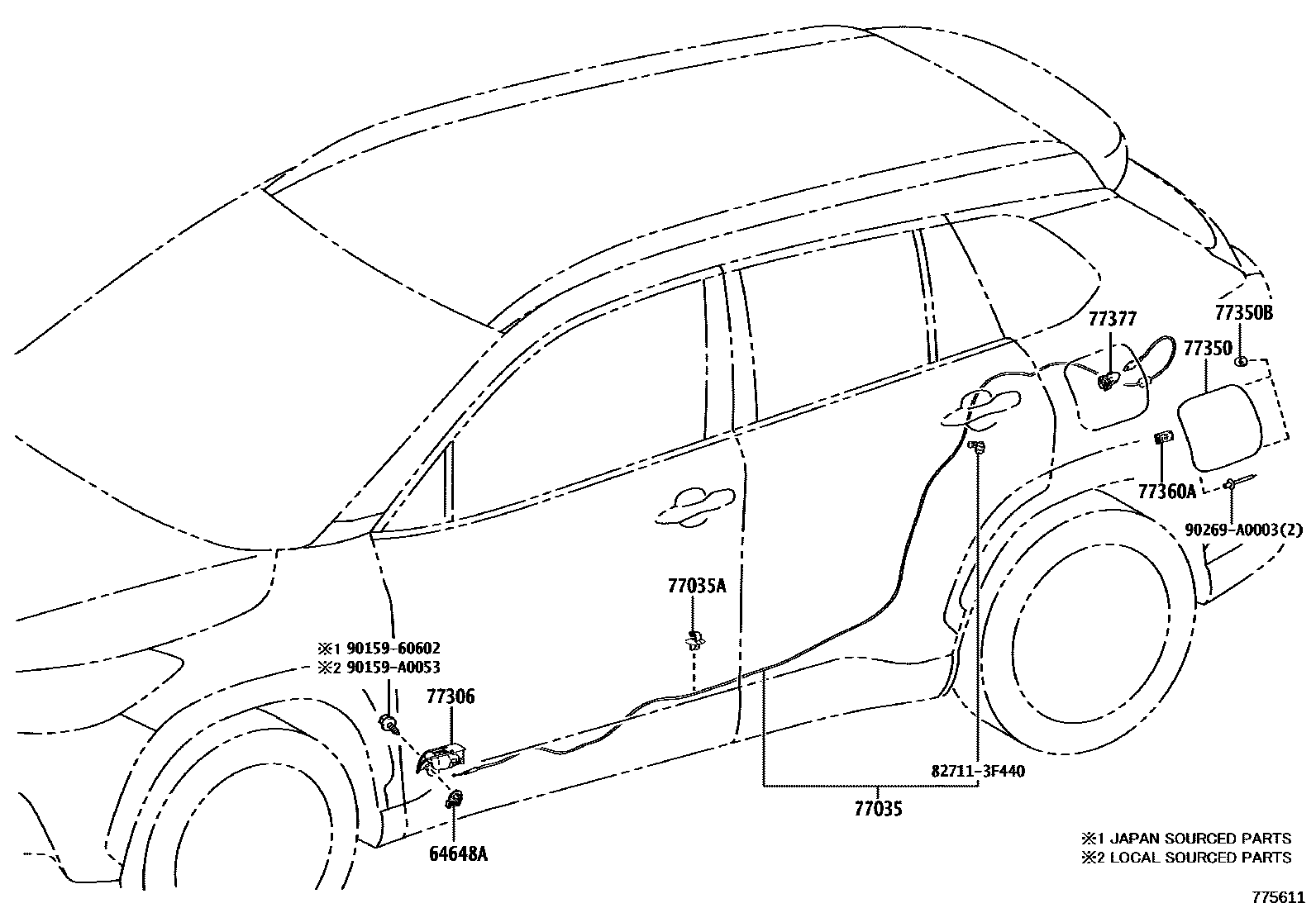

| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0A070 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 |
| 77070A | ENS. SOUPAPE, FERM RESERVOIR | 90910-15087 |

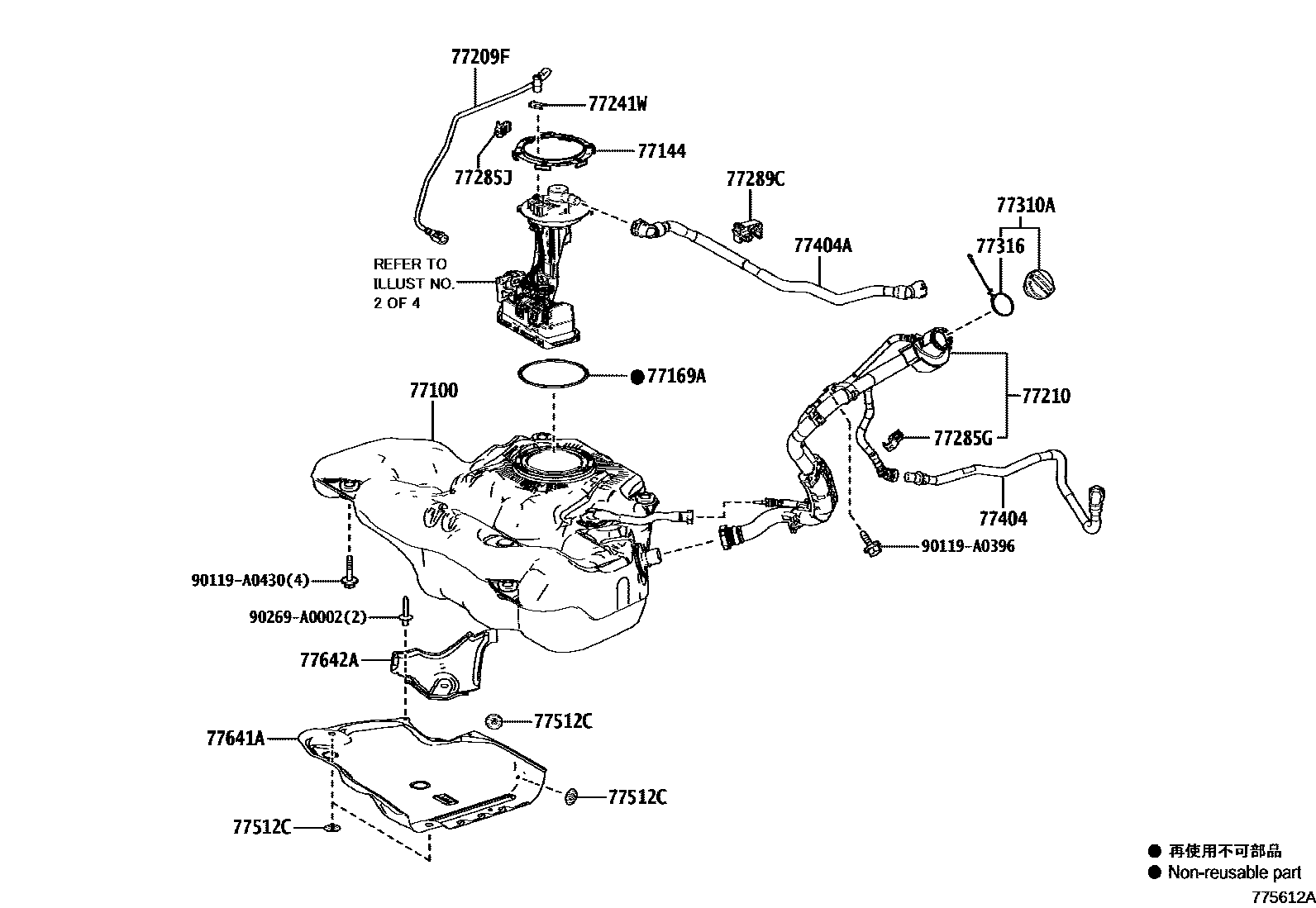

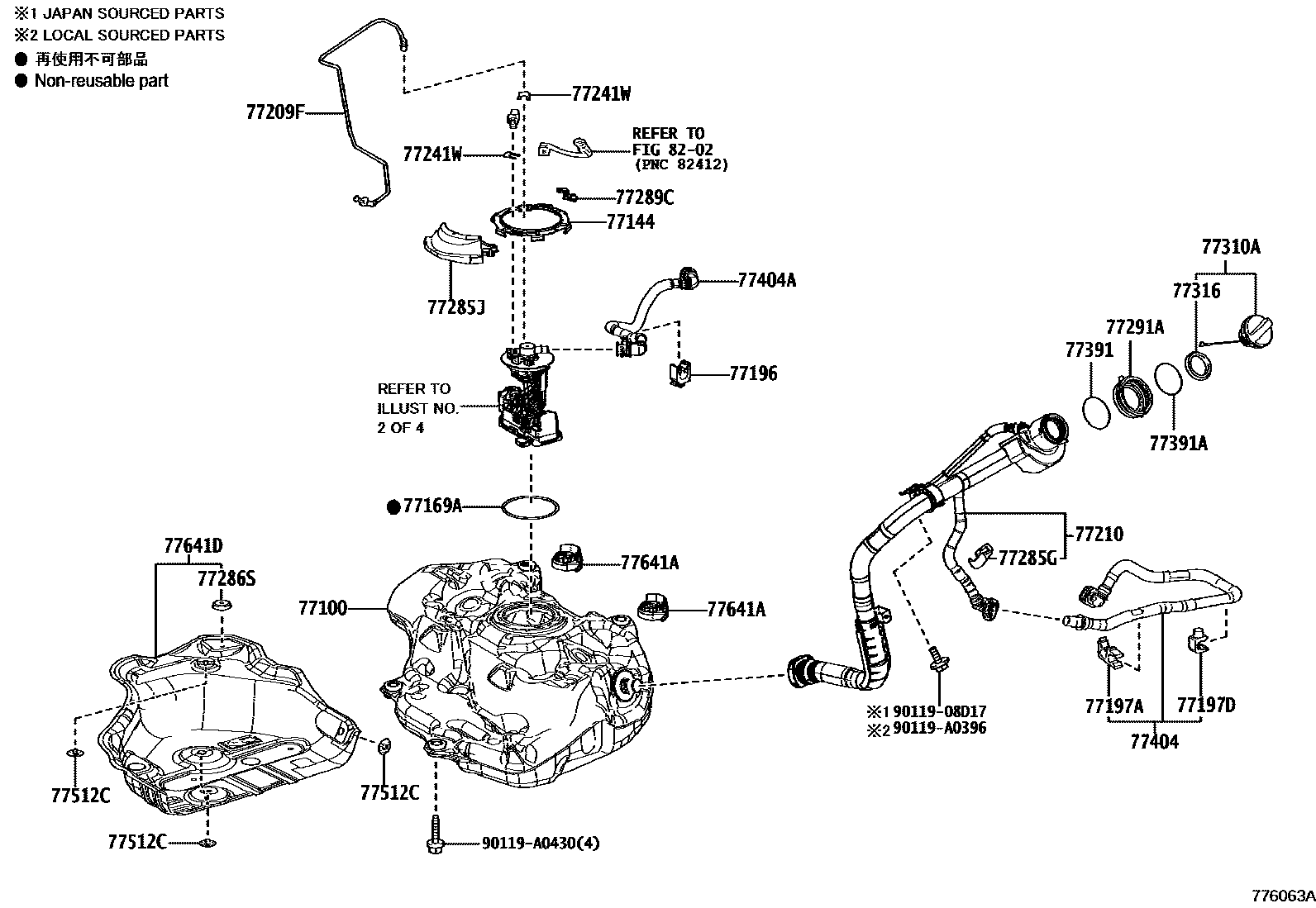

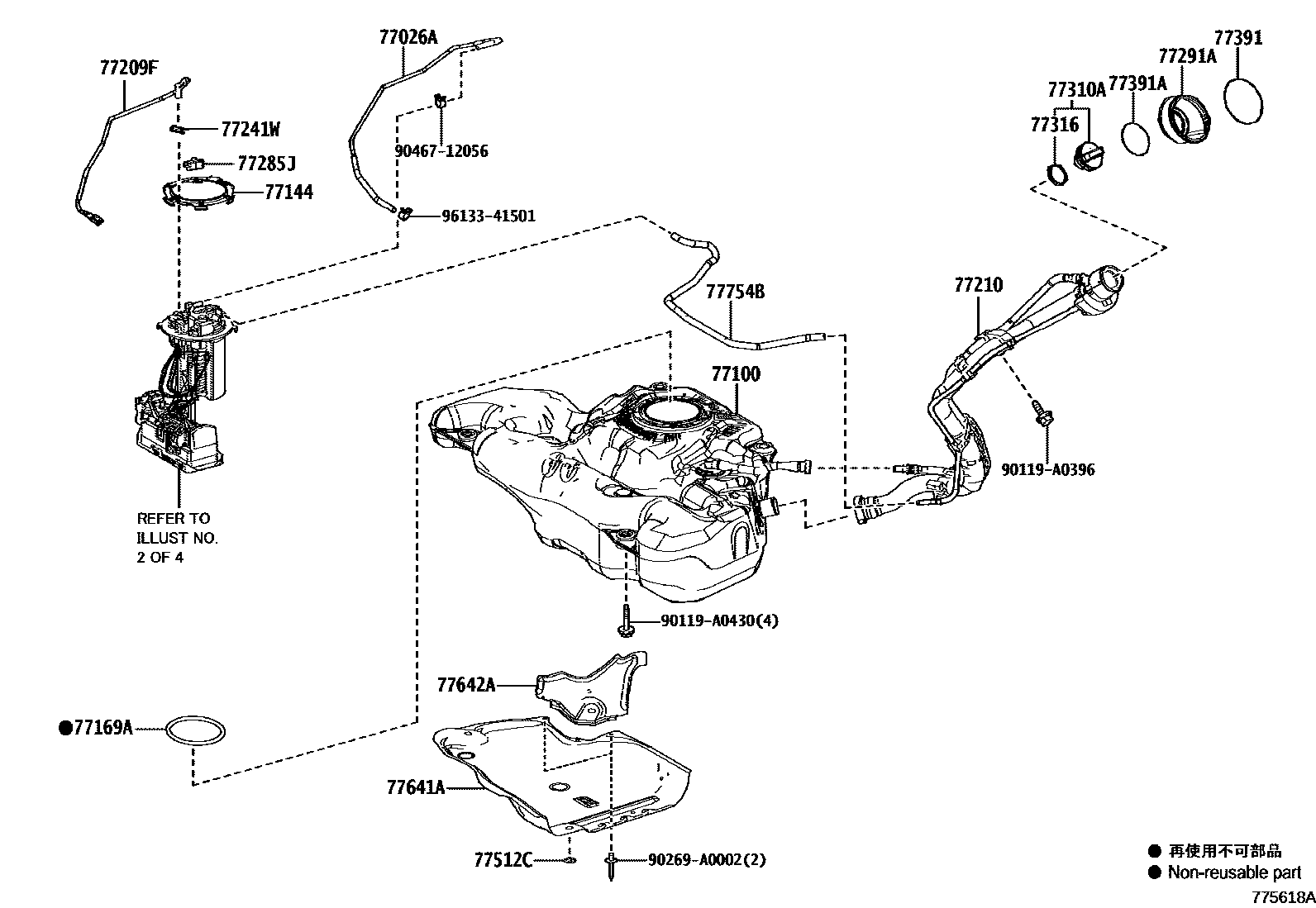

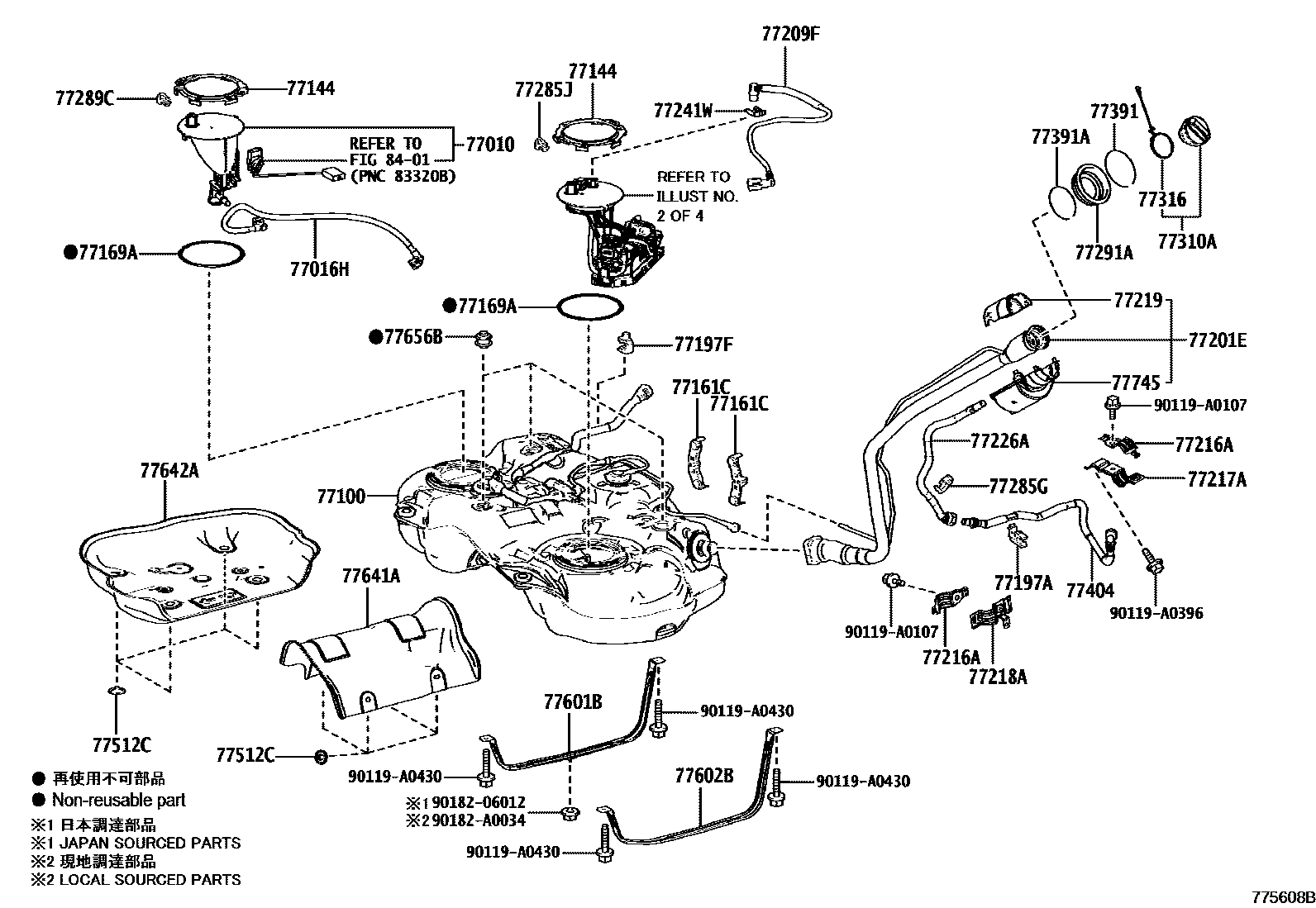

| 77100 | fuel tank assembly | 77001-02C20 · 77001-0A120 · 77001-0A130 · 77001-0A210 · 77001-0A250 |
| 77103 | SOUS-ENS. RESERVOIR AUX, CARB | 77103-0R010 · 77103-0R020 · 77103-12150 |
| 77144 | Fuel pump instrument fixture | 77144-06040 |
| 77161C | Fuel tank lower protective shell | 77161-16010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02050 · 77169-06060 |
| 77173 | SUPPORT, JAUGE CARB | 77173-0E021 · 77173-12020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0R010 · 77175-12030 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-76020 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-0A010 |
| 77197D | No. 2 evaporation vent pipe clamp | 77197-06090 · 77197-47010 · 77197-76050 |
| 77197E | No. 2 evaporation vent pipe clamp | 77197-0R010 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-33080 |
| 77198A | No. 3 evaporation vent pipe clamp | 77197-0A010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-0A050 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0A120 · 77209-0A130 · 77209-0A230 |
| 77210 | ENS. TUYAU, REMPLISSAGE DU RESERVOIR A CARBURANT | 77210-0A050 · 77210-0A100 · 77210-0A130 · 77210-0A180 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-06140 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-0A020 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-0A010 |
| 77219 | Fuel tank filler pipe cap | 77219-07010 |
| 77226A | No. 6 fuel tank breather pipe | 77226-0A060 |
| 77241W | Pipe joint clip | 77241-02010 |

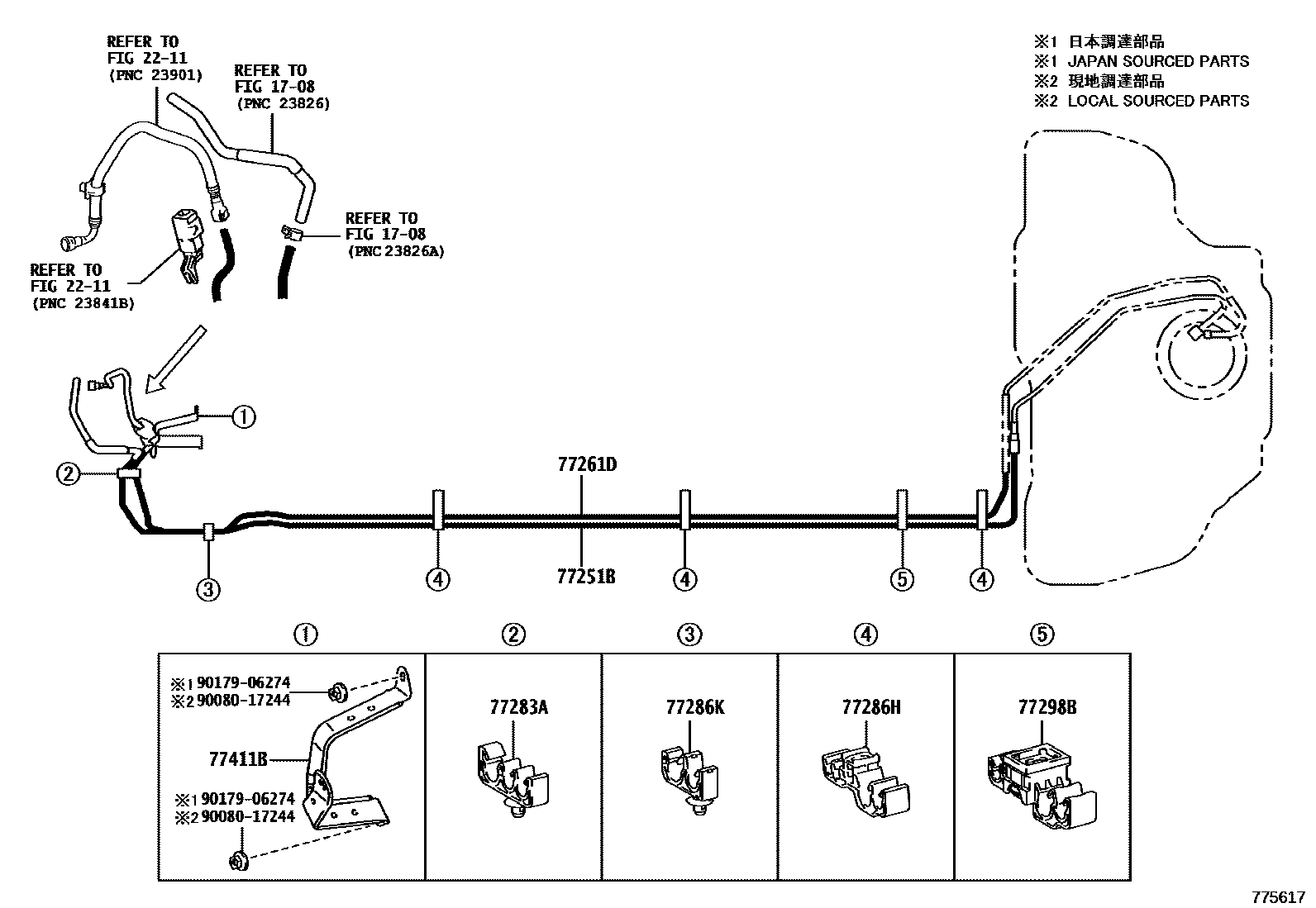

| 77251B | main fuel pipe | 77251-0A120 · 77251-0A130 · 77251-0A220 |

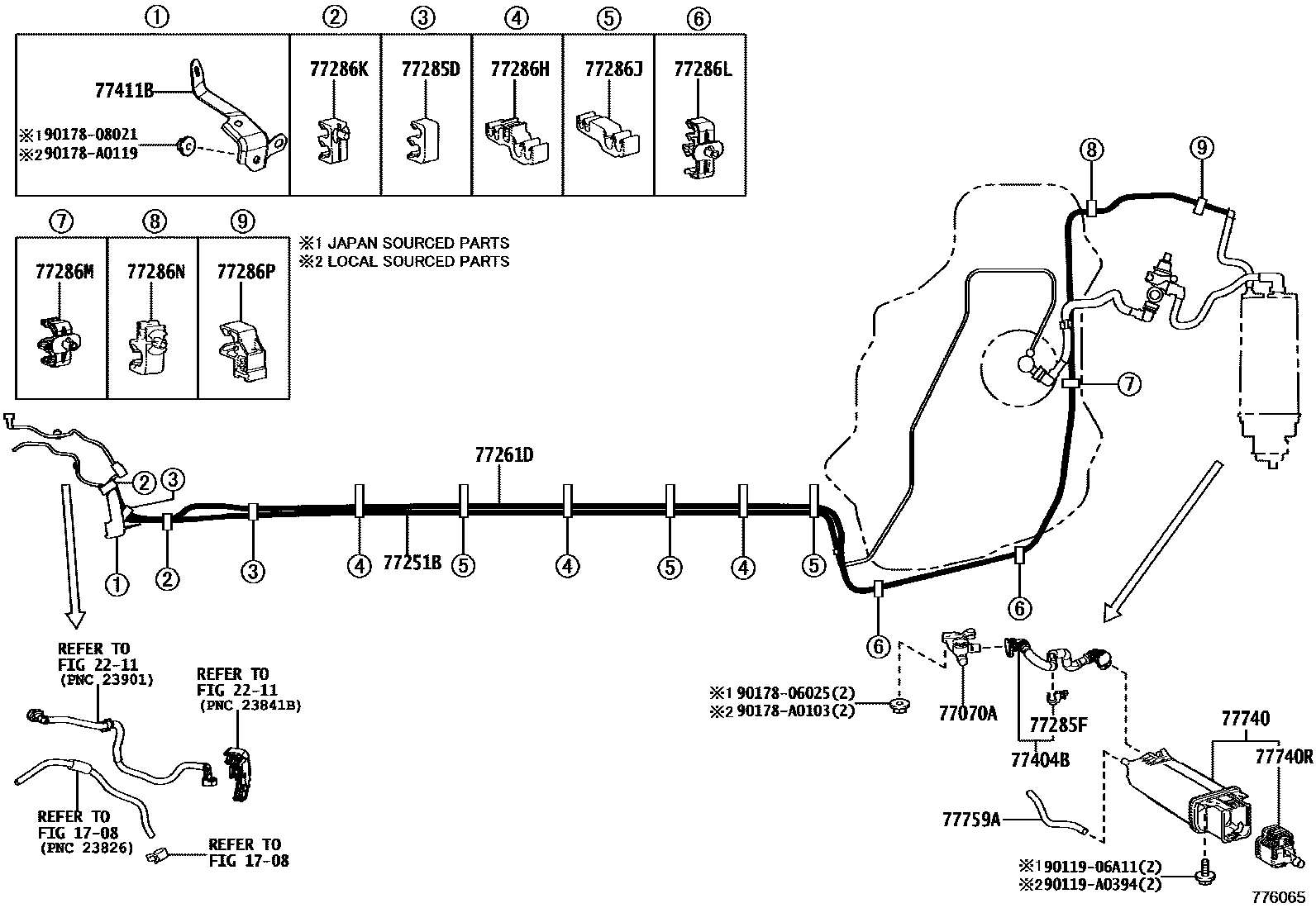

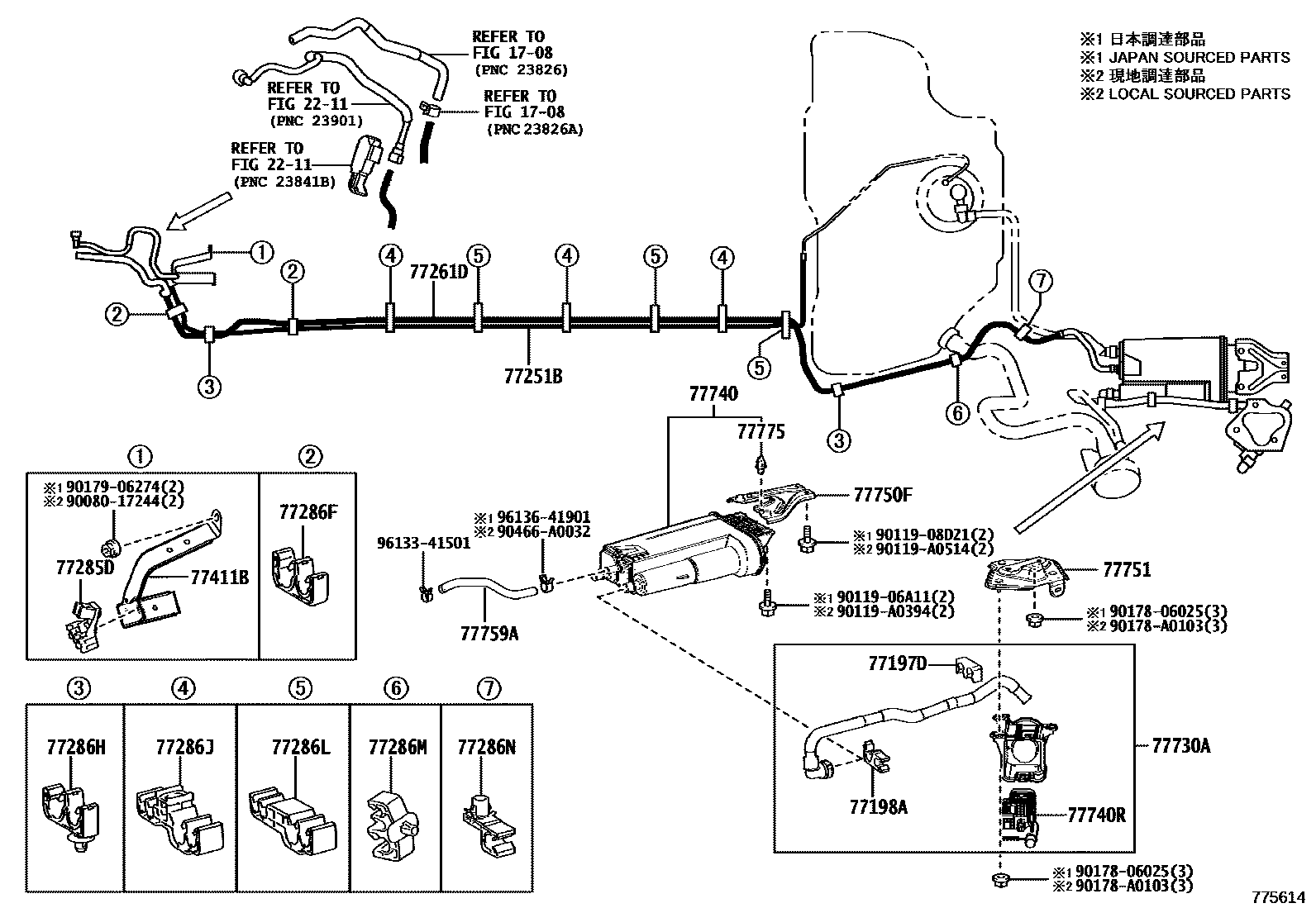

| 77261D | Fuel tank to charcoal canister pipe | 77261-0A130 · 77261-0A140 · 77261-0A170 · 77261-0A220 |
| 77283A | No. 1 fuel pipe clamp bracket | 77285-78010 |
| 77285D | No. 1 fuel pipe clamp | 77286-02260 · 77289-02160 |
| 77285F | No. 1 fuel pipe clamp | 77285-30310 · 77285-47120 |
| 77285G | No. 1 fuel pipe clamp | 77285-06510 |
| 77285H | No. 1 fuel pipe clamp | 77285-06510 |
| 77285J | No. 1 fuel pipe clamp | 77285-06240 · 77285-0A120 |
| 77286F | No. 2 fuel pipe clamp | 77289-02150 |
| 77286H | No. 3 fuel pipe clamp | 77286-02280 · 77298-02310 · 77298-10070 |
| 77286J | No. 4 fuel pipe clamp | 77298-02290 · 77298-02320 |
| 77286K | No. 2 fuel pipe clamp | 77286-02300 · 77286-75010 |
| 77286L | No. 5 fuel pipe clamp | 77286-02290 · 77298-02300 |
| 77286M | No. 6 fuel pipe clamp | 77285-02260 · 77286-02290 |
| 77286N | No. 7 fuel pipe clamp | 77299-0A020 · 77299-0A030 · 77299-12040 |
| 77286P | No. 8 fuel pipe clamp | 77285-0A040 |
| 77286S | Fuel tank protective shell cushion | 77286-12110 |
| 77289C | No. 4 fuel pipe clamp | 77285-12210 · 77285-16130 · 77285-16170 · 77285-76020 |
| 77291A | Fuel tank filler pipe cover | 77291-0A040 |
| 77298B | No. 4 fuel pipe clamp | 77298-10080 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0A050 |
| 77310A | Fuel tank cap assembly | 77300-06090 · 77300-07040 · 77300-12020 |
| 77316 | fuel tank cap gasket | 77316-06090 · 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-0A020 |
| 77350B | Cushion (for fuel filler cap) | 90541-06069 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-02020 · 77360-35040 |
| 77377 | Fuel filler cap lock retainer | 77377-0R030 · 77377-0R040 |
| 77377E | RETENUE, VERR TRAPPE A CARBURANT, NO.2 | 77377-12110 |
| 77378A | Fuel filler cap lock cover | 77378-0A010 |
| 77391 | fuel inlet ring | 77391-42010 |
| 77391A | fuel inlet ring | 77391-02041 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0A060 · 77404-0A220 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-0A050 · 77404-0A090 · 77404-0A210 |
| 77404B | SOUS-ENS. FLEXIBLE, EVENT RESERV CARB, NO.2 | 77404-0A230 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-02020 · 77411-0A020 |
| 77512C | SUPPORT, RESERVOIR CARB | 77512-06060 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-0A010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-0A010 |
| 77641A | No. 1 fuel tank protective shell | 77606-0A020 · 77641-0A010 · 77641-0A120 · 77641-47160 |
| 77641D | PROTECTEUR NO. 2 RESERVOIR ESSENCE | 77641-0A110 |
| 77642A | No. 2 fuel tank protective shell | 77642-0A010 · 77642-0A020 |
| 77656B | No. 6 fuel tank liner | 77656-06030 |
| 77730A | Capture carbon canister assembly with oil outlet valve | 77730-0A010 |
| 77730B | ENS. CARTOUCHE, CHARBON AV TUYAU SORTIE | 77730-0A020 |

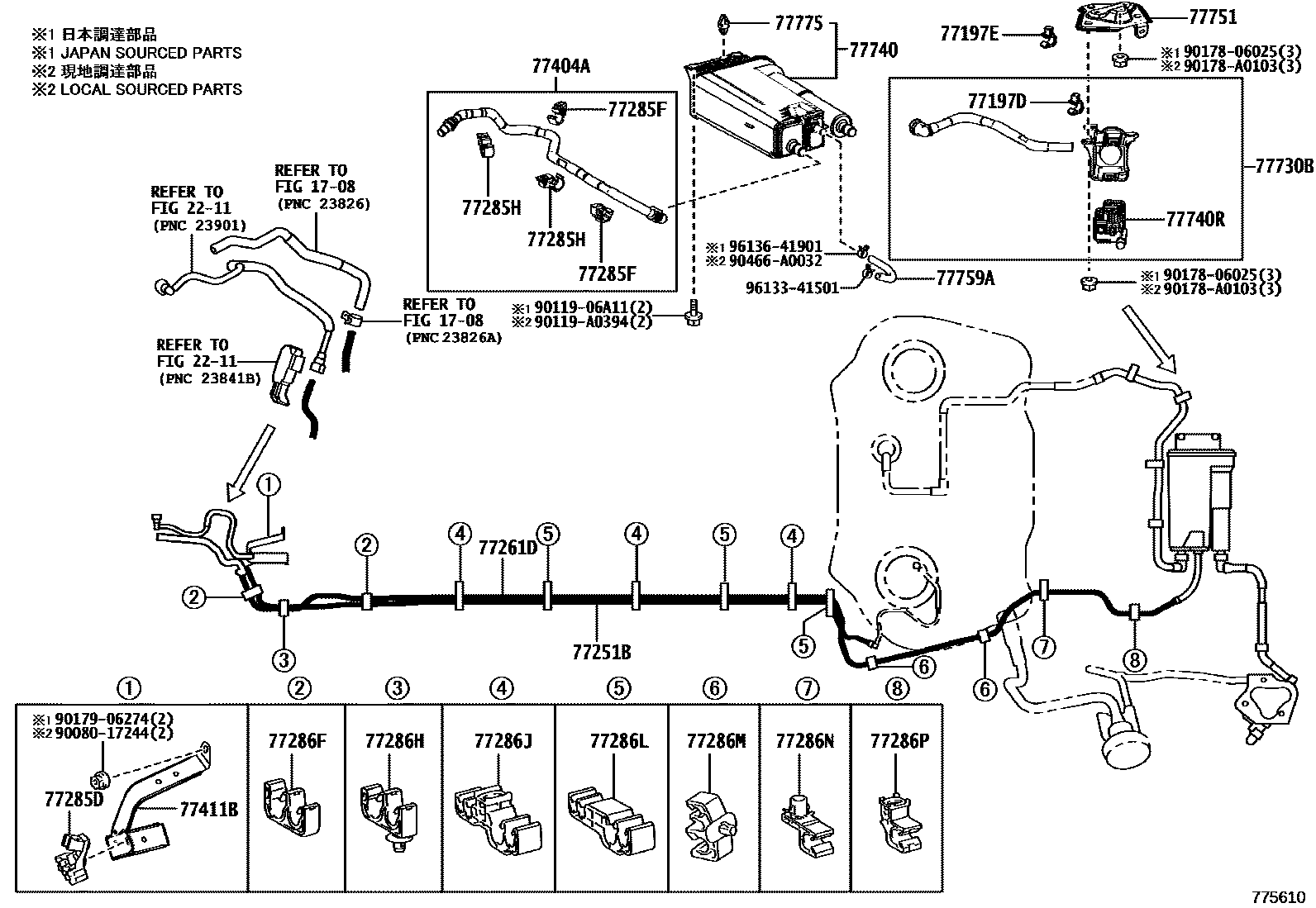

| 77740 | Carbon canister assembly | 77740-06230 · 77740-12770 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 · 90910-AF006 |
| 77745 | No. 1 carbon canister filter | 77745-0E010 |
| 77750F | ENS. SUPPORT, CARTOUCHE CHARBON, NO.1 | 77751-0A050 |
| 77751 | Carbon canister base bracket | 77751-0A040 · 77751-0A110 |
| 77754B | Carbon canister outlet hose | 77754-0A040 |
| 77759A | Carbon canister hose | 77759-0A020 · 77759-0A030 · 77759-0A060 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-02190 · 77785-06130 · 77785-12040 |
