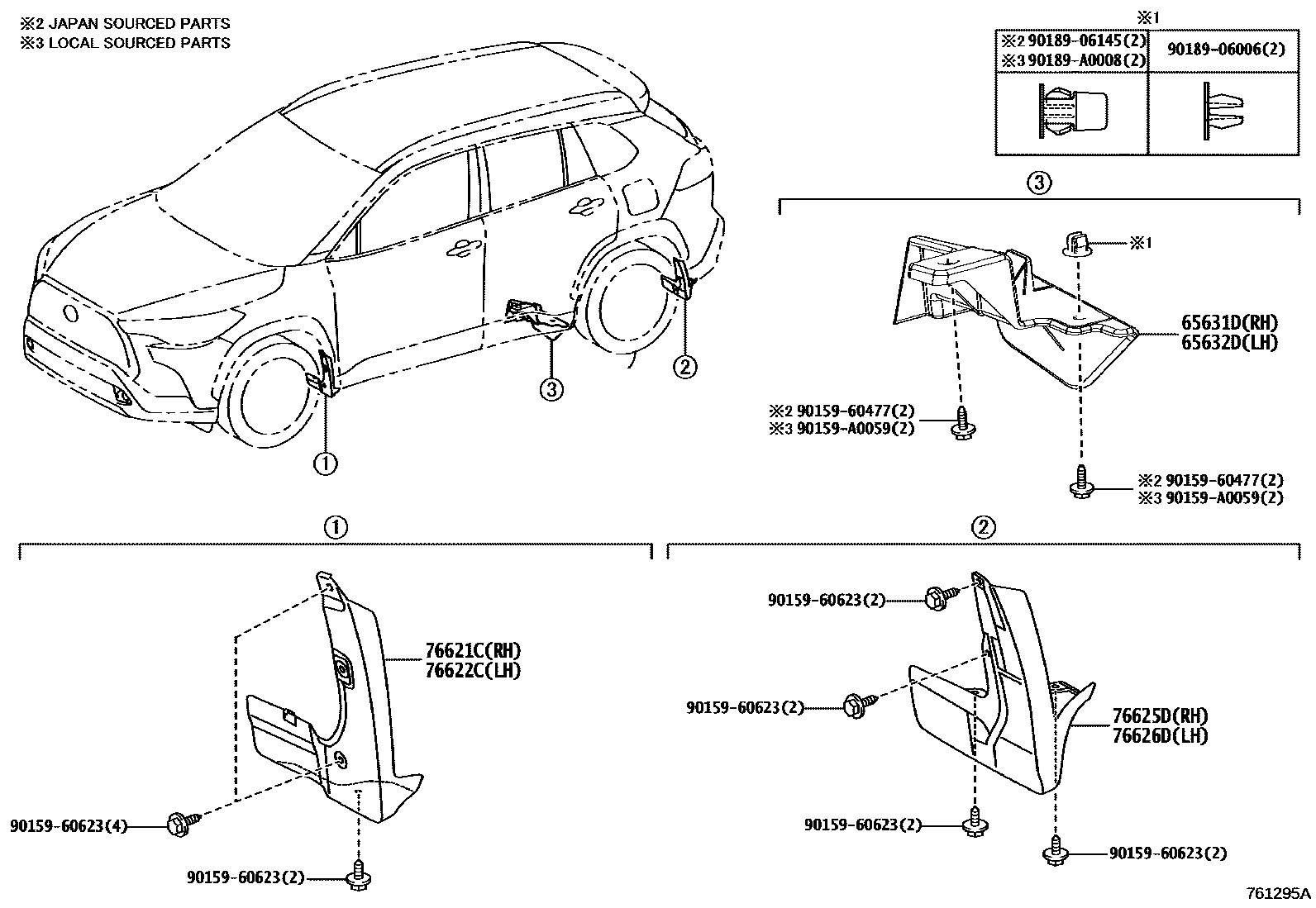

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-0A040 |
| 65632D | Left rear wheel house front panel | 65632-0A040 |
| 76621C | Right front fender fender | 76621-YY190 |
| 76622C | Left front fender fender | 76622-YY190 |
| 76625D | Right rear side fender | 76625-YY200 · 76625-YY260 |
| 76626D | Left rear side fender | 76626-YY200 · 76626-YY260 |
