Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

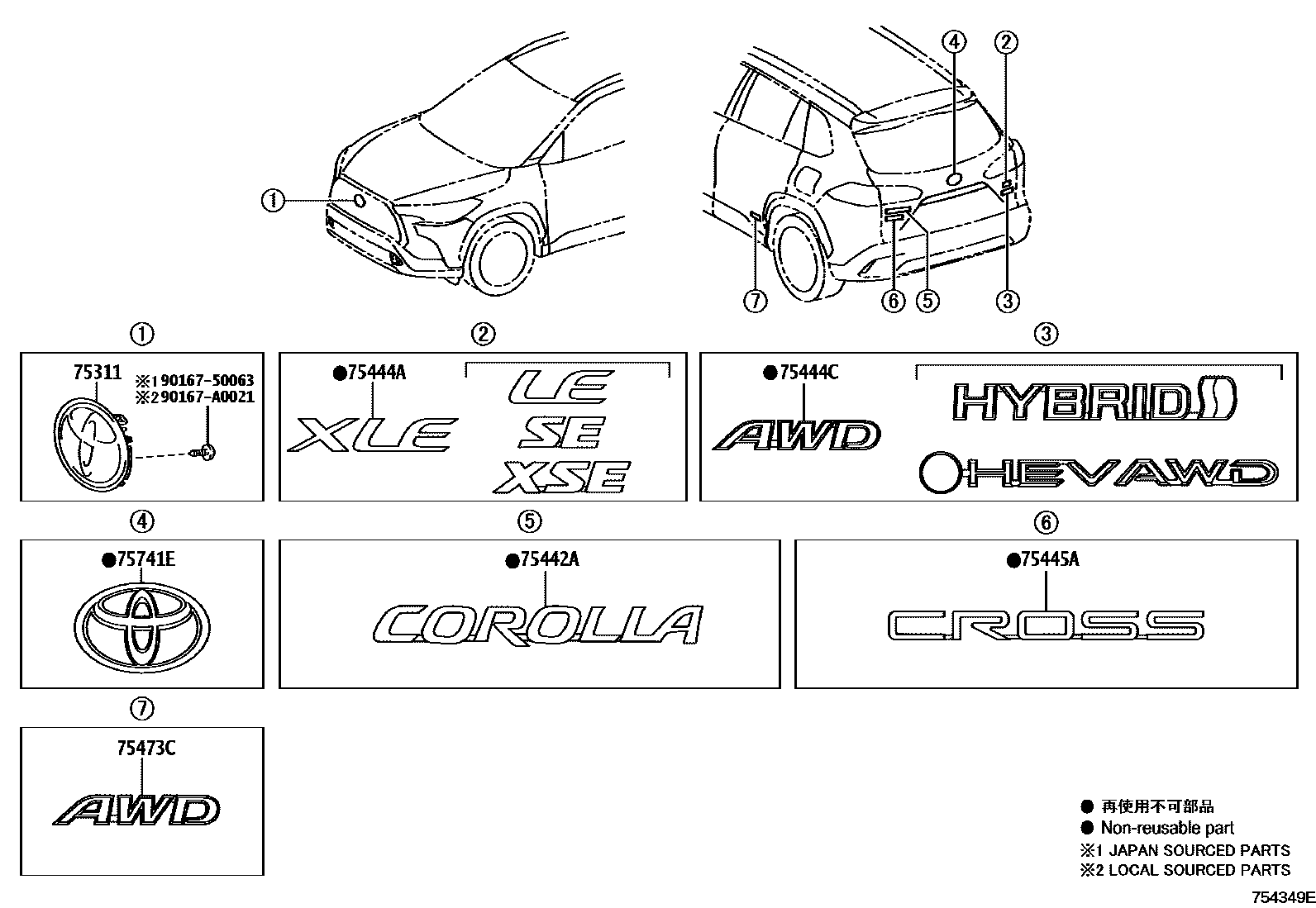

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 53141-YY040 · 75310-06040 · 90975-A2009 |
| 75442A | No. 2 nameplate on back door | 75442-0A040 · 75442-YY130 |
| 75444A | No. 4 nameplate on back door | 75444-0A100 · 75444-0A180 · 75444-YY100 · 75444-YY110 · 75444-YY130 · 75444-YY140 |
| 75444C | Trunk door No. 4 nameplate | 75441-0A070 · 75441-0A090 · 75441-0A100 · 75443-YY420 · 75444-0A190 · 75444-YY120 |
| 75445A | No. 5 nameplate on back door | 75445-0A020 · 75445-YY030 |
| 75473C | Body side nameplate | 75445-YY050 · 75445-YY051 · 75445-YY060 · 75445-YY061 · 75473-0A010 · 75473-0A020 |
| 75741E | logo | 75431-02080 · 75446-YY040 |
