Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

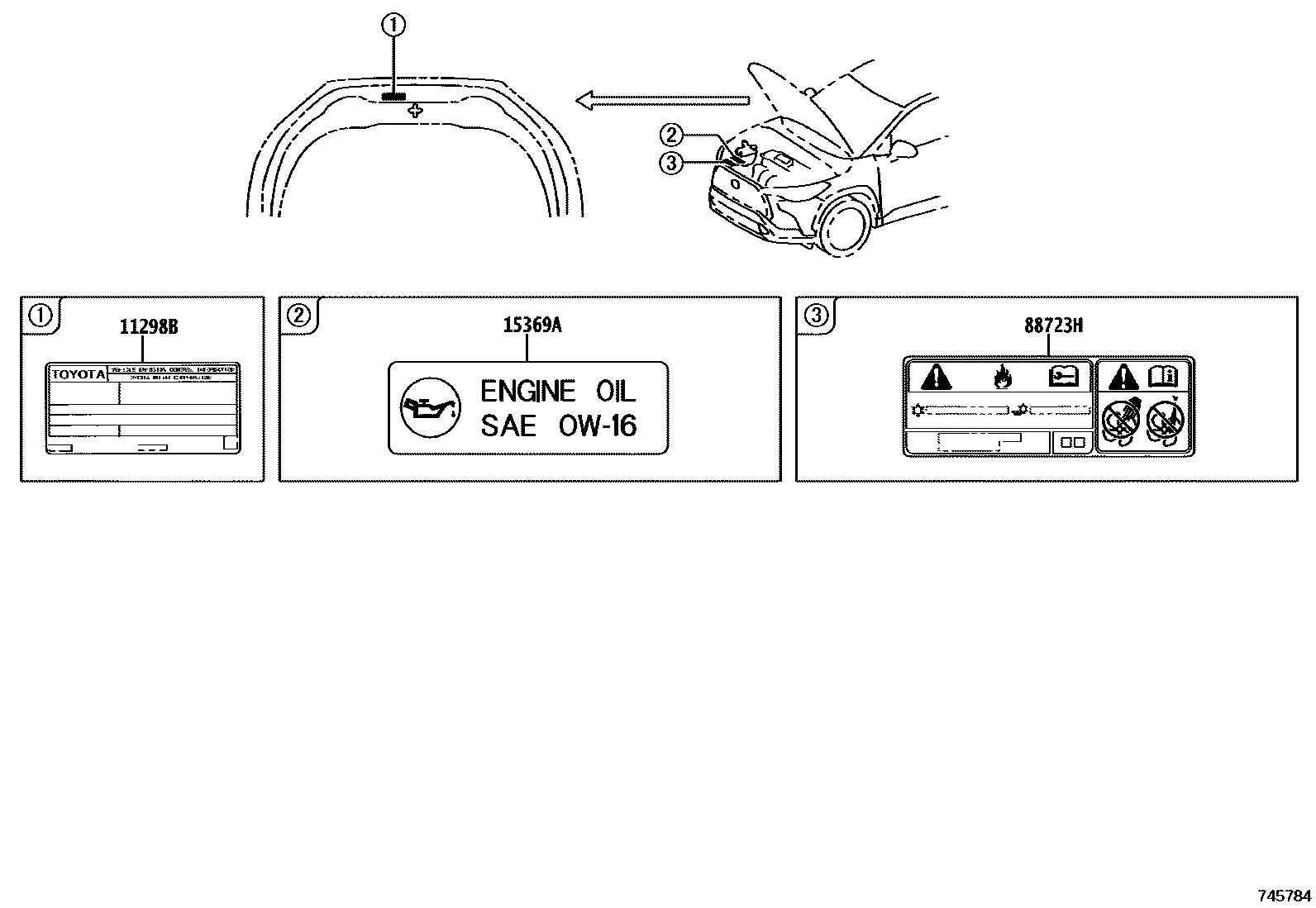

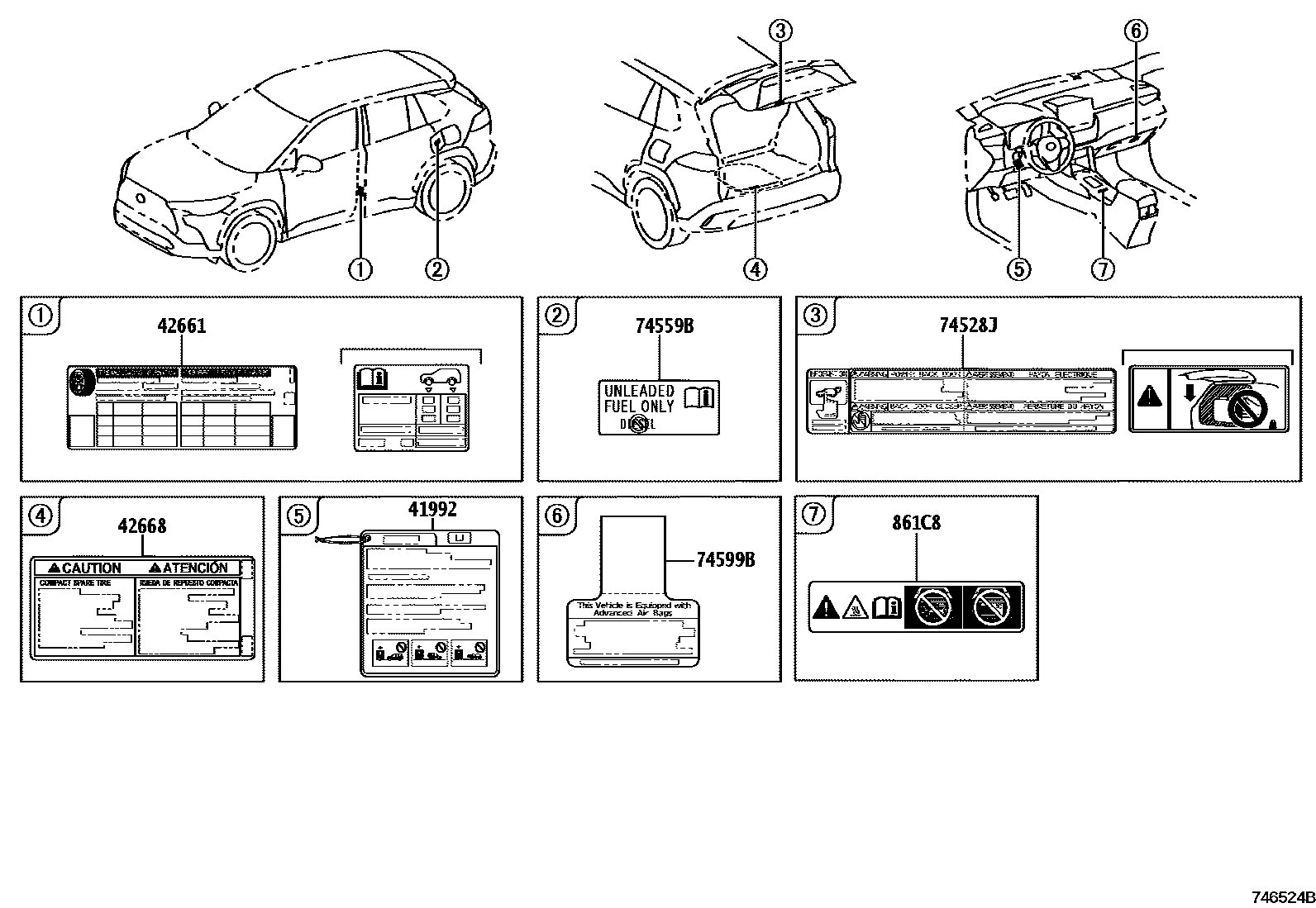

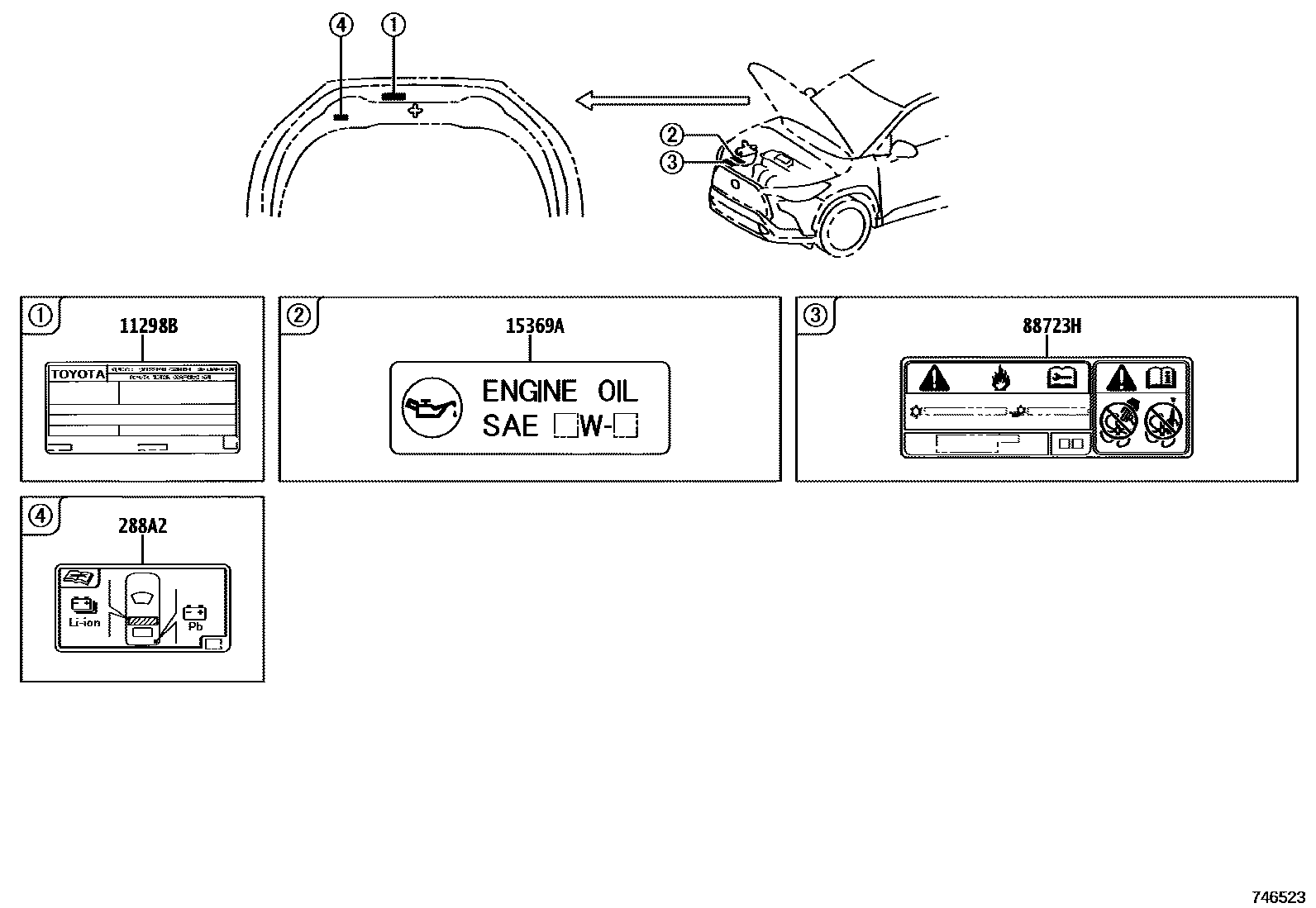

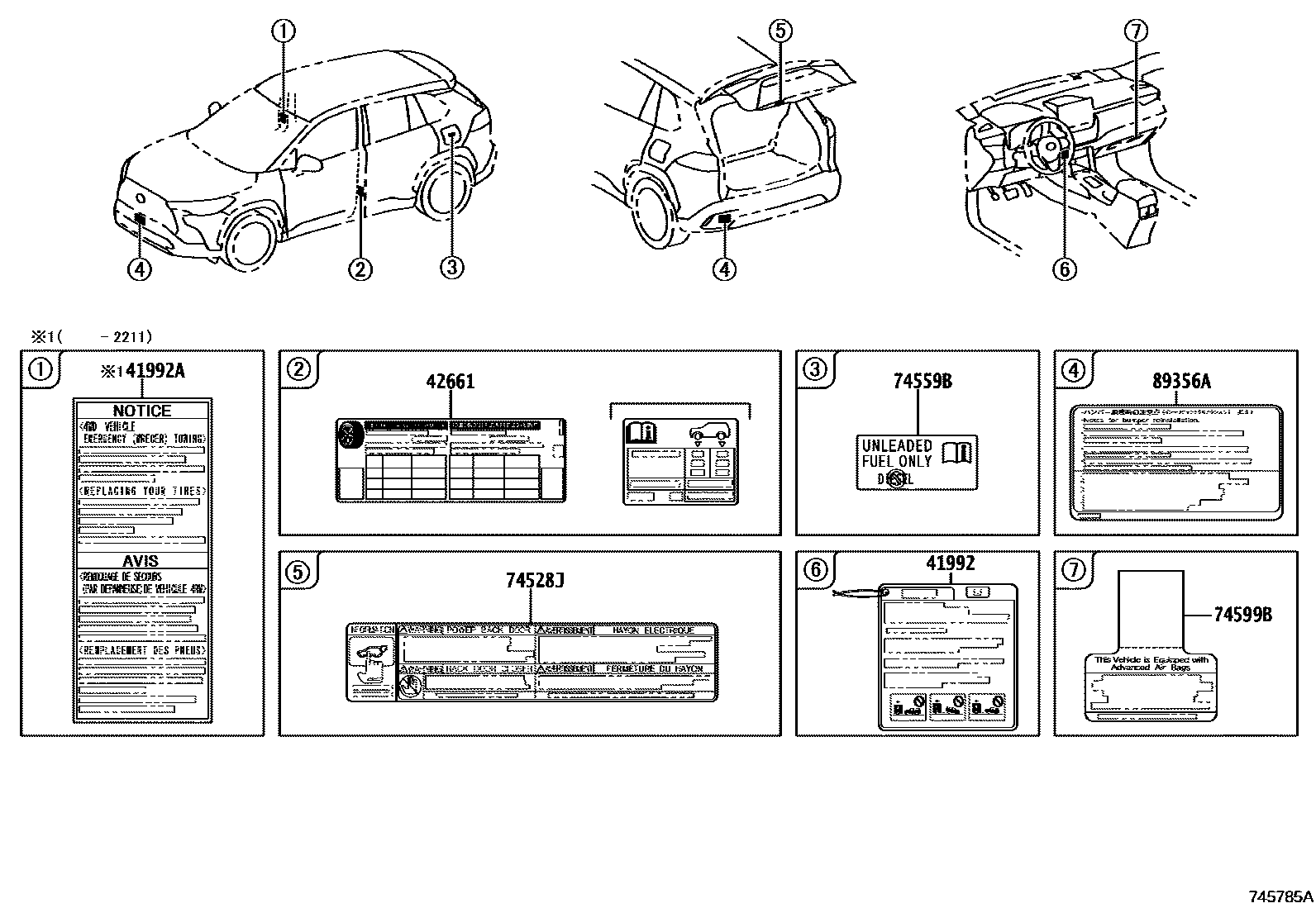

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11298B | Emission Control Information Label | 11298-F2030 · 11298-F2031 · 11298-F2032 · 11298-F2033 · 11298-F2060 · 11298-F2061 · 11298-F2062 |
| 15369A | Engine oil information label | 15369-25010 · 15369-25020 · 15369-F0010 · 15369-F0020 |
| 288A2 | ETIQUETTE, EMPLACEMENT BATT | 288A2-F2030 |
| 41992 | Differential attention label | 41992-0R010 · 41992-42030 |
| 41992A | ETIQUETTE, AVERTISSEMENT DIFFERENTIEL, NO.2 | 41992-48020 |
| 42661 | ETIQUETTE, INFORMATIONS PRESSION PNEUS | 42661-0A200 · 42661-0A210 · 42661-0A220 · 42661-0A230 · 42661-0A240 · 42661-0A350 · 42661-0A360 · 42661-0A370 · 42661-0A380 · 42661-0A381 |
| 42668 | Small spare tire warning label | 42668-02150 · 42668-0E010 |
| 74528J | Electric back door warning label | 74528-0E020 · 74528-47020 |
| 74559B | fuel information label | 74559-20140 |
| 74599B | Driver and passenger air bag information labels | 74599-0E020 |
| 861C8 | ETIQUETTE, AVERTISSEMENT CHARGEUR SANS FIL MOBILE | 861C8-0E010 |
| 88723H | Cooler maintenance warning label | 88723-0A120 · 88723-0A220 |
| 89356A | ETIQUETTE RENSEIGNEMENTS GABARIT | 89356-47020 |
