Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 4 PNC and OE references.

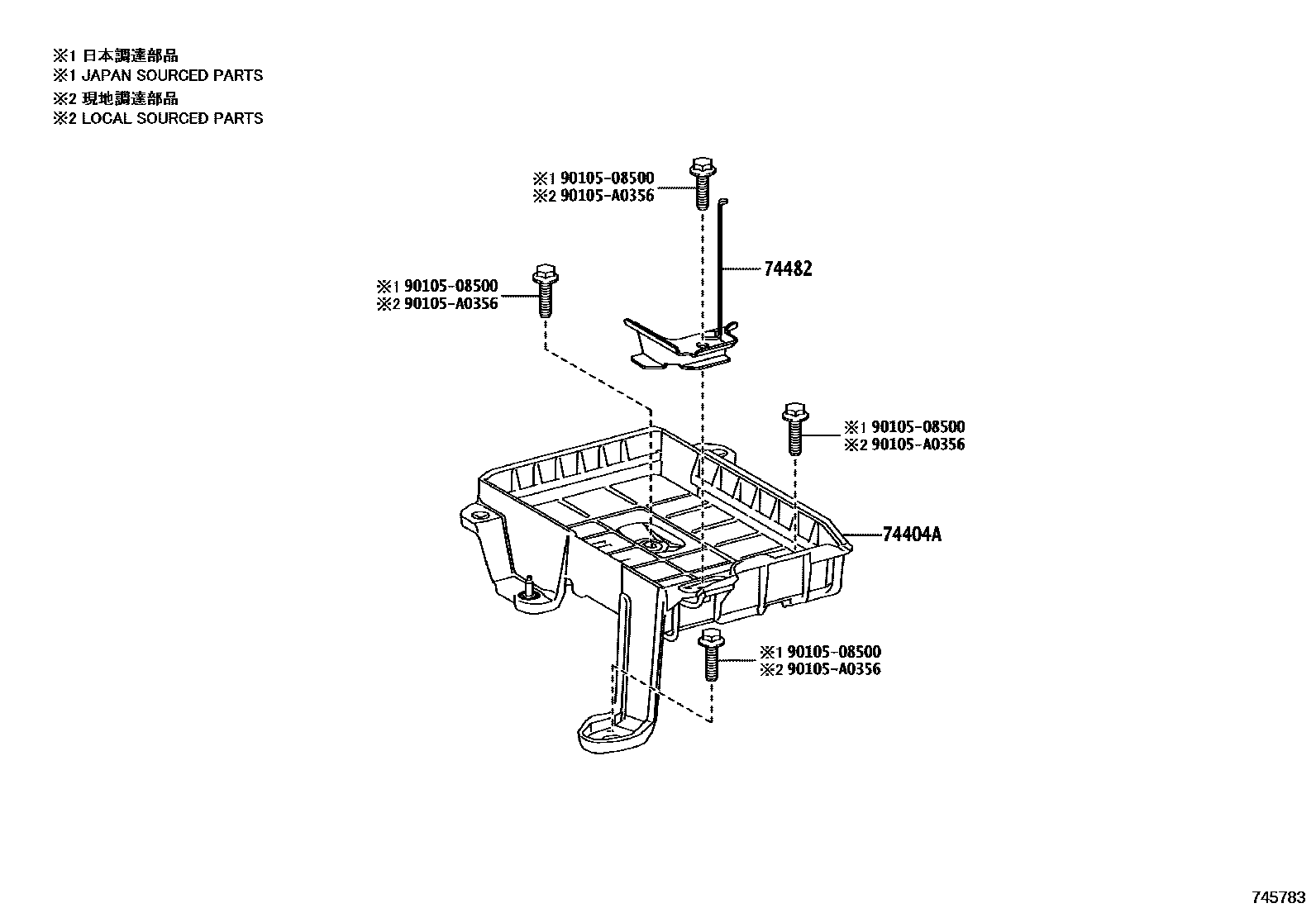

Toyota COROLLA battery holder EPC diagram — 745783
battery holder — 745783 (202109 – 999999)

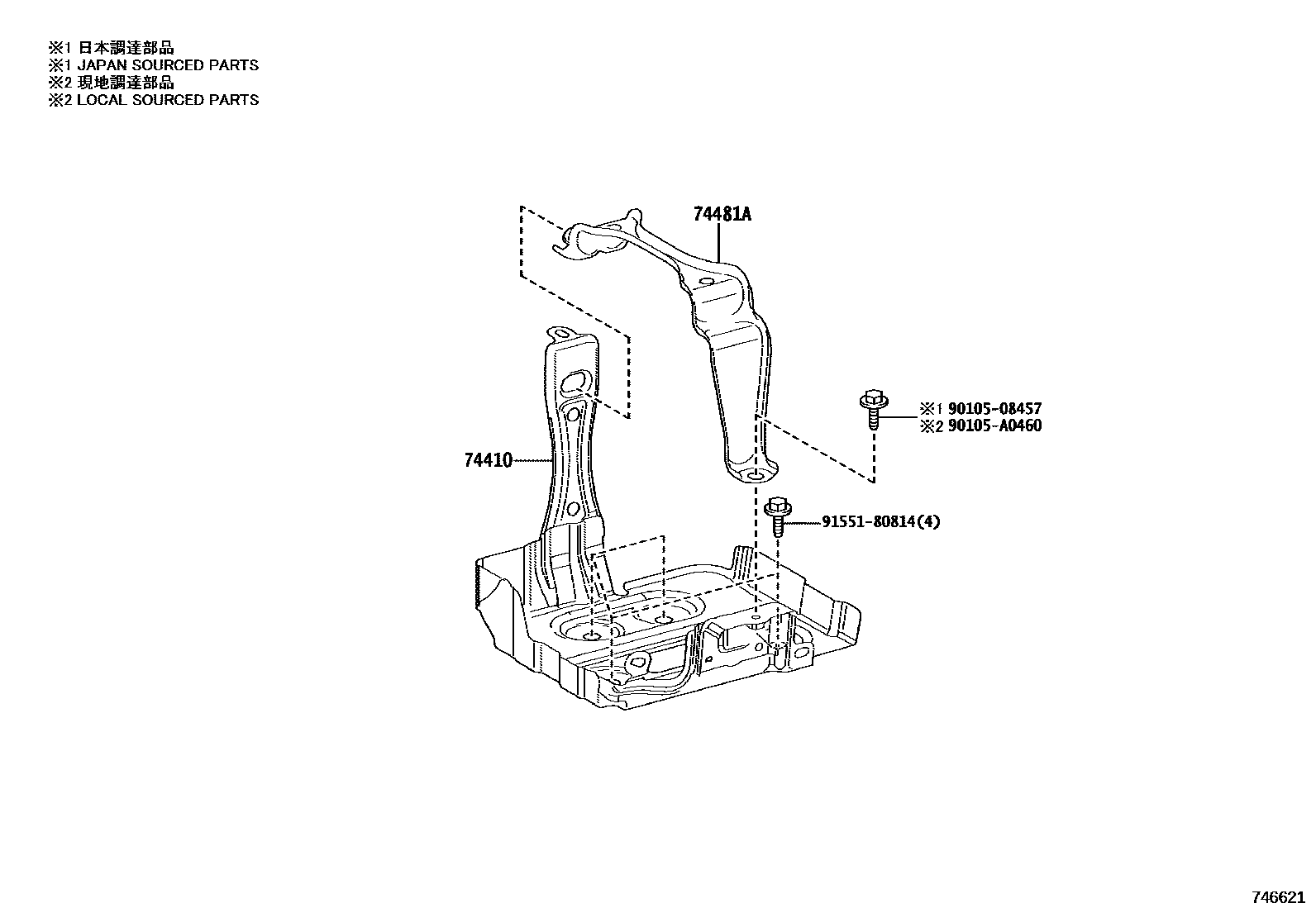

Toyota COROLLA battery holder EPC diagram — 746621
battery holder — 746621 (202305 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-0A020
74410Battery bracket assembly74410-0A010
74481ABattery clip74481-0A030
74482No. 2 battery clip74405-02010
