Toyota COROLLA 扶手和遮阳板 — Figure 7401

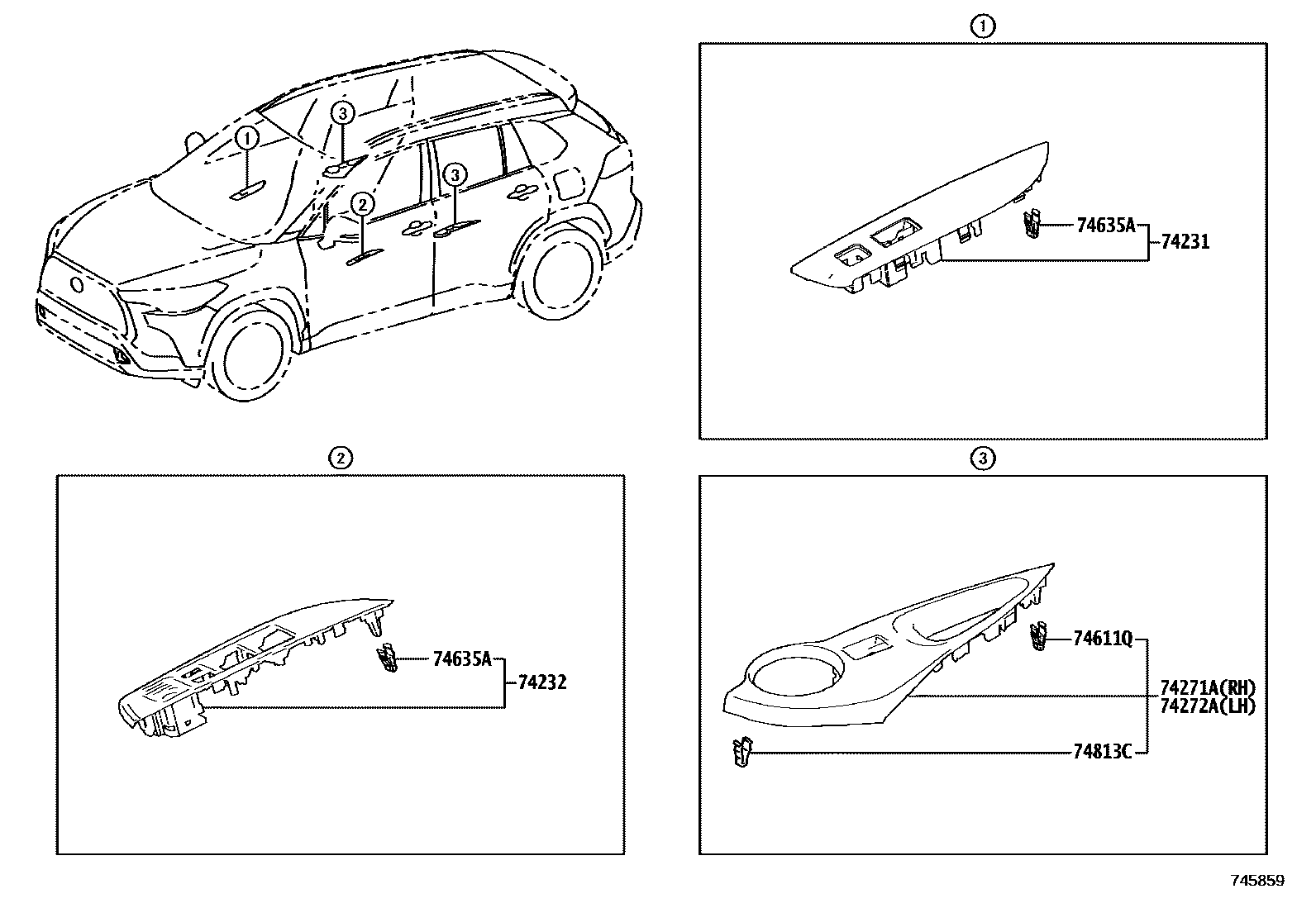

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-02D80 |
| 74232 | Left front armrest upper panel | 74232-02B10 |
| 74271A | Right rear door armrest upper panel | 74271-0A040 |
| 74272A | Left rear door armrest upper panel | 74272-0A040 |
| 74611Q | clip | 90467-A0011 |
| 74630C | Right door auxiliary handle assembly | 74630-0A040 |
| 74635A | clip | 90467-10203 |
| 74640C | Left door auxiliary handle assembly | 74640-0A040 |
| 74645A | Right door auxiliary handle cover | 74645-0A040 |
| 74646 | Left door auxiliary handle cover | 74646-0A040 |
| 74813C | clip | 90467-12080 |
