Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

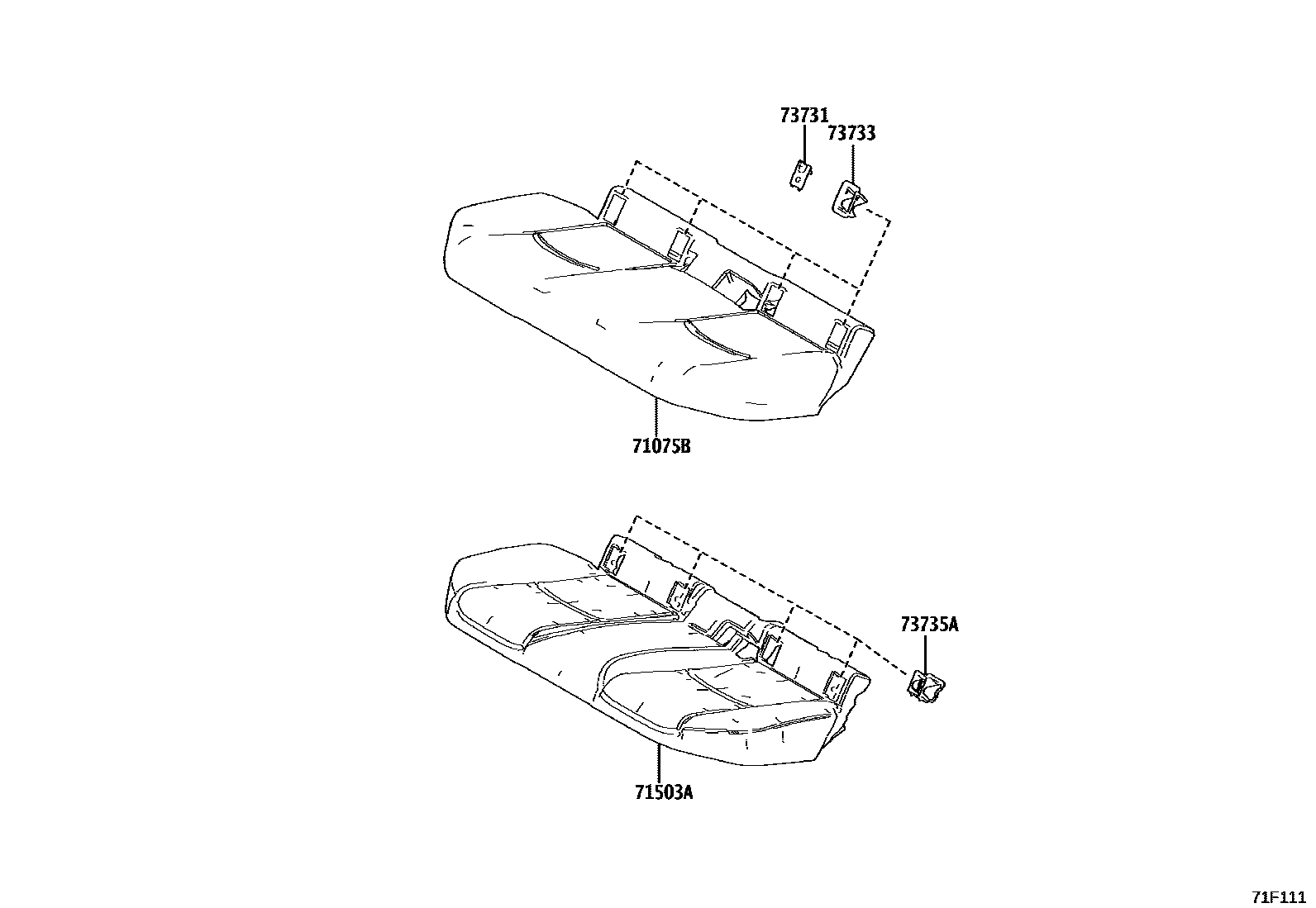

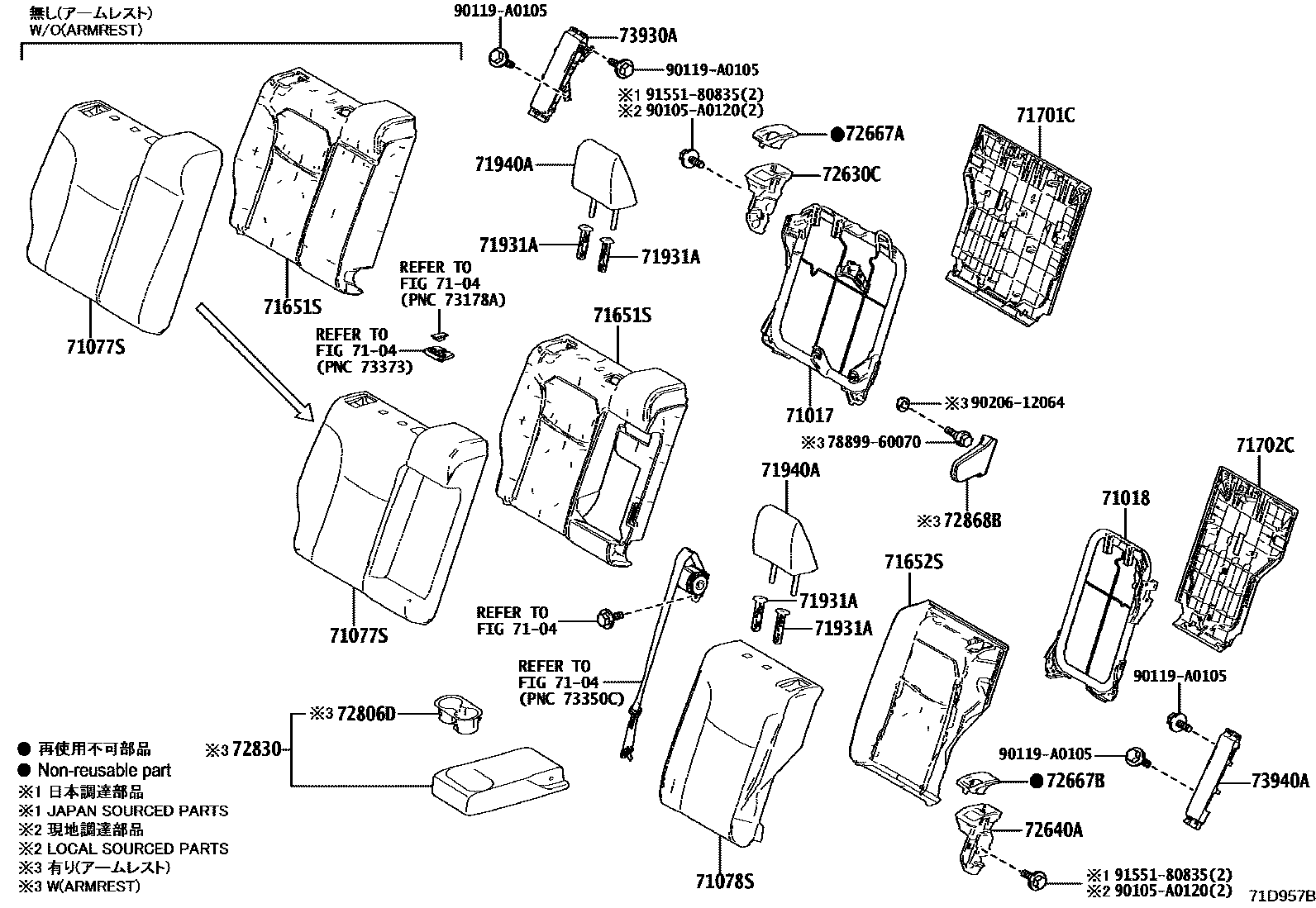

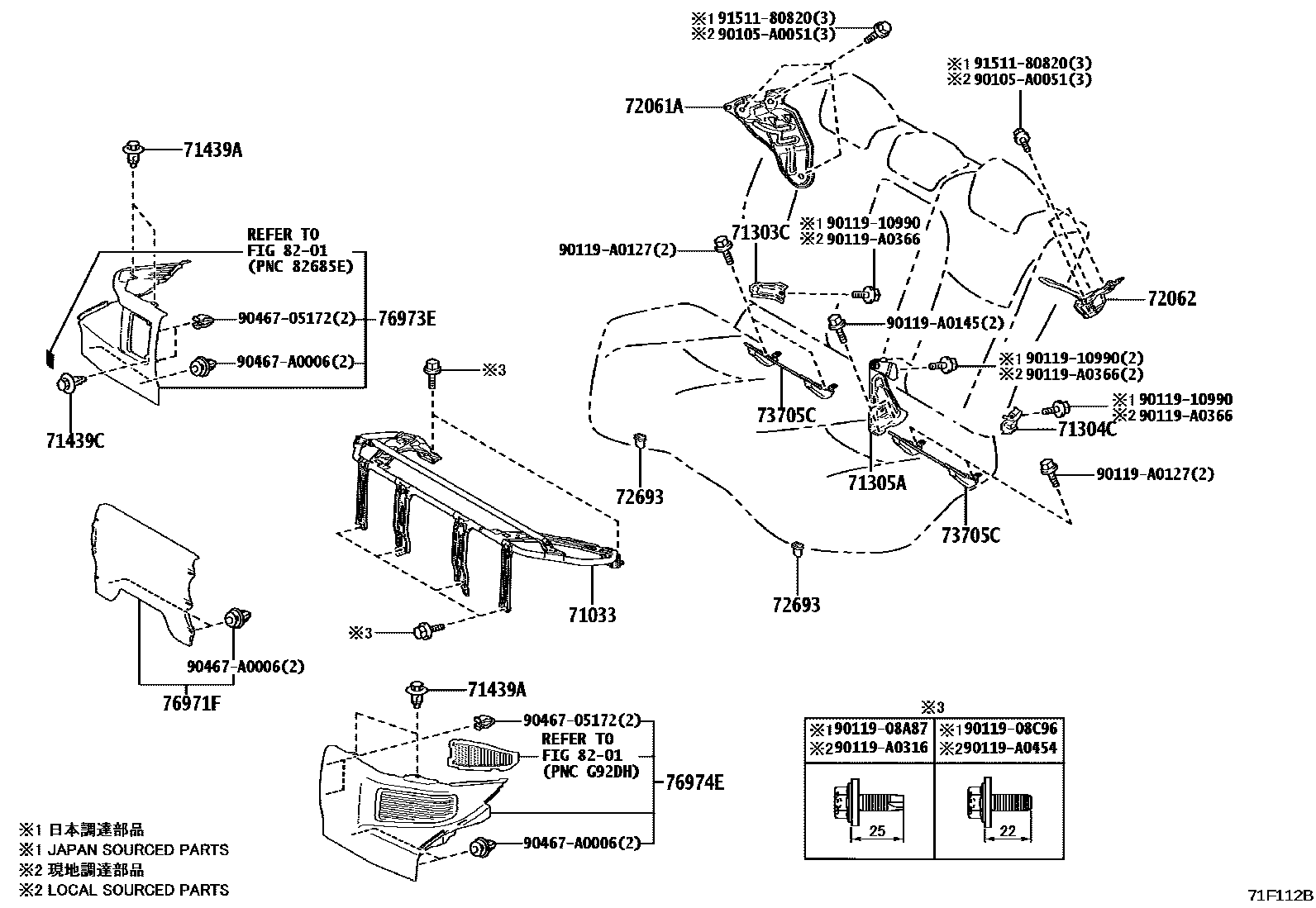

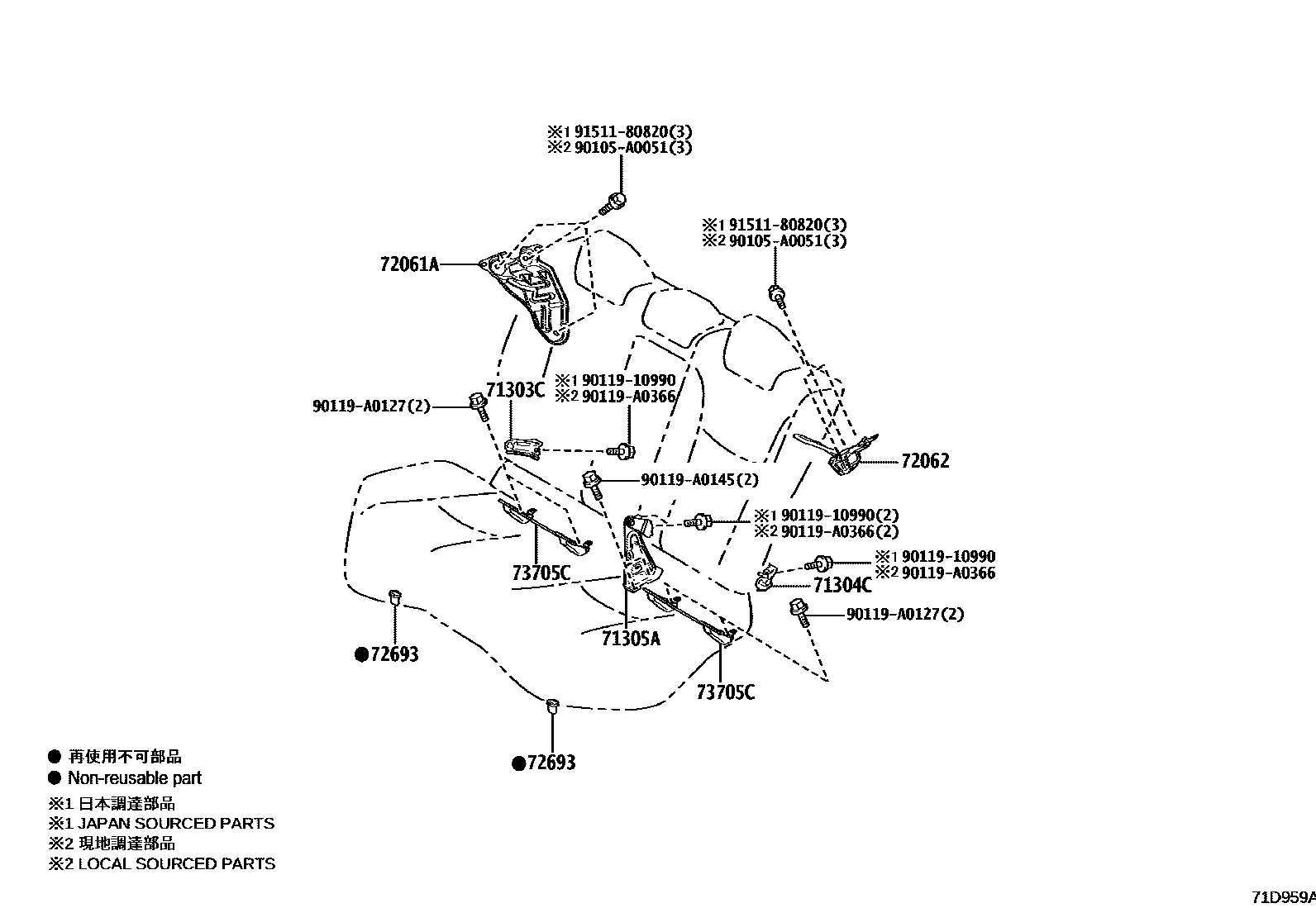

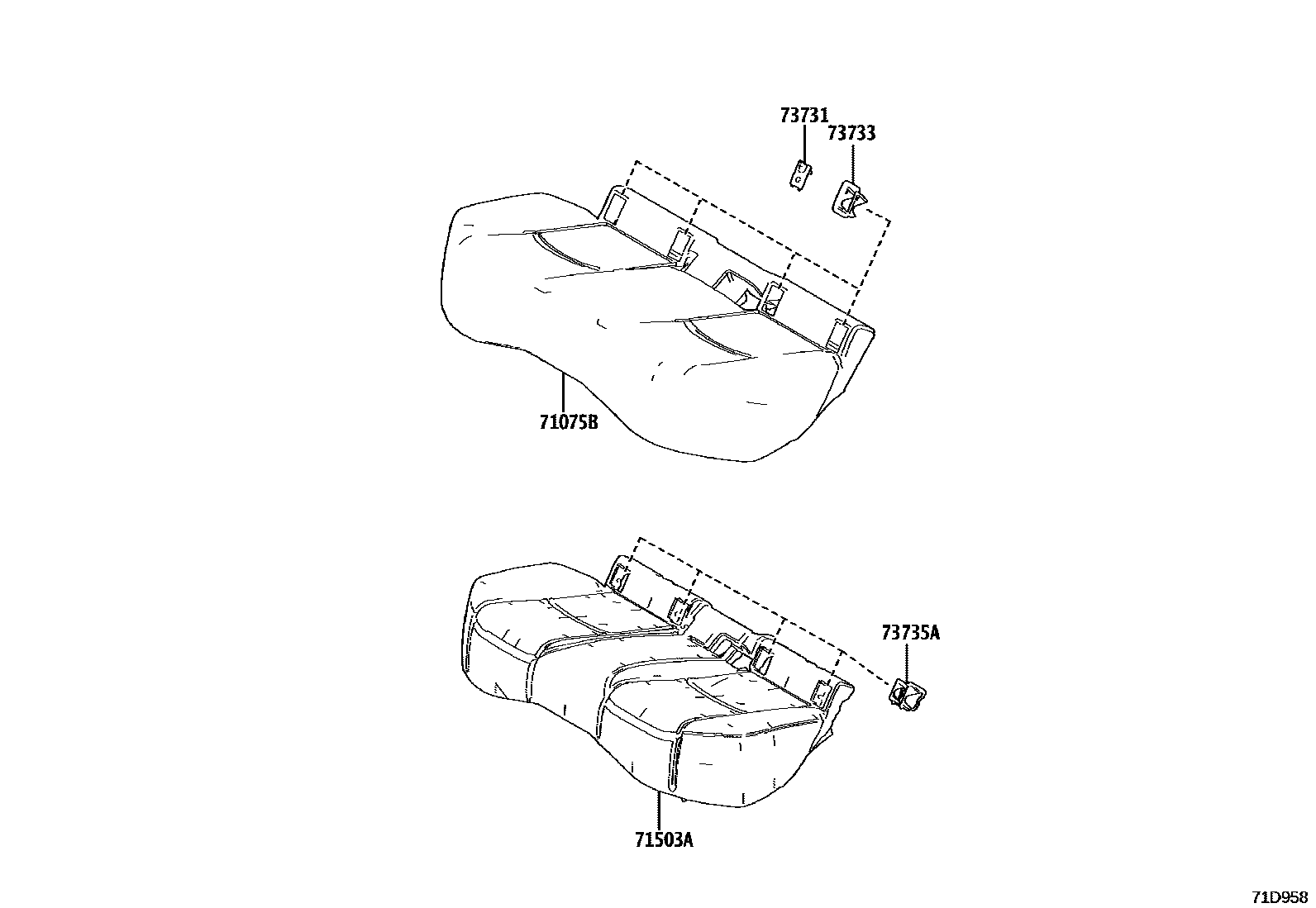

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0A080 · 71017-0A090 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0A040 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-0A010 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-0A030 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-0A030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-0A070 |
| 71439A | clip | 90467-08226 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-0A090 · 71503-0A100 · 71503-0A170 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0A060 · 71651-0A070 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0A040 |
| 71701C | Rear right seat back panel sub-assembly | 71701-0A040 |
| 71702C | Rear left seat back panel sub-assembly | 71702-0A040 |
| 72061A | SOUS-ENS. BASE, VERROUILLAGE ARRIERE DE SIEGE ARRIERE, MD | 72061-0A040 |
| 72062 | SOUS-ENS. BASE, VERROUILLAGE ARRIERE DE SIEGE ARRIERE, MG | 72062-0A040 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 73705C | SOUS-ENS. SUPPORT, ANCRAGE SIEGE SECURITE ENFANT | 73705-0A110 |
| 73735A | Child restraint seat belt guide cover | 73735-0A020 |
| 73930A | Rear right seat airbag assembly | 73930-0A020 |
| 73940A | Rear left seat air bag assembly | 73940-0A020 |
| 76971F | rear bottom cover | 76971-0A010 |
| 76973E | Right rear bottom cover | 76973-0A030 |
| 76974E | left rear bottom cover | 76974-0A030 |
