Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

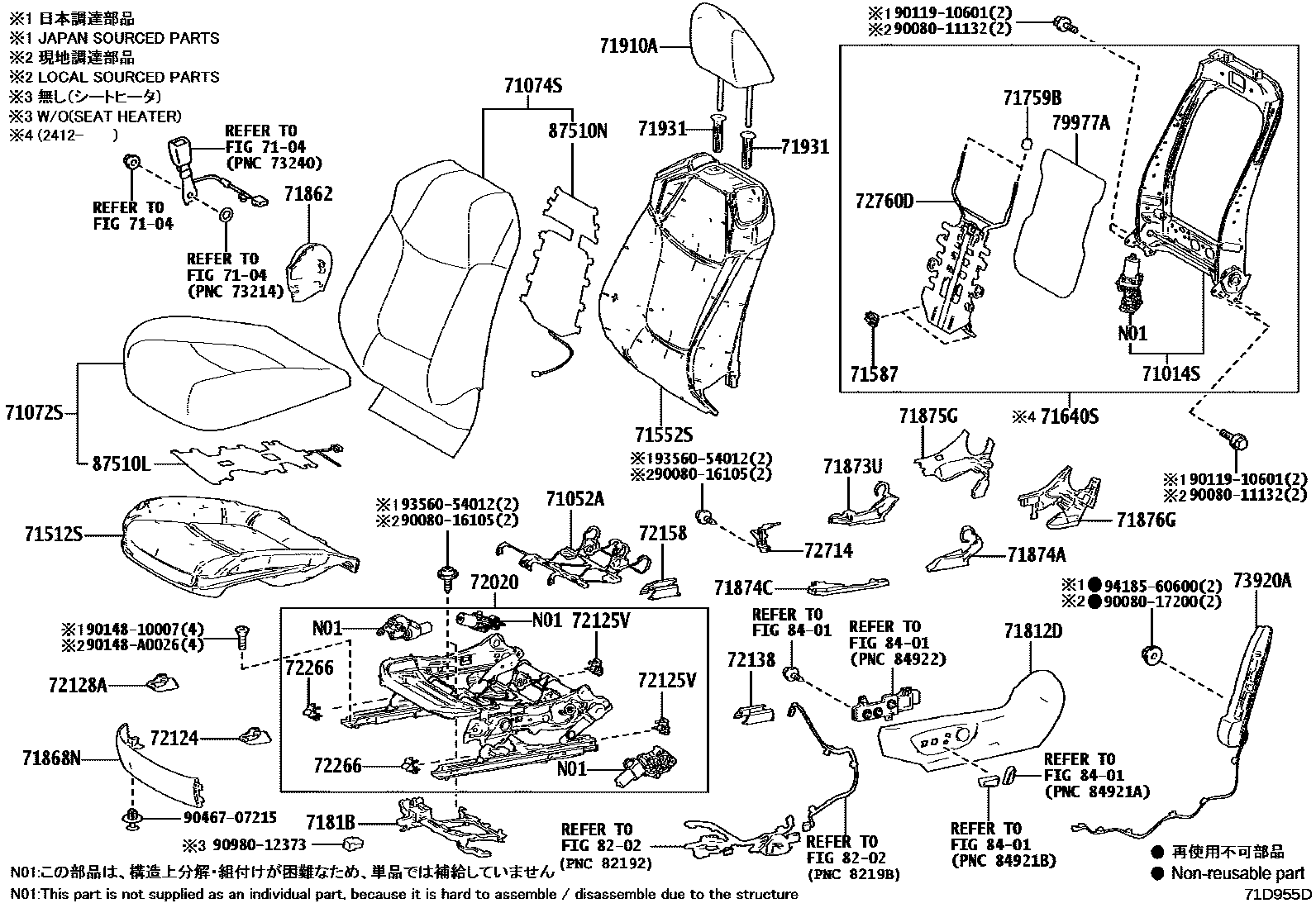

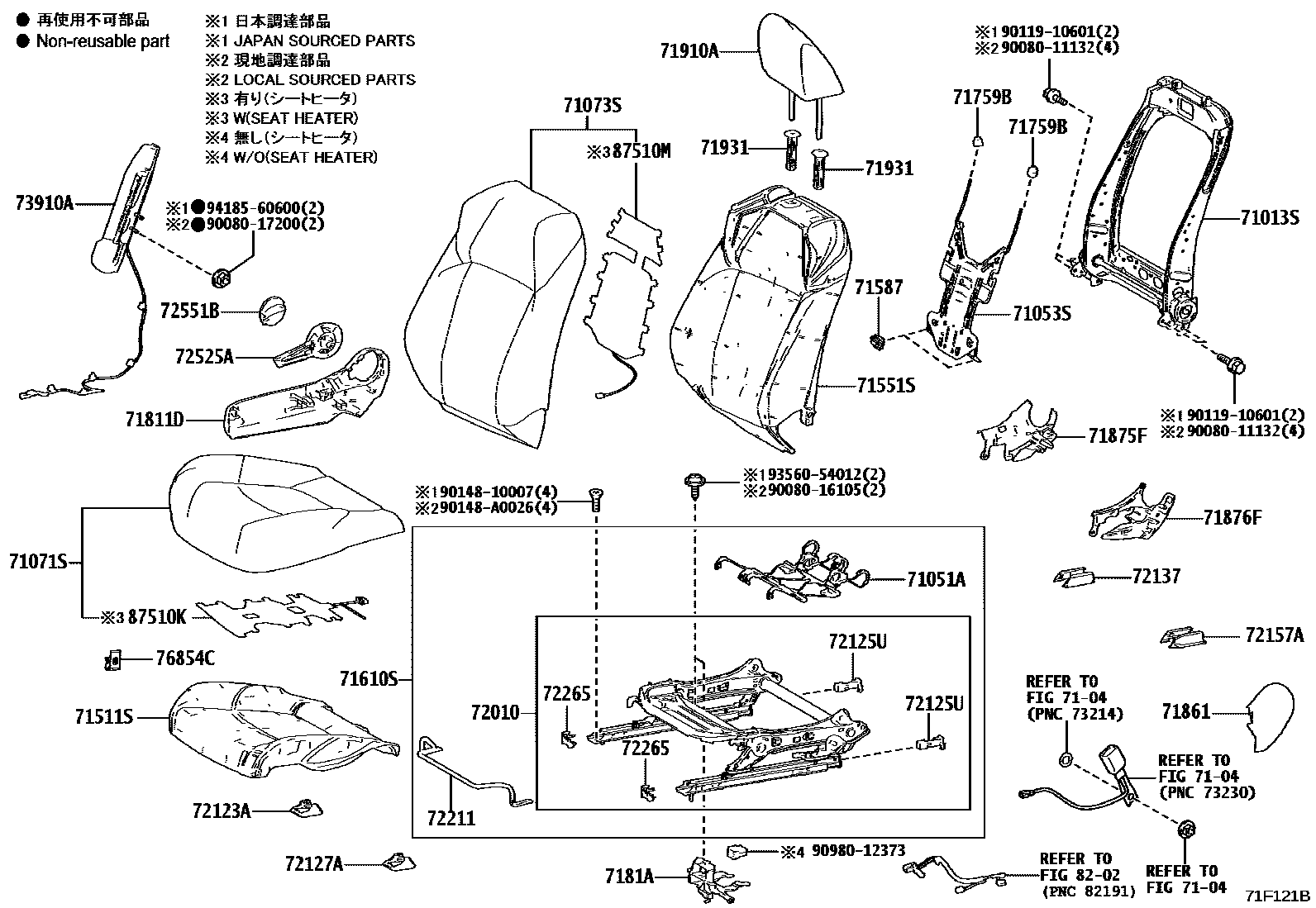

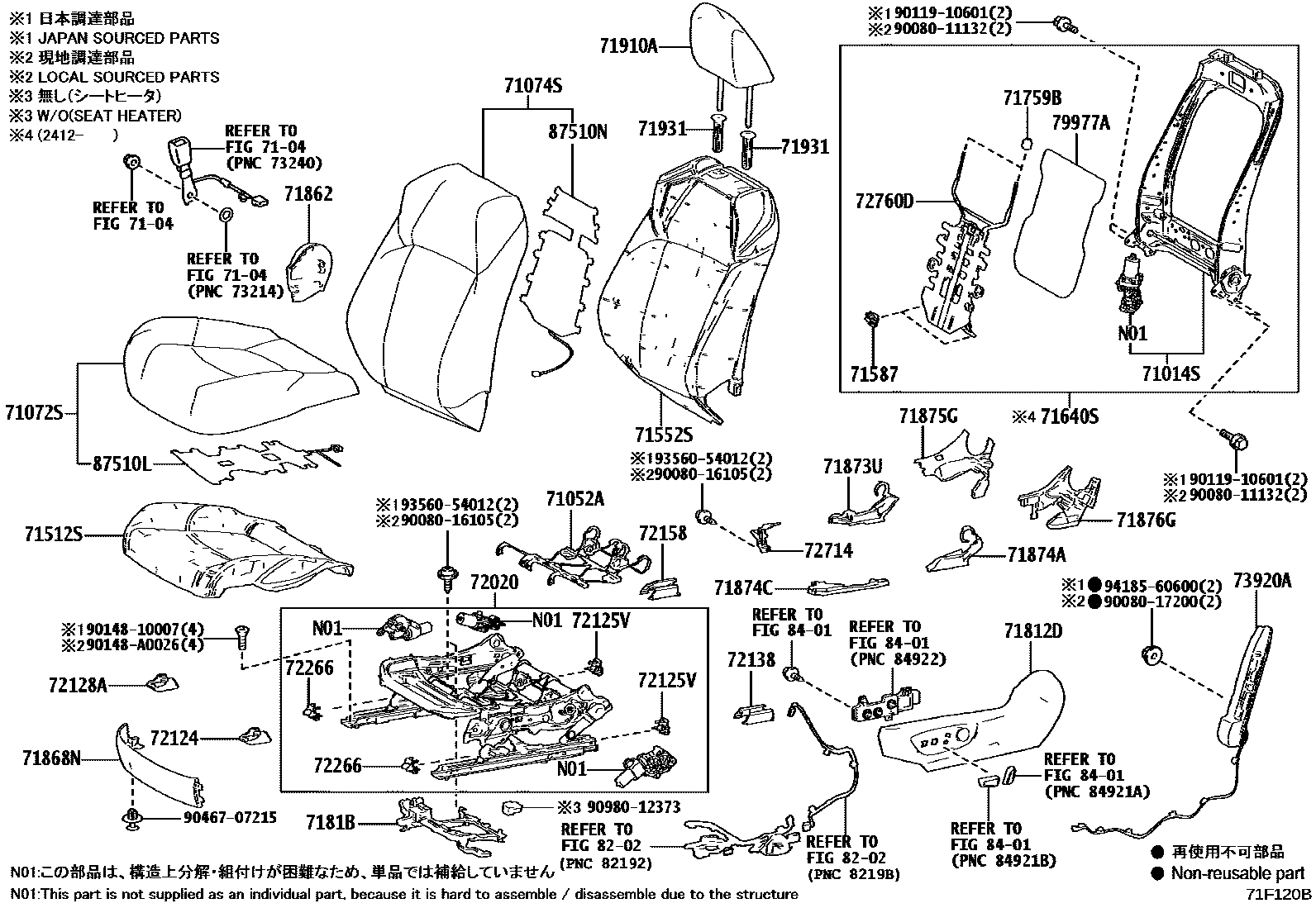

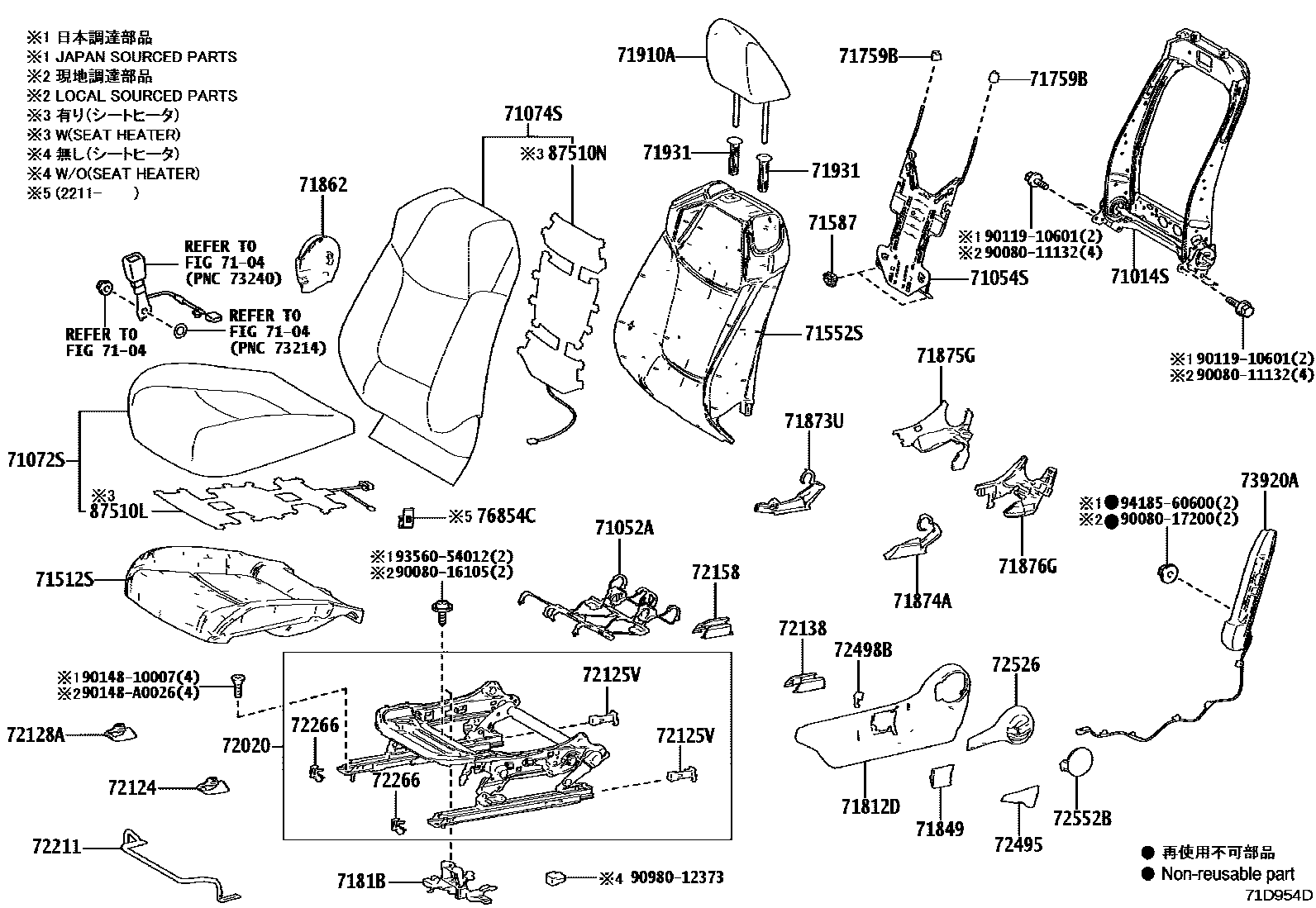

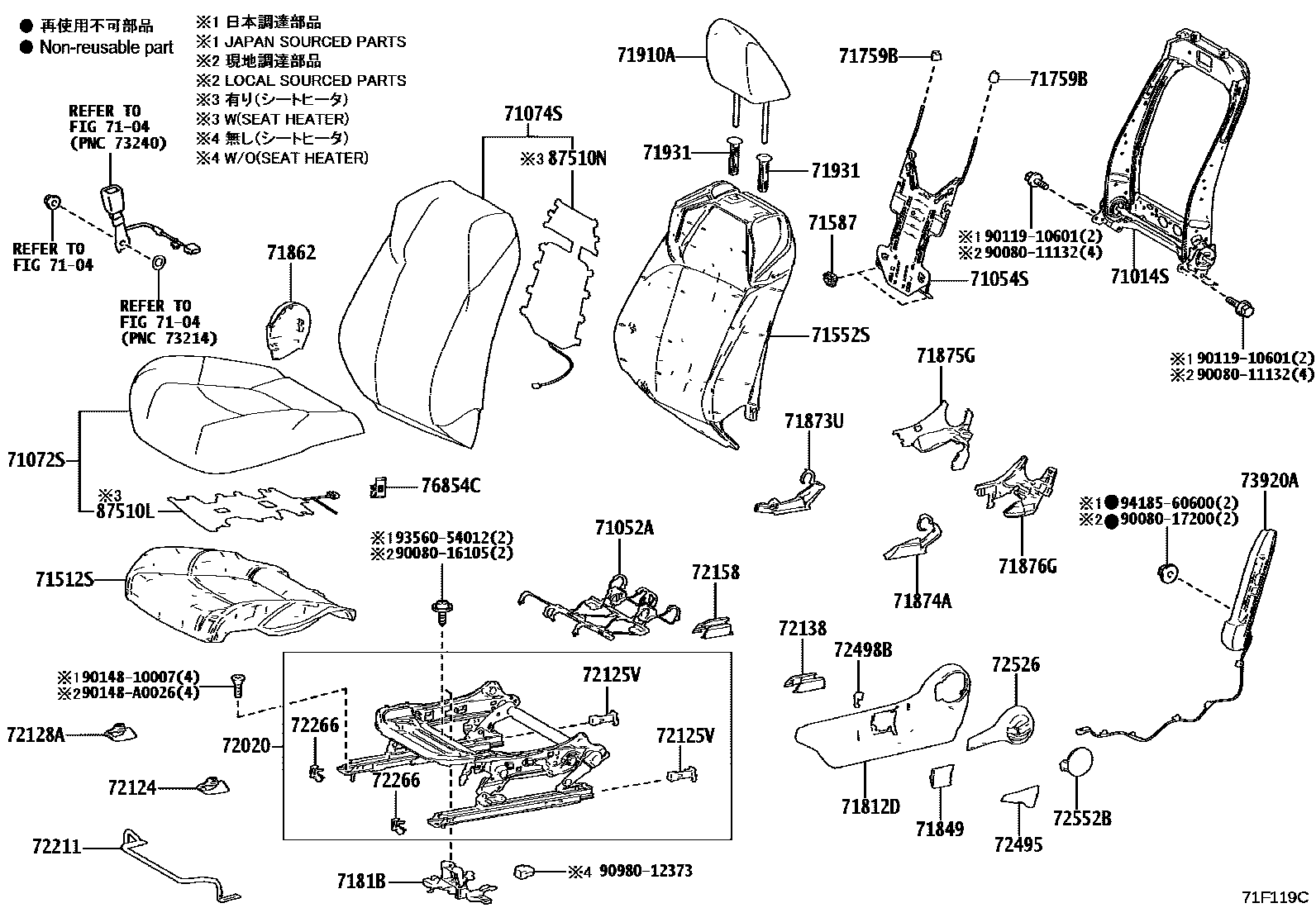

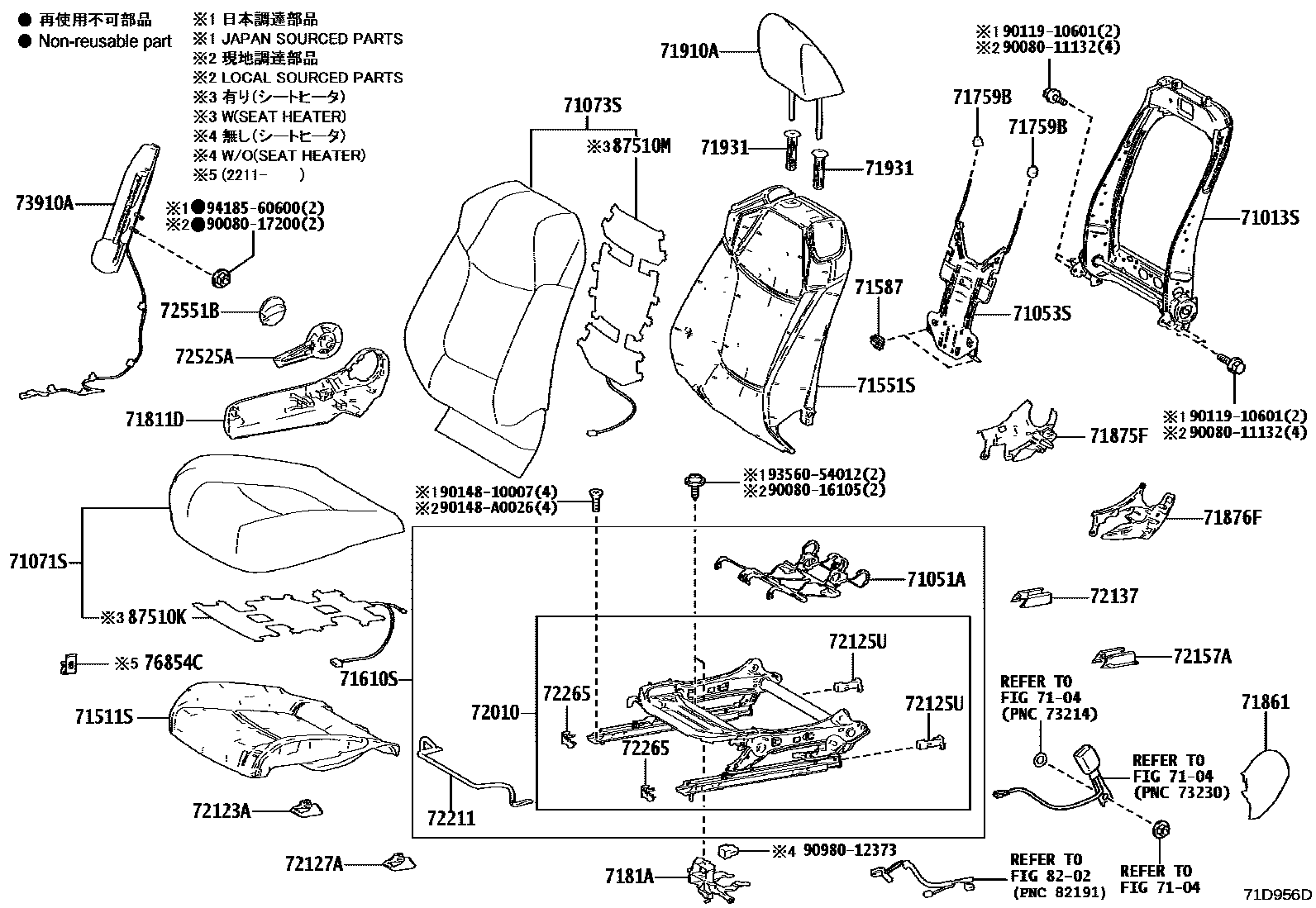

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-0A070 |
| 71014S | Front left seat back frame sub-assembly | 71014-0A080 · 71014-0E090 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02360 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02360 |
| 71053S | Front right seat back spring sub-assembly | 71053-0R020 |
| 71054S | Front left seat back spring sub-assembly | 71053-0R020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-0A080 · 71511-0A150 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0A070 · 71512-0A080 · 71512-0A170 · 71512-0A180 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0A070 · 71551-0A160 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0A070 · 71552-0A160 |
| 71587 | Front seat back edge protective cover | 71587-0R010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0A020 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0E160 |
| 71759B | Front seat back hook | 71759-0R020 |
| 7181A | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MD | 7181A-0R010 |
| 7181B | SUPPORT, FAISCEAU CABLE COUSSIN SIEGE AVANT, MG | 7181B-02010 · 7181B-0R020 |
| 71873U | PROTECTION, COUSSIN SIEGE AVANT, INF MD | 71874-02270 |
| 71874A | Front left seat cushion lower guard | 71874-02260 |
| 71874C | Front seat cushion lower guard | 71874-02280 |
| 72010 | Front right seat adjuster assembly | 72010-0A020 |
| 72020 | Front left seat adjuster assembly | 72020-0A030 · 72020-0A040 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02110 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-02110 |
| 72125U | CACHE, GLISSIERE SIEGE, SUP ARR MD | 72125-0R010 |
| 72125V | CACHE, GLISSIERE SIEGE, SUP ARR MG | 72125-0R010 · 72125-0R020 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-02110 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-02110 |
| 72137 | Right seat outer slide rail cover | 72137-02370 |
| 72138 | Left seat outer slide rail cover | 72137-02370 |
| 72157A | Right seat inner slide rail bracket cover | 72157-0A040 |
| 72158 | Left seat inner slide rail bracket cover | 72158-0A040 |
| 72211 | Seat slide adjustment handle | 72211-02250 |
| 72265 | Right seat rail upper rail cover | 72265-0R010 |
| 72266 | Left seat rail upper rail cover | 72265-0R010 · 72265-0R020 |
| 72498B | Height adjuster bracket outer cover | 72498-02010 |
| 72714 | SUPPORT, COLLIER RENFORT AJUSTEUR SIEGE, MG | 72714-02010 |
| 72760D | Left lumbar support adjuster assembly | 72760-0R040 |
| 73910A | Front right seat airbag assembly | 73910-02380 · 73910-02450 |
| 73920A | Front left seat airbag assembly | 73920-02350 · 73920-02440 |
| 76854C | ARRETOIR, CACHE COUSSIN SIEGE AVANT | 76854-44010 |
| 79977A | Seat back felt pad | 79977-02140 |
| 87510K | Front right seat cushion heater assembly | 87510-0R250 · 87510-0R260 |
| 87510L | Front left seat cushion heater assembly | 87510-02540 · 87510-0R190 · 87510-0R200 · 87510-0R240 |
| 87510M | Front right seat back heater assembly | 87530-0R110 · 87530-0R120 |
| 87510N | Front left seat back heater assembly | 87530-0R110 · 87530-0R120 |
