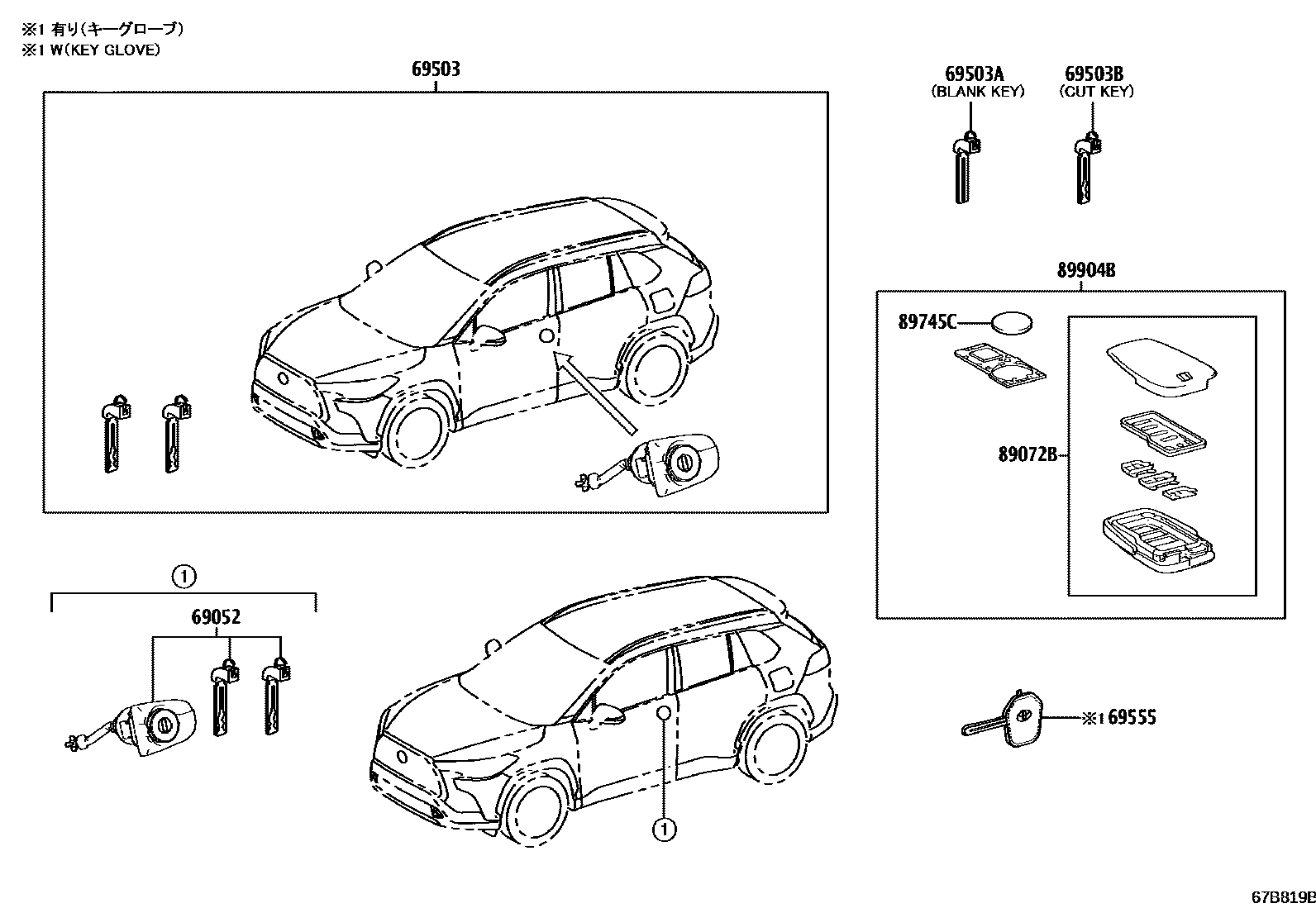

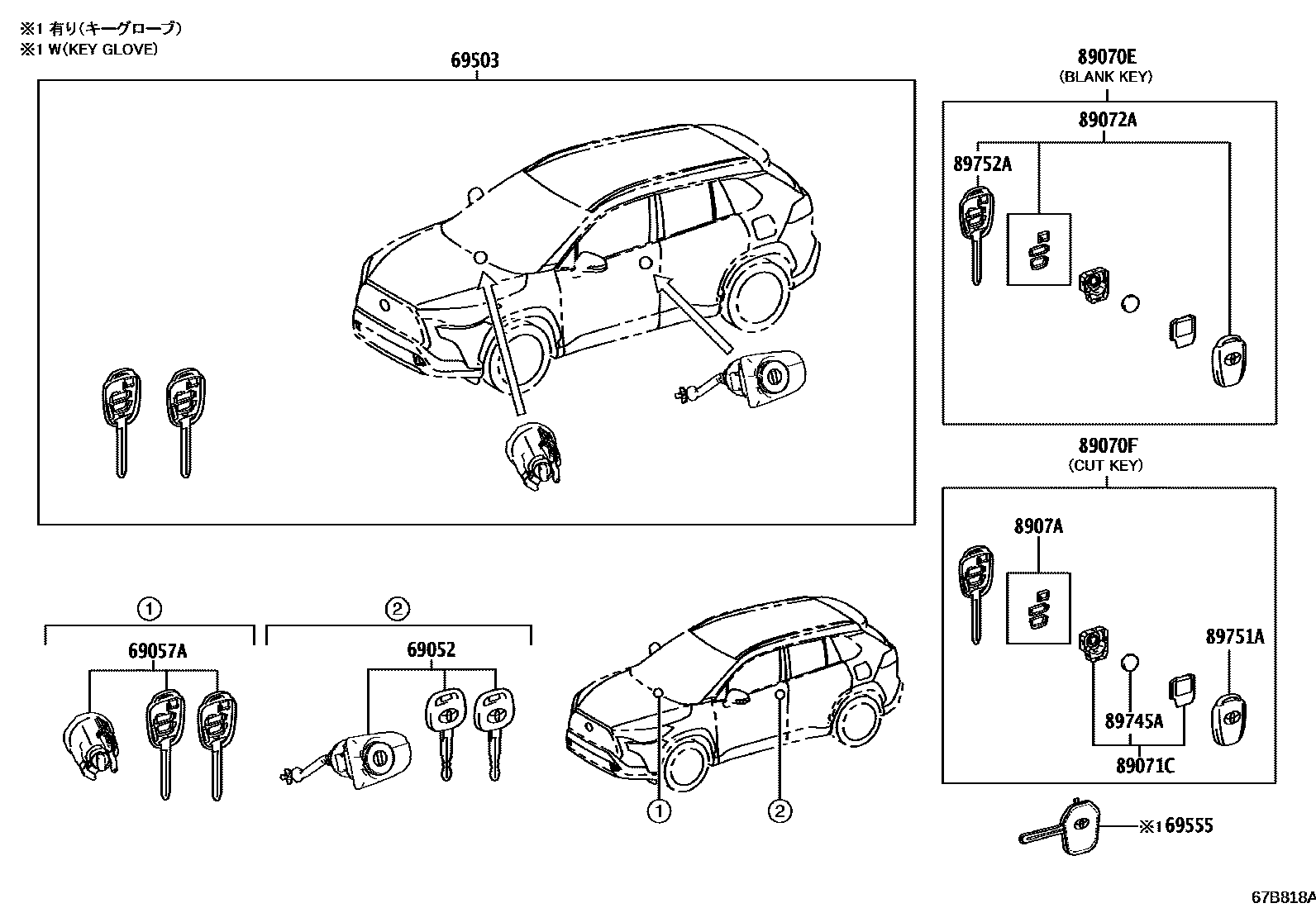

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-0A050 · 69052-0A060 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0A010 |
| 69503 | Door lock cylinder components | 69005-0A080 · 89704-0A010 · 89704-0A120 |
| 69503A | external tooth key | 69515-K0020 |
| 69503B | internal tooth key | 69515-08030 |
| 69555 | key cover | 69555-YY050 |
| 89070E | Remote key assembly | 89070-0A150 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0A330 |
| 89071C | SOUS-ENS. TRANSMETTEUR, COMM PORTE | 89071-04010 · 89071-0A050 |
| 89072A | Remote key shell assembly | 89072-0R121 |
| 89072B | Remote key shell assembly (for smart key) | 89072-0A010 · 89072-0A020 |
| 8907A | Transmitter switch assembly | 8907A-52020 |
| 89745A | Transmitter battery | 89745-71010 |
| 89745C | Transmitter battery | 89745-08010 |
| 89751A | Transmitter housing cover | 89751-42090 |
| 89752A | transmitter housing | 89752-0R051 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-0A010 · 8990H-0A011 · 8990H-0A020 · 8990H-0A021 |
