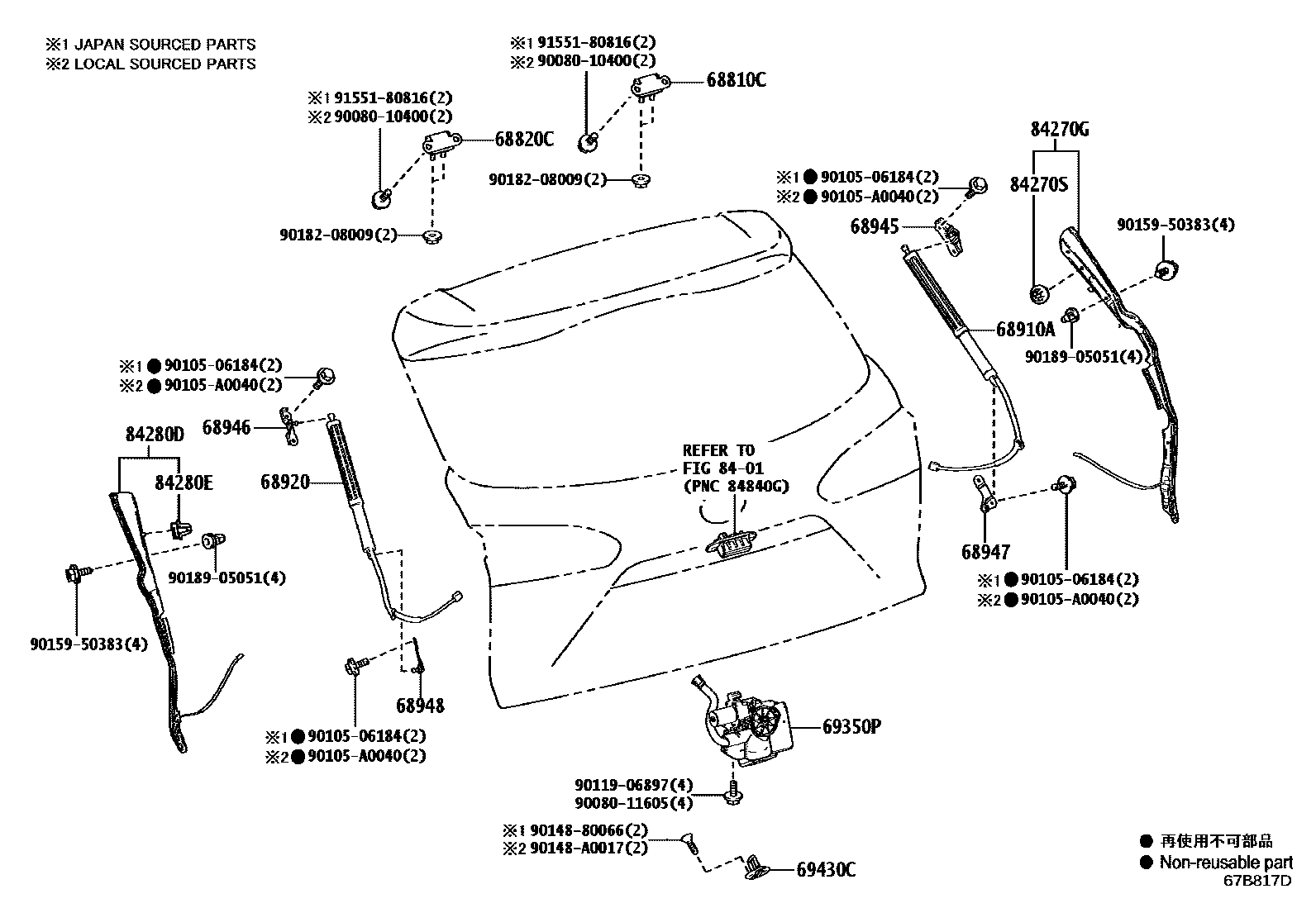

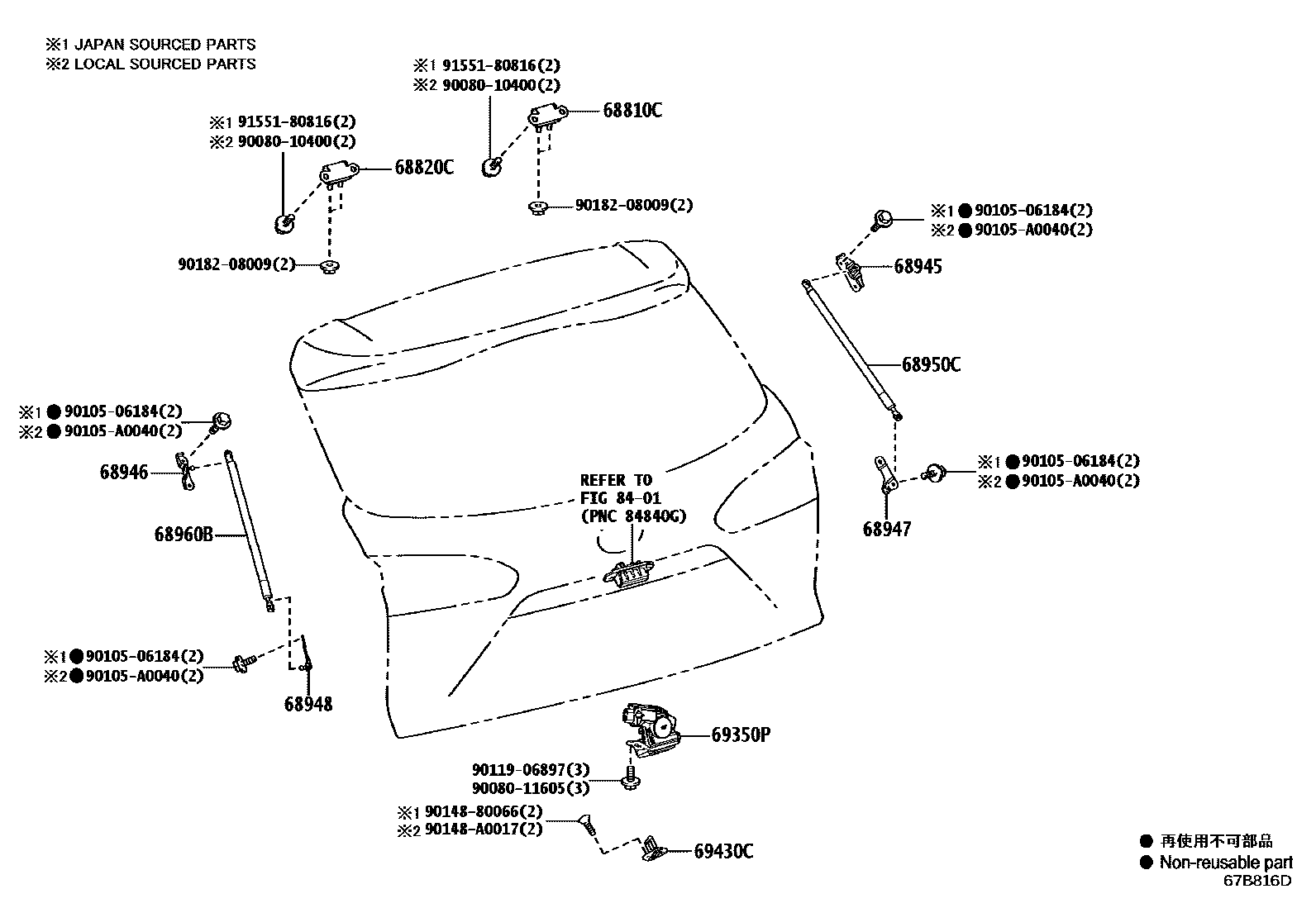

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-0A140 |
| 68820C | Back door left hinge assembly | 68810-0A140 |
| 68910A | JEU D'ENSEMBLE ELEMENT, PORTE COMMANDEE ARRIERE, MD | 68910-0A030 · 68910-0A060 |
| 68920 | JEU D'ENSEMBLE ELEMENT, PORTE COMMANDEE ARRIERE, MG | 68920-0A030 · 68920-0A060 |
| 68945 | Back door right damping stay upper bracket | 68945-0A060 · 68945-0A070 · 68945-0A180 · 68945-0A190 |
| 68946 | Rear door left damping strut upper bracket | 68946-0A060 · 68946-0A070 · 68946-0A180 · 68946-0A190 |
| 68947 | Back door right damping strut lower bracket | 68947-0A060 · 68947-0A140 |
| 68948 | Rear door left damping strut lower bracket | 68948-0A070 · 68948-0A080 |
| 68950C | Back door right support rod assembly | 68950-0A040 · 68950-0A070 |
| 68960B | Back door left support rod assembly | 68960-0A040 · 68960-0A070 |
| 69350P | ENS. VERR, HAYON, AV COMM PLAFONNIER | 69350-0R030 · 69350-F6050 |
| 69430C | Back door lock assembly | 69430-28050 |
| 84270G | Electric back door right side sensor assembly | 84270-0A030 · 84270-16020 |
| 84270S | Catch (sensor on the right side of the electric back door) | 61617-42040 |
| 84280D | Electric back door left sensor assembly | 84280-0A030 · 84280-16020 |
| 84280E | Catch (electric back door left sensor) | 61617-42040 |
