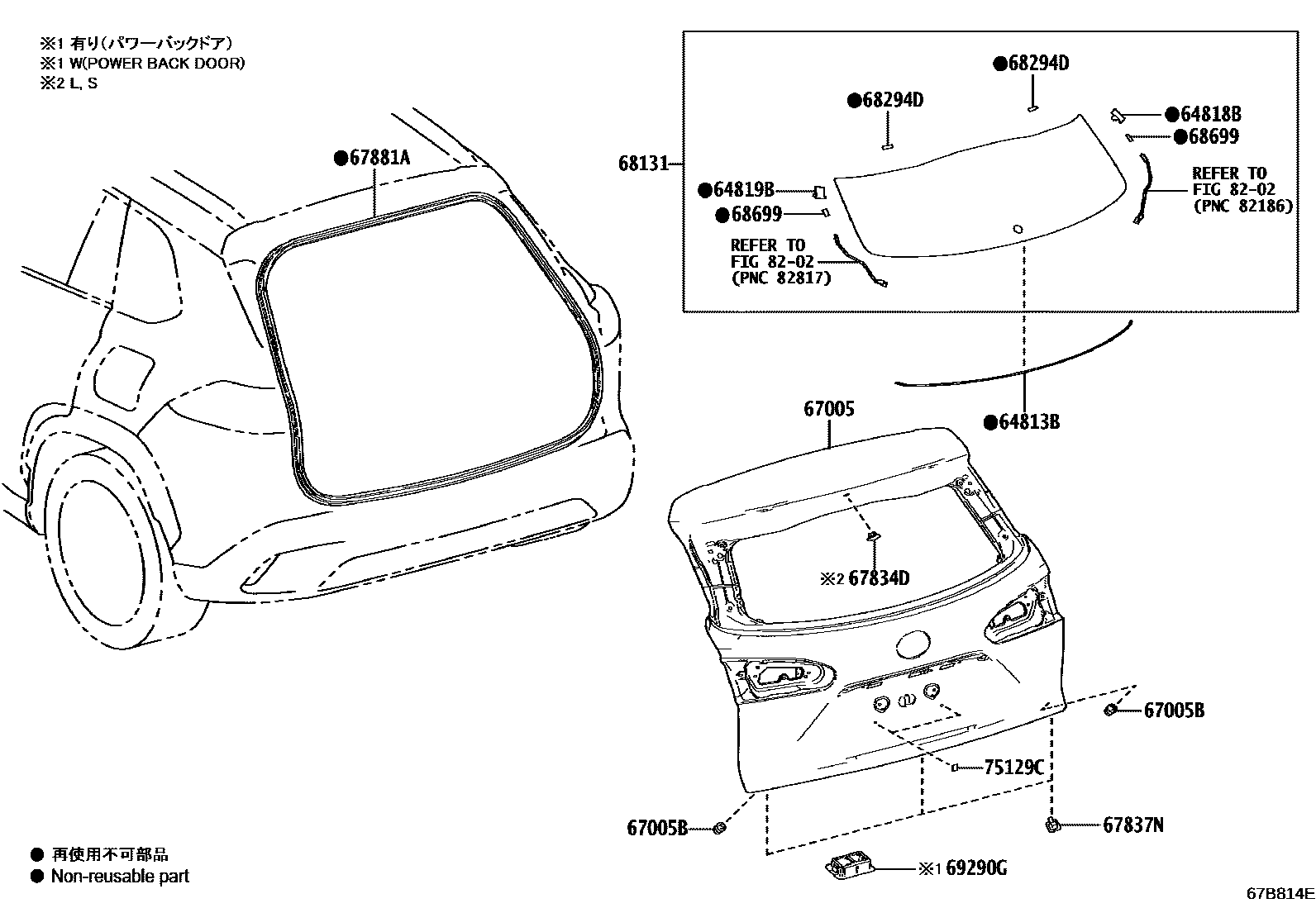

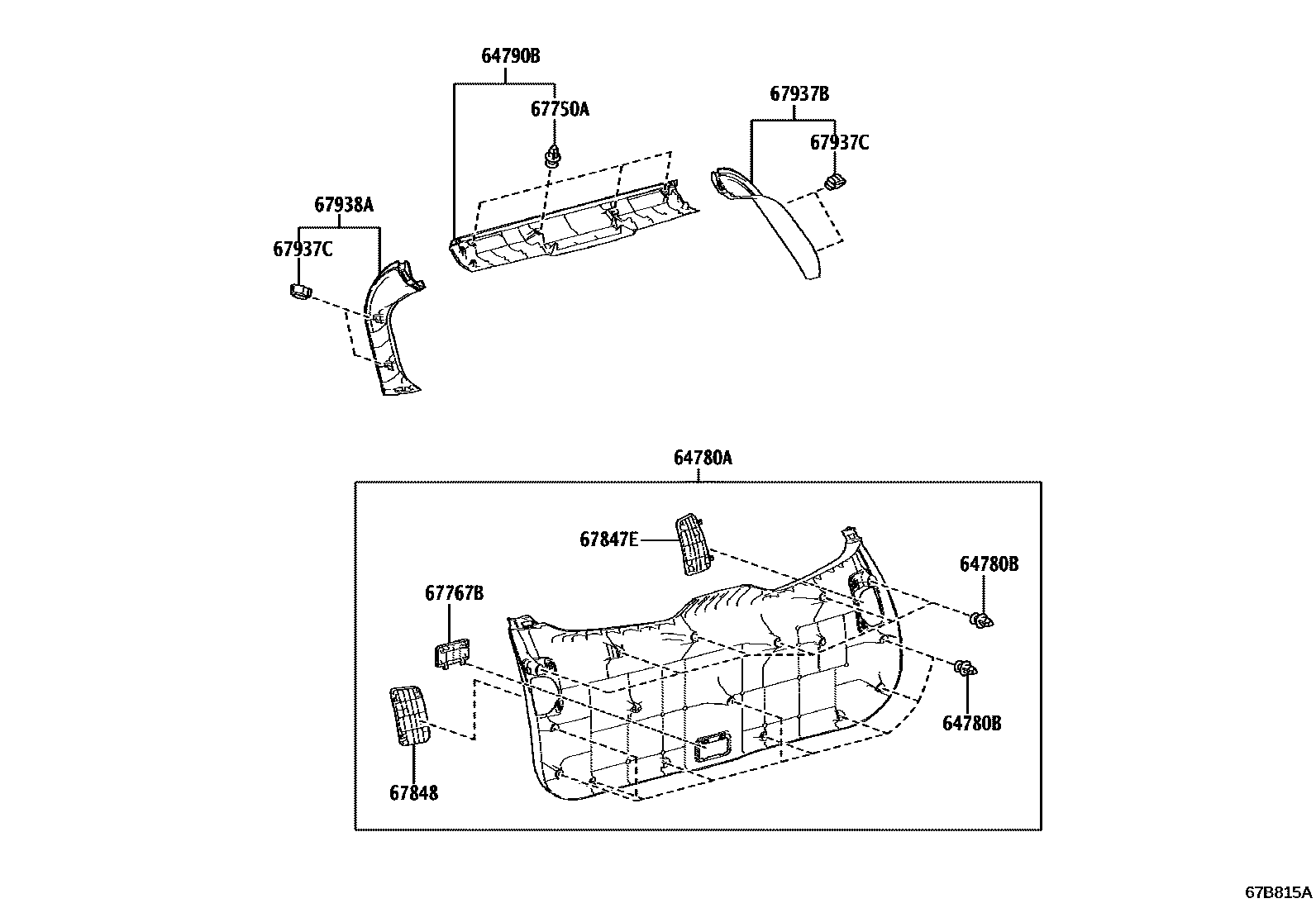

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64780B | Clip (for rear door trim panel) | 90467-A0006 |
| 64813B | Back window glass adhesive seal | 64814-0A040 |
| 64818B | No. 1 back door glass spacer | 64818-0A040 |
| 64819B | No. 2 back window glass spacer | 64819-0A040 |
| 67005 | Rear door panel sub-assembly | 67005-0A010 · 67005-0A020 · 67005-0A470 · 67005-0A480 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67750A | Clip (for rear door trim panel) | 90467-A0006 |
| 67834D | Rear door access hole cover seal | 85373-0A010 |
| 67837N | JOINT D'ETANCHEITE, ANTI-POUSSIERE HAYON | 67837-0E010 |
| 67881A | Back door seal | 67881-0A040 · 67881-0A130 |
| 67937C | Clip (for rear door side decorative strip) | 90467-09241 |
| 68131 | back door glass | 68105-0A060 · 68105-0A070 · 68105-0A110 |
| 68294D | Back door glass adhesive No. 2 sealing strip | 68294-26030 |
| 68699 | Back door window frame spacer | 68699-0A040 |
| 75129C | rear license plate cushion | 75129-13020 · 75129-AC010 |
