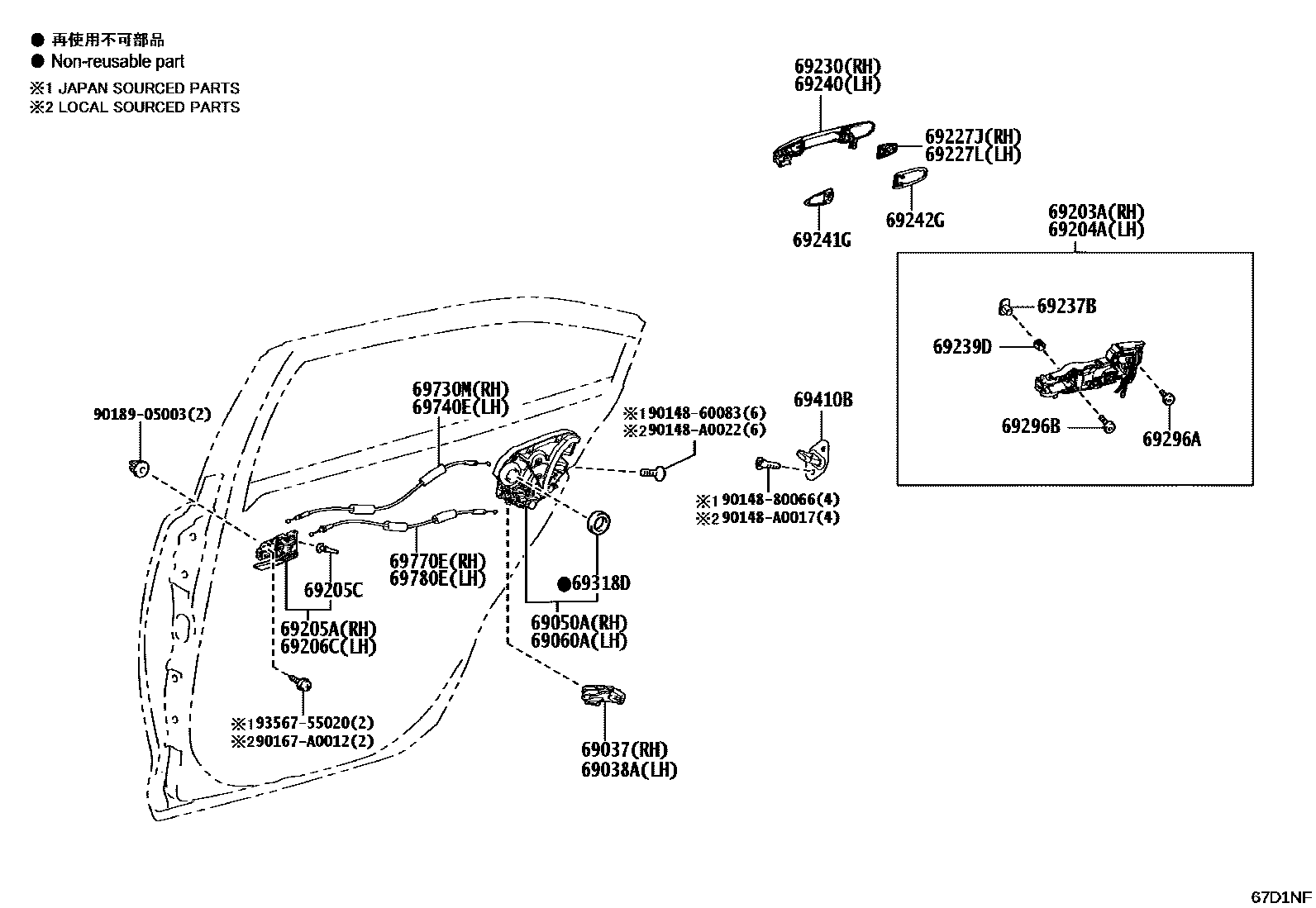

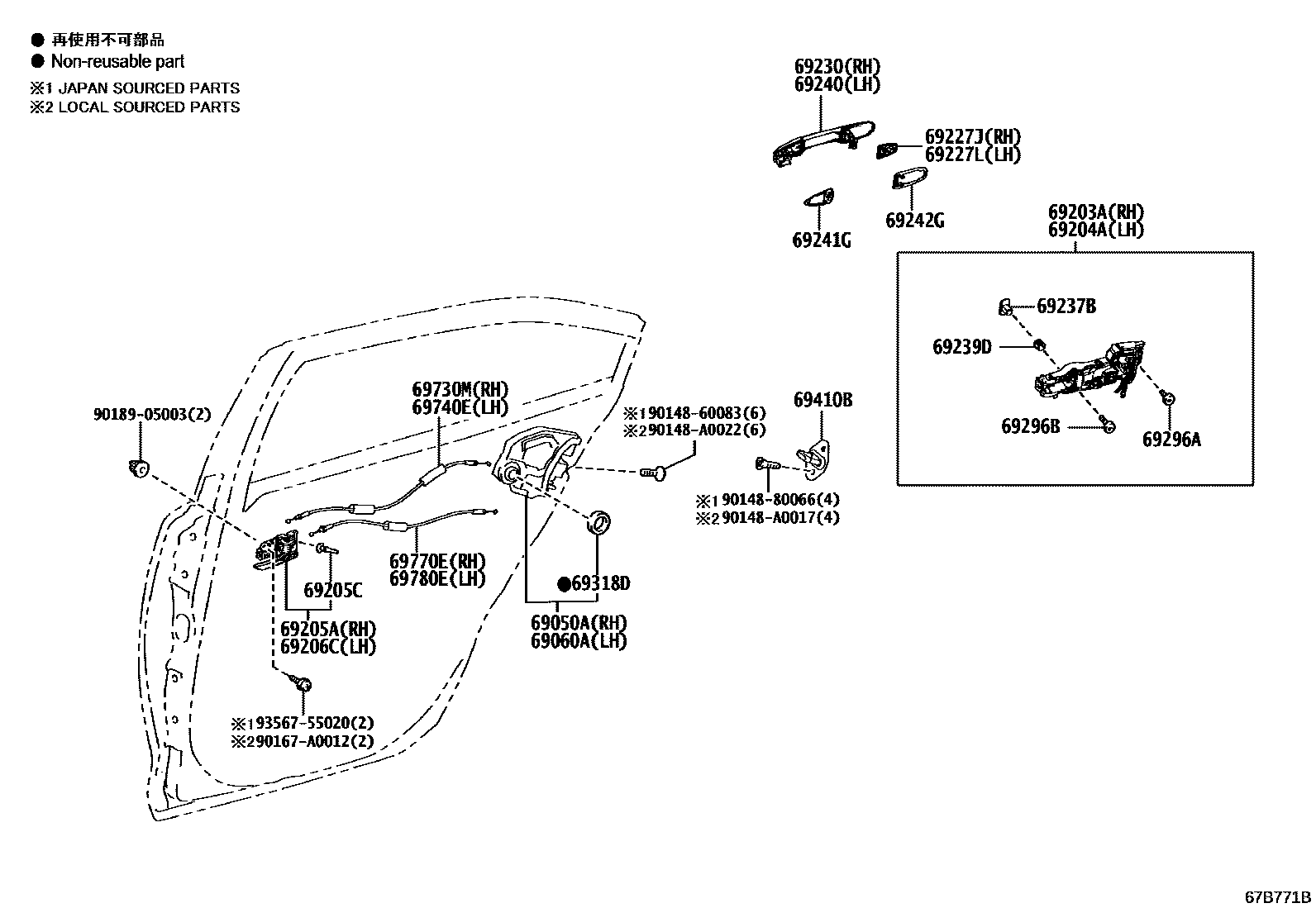

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69037 | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MD | 69037-42010 |
| 69038A | SOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE ARRIERE, MG | 69038-42010 |
| 69050A | Right rear door lock assembly with motor | 69050-06100 · 69050-0A020 |
| 69060A | Left rear door lock assembly with motor | 69060-06100 · 69060-0A020 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0A040 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0A040 |
| 69205C | Cushion pad (for rear door inner handle) | 90080-54005 |
| 69227J | Right rear door outer handle cover | 69227-06100 |
| 69227L | Left rear door outer handle cover | 69227-06100 |
| 69230 | Right rear door outer handle assembly | 69211-06916 |
| 69237B | ECROU, POIGNEE PORTE ARRIERE | 69237-06030 |
| 69239D | BAGUE, POIGNEE PORTE ARRIERE | 69239-06030 |
| 69240 | Left rear door outer handle assembly | 69211-06916 |
| 69241G | Rear door front exterior handle pad | 69241-06080 |
| 69242G | Rear door rear outer handle pad | 69242-06080 |
| 69296A | Car door inner handle screws | 69296-02020 |
| 69296B | Car door inner handle screws | 69296-06070 |
| 69318D | door lock harness seal | 69318-AA010 |
| 69410B | Rear door lock plate assembly | 69410-02030 |
| 69730M | CABLE,COMM VERR A DISTANCE PORTE ARR,MD(LEVIER OUVERTURE) | 69730-0A040 · 69730-0A080 |
| 69740E | CABLE,COMM VERR A DISTANCE PORTE ARR,MG(LEVIER OUVERTURE) | 69730-0A040 · 69730-0A080 |
| 69770E | CABLE, VERR INTERNE PORTE ARR, MD(POUR BOUTON VERR/DEVERR) | 69770-0A040 · 69770-0A080 |
| 69780E | CABLE, VERR INTERNE PORTE ARR, MG(POUR BOUTON VERR/DEVERR) | 69770-0A040 · 69770-0A080 |
