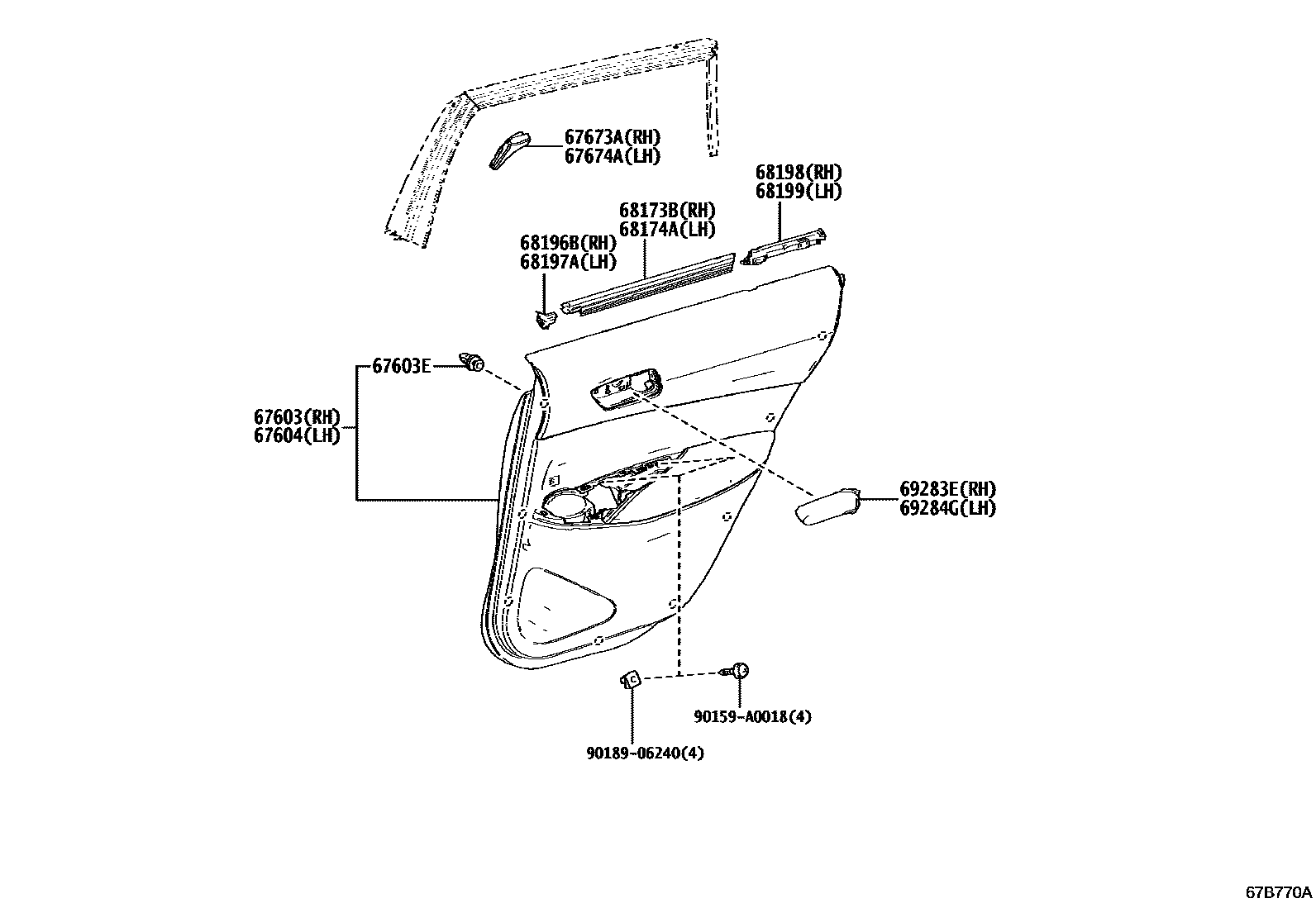

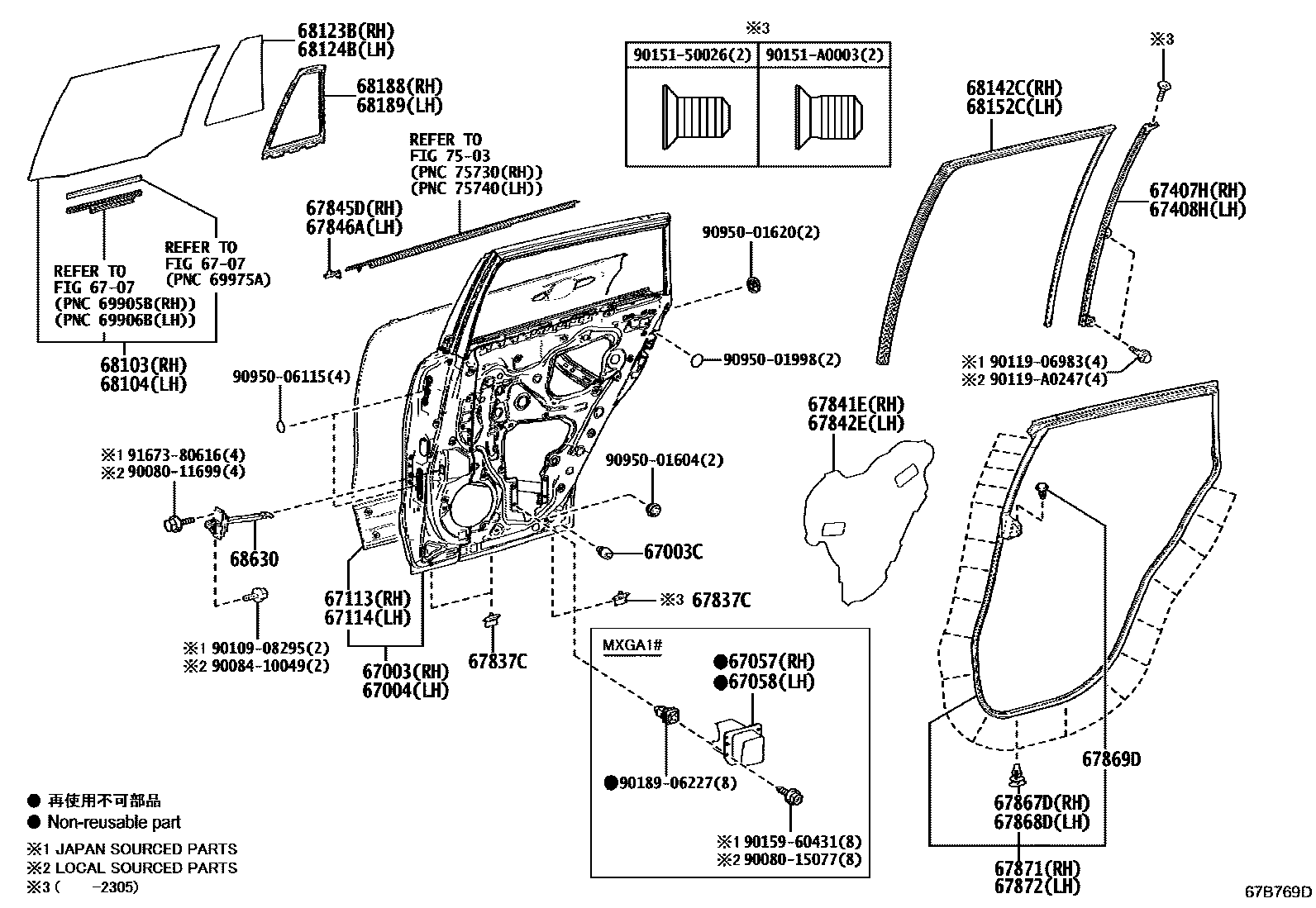

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0A040 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-0A040 |
| 67057 | Right rear door inner panel reinforcement sub-assembly | 67057-0A040 · 67057-0A041 |
| 67058 | Left rear door inner panel reinforcement sub-assembly | 67058-0A040 · 67058-0A041 |
| 67113 | Right rear door outer panel | 67113-0A040 |
| 67114 | Left rear door outer panel | 67114-0A040 |
| 67407H | Right sliding door window divider sub-assembly | 67407-0A040 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-0A040 |
| 67603E | Catch (for rear door trim panel) | 90467-A0005 · 90467-A0048 |
| 67673A | Right rear door frame decorative strip | 67673-0A040 |
| 67674A | Left rear door frame decorative strip | 67674-0A040 |
| 67837C | Rear door dust seal retainer | 67837-47060 |
| 67841E | Right rear door access hole cover | 67841-0A090 |
| 67842E | Left rear door access hole cover | 67842-0A060 |
| 67845D | JOINT, EXTERIEUR AVANT PORTE ARRIERE, MD | 67845-0A040 |
| 67846A | JOINT, EXTERIEUR AVANT PORTE ARRIERE, MG | 67846-0A040 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67869D | Car door seal strip clip | 67869-20030 |
| 67871 | Right rear door sealing strip | 67871-0A050 |
| 67872 | Left rear door sealing strip | 67872-0A050 |
| 68103 | Right rear door glass sub-assembly | 68103-0A050 · 68103-0A060 |
| 68104 | Left rear door glass sub-assembly | 68104-0A050 · 68104-0A060 |
| 68123B | Right rear door corner window glass | 68123-0A090 · 68123-0A100 |
| 68124B | Left rear door corner window glass | 68124-0A090 · 68124-0A100 |
| 68142C | Right rear door glass lift slot | 68142-0A060 |
| 68152C | Left rear door glass lift slot | 68152-0A060 |
| 68173B | Right rear door glass inner sealing strip | 68173-0A050 |
| 68174A | Left rear door glass inner sealing strip | 68174-0A050 |
| 68188 | Right rear door corner window seal | 68188-0A060 |
| 68189 | Left rear door corner window seal | 68189-0A060 |
| 68196B | Right rear door beltline front seal | 68196-0A040 |
| 68197A | Left rear door beltline front seal | 68197-0A040 |
| 68198 | Right rear door beltline rear seal | 68198-0A040 |
| 68199 | Left rear door waistline rear seal | 68199-0A040 |
| 68630 | Rear door opening limiter assembly | 68630-0A050 |
