Toyota COROLLA 前门锁和车门把手 — Figure 6703

Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 26 PNC and OE references.

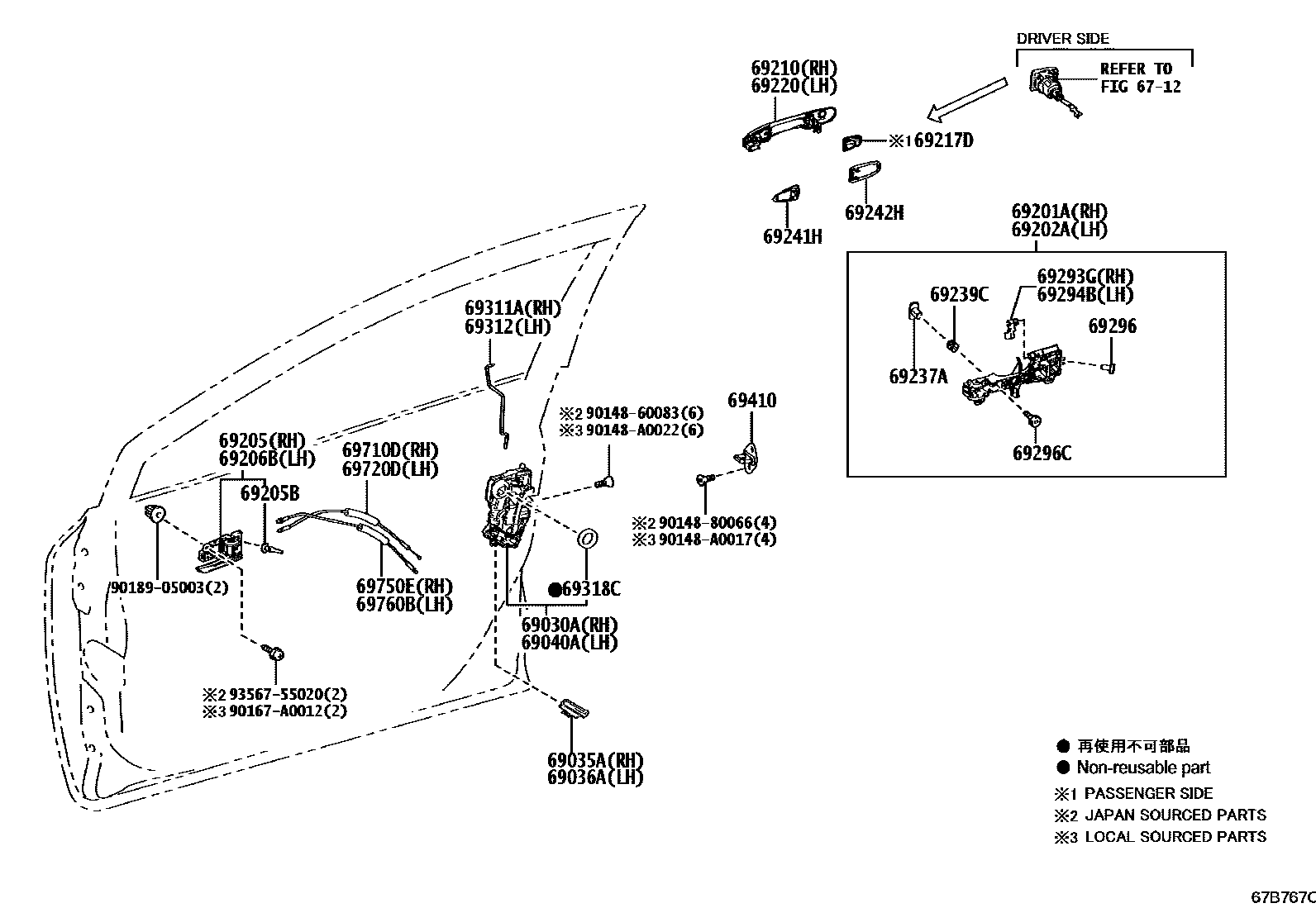

Toyota COROLLA 前门锁和车门把手 EPC diagram — 67B767C
前门锁和车门把手 — 67B767C (202109 – 999999)

PNC and OE references

PNCPart nameOE numbers
69030ARight front door lock assembly with motor69030-02380 · 69030-0A020
69035ASOUS-ENSEMBLE COUVERCLE, VERROU DE PORTE AVANT, MD69035-02030 · 69035-28010
69036ALeft front door lock cover sub-assembly69036-02030 · 69036-28010
69040ALeft front door door lock assembly with motor69040-02440 · 69040-0A020
69201ARight front door outer handle frame sub-assembly69201-02390 · 69201-02400
69202ALeft front door outer handle frame sub-assembly69202-02320 · 69202-02330
69205BCushion pad (for inner front door handle)90080-54005
69210Right front door outer handle assembly69211-06916
69217DFront door outer handle cover69217-06090 · 69217-06200
69220Left front door outer handle assembly69211-06915
69237AECROU, POIGNEE PORTE AVANT69237-06030 · 69237-62010
69239CBAGUE, POIGNEE PORTE AVANT69239-06030 · 69239-06040
69241HFront door exterior handle pad69241-06080
69242HFront door rear outer handle pad69242-06080
69293GRight front door outer handle buckle69293-33010 · 69293-33030
69294BLeft front door outer handle buckle69293-33020 · 69293-33040
69296Car door inner handle screws69296-02020 · 90084-14006
69296CVIS, POIGNEE INTE PORTE69296-06070 · 69296-0T010
69311ARight front door lock opening lever69311-0A060
69312Left front door lock opening lever69312-0A060
69318Cdoor lock harness seal69318-AA010
69410Front door lock plate assembly69410-02030
69710DCABLE,COMM VERR A DISTANCE PORTE AVANT,MD(LEVIER OUVERTURE)69710-0A040 · 69710-0A050
69720DCABLE,COMM VERR A DISTANCE PORTE AVANT,MG(LEVIER OUVERTURE)69710-0A040 · 69710-0A050
69750ECABLE, VERR INTERNE PORTE AVANT, MD(POUR BOUTON VERR/DEVERR)69750-0A040 · 69750-0A050
69760BCABLE, VERR INTERNE PORTE AVANT, MG(POUR BOUTON VERR/DEVERR)69750-0A040 · 69750-0A050
