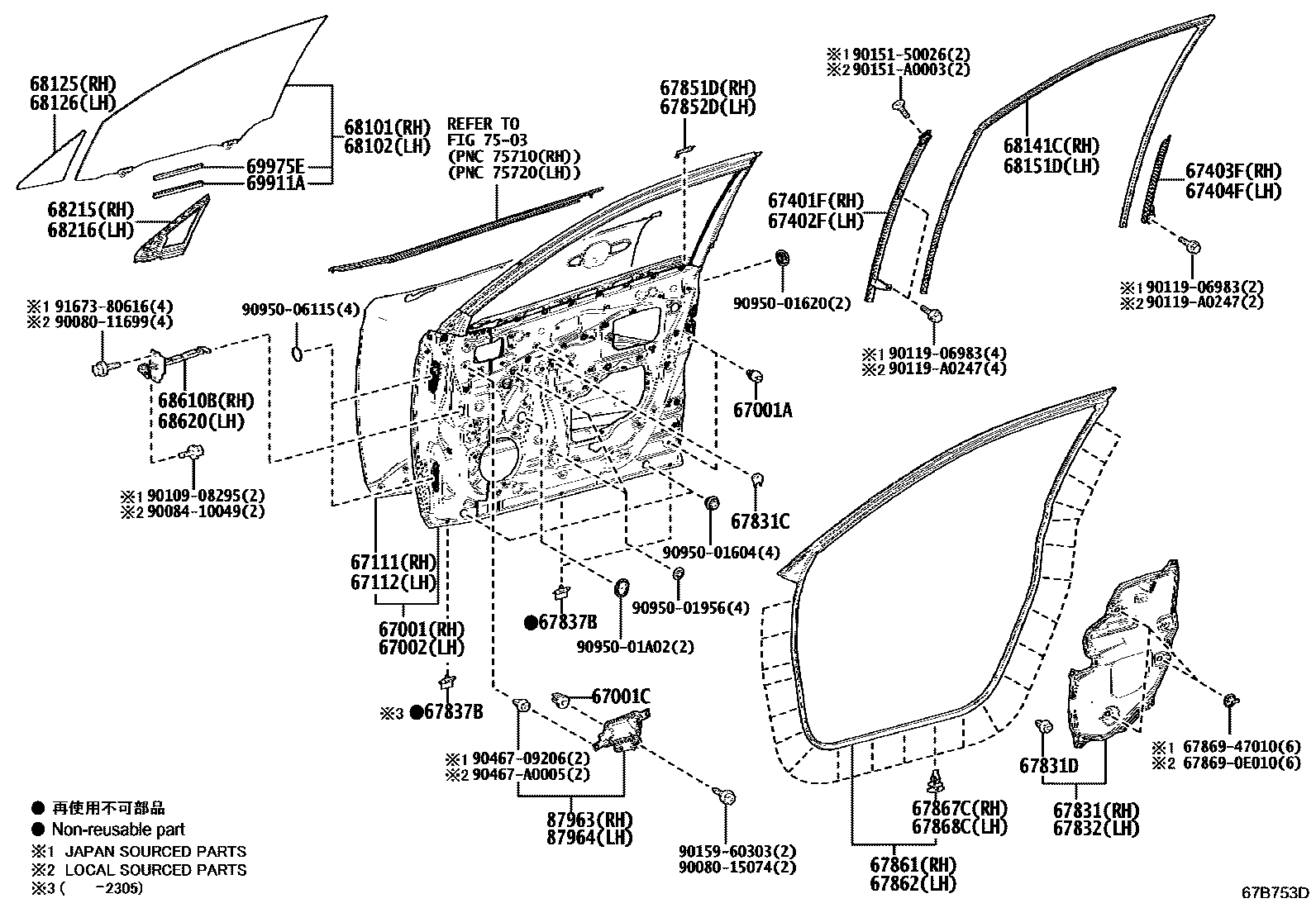

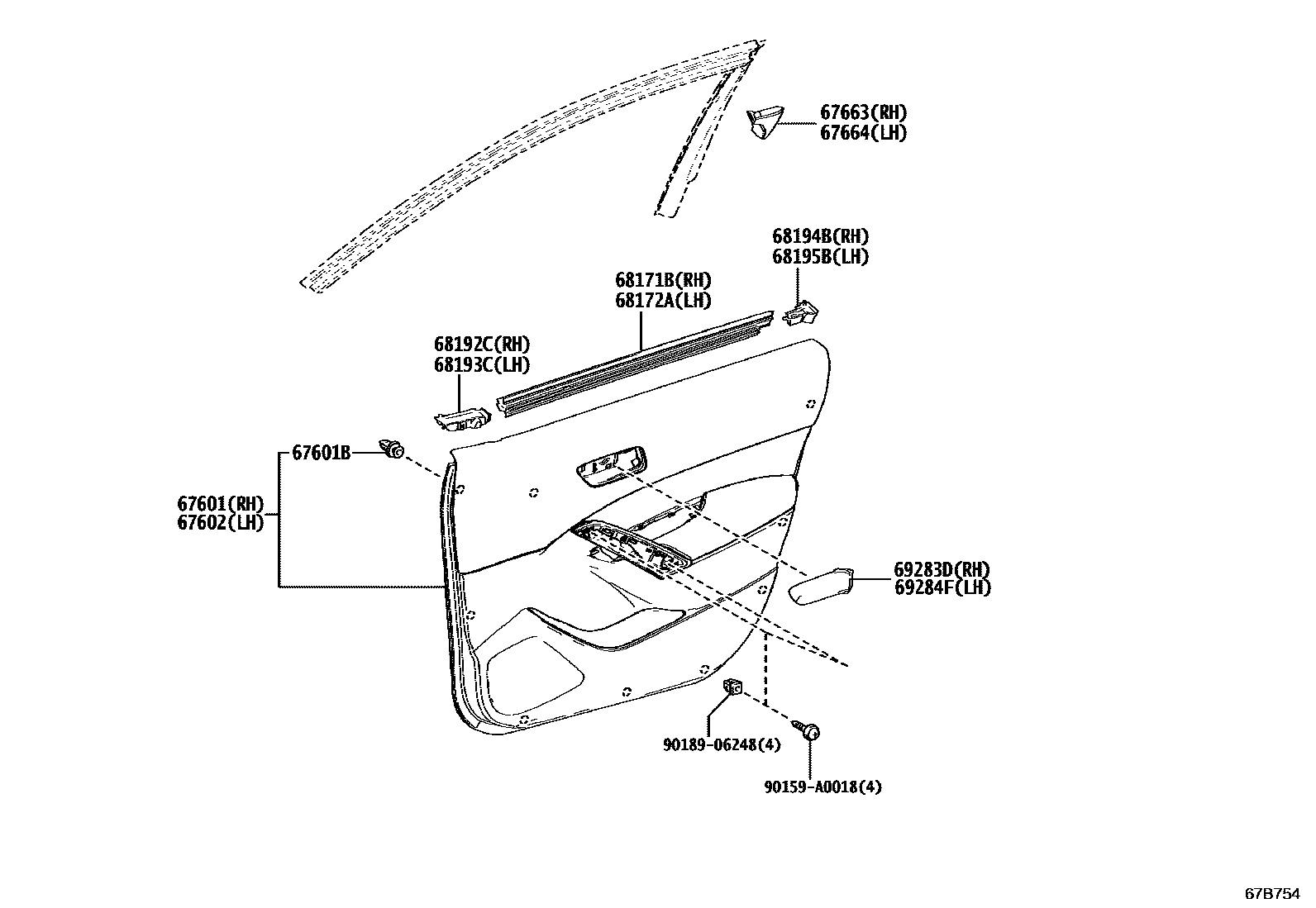

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-0A040 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67001C | Seals (for front door panels) | 90189-06227 |
| 67002 | Left front door panel sub-assembly | 67002-0A040 |
| 67111 | Outer right front door panel | 67111-0A040 |
| 67112 | Outer left front door panel | 67112-0A040 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-0A050 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-0A050 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-0A040 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-0A040 |
| 67601B | Catch (for front door trim panel) | 90467-A0005 · 90467-A0048 |
| 67663 | Decorative strip on right door frame | 67663-0A040 |
| 67664 | Decorative strip on left door frame | 67664-0A040 |
| 67831 | Right front door access hole cover | 67831-0A060 |
| 67831C | Front door access hole cover | 67833-47010 |
| 67831D | Catch (for front door access hole cover) | 90467-09206 · 90467-A0005 |
| 67832 | Left front door access hole cover | 67832-0A060 |
| 67837B | Front door dust seal retainer | 67837-47060 |
| 67851D | JOINT, EXTERIEUR ARRIERE PORTE AVANT, MD | 67851-0A040 |
| 67852D | JOINT, EXTERIEUR ARRIERE PORTE AVANT, MG | 67852-0A040 |
| 67861 | Right front door seal | 67861-0A050 |
| 67862 | Left front door seal | 67862-0A050 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 68101 | Right front door glass sub-assembly | 68101-0A040 |
| 68102 | Left front door glass sub-assembly | 68102-0A040 |
| 68125 | Right front door fixed window glass | 68125-0A040 |
| 68126 | Left front door fixed window glass | 68126-0A040 |
| 68141C | Right front door glass lift channel | 68141-0A060 |
| 68151D | Left front door glass lift channel | 68151-0A060 |
| 68171B | Right front door glass inner sealing strip | 68171-0A050 |
| 68172A | Left front door glass inner sealing strip | 68172-0A050 |
| 68192C | Right front door beltline front seal | 68192-0A040 |
| 68193C | Left front door beltline front seal | 68193-0A040 |
| 68194B | Right front door beltline rear seal | 68194-0A040 |
| 68195B | Left front door beltline rear seal | 68195-0A040 |
| 68215 | Right front door fixed window seal | 68215-0A040 |
| 68216 | Left front door fixed window seal | 68216-0A040 |
| 68610B | Right front door opening limiter assembly | 68610-0A050 |
| 68620 | Left front door opening limiter assembly | 68610-0A050 |
| 69911A | No. 1 front door glass slot | 69955-0E060 |
| 69975E | No. 1 front door glass groove filler | 69975-0E030 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-0A040 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-0A040 |
