Toyota COROLLA 底板和底板装饰罩 — Figure 6404

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 3 images and 7 PNC and OE references.

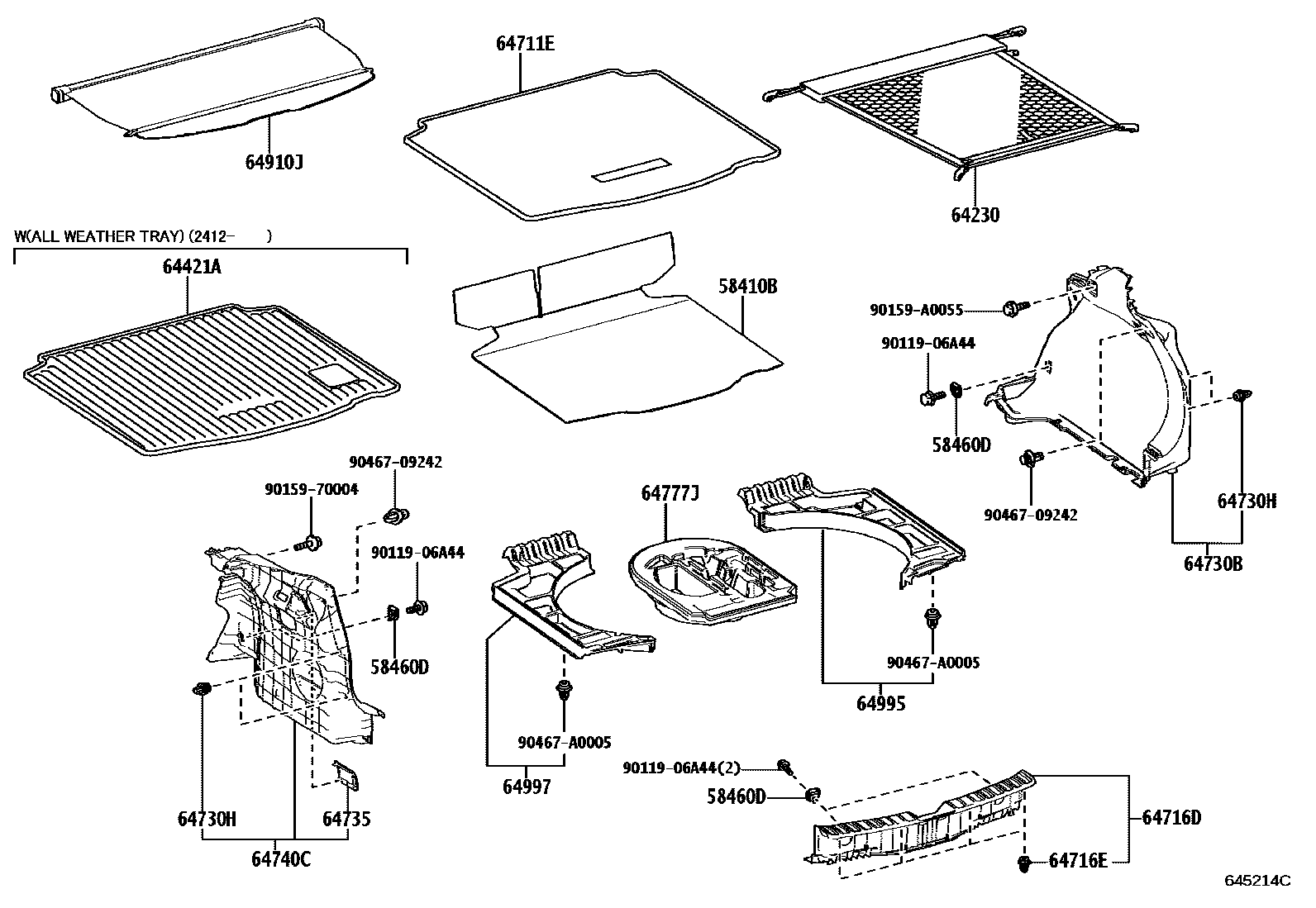

Toyota COROLLA 底板和底板装饰罩 EPC diagram — 645214C
底板和底板装饰罩 — 645214C (202109 – 999999)

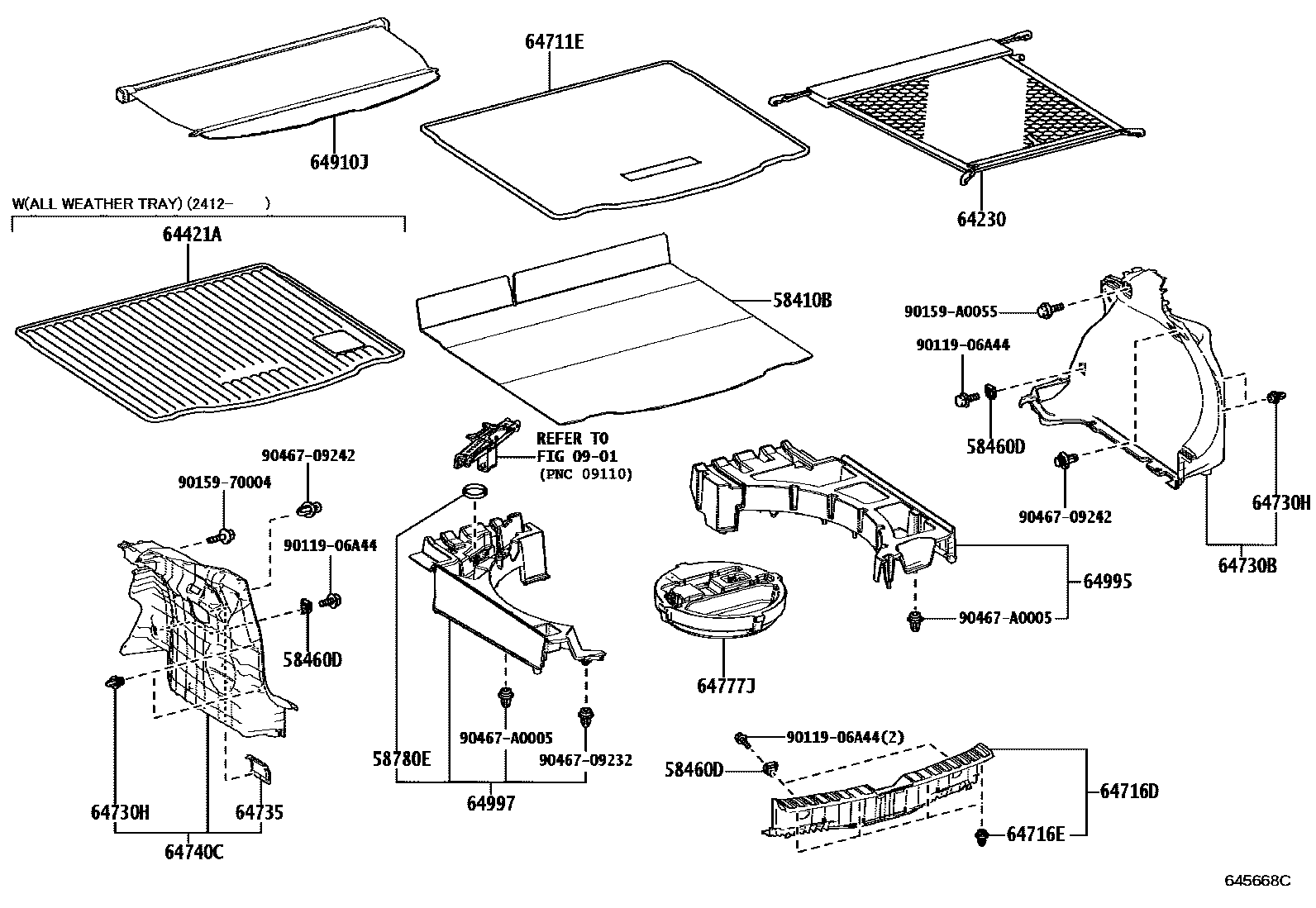

Toyota COROLLA 底板和底板装饰罩 EPC diagram — 645668C
底板和底板装饰罩 — 645668C (202109 – 999999)

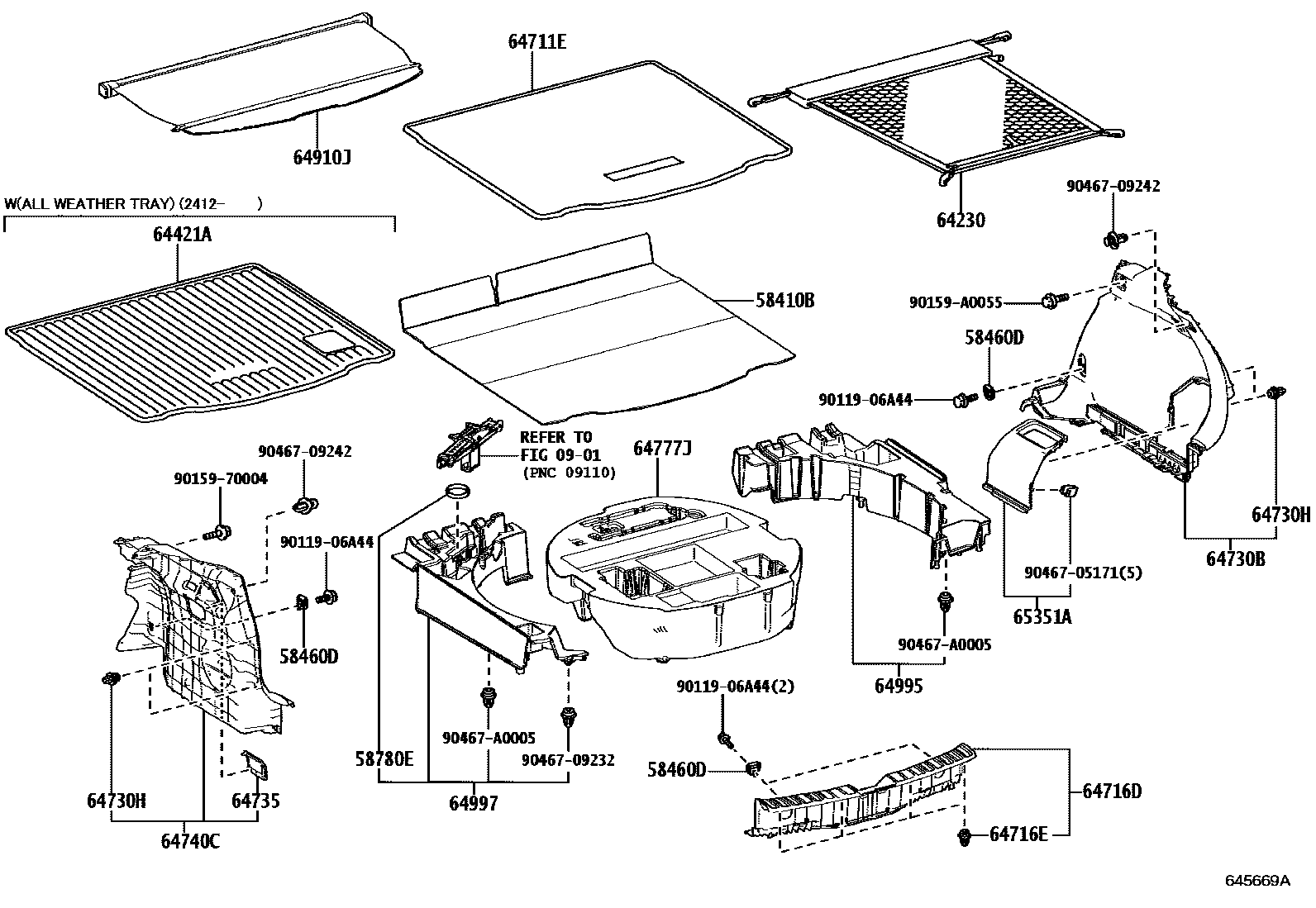

Toyota COROLLA 底板和底板装饰罩 EPC diagram — 645669A
底板和底板装饰罩 — 645669A (202211 – 999999)

PNC and OE references

PNCPart nameOE numbers
58460DLuggage fixing belt lock assembly58460-33020
58780ETool box strap assembly58781-52010
64230Car partition net assembly64230-YY130
64716EClip (for rear floor decorative cover)90467-A0006
64730HClip (for bottom panel side decorative panel)90467-A0006
64777JSpare tire cushion64777-0A071 · 64777-0A110 · 64777-0A140
65351ACACHE, ORIFICE BATTERIE65351-0A010
