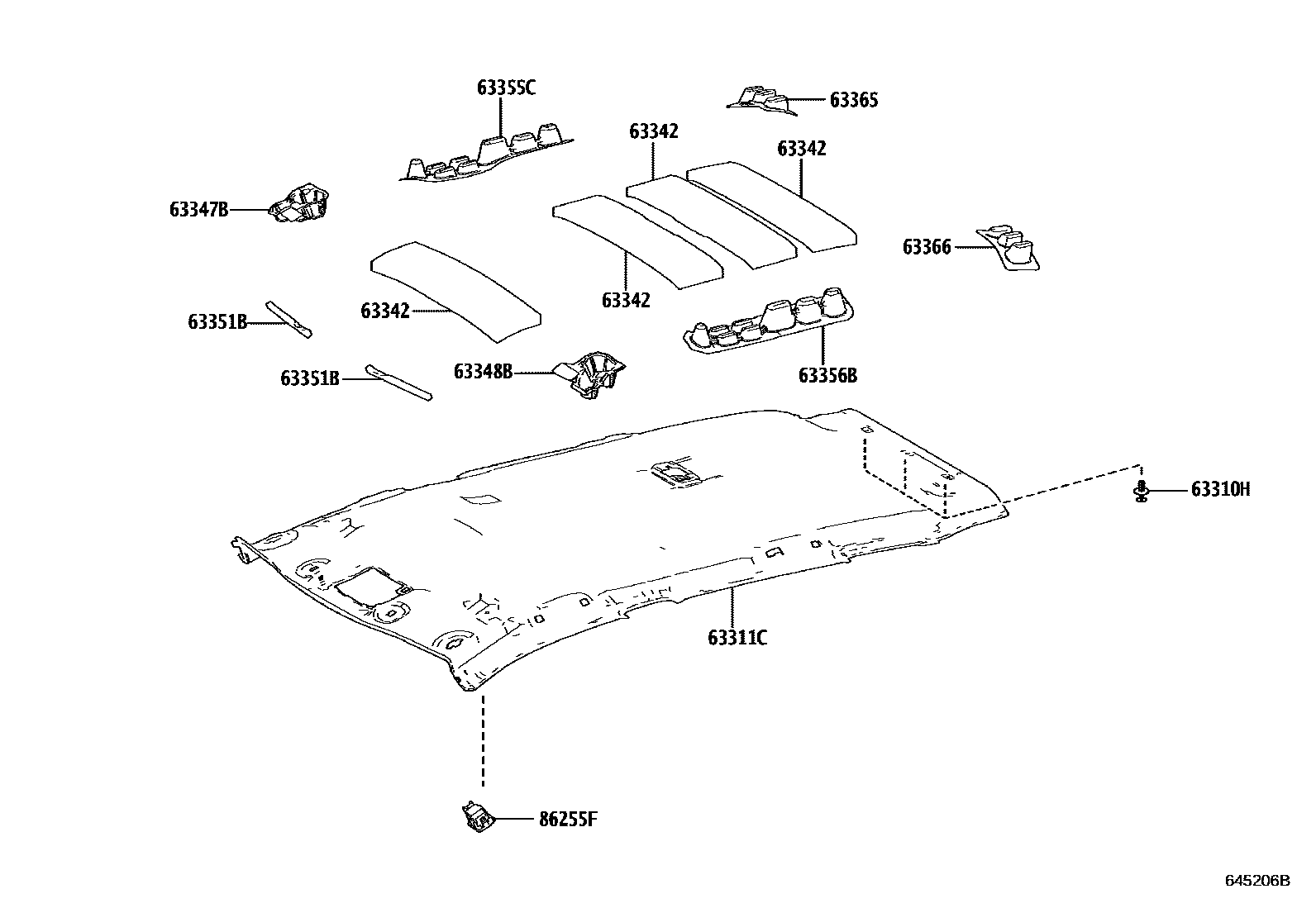

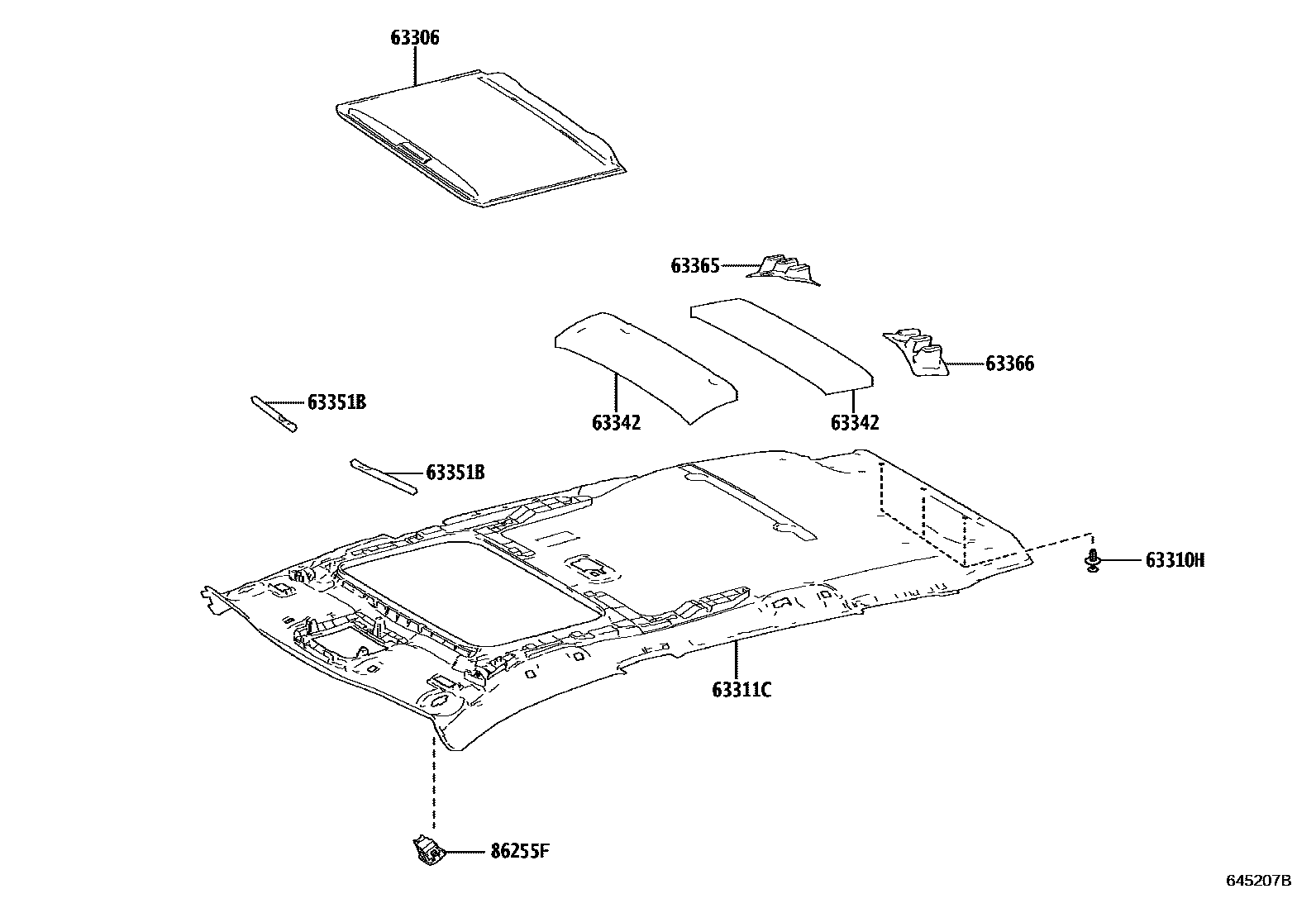

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63342 | No. 2 roof muffler pad | 63342-0A070 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-0A010 |
| 63348B | Roof left side rail silencer pad | 63348-0A010 |
| 63351B | roof lining pads | 63351-0A010 |
| 63355C | Right side roof lining | 63355-0A010 |
| 63356B | Roof left inner lining block | 63356-0A010 |
| 63365 | No. 5 headliner bracket | 63365-0A010 |
| 63366 | No. 6 roof lining bracket | 63366-0A010 |
