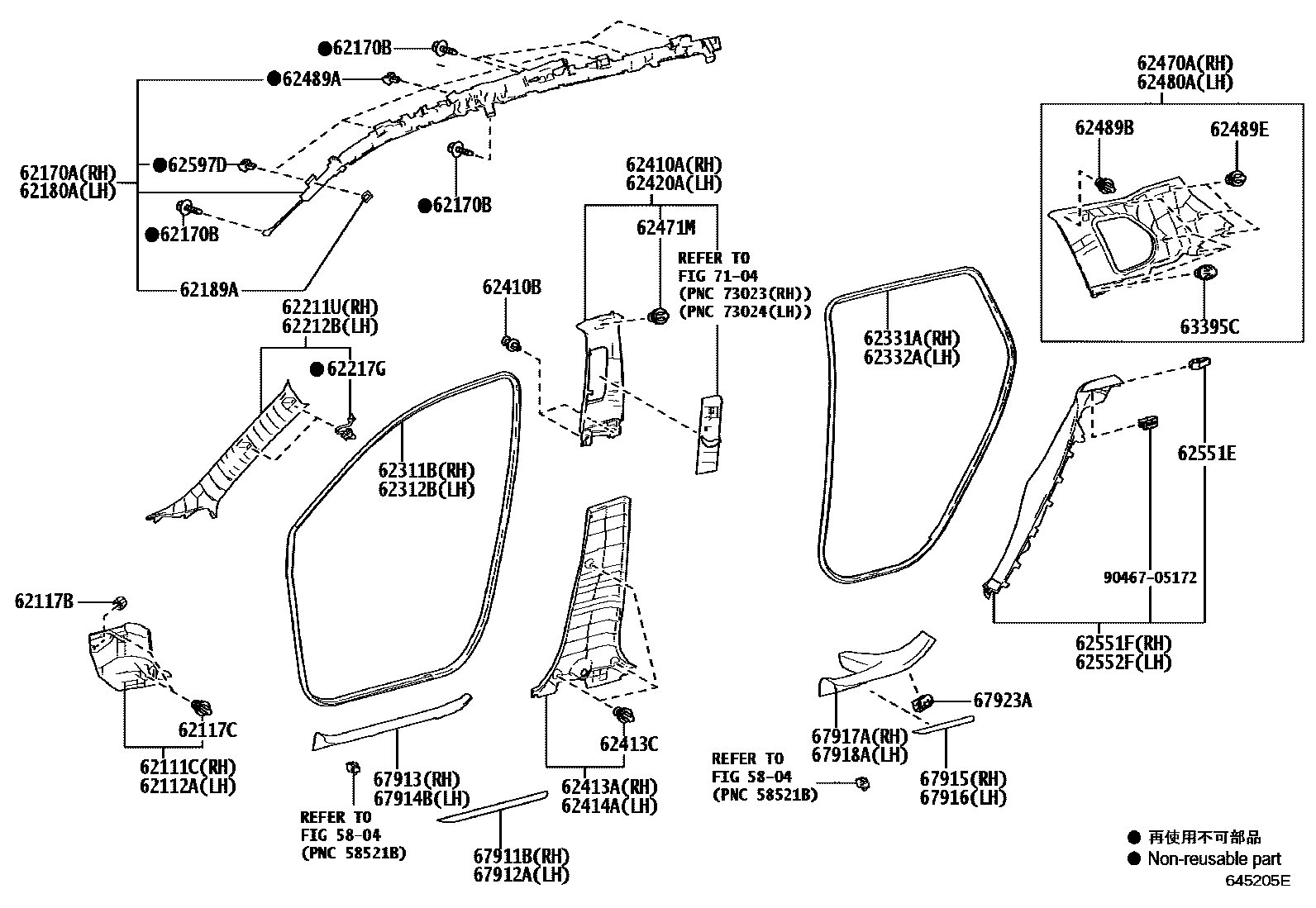

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-A0024 |
| 62117C | No. 2 clip (for cowl side trim panel) | 90467-10167 |
| 62170A | Right curtain air bag assembly | 62170-0A020 · 62170-0A080 |
| 62170B | Bolts with washers | 90080-11699 |
| 62180A | Left curtain air bag assembly | 62180-0A020 · 62180-0A040 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62217G | Front pillar decorative plate clip | 62217-42050 · 62217-42060 |
| 62311B | Right front door opening waterproof tape | 62311-0A040 |
| 62312B | Left front door opening waterproof tape | 62312-0A050 |
| 62331A | Right rear door opening waterproof tape | 62331-0A040 |
| 62332A | Left rear door opening waterproof tape | 62332-0A040 |
| 62410B | clip | 90467-10216 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-A0006 |
| 62471M | clip | 90467-10167 |
| 62489A | Roof side interior panel clips | 62489-28010 |
| 62489B | Roof side interior panel clips | 90467-10188 |
| 62489E | Roof side interior panel clips | 90467-A0006 |
| 62597D | clip | 90467-18017 |
| 63395C | Clips (for roof side interior panels) | 90467-09240 |
| 67911B | Right front door outer wear plate | 67913-YY530 |
| 67912A | Left front door outer wear plate | 67913-YY530 |
| 67915 | Right rear door outer wear plate | 67917-YY260 |
| 67916 | Left rear door outer wear plate | 67918-YY160 |
| 67923A | Car door No. 1 wear plate clip | 67923-20090 |
