Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

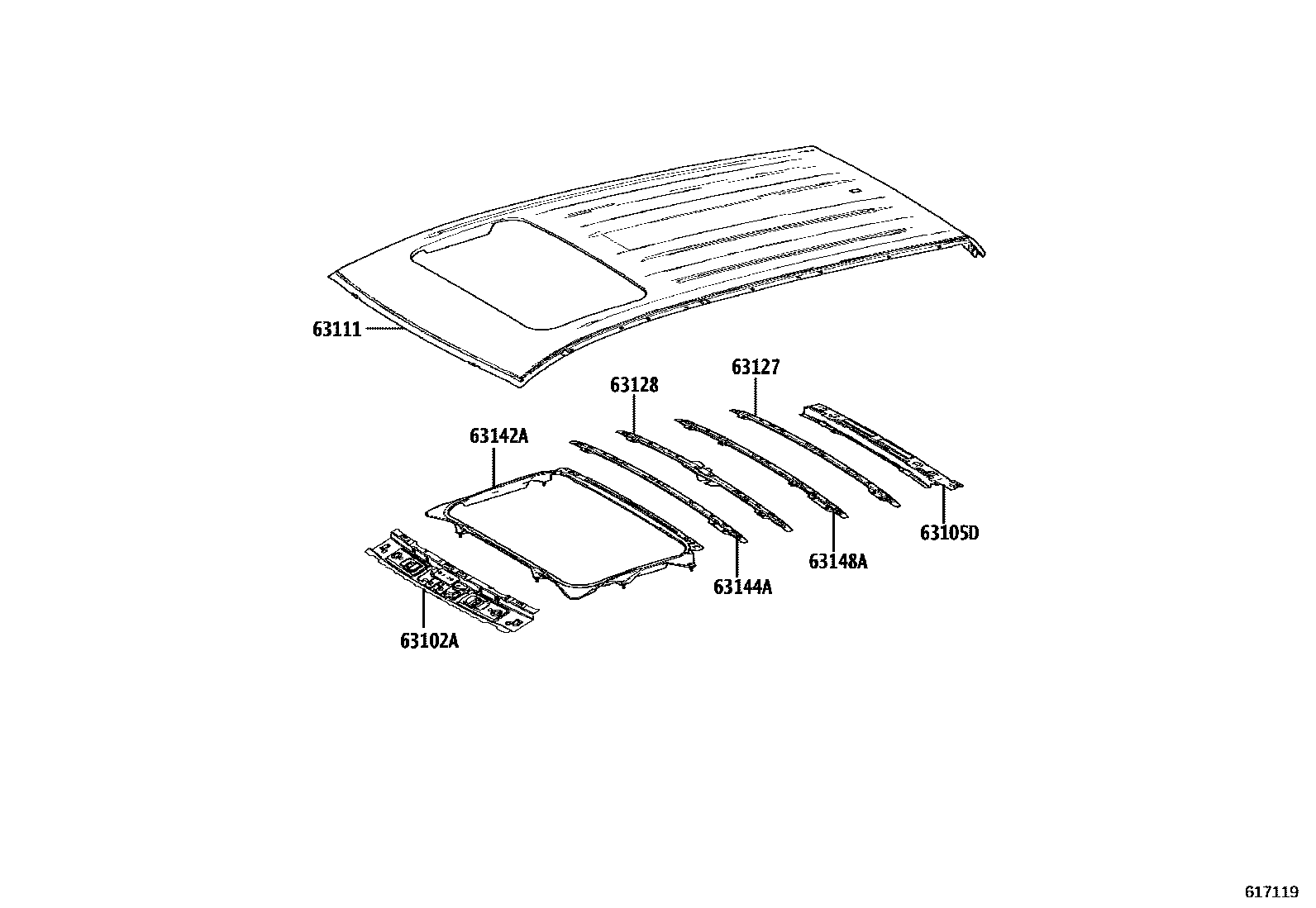

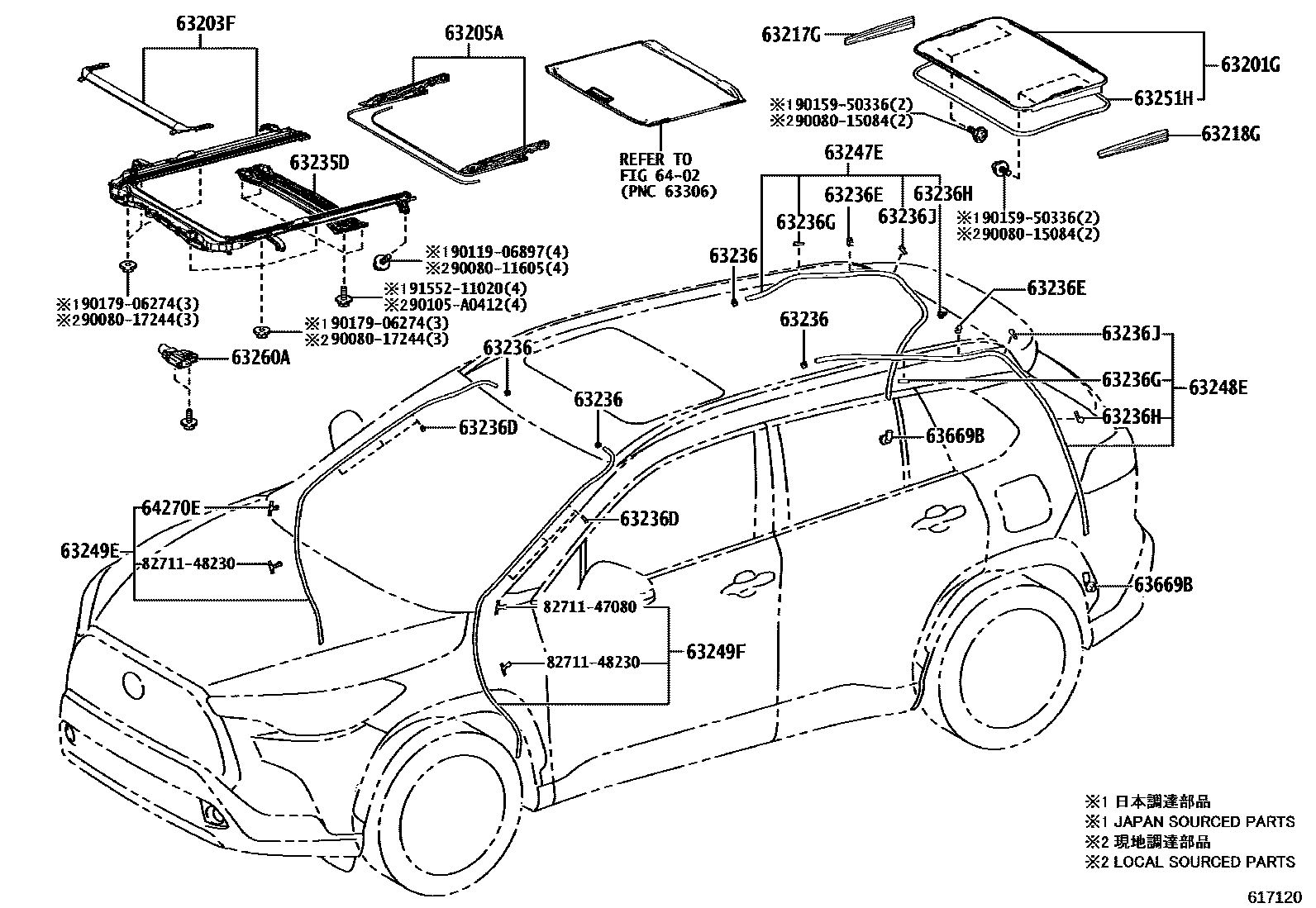

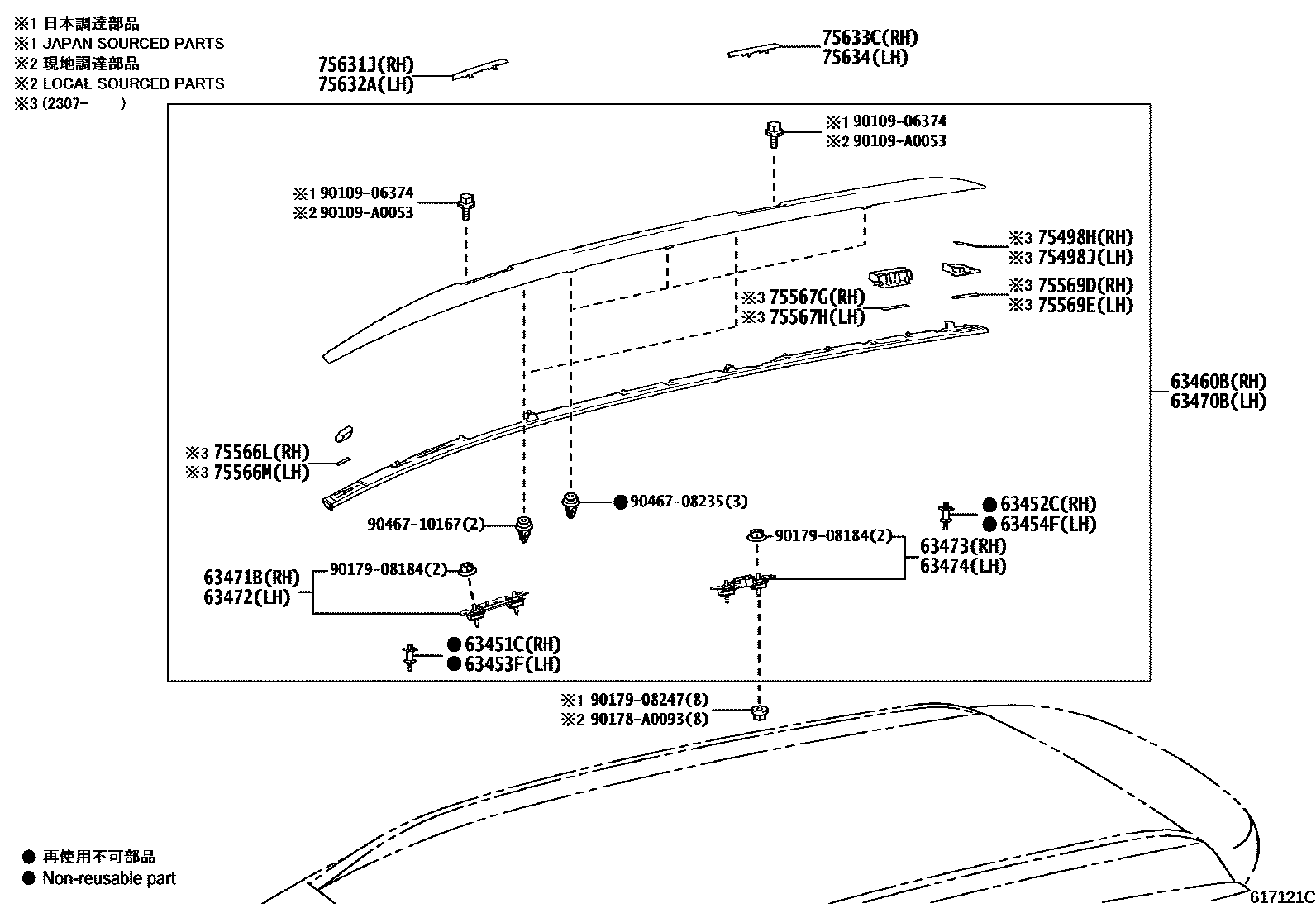

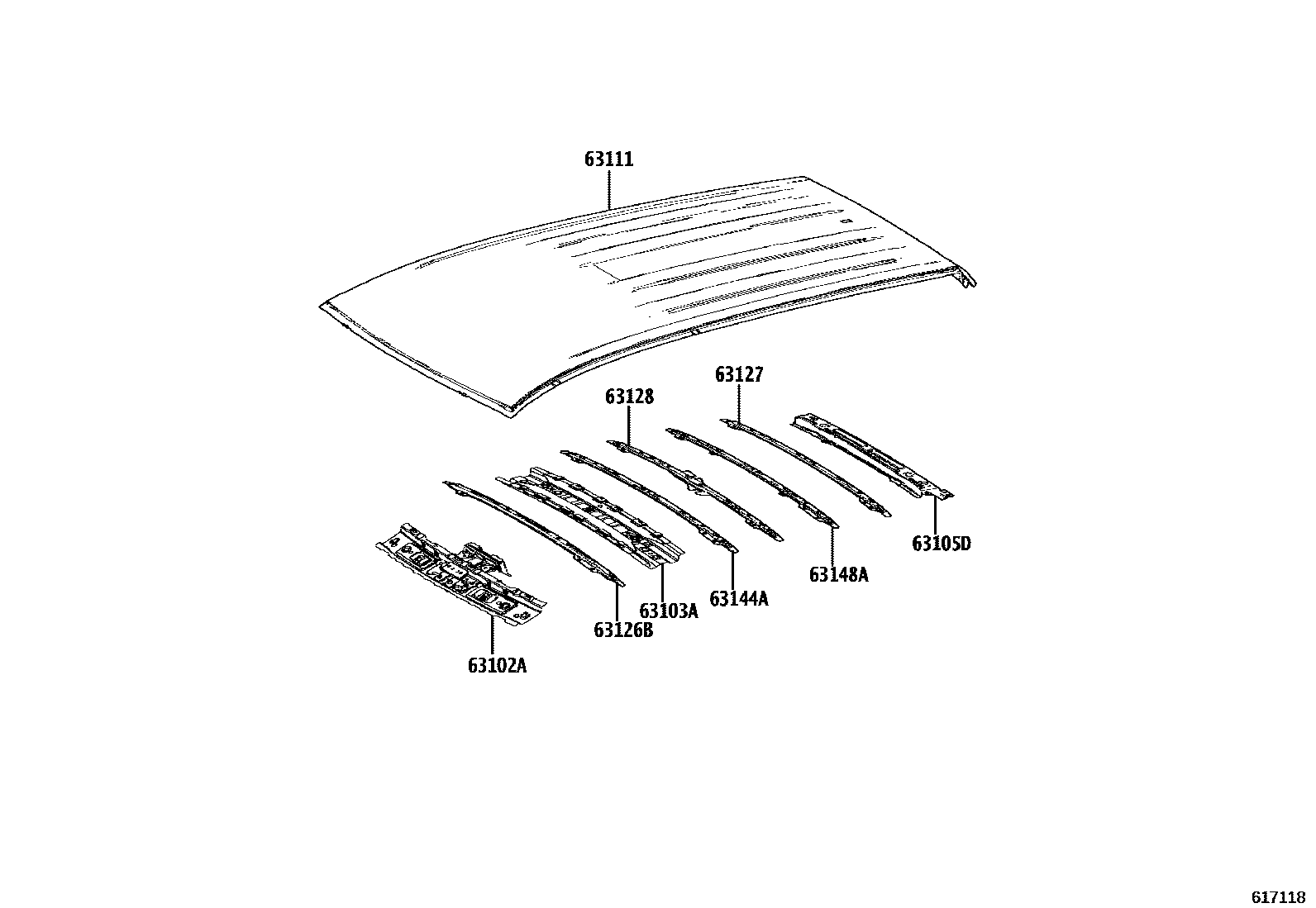

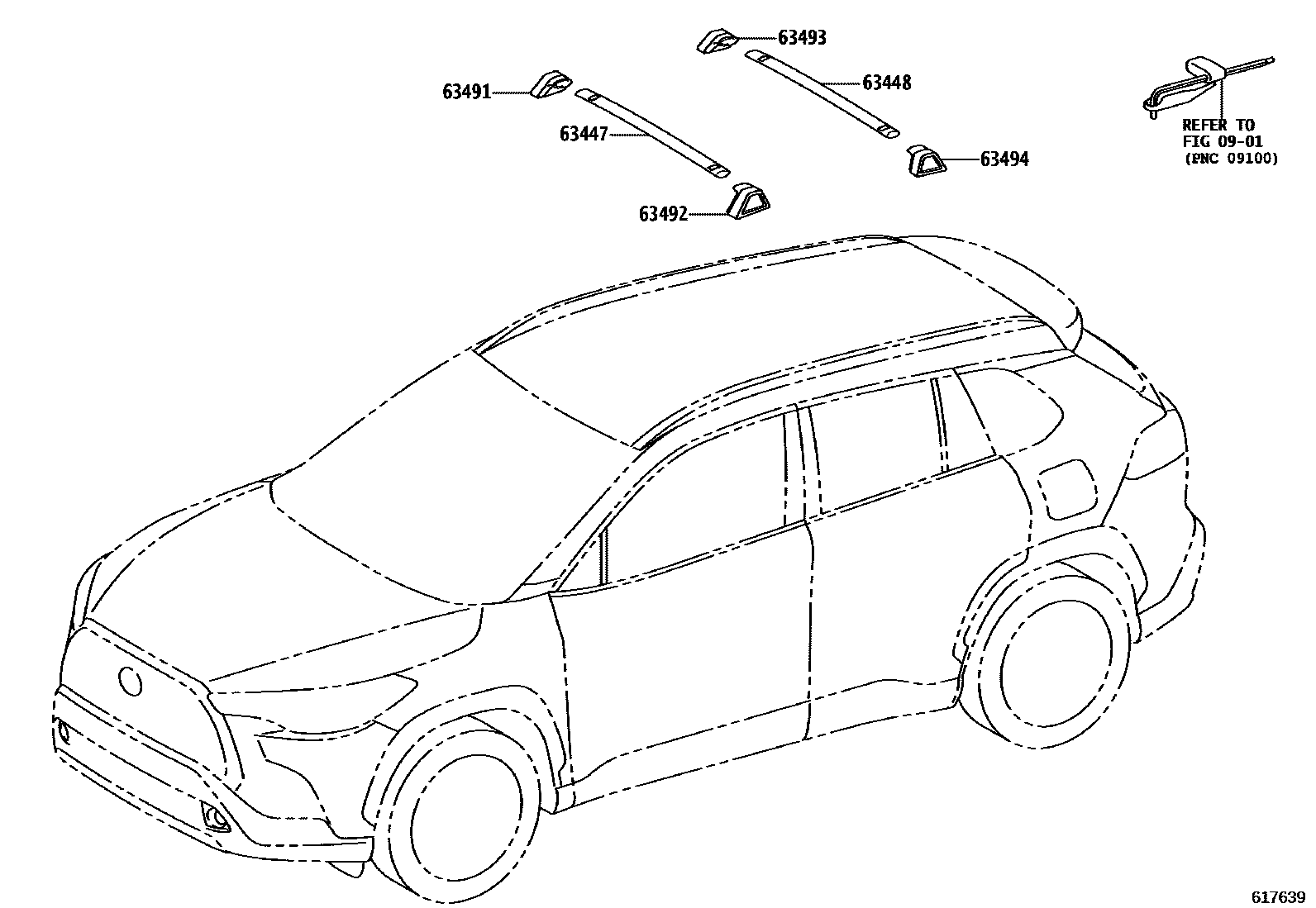

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 5 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-0A010 · 63102-0A080 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-0A010 |
| 63105D | Rear window upper frame sub-assembly | 63105-0A020 |
| 63111 | roof panel | 63111-0A080 · 63111-0A090 · 63111-0A091 · 63111-0A100 · 63111-0A101 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-0A010 |
| 63127 | No. 5 roof panel reinforcement | 63127-0A010 |
| 63128 | No. 6 roof panel reinforcement | 63128-0A010 |
| 63142A | No. 2 roof panel reinforcement | 63142-0A020 |
| 63144A | No. 4 roof panel reinforcement | 63144-0A010 |
| 63148A | No. 7 roof panel reinforcement | 63148-0A010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-0A040 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-0A040 · 63203-0A090 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-02130 · 63205-08030 |
| 63217G | Right sliding sunroof trim | 63217-0E070 |
| 63218G | Sliding sunroof trim, left | 63217-0E070 |
| 63235D | central sliding skylight frame | 63235-02100 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-33030 · 90466-A0008 |
| 63236D | Sliding skylight drain hose clamp | 90469-09004 · 90469-A0006 |
| 63236E | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 63236-42010 |
| 63236G | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 82711-12A80 |
| 63236H | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 82711-60610 |
| 63236J | PINCES, TUYAU DE VIDANGE A COUVERCLE COULISSANT | 86147-30020 |
| 63247E | Right rear sliding sunroof drain hose | 63247-0A070 |
| 63248E | Left rear sliding sunroof drain hose | 63247-0A130 |
| 63249E | Sliding skylight drain hose | 63249-0A070 |
| 63249F | Sliding skylight drain hose | 63249-0A080 |
| 63251H | Sliding skylight seal | 63251-0A040 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-0A010 · 63260-0A090 · 63260-0A091 |
| 63447 | Front roof rack brace | 63447-YY030 |
| 63448 | Rear roof rack brace | 63448-YY030 |
| 63451C | Right front roof rack fixing | 63451-42010 |
| 63452C | Right rear roof rack fixing | 63451-42010 |
| 63453F | Left front roof rack fixing | 63451-42010 |
| 63454F | Left rear roof rack fixing | 63451-42010 |
| 63460B | Roof right luggage rack assembly | 62403-0A040 · 62403-0A041 · 62403-0A042 |
| 63470B | Roof left luggage rack assembly | 62404-0A040 · 62404-0A041 · 62404-0A042 |
| 63471B | Right front roof rack support | 63471-0A040 |
| 63472 | Left front roof rack support | 63472-0A040 |
| 63473 | Right rear roof rack support | 63473-0A040 |
| 63474 | Left rear roof rack support leg | 63474-0A040 |
| 63491 | Right front roof rack leg cover | 63491-YY040 |
| 63492 | Left front roof rack leg cover | 63492-YY040 |
| 63493 | Right rear roof rack foot cover | 63493-YY040 |
| 63494 | Left rear roof rack leg cover | 63494-YY040 |
| 63669B | Sliding skylight drain seal | 63669-50010 |
| 64270E | clip | 82711-47080 |
| 75498H | JOINT, MOULURE EXT, NO.2 MD | 75498-0A040 |
| 75498J | JOINT, MOULURE EXT, NO.2 MG | 75498-0A040 |
| 75566L | JOINT, MOULURE FINITION LAT GOUTTIERE TOIT, AVANT MD | 75566-0A040 |
| 75566M | JOINT, MOULURE FINITION LAT GOUTTIERE TOIT, AVANT MG | 75566-0A040 |
| 75567G | JOINT, MOULURE FINITION LAT GOUTTIERE TOIT, ARR MD | 75567-0A040 |
| 75567H | JOINT, MOULURE FINITION LAT GOUTTIERE TOIT, ARR MG | 75567-0A040 |
| 75569D | JOINT, MOULURE FINITION LAT GOUTTIERE TOIT, NO.3 MD | 75569-0A040 |
| 75569E | JOINT, MOULURE FINITION LAT GOUTTIERE TOIT, NO.3 MG | 75569-0A040 |
| 75631J | No. 1 roof right side trim panel cover | 75631-0A040 |
| 75632A | COUVERCLE, GARNITURE DE COTE DU TOIT , NO.1 MG | 75632-0A040 |
| 75633C | COUVERCLE, GARNITURE DE COTE DU TOIT , NO.2 MD | 75633-0A040 |
| 75634 | COUVERCLE, GARNITURE DE COTE DU TOIT , NO.2 MG | 75634-0A040 |
