Toyota COROLLA 角窗 — Figure 6103

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 6 PNC and OE references.

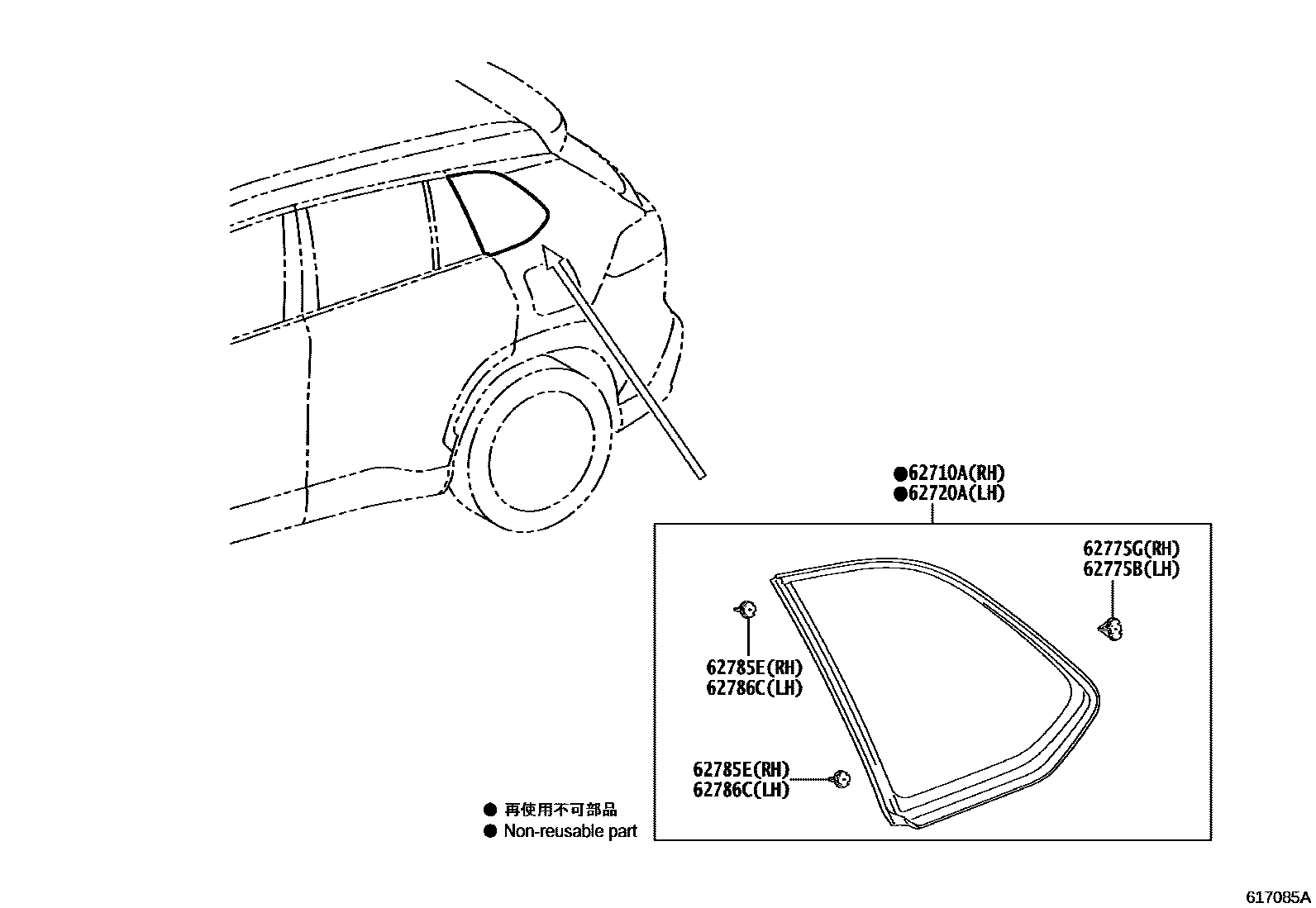

Toyota COROLLA 角窗 EPC diagram — 617085A
角窗 — 617085A (202109 – 999999)

PNC and OE references

PNCPart nameOE numbers
62710ARight corner window assembly62710-0A050 · 62710-0A060
62720ALeft corner window assembly62720-0A050 · 62720-0A060
62775BLeft corner window clip62775-0A010
62775GRight corner window clip62775-0A010
62785ERight corner window glass spacer62785-0A010
62786CLeft corner window glass spacer62785-0A010
